ACPF2●ACPF3●ACPF5●ACPF7●ACPF15●Conveying Vacuum Pump●컨베어링 바큠 펌프●진공펌프●바큠펌프●진공이젝터●진공발생기●(-35kPA)●(5610L/min)●(Air Best)●(AIRBEST)

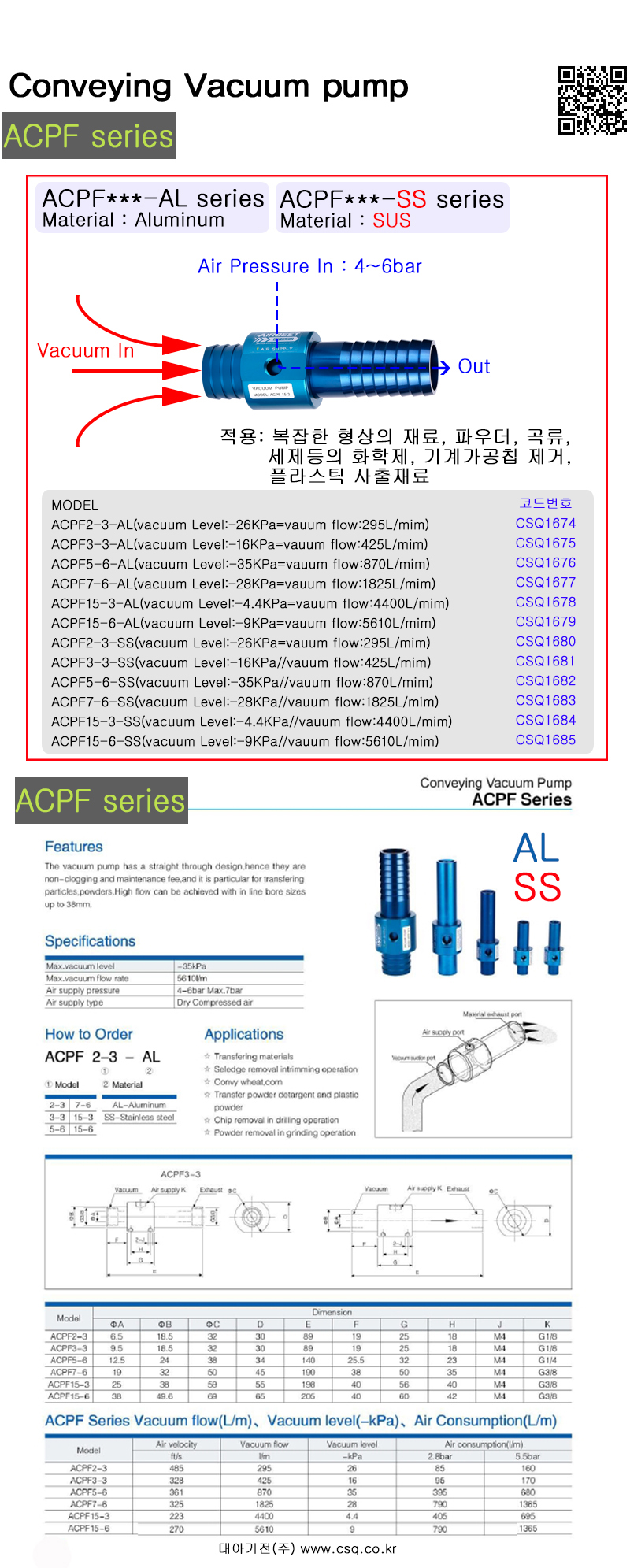

            Airbest Vacuum Pump Catalog ACPF 카탈로그

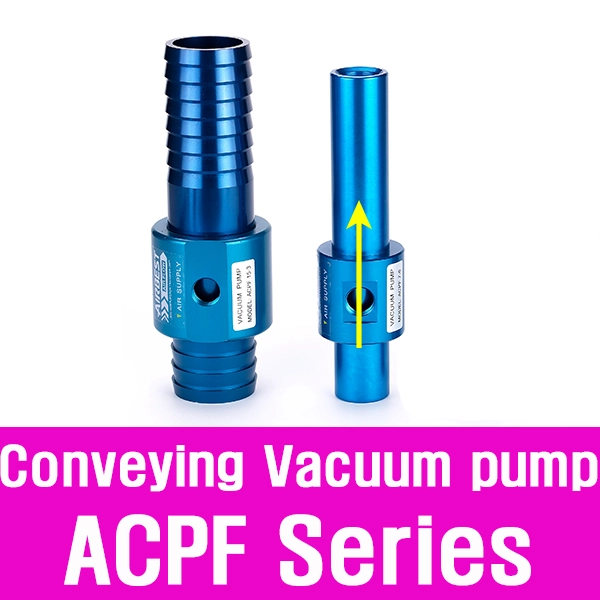

●Conveying Vacuum Pump (material=aluminum alloy)

●ACPF2-3-Nit (-26kPa) (295NL/min) (CSQ1674)

(vacuum=18.5mm) (air supply=G1/8 F) (Exhaust=18.5mm)

●ACPF3-3-Nit (-16kPa) (425NL/min) (CSQ1675)

(vacuum=18.5mm) (air supply=G1/8 F) (Exhaust=18.5mm)

●ACPF5-6-Nit (-35kPa) (870NL/min) (CSQ1676)

(vacuum=24mm) (air supply=G1/4 F) (Exhaust=24mm)

●ACPF7-6-Nit (-28kPa) (1825NL/min) (CSQ1677)

(vacuum=32mm) (air supply=3/8 F) (Exhaust=32mm)

●ACPF15-3-Nit (-4.4kPa) (4400NL/min) (CSQ1678)

(vacuum=38mm) (air supply=G3/8 F) (Exhaust=38mm)

●ACPF15-6-Nit (-9kPa) (5610NL/min) (CSQ1679)

(vacuum=49.6mm) (air supply=3/8 F) (Exhaust=49.6mm)

●Conveying Vacuum Pump (material=Stainless steel)

●ACPF2-3-S (-26kPa) (295NL/min) (CSQ1680)

(vacuum IN=18.5mm) (air supply=G1/8 F) (Exhaust=18.5mm)

●ACPF3-3-S (-16kPa) (425NL/min)  (CSQ1681)

(vacuum IN=18.5mm) (air supply=G1/8 F) (Exhaust=18.5mm)

●ACPF5-6-S (-35kPa) (870NL/min)  (CSQ1682)

(vacuum IN=24mm) (air supply=G1/4 F) (Exhaust=24mm)

●ACPF7-6-S (-28kPa) (1825NL/min)  (CSQ1683)

(vacuum IN=32mm) (air supply=G3/8 F) (Exhaust=32mm)

●CPF15-3-S (-4.4kPa) (4400NL/min) (CSQ1684)

(vacuum IN=38mm) (air supply=3/8 F) (Exhaust=38mm)

●ACPF15-6-S (-9kPa) (5610NL/min) (CSQ1685)

(vacuum IN=49.6mm) (air supply=3/8 F) (Exhaust=49.6mm)
