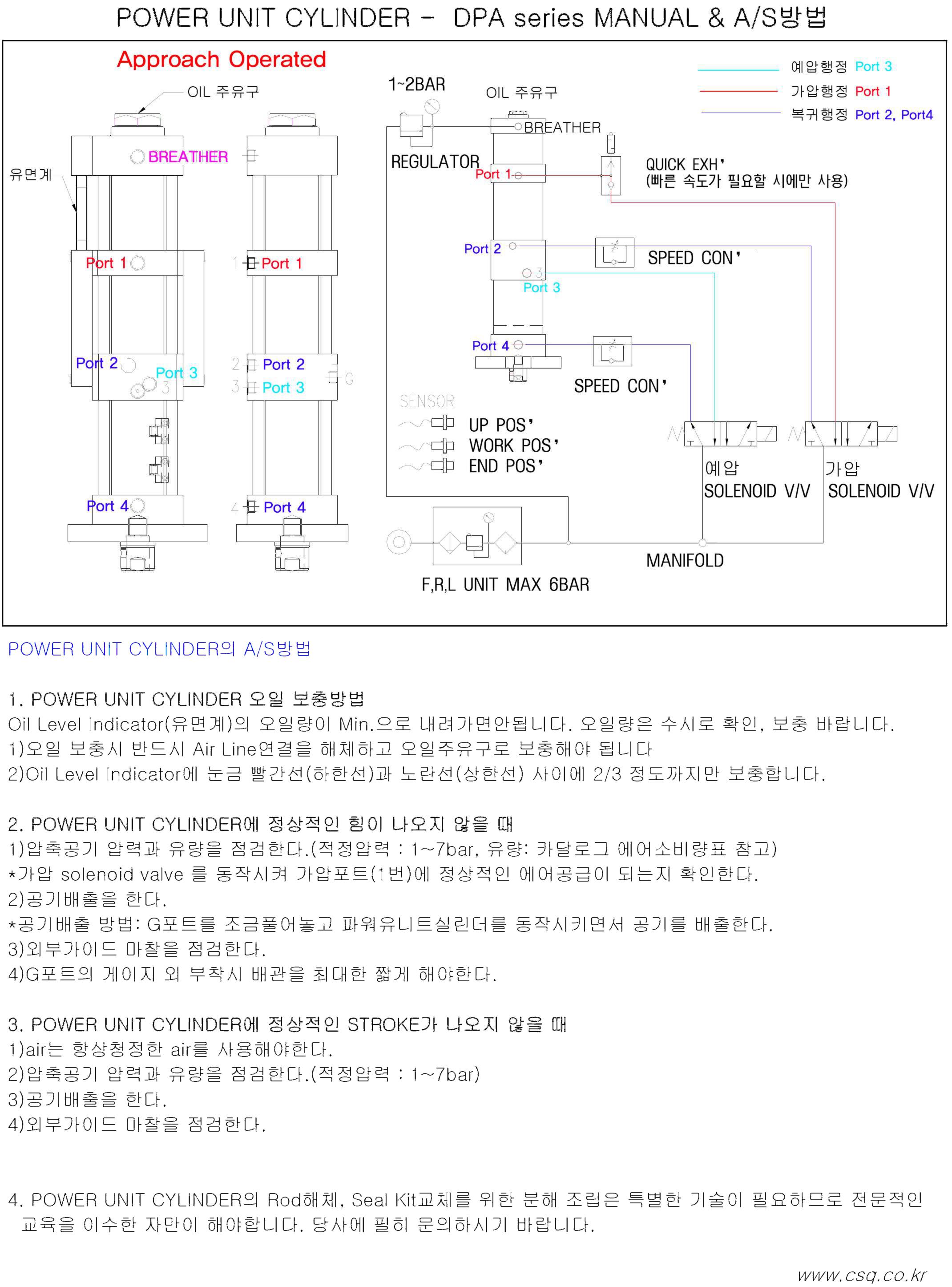

(동작원리, Approach stork )Power Cylinder●DPA-010●DPA-020●DPA-030●DPA-050●DPA-075●DPA-100●DPA-200●DPA-300●Approach stork Power Unit Cylinder●Approach stork Pressure boost●딕털 예압식 파워 유니트 실린더●(DETER)

관련자료 (CLICK)

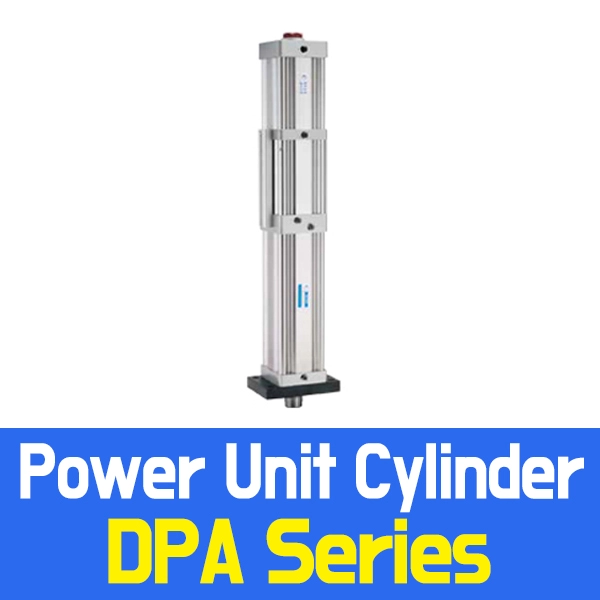

●DPA  Power unit cylinder (force air supply 5bar)

●total strok=(Approach stork + working stroke)

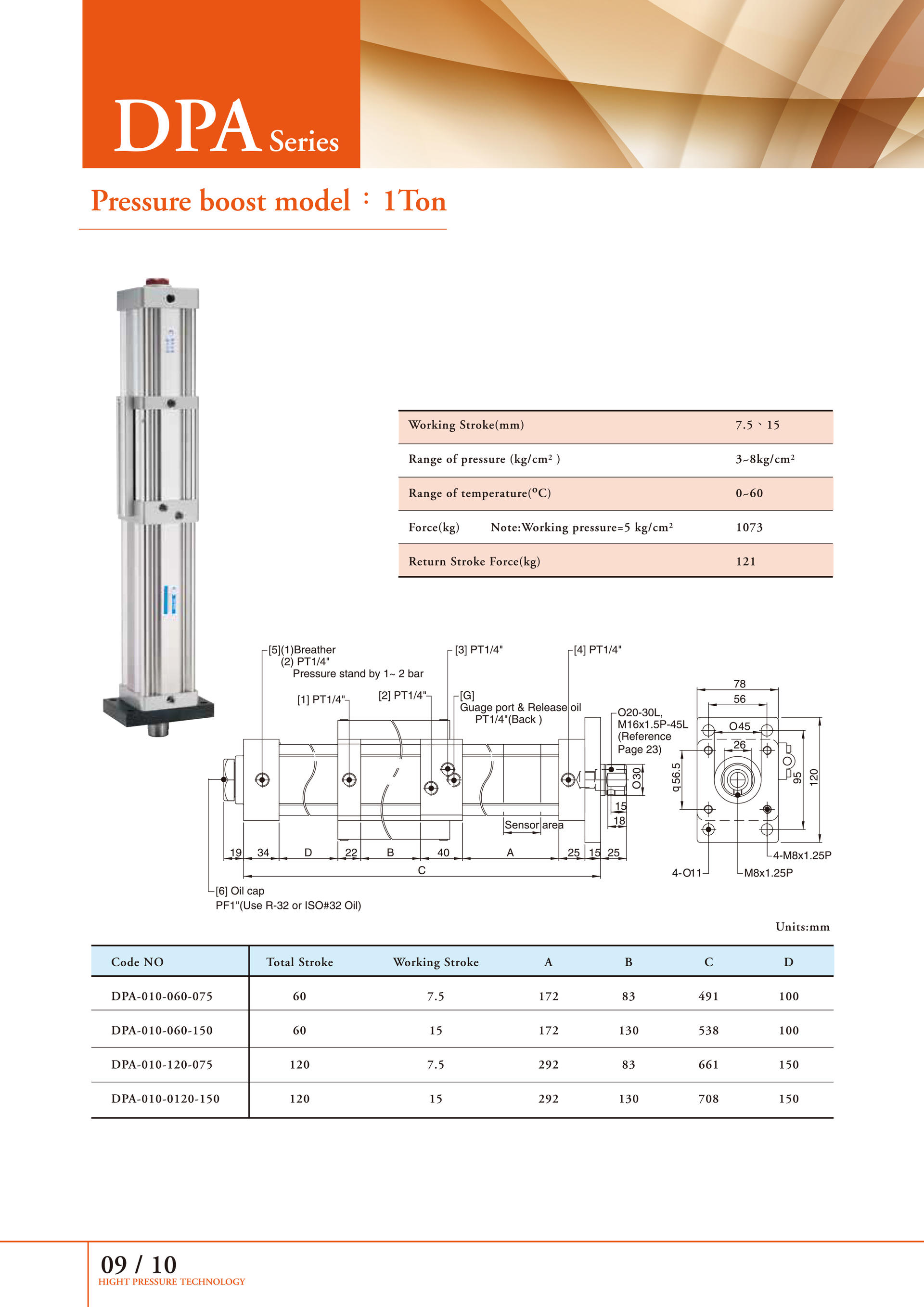

●DPA-010-060-150 (DME0008)

(Total=60mm) (working=15mm) (1 ton)

●DPA-010-120-150 (DME0009)

(Total=120mm) (working=15mm) (1ton)

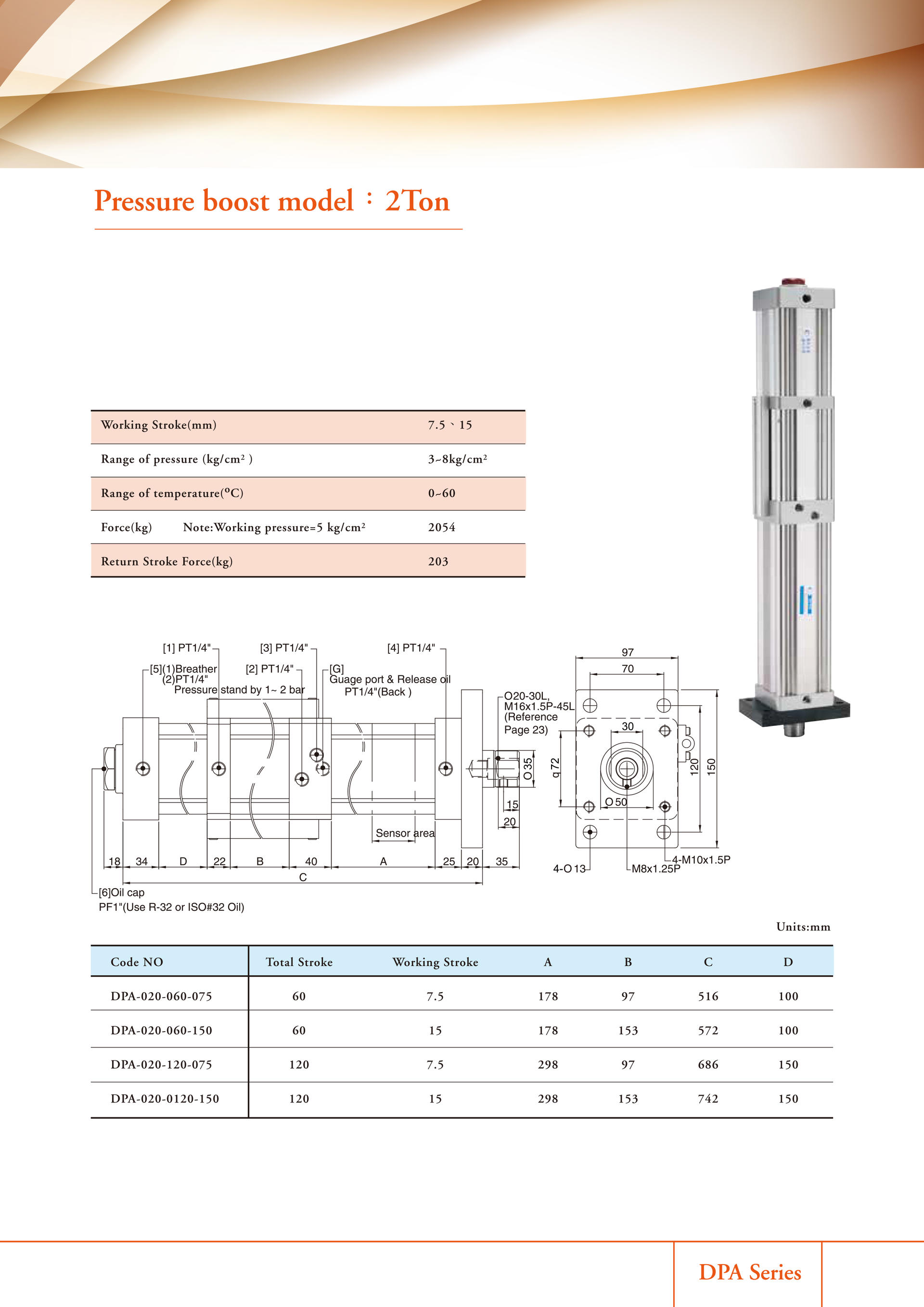

●DPA-020-060-150 (DME0011)

(Total=60mm) (working=15mm) (2 ton)

●DPA-020-120-150 (DME0012)

(Total=120mm) (working=15mm) (2 ton)

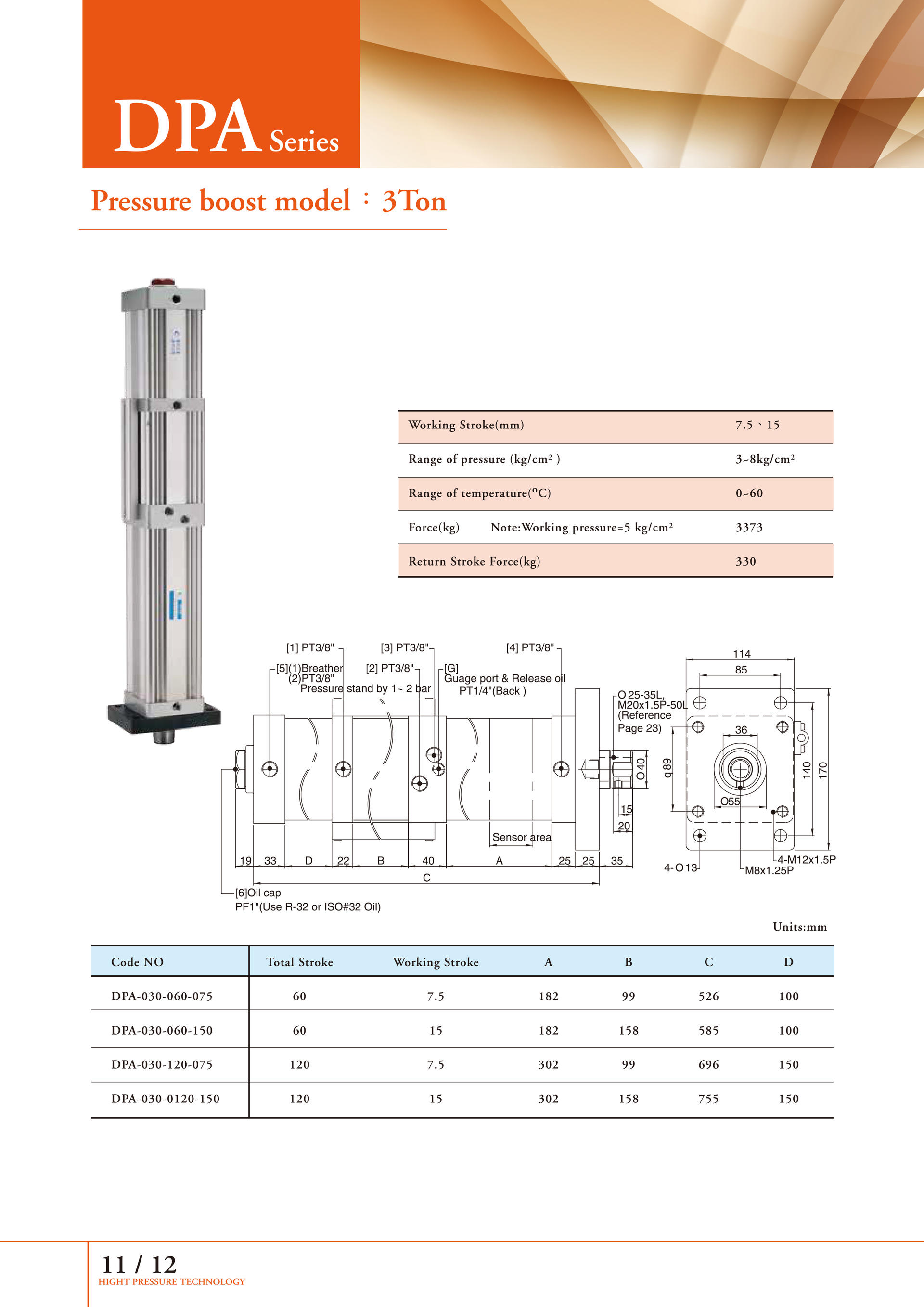

●DPA-030-060-150 (DME0015)

(Total=60mm) (working=15mm) (3 ton)

●DPA-030-120-150 (DME0016)

(Total=120mm) (working=15mm) (3 ton)

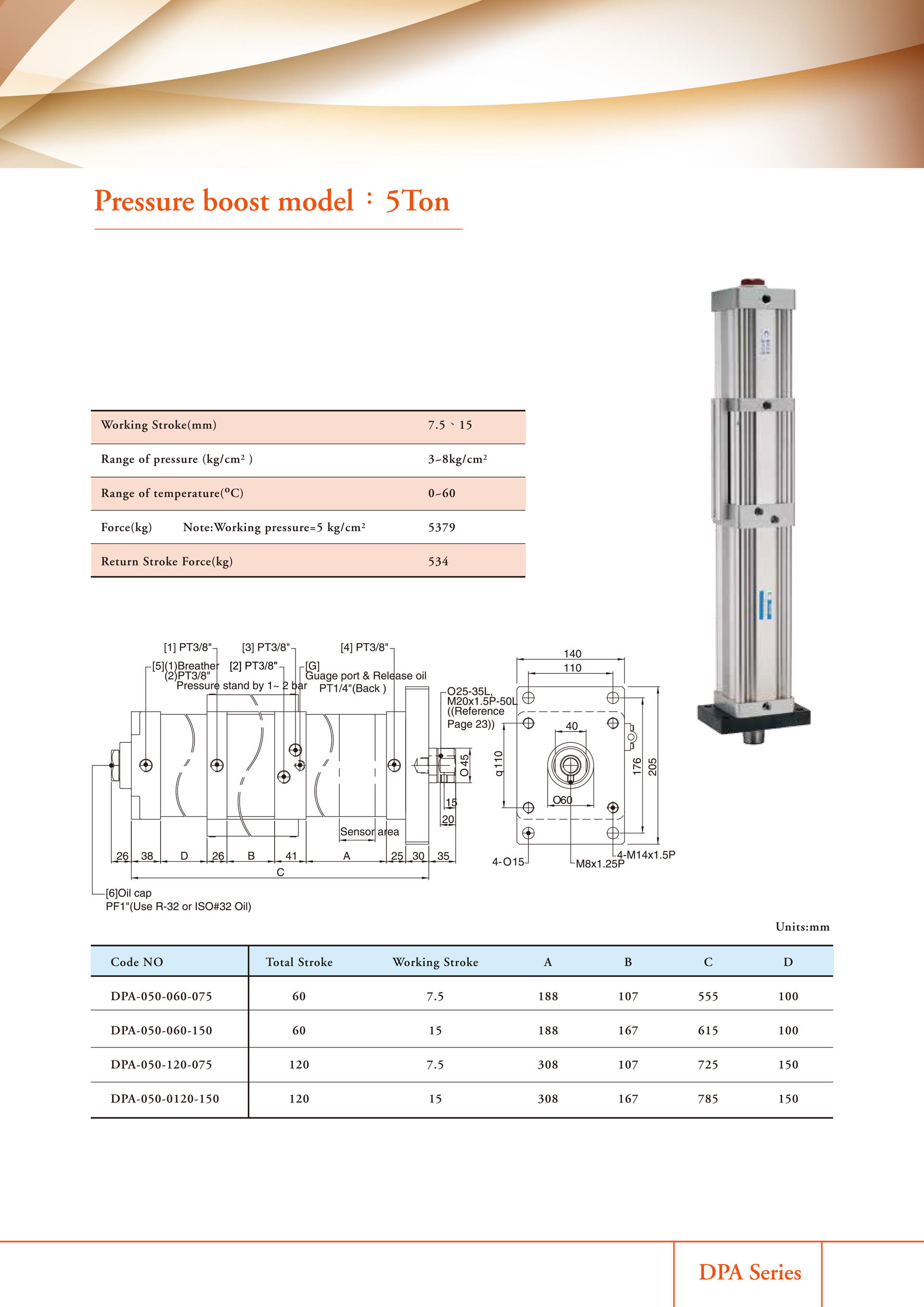

●DPA-050-060-150 (DME0020)

(Total=60mm) (working=15mm) (5 ton)

●DPA-050-120-150 (DME0024)

(Total=120mm) (working=15mm) (5 ton)

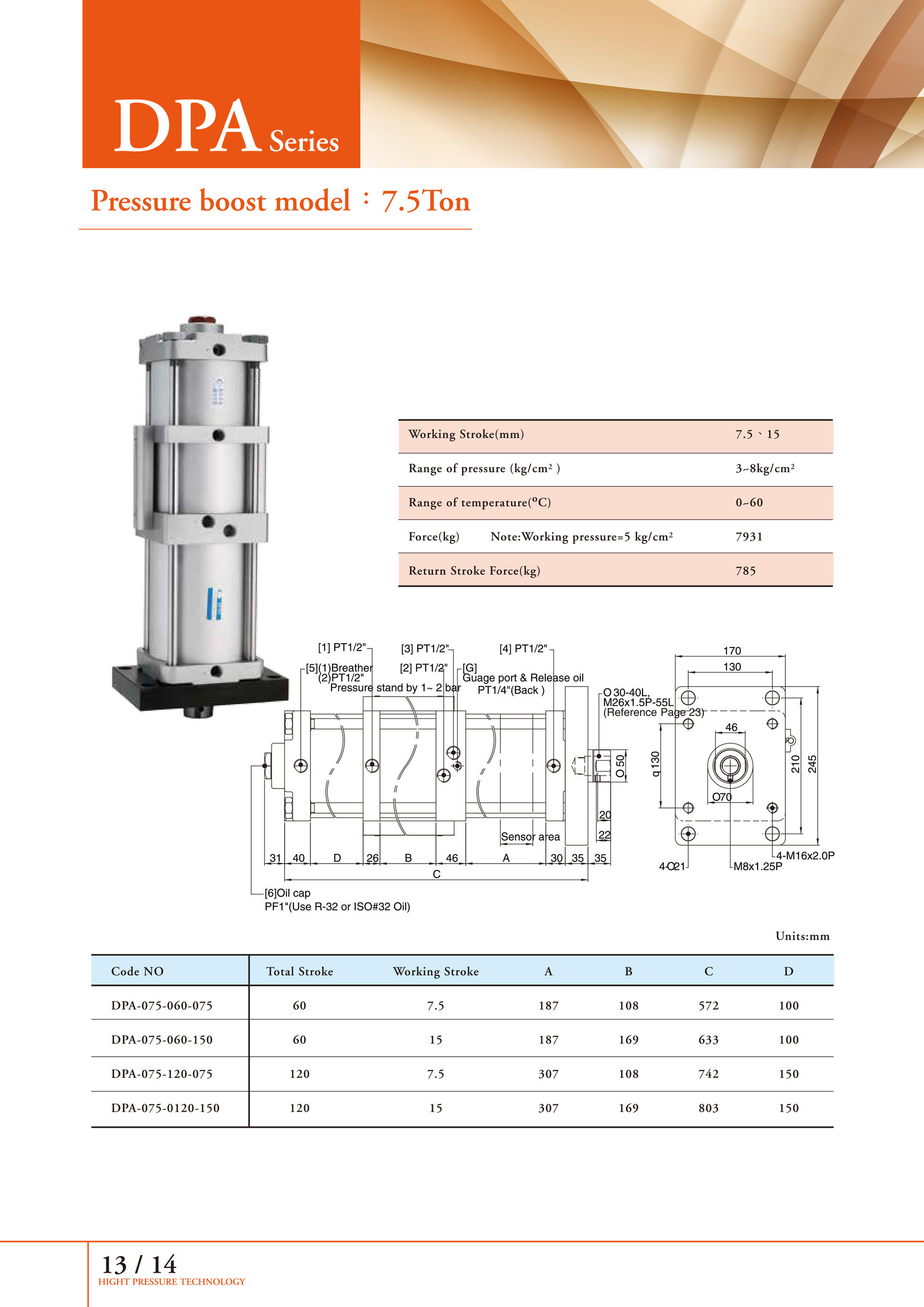

●DPA-075-060-150 (DME0027)

(Total=60mm) (working=15mm) (7 ton)

●DPA-075-120-150 (DME0028)

(Total=120mm) (working=15mm) (7 ton)

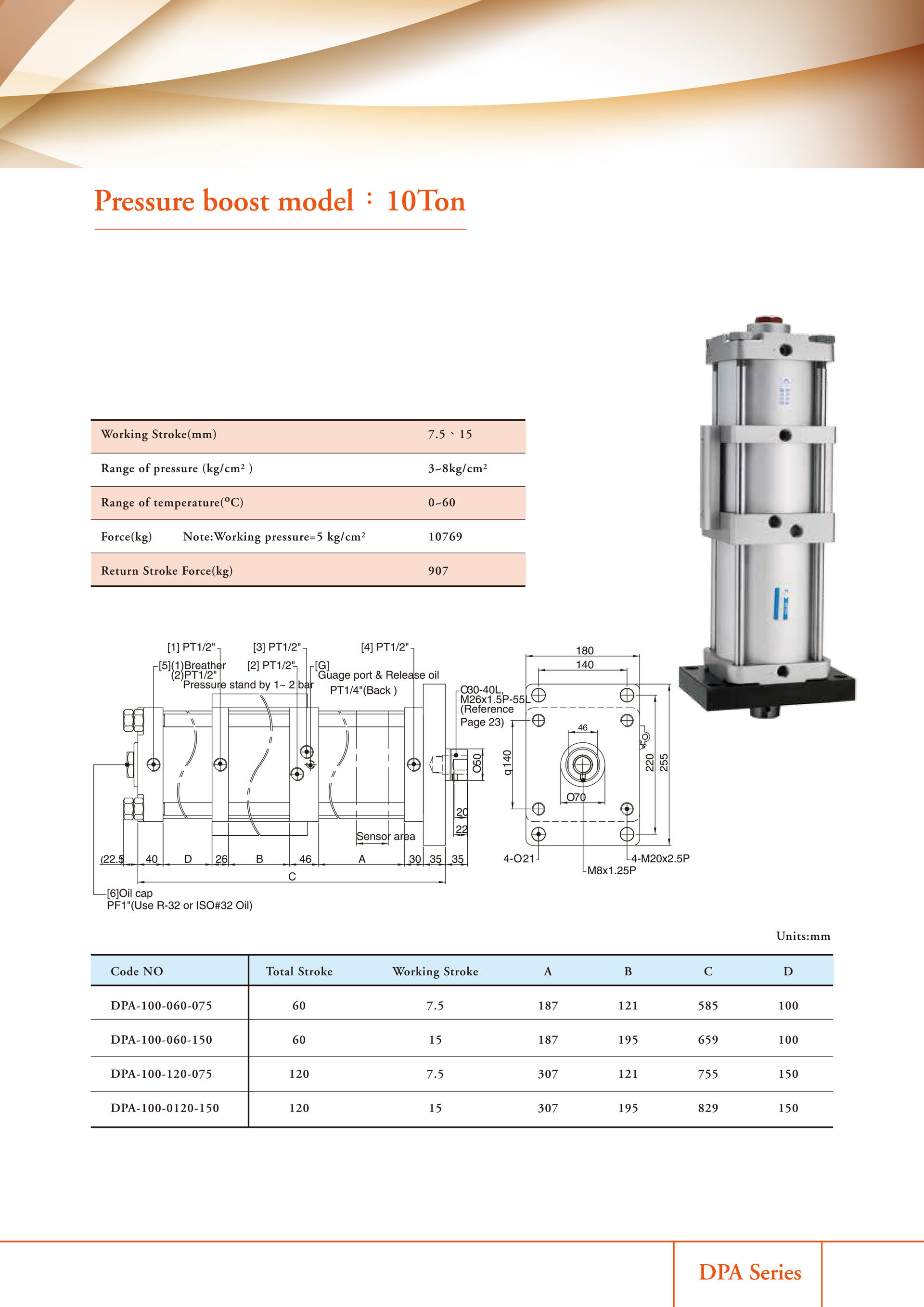

●DPA-100-060-150 (DME0029)

(Total=60mm) (working=15mm) (10 ton)

●DPA-100-120-150 (DME0030)

(Total=120mm) (working=15mm) (10 ton)

●DPA-200-120-150(DME0031)

(Total=120mm) (working=15mm) (20 ton)

●DPA-300-120-150 (DME9721)

(Total=120mm) (working=15mm) (30 ton)
