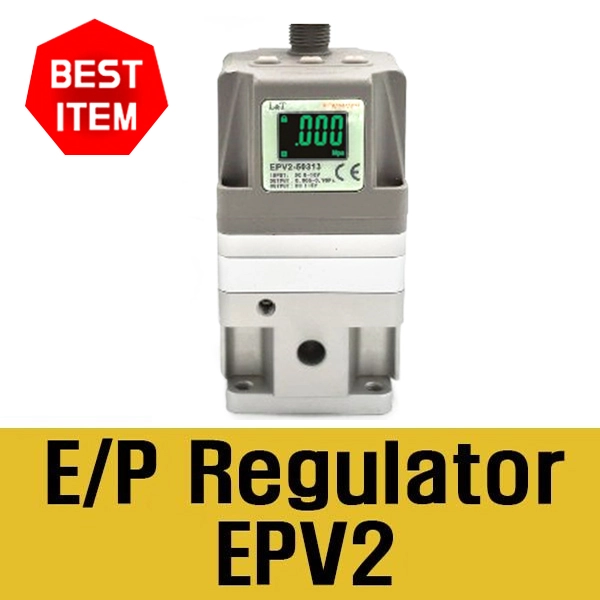

EPV2(E/P)●EPV2-3001● EPV2-5002●ITV2000●ITV2010●ITV2030●ITV2050●2/2way E/P Regulator●전공 레귤레이터●전자식 전공 레귤레이터●RFS 전공레귤레이터●(option OUTPUT=MODBUS OVER SERIAL LINE)●(NPT1/4 F, standard)●(NPT3/8 F)●(RFS)

BEST

관련자료 (CLICK)

●(EPV2, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~9Bar) (Input=4~20mA) (output=1~5V)

●EPV2-5001N2S (Input=4~20mA) (output=1~5V) (NPT1/4 F) (csq2560)

●(EPV2, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~9Bar) (Input=0~10V) (output=1~5V)

●EPV2-5021N2S (Input=0~5V) (output=1~5V) (NPT1/4 F) (csq4939)

●(EPV2, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~9Bar) (Input=0~10V) (output=1~5V)

●EPV2-5031N2S (Input=0~10V) (output=1~5V) (NPT1/4 F) (csq2633)

●(EPV2, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~9Bar) (Input=4~20mA) (output=NPN)

●EPV2-5002N2S (Input=4~20mA) (output=NPN) (NPT1/4 F) (csq2562)

●(EPV2, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~9Bar) (Input=4~20mA) (output=NPN)

●EPV2-5014N2S (Input=0~20mA) (output=4~20mA) (NPT1/4 F) (csq4337)

●(EPV2, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~9Bar) (Input=4~20mA) (output=4~20mA)

●EPV2-5004N2S (Input=4~20mA) (output=4~20mA) (NPT1/4 F) (csq4292)

●(EPV2, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~5Bar) (Input=4~20mA) (output=1~5V)

●EPV2-3001N2S (Input=4~20mA) (output=1~5V) (NPT1/4 F) (csq2559)

●(EPV2, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~5Bar) (Input=0~10V) (output=4~20mA)

●EPV2-3034N2S (Input=0~10V) (output=4~20mA) (NPT1/4 F)(csq3371)

●(EPV2, E/P Regulator) (power=DC24V) (straight=3m)

(Input=4~20mA) (output=MODBUS)

●EPV2-100MBN2S (pressure=0.005~1bar) (NPT1/4 F)

● EPV2-3001N2S (pressure=0.005~5bar) (NPT1/4 F) (CSQ5057)

●EPV2-500MBN2S (pressure=0.005~9bar) (NPT1/4 F) (CSQ5058)

●(EPV2, E/P Regulator) (power=DC24V) (straight=3m)

(Input=0~10V) (output=MODBUS)

●EPV2-103MBN2S (pressure=0.005~1bar) (NPT1/4 F)

● EPV2-3031N2S (pressure=0.005~5bar) (NPT1/4 F) (CSQ4893)

●EPV2-503MBN2S (pressure=0.005~9bar) (NPT1/4 F)

●(only,EPV1. EPV2, EPV3 bracked)

●B code (for EPV1. EPV2, EPV3   Flat type bracked) (csq3526)

●C code (for EPV1. EPV2,EPV3   L bracked) (csq3373)

●전기신호에 비례하여 공기압력 을 무단계로 제어

●전기신호에 비례하여 공가 압력을 다단 제어를 한번에 가능

●전기신호에 비례하여  원격 조절에 매우 능함

●EVP21 ●EVP23 ●EVP25

●ITV2000 ● ITV2010 ● ITV2030 ● ITV2050
