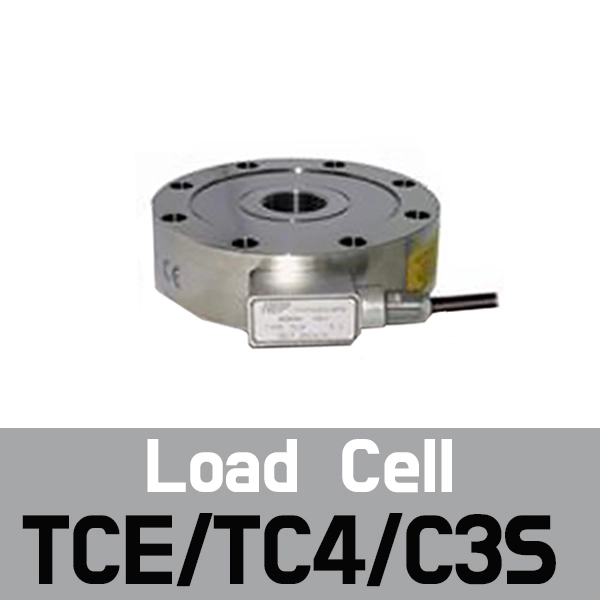

TC4●TCE●C2S(C3S)●Load Cell Press Quality control system●AEP 로드셀●프레스 품질 관리 시스템(AEP,ALFAMATIC)

TCE&TC4& C3S Load Cell 카탈로그

품질 관리 시스템  메뉴얼 워드 파일 (한글)

품질 관리 시스템  메뉴얼 PDF 파일(영문)

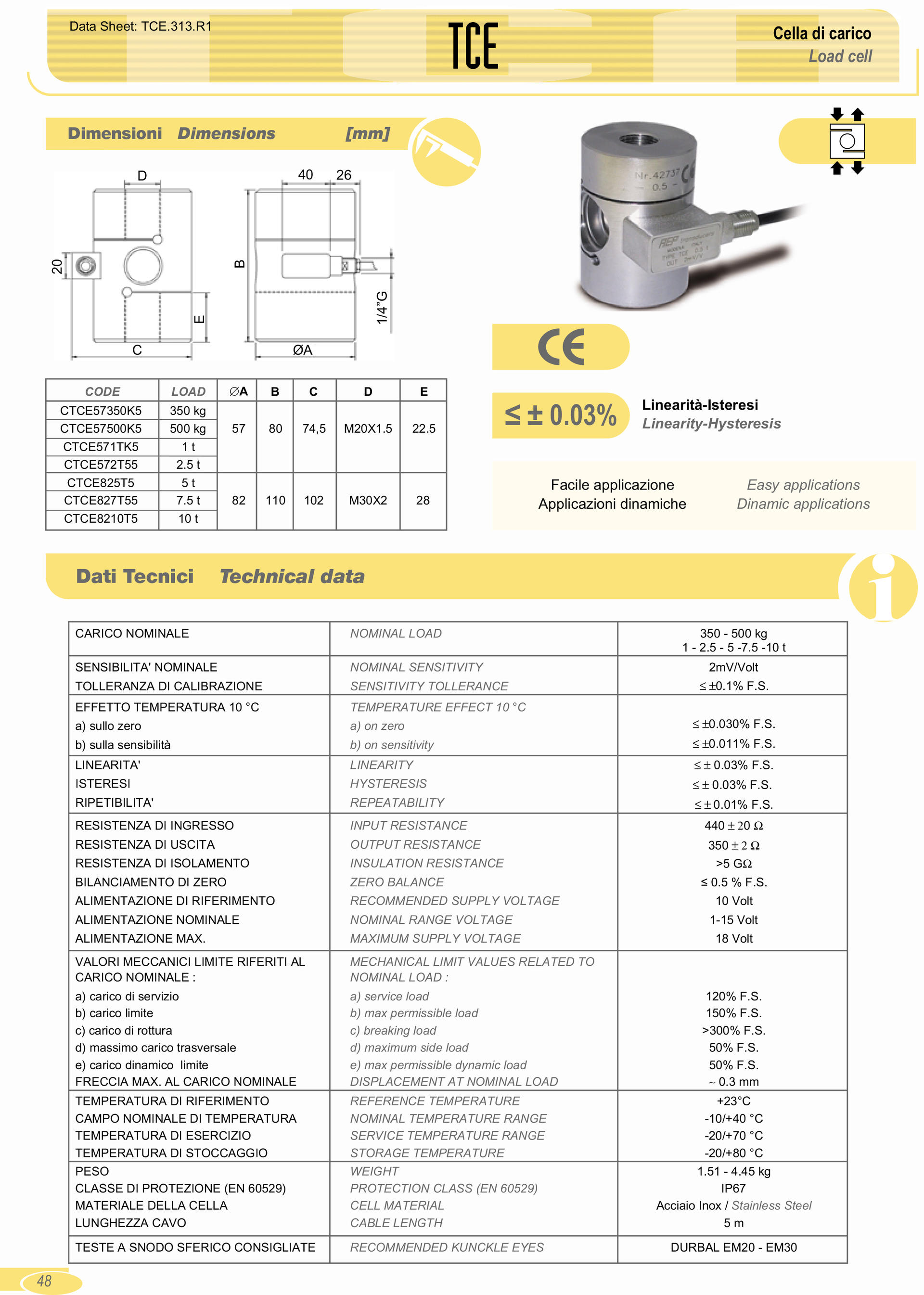

●(TCE) Load cell (0.03%)

●CTCE572T5-(2.5 ton)-(output=2mv) (dia=57mm) (csq1108)

(same TCE-2.5TON)

●CTCE825T5-(5 ton)-(output=2mv) (dia=82mm) (DME4288)

(same TCE-5TON)

●CTCE8210T5-(10 ton)-(output=2mv) (dia=82mm) (DME4528)

(same TCE-10TON)

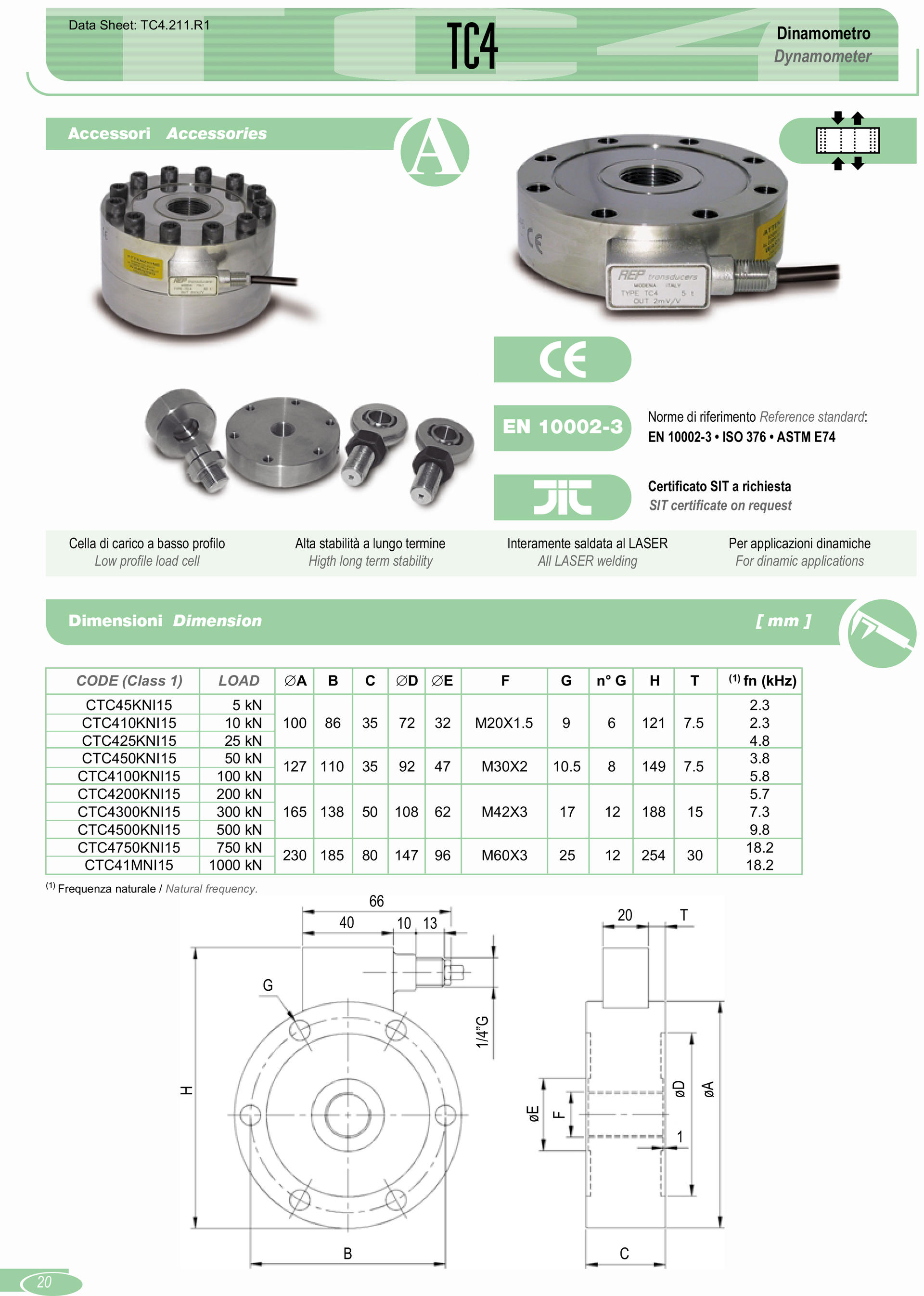

●(TC4) Dynamometer (ISO376 /EN10002-3 /ASTME74)

●(TC4-0.5 ton)-(CTC4100500K5)-(output=2mv) (DME1092)

●(TC4-1 ton)-(CTC41001T5)-(output=2mv) (DME1093)

●(TC4-2.5 ton)-(CTC41002T55)-(output=2mv) (DME1100)

●(TC4-5 ton)-(CTC41275T5)-(output=2mv) (DME1101)

●(TC4-10 ton)-(CTC412710T5)-(output=2mv) (DME1096)

●(TC4-20 ton)-(CTC416520T5)-(output=2mv) (DME1097)

●(TC4-30 ton)-(CTC416530T5)-(output=2mv) (DME1098)

●(TC4-50 ton)-(CTC416550T5)-(output=2mv) (DME1099)

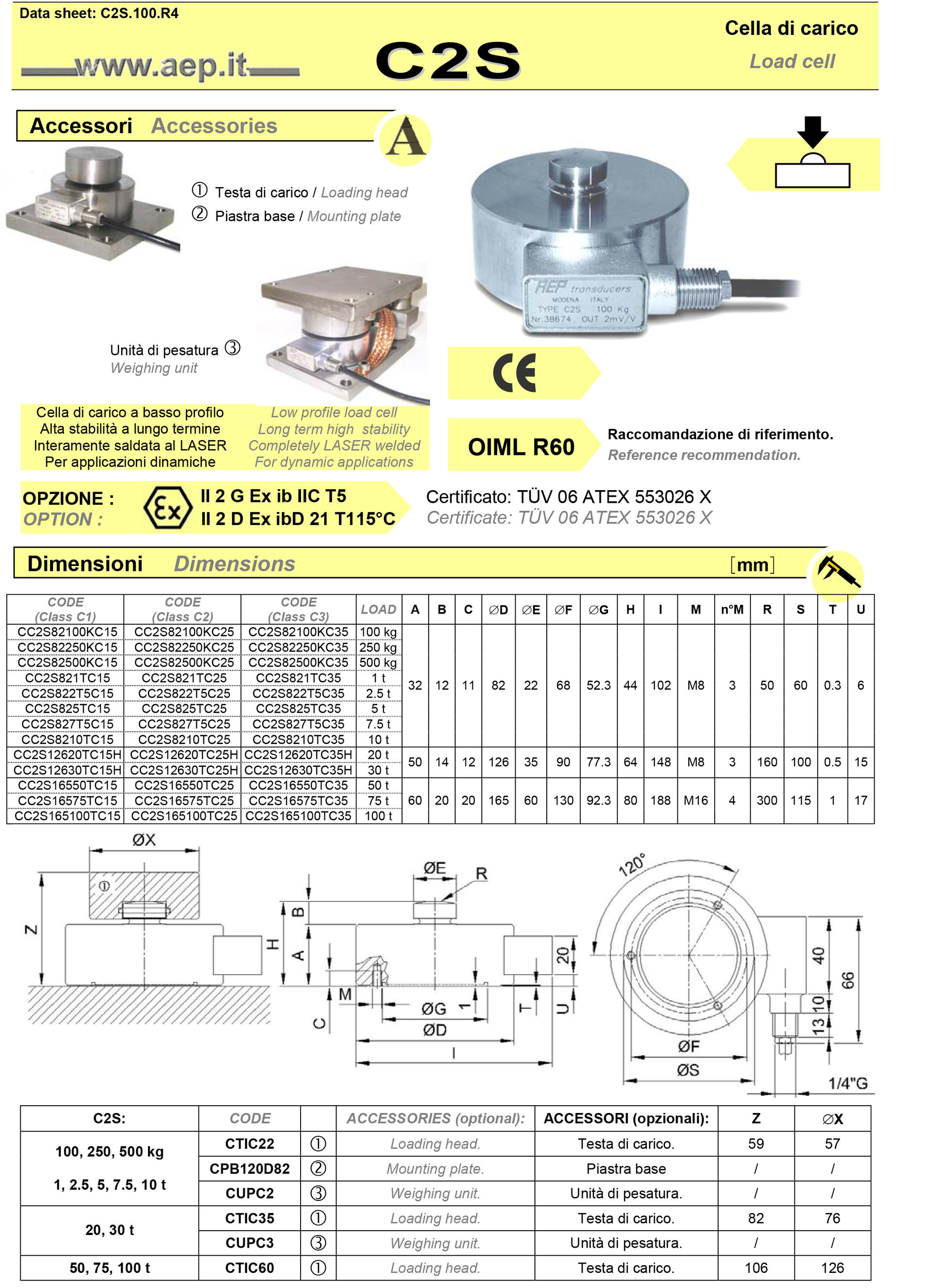

●(C2S/C3S) Load cell (OMIL R60)

●(C2S-500Kg)-(CC2S82500KC25)-(output=2mv) (DME1072)

●(C2S-1 ton)-(CC2S821TC25)-(output=2mv) (DME1072)

●(C2S-2.5 ton)-(CC2S822T5C25)-(output=2mv) (DME1073)

●(C2S-5 ton)-(CC2S825TC25)-(output=2mv) (DME1074)

●(C2S-30 ton)-(CC2S12630TC25H)-(output=2mv) (DME1075)

●(C2S-100 ton)-(CC2S165100TC25)-(output=2mv) (DME0143)
