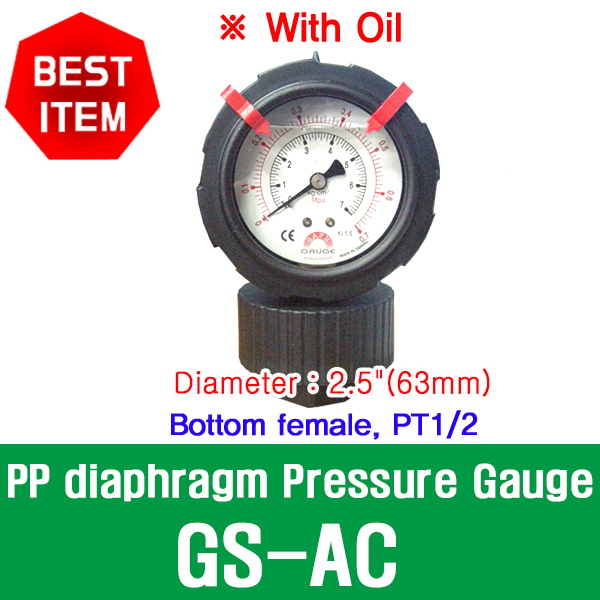

GS-AC25 (dia=63mm,싱글사이드,오일유)●PP Single side,with oil, Diaphragm Pressure gauge●PP Single side, Diaphragm Pressure Gauge●PP 싱글 사이드격막식 압력계●PP 싱글 사이드 다이아프램 프레져 게이지●PP 압력 게이지●(50bar)●(1.5%FSD)●(HWACHI)

Flange Type 카탈로그 HWACHI PP Diaphragm Pressure Gauge

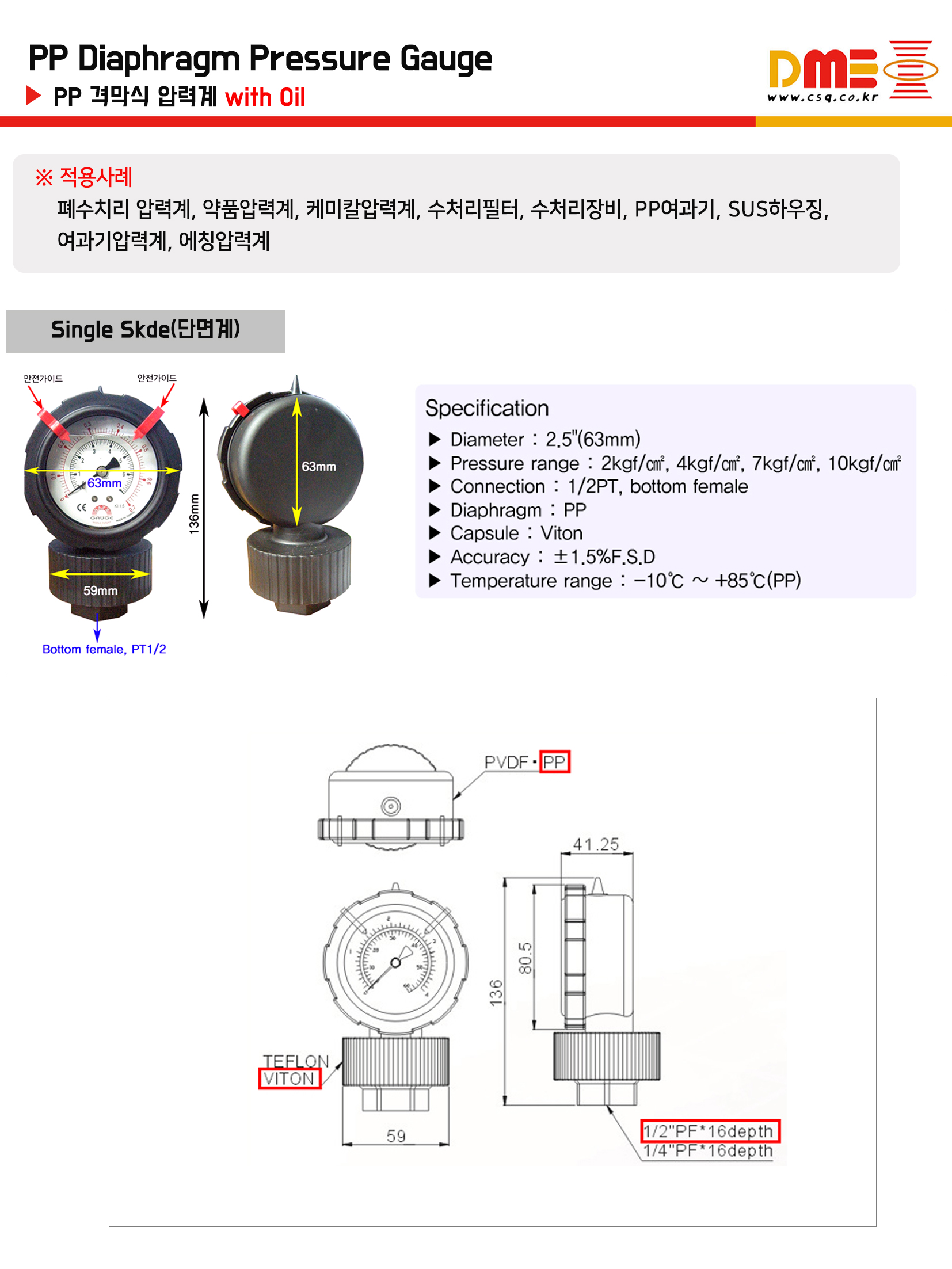

●PP, Single side, Diaphragm Pressure gauge (with Oil)

(bottom female= PT1/2 F) (accuracy=1.5% FSD)

(with safe len) (Diaphragm=PP) (Capsule=viton)

●GS-AC25-0 /2AN6M (with oil) (bottom  PT1/2 F) (csq1376)

(2.5＂) (Diaphragm=PP) (capsule=viton)  (0.2mpa, 2kgf/㎠)

●GS-AC25-0 /4AN6M (with oil) (bottom  PT1/2 F) (DME9645)

(2.5＂) (Diaphragm=PP) (capsule=viton) (0.4mpa, 4kgf/㎠)

●GS-AC25-0 /7AN6M (with oil) (bottom  PT1/2 F) (DME9646)

(2.5＂) (Diaphragm=PP) (capsule=viton) (0.7mpa, 7kgf/㎠)

●GS-AC25-0 /10AN6M (with oil) (bottom  PT1/2 F) ( DME9647)

(2.5＂) (Diaphragm=PP) (capsule=viton) (1mpa, 10kgf/㎠)

●PP, Single side, Diaphragm Pressure gauge (with Oil)

(bottom female= PT1/2 F) (accuracy=1.5% FSD)

(with safe len) (Diaphragm=PP) (Capsule=Teflon)

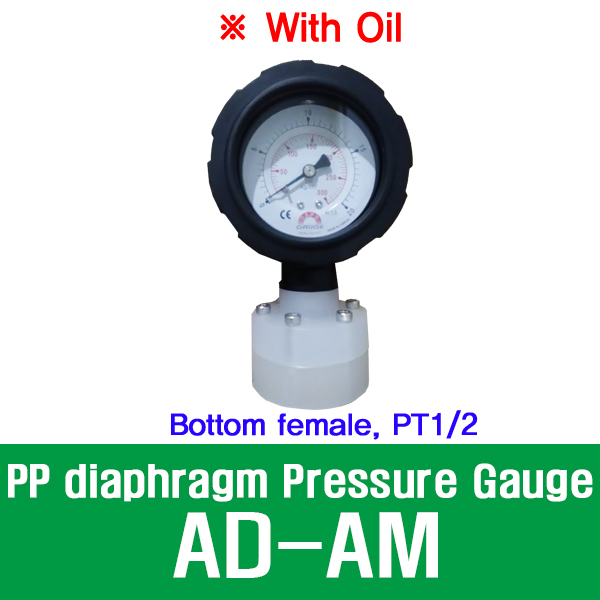

●● ● AD-AM11P2/25-0/2  (with oil) (bottom  PT1/2 F) ( csq5311)

(2.5＂) (Diaphragm=PP) (capsule=viton) (2mpa, 20kgf/㎠)

●화학용압력게이지,내산용압력게이지,내외산용압력게이지,해수용압력게이지
