Vacuum measurement & control & adjustment instruments 홈페이지

                                     Vacuum Regulators

●Vacuum and pressure gauges

●09 03 15 ●09 03 20 ●09 03 25

●09 03 15 ●09 03 20 ●09 03 25

●09 03 10 ●09 01 10 ●09 01 16 ●09 02 10 ●09 05 10 ●09 05 16

●Vacuum gauges with steel punch (09 05 99)

●Mini pneumatic vacuum switches (12 01 30) (12 02 30)

●Mini electromechanical vacuum switches (12 02 10)

●Electromechanical vacuum - pressure switches

(836-C6A) (836-C2A)

●Micro digital vacuum switches

(12 05 10 P) (Art.12 05 11 P) (12 05 10 N) (Art.12 05 11N)

●Analog vacuum switches (12 07 10)

●Digital vacuum and pressure switches

(12 10 10) (Art.12 25 11) (12 20 10 P) (Art. 12 35 10 P)

●Accessories for digital vacuum and pressure switches

(Art.00 12 20) (Art.00 12 21)

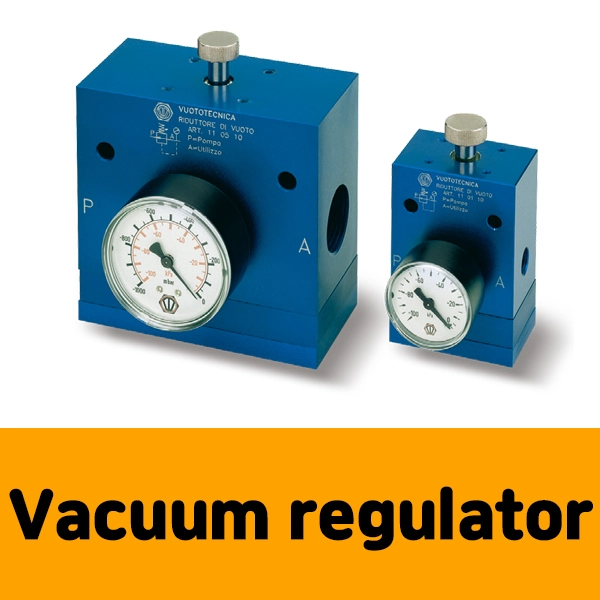

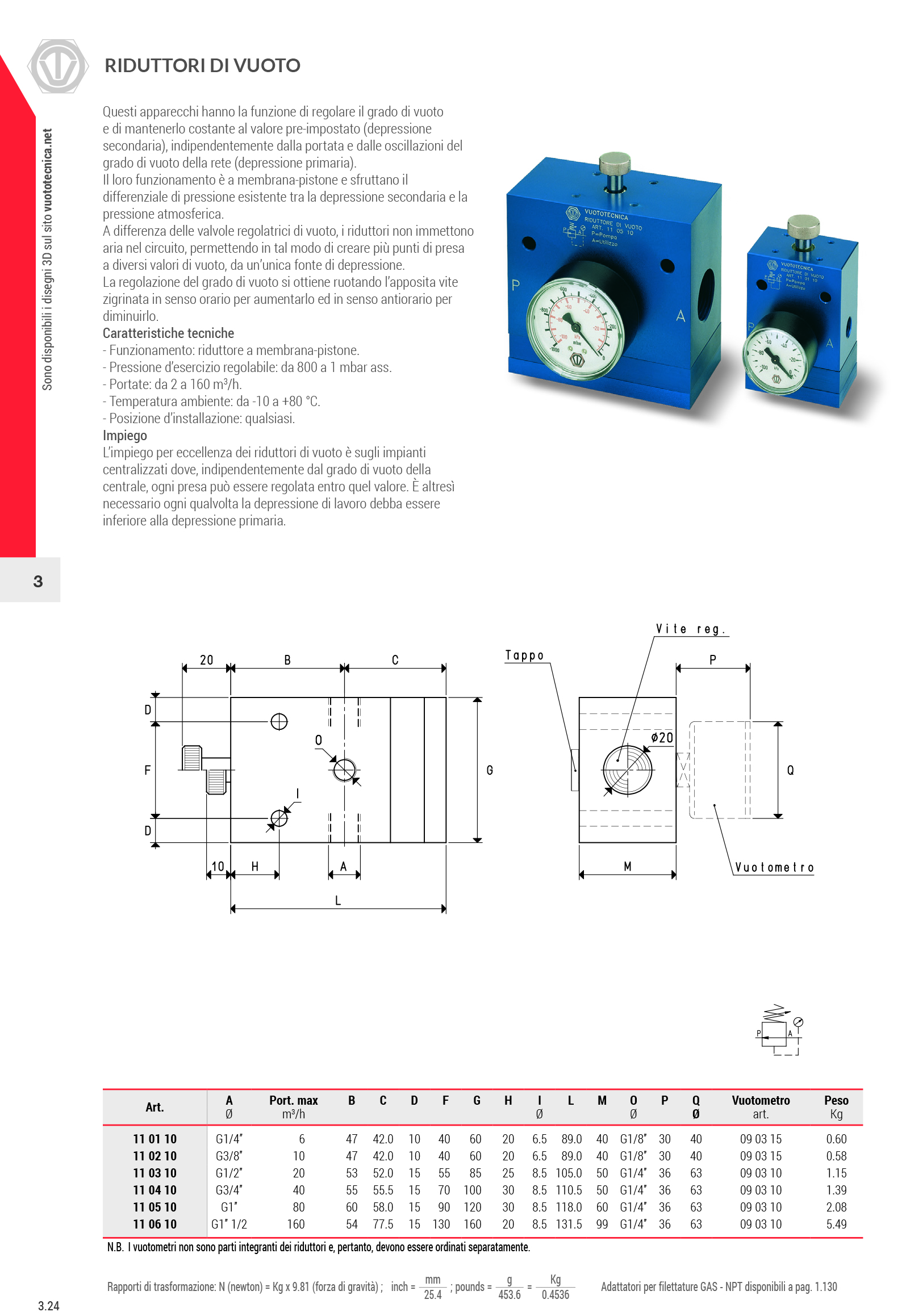

● Vacuum regulators

●11 01 10 (adjust range=-0.75~-600mmHg) (G1/4 F) (DME1209)

●11 02 10 (adjust range=-0.75~-600mmHg) (G3/8 F) (DME1210)

●11 03 10 (adjust range=-0.75~-600mmHg) (G1/2 F) (DME1212)

●11 04 10 (adjust range=-0.75~-600mmHg) (G3/4 F) (DME1214)

●11 06 10 (adjust range=-0.75~-600mmHg) (G1 F) (DME1215)

●11 10 10 (adjust range=-0.75~-600mmHg) (G11/2 F) (DME1216)

●(Low vacuum levels) Vacuum regulators

●11 03 50 (adjust range=-0.75~-735mmHg) (G1/2 F) (DME6270)

●11 05 50 (adjust range=-0.75~-735mmHg) (G1 F) (DME6269)

●11 06 50 (adjust range=-0.75~-735mmHg) (G11/2 F)

●(pneumatic adjustment) Vacuum regulators

●11 01 30 (adjust range=-0.75~-600mmHg) (G1/4 F)

●11 02 30 (adjust range=-0.75~-600mmHg) (G3/8 F) (DME1211)

●11 03 30 (adjust range=-0.75~-600mmHg) (G1/2 F)

●11 04 30 (adjust range=-0.75~-600mmHg) (G3/4 F)

●11 05 30 (adjust range=-0.75~-600mmHg) (G1 F) (DME4681)

●11 06 30 (adjust range=-0.75~-600mmHg) (G1/2 F)

●11 03 80 (adjust range=-0.75~-735mmHg) (G1/2 F)

●11 05 80 (adjust range=-0.75~-735mmHg) (G1 F)

●11 06 80 (adjust range=-0.75~-735mmHg) (G11/2F)

●Diagrams referring to the vacuum level according to the

servo-control supply pressure (Vacuum adjustment valves)

●04 01 10 (adjust range=-0.75mmHg~-500mmHg) (G1/8 M) (DME1273)

●04 02 10 (adjust range=-0.75mmHg~-500mmHg) (G1/2 M) (DME1274)

●04 03 10 (adjust range=-0.75mmHg~-500mmHg) (G3/4 M) (DME1275)

●04 04 10 (adjust range=-0.75mmHg~-500mmHg) (G1 M) (DME1276)

●Vacuum gauge (Dia=40mm .50mm)

●09 03 15 (dia=40mm) (pressure=-100Kpa) (back G1/8 M) (DME1221)

Vacuum regulrator=G1/2 from down)

●09 03 10 (dia=63mm) (pressure=-100Kpa) (back G1/4 M) (DME1220)

(Vacuum regulrator=G1/2 from up)
