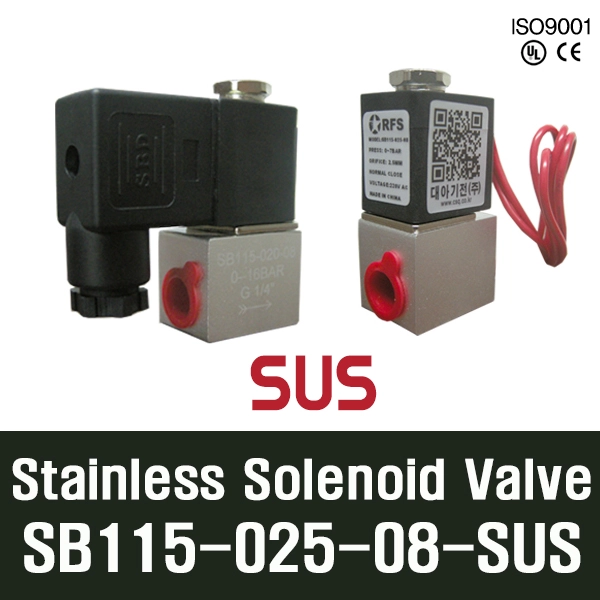

SB115-025-08-(body=SUS)●SB11502508●2/2way NC Stainless steel Solenoid Valve●2/2way SUS Solenoid Valve●RFS 소형 스테인레스 솔레노이드 밸브●RFS 스테인레스 솔레노이드 밸브●(G1/4 F)●(0~8bar)●(RFS)

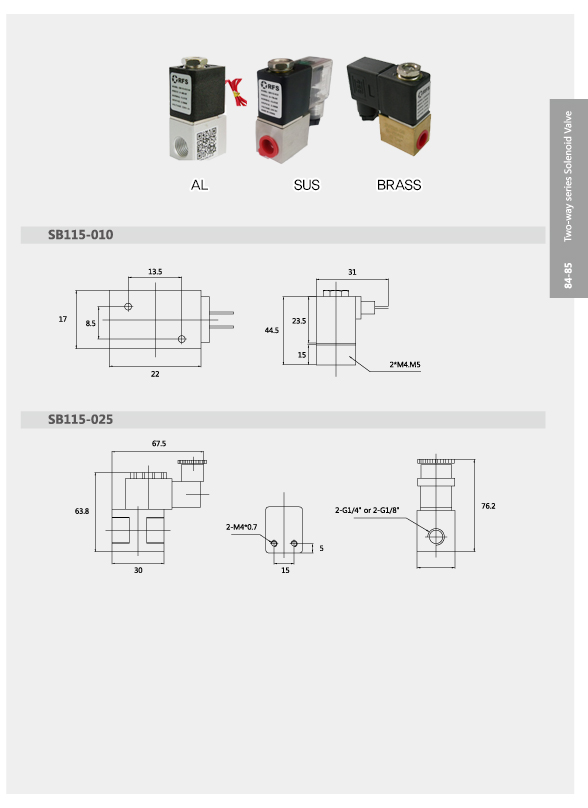

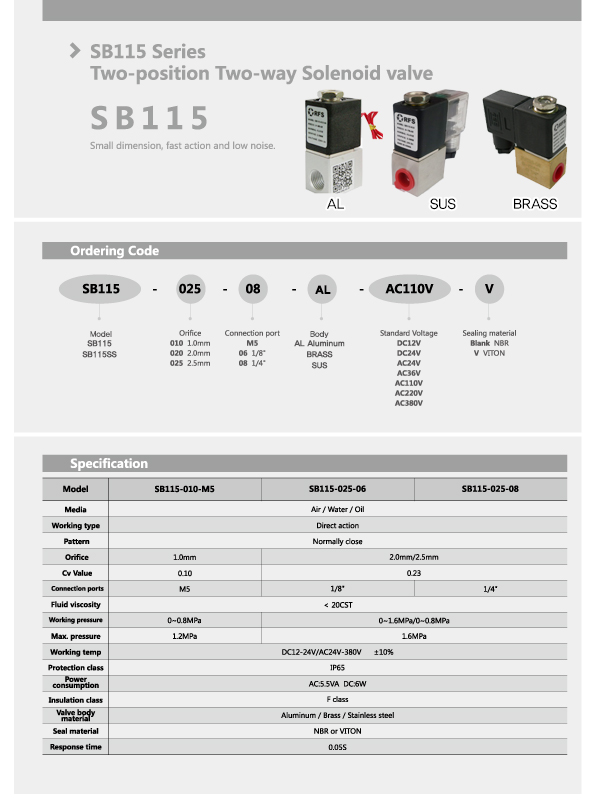

                           SB115 Series 카탈로그

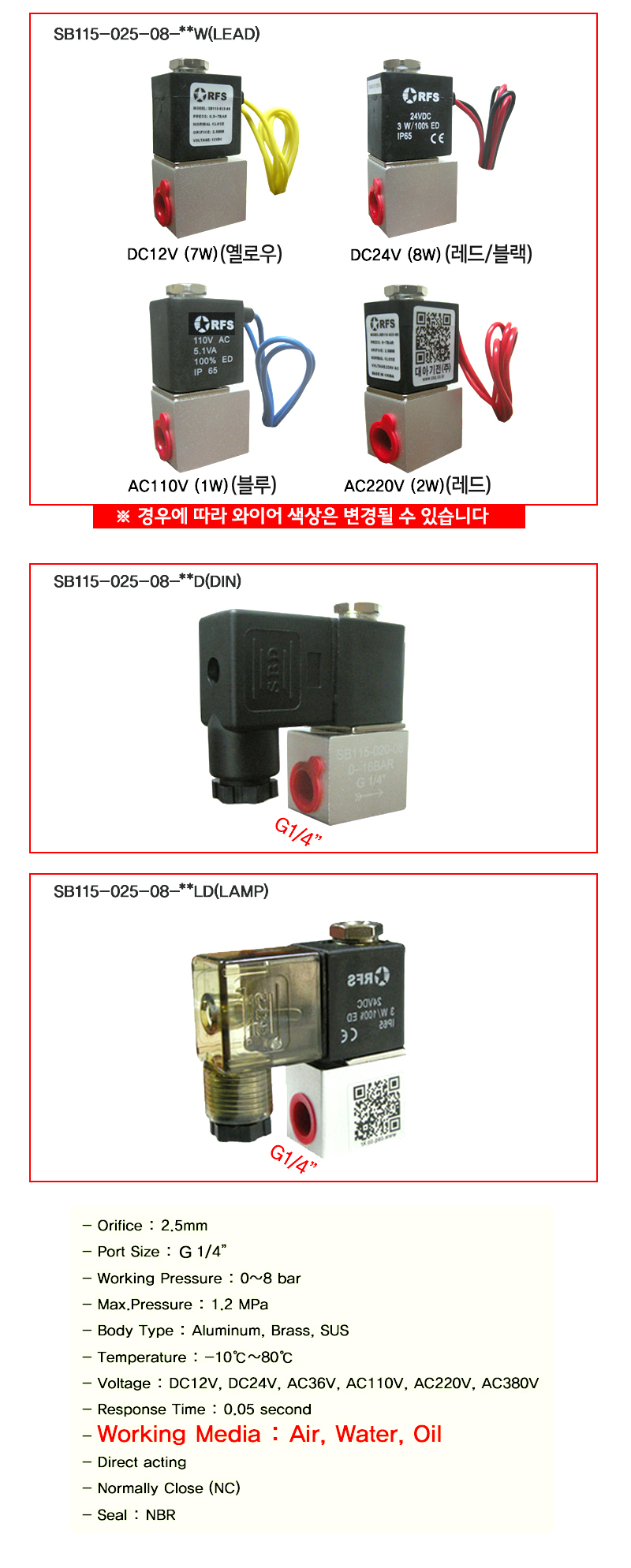

●(2/2way,NC, SUS) Stainless steel Solenoid Valve (DC12V)

(orifice=2.5mm) (lead wire) (DIN) ( lamp DIN)

(seal=NBR) (body=SUS) (pressure=0~8bar)

●SB115-025-08-(SUS)-7W-DC12V (G1/4 F)

●SB115-025-08-(SUS)-7D-DC12V (G1/4 F)

●SB115-025-08-(SUS)-7LD-DC12V (G1/4 F) (DME1827)

●(2/2way, NC, SUS) Stainless steel Solenoid Valve (DC24V)

(orifice=2.5mm) (lead wire) (DIN) ( lamp DIN)

(seal=NBR) (body=SUS) (pressure=0~8bar)

●SB115-025-08-(SUS)-8W-DC24V (G1/4 F) (CSQ2035)

●SB115-025-08-(SUS)-8D-DC24V (G1/4 F)

●SB115-025-08-(SUS)-8LD-DC24V (G1/4 F) (DME1828)

●(2/2way, NC, SUS) Stainless steel Solenoid Valve (AC220V)

(orifice=2.5mm) (lead wire) (DIN) ( lamp DIN)

(seal=NBR) (body=SUS) (pressure=0~8bar)

●SB115-025-08-(SUS)-2W-AC220V (G1/4 F) (CSQ2039)

●SB115-025-08-(SUS)-2D-AC220V (G1/4 F)

●SB115-025-08-(SUS)-2LD-AC220V (G1/4 F) (DME7122)

●(2/2way, NC, SUS) Stainless steel Solenoid Valve (AC110V)

(orifice=2.5mm) (lead wire) (DIN) ( lamp DIN)

(seal=NBR) (body=SUS) (pressure=0~8bar)

●SB115-025-08-(SUS)-1W-AC110V (G1/4 F)

●SB115-025-08-(SUS)-1D-AC110V (G1/4 F)

●SB115-025-08-(SUS)-1LD-AC110V (G1/4 F)

coil = SB075
