FP-M(FPM)●FP-32-M●FP-40-M●FP-60-M●FP-80-M●Piston pneumatic Air Vibrator●자동 왕복 에어 바이브레터●세라믹 진동 바이브레터●분말 탱크 진동 바이브레터●분체 진동 에어 바이브레터●피스톤 타입 에어 바이브레다●콘벤어 진동 바이브레터●유리 분말 떨림 바이브레터●(Zhen,DME)

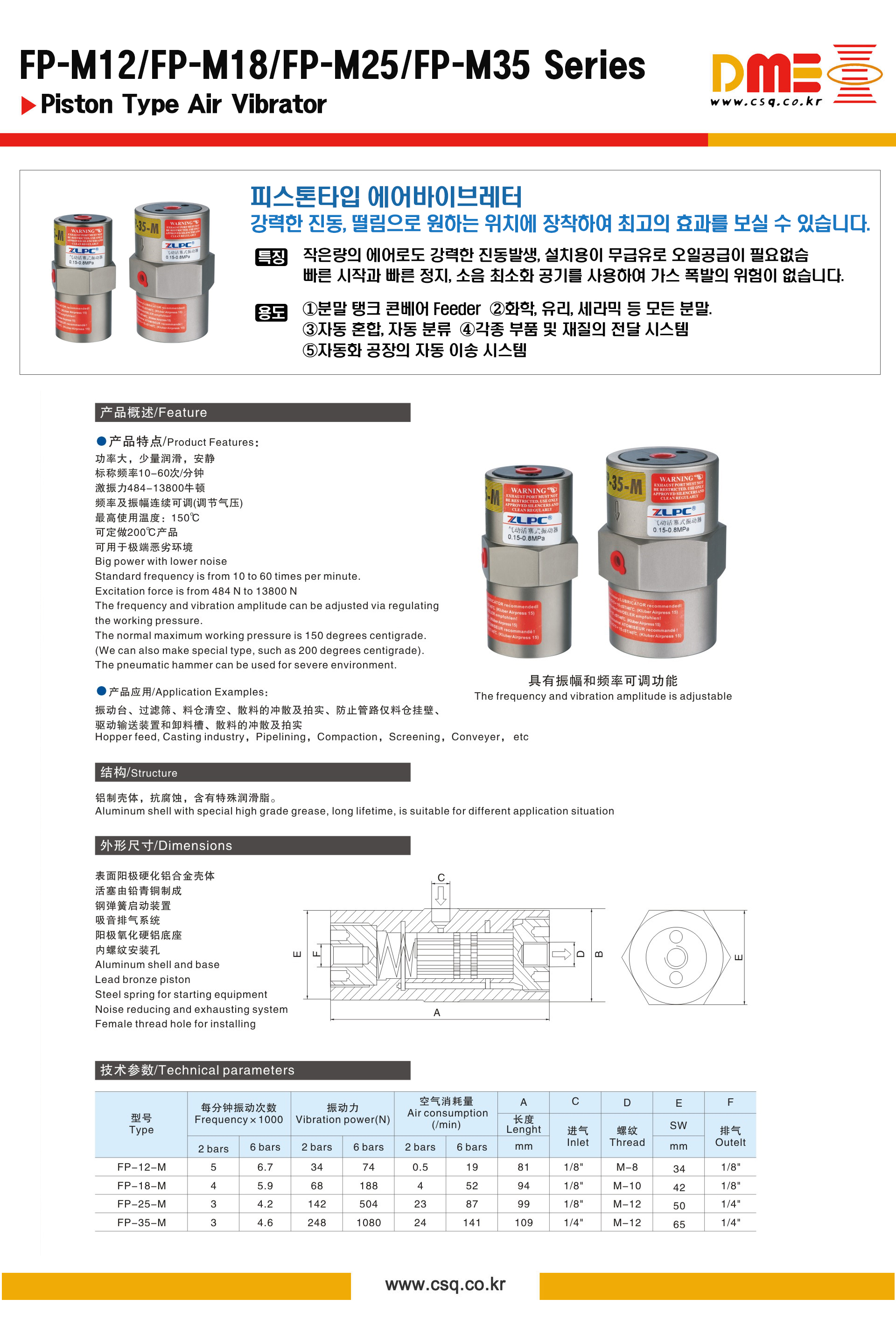

FP-M 카탈로그

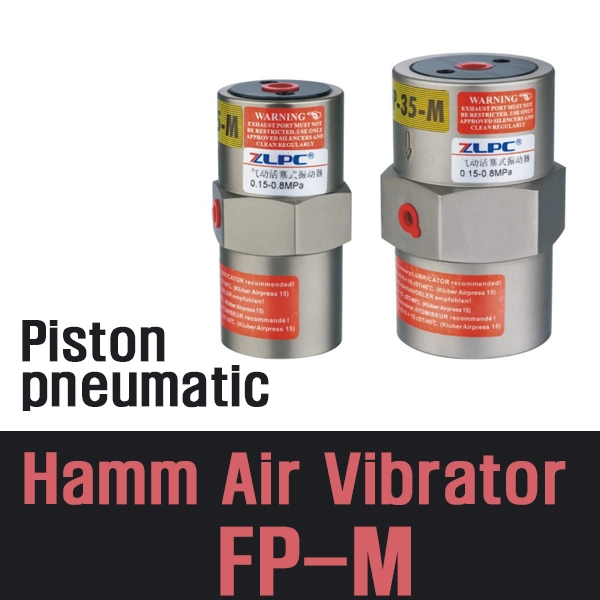

●FP-M (Piston pneumatic hamm Air Vibrator)

●자동왕복 에어 함마 바이브레터 (Piston Pneumatic Hammer)

●FP-12-M (air at 6bar=74N) (G1/8 F) (csq2307)

(air at 6bar consumption=19L/min)

●FP-18-M (air at 6bar=188N) (G1/8 F) (csq2308)

(air at 6bar consumption=52L/min)

●FP-25-M (air at 6bar=504N) (G1/4 F) (csq2309)

(air at 6bar consumption=87L/min)

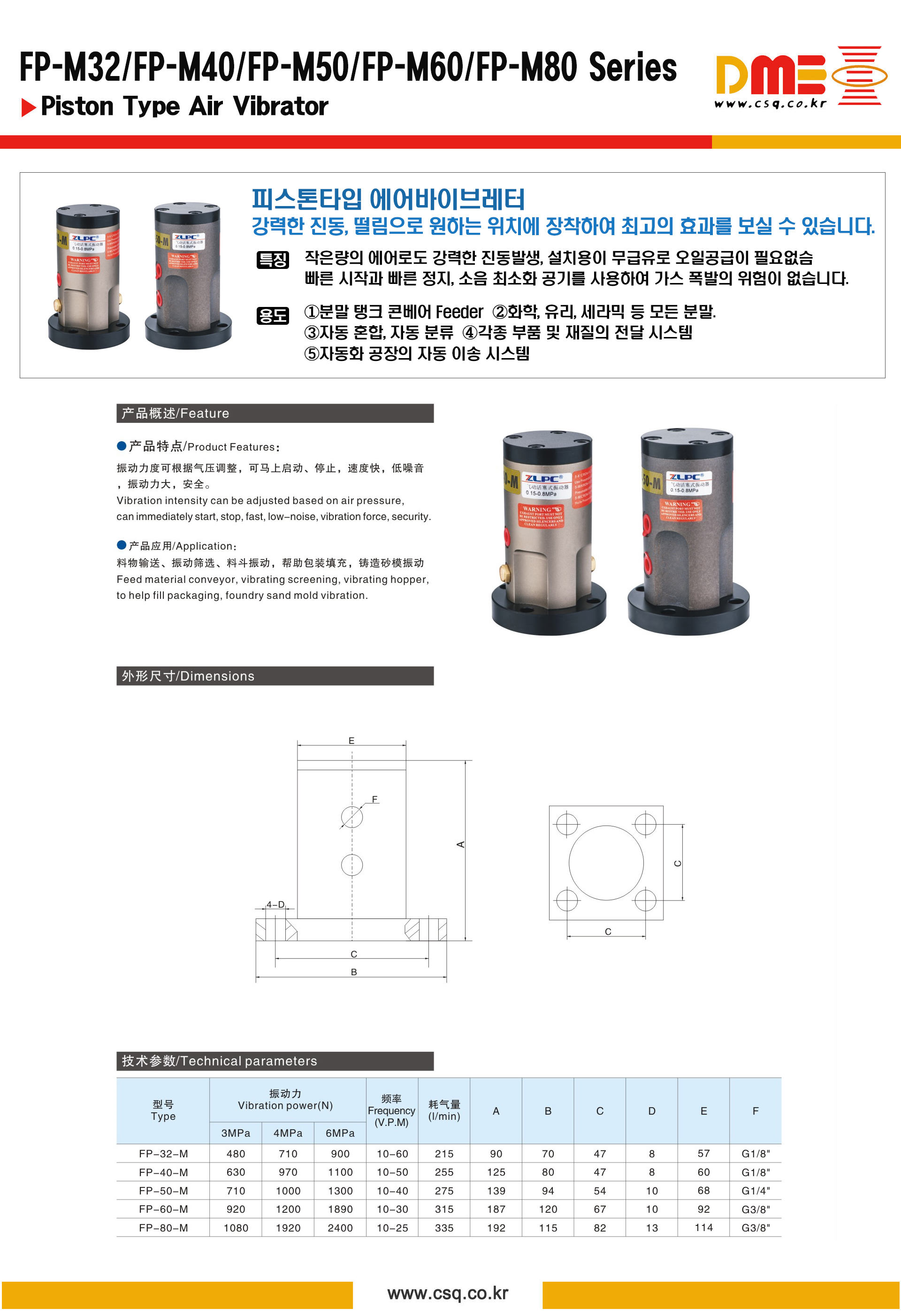

●FP-32-M (air at 6bar=900N) (G1/8 F) (csq2312)

(air at 6bar consumption＝215L/min)

●FP-35-M (air at 6bar=1080N) (G1/4 F) (csq2310)

(air at 6bar consumption=141L/min)

●FP-40-M (air at 6bar=1100N) (G1/8 F) (csq2313)

(air at 6bar consumption=255L/min)

●FP-50-M (air at 6bar=1300N) ( G1/4) (csq2314)

(air at 6bar consumption=275L/min)

●FP-60-M (air at 6bar=1890N) (G3/8 F) (csq2315)

(air at 6bar consumption=315L/min)

●FP-80-M (air at 6bar=2400N) (G3/8 F) (csq2316)

(air at 6bar consumption=335L/min)

●에어만공급하면 오토마틱 왕복운동  ●에어만 공급하면 자동왕복

(FPM12M) (EP18M) (FP32M) (FP35M) (FP40M) (FP50M) (FP60-M) (FP80M)
