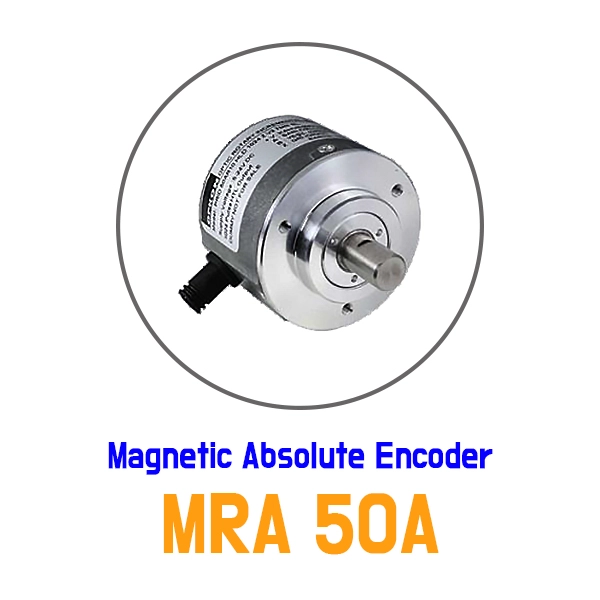

MRA 50A(MRA-50)(MRA50A)●OPKON Magnetic Absolute Encoder●OPKON Magnetic rotary absolute encoder●OPKON 마그네틱 인코더●OPKON 자성 인코더●OPKON 마그네틱 인코더●(OPKON)

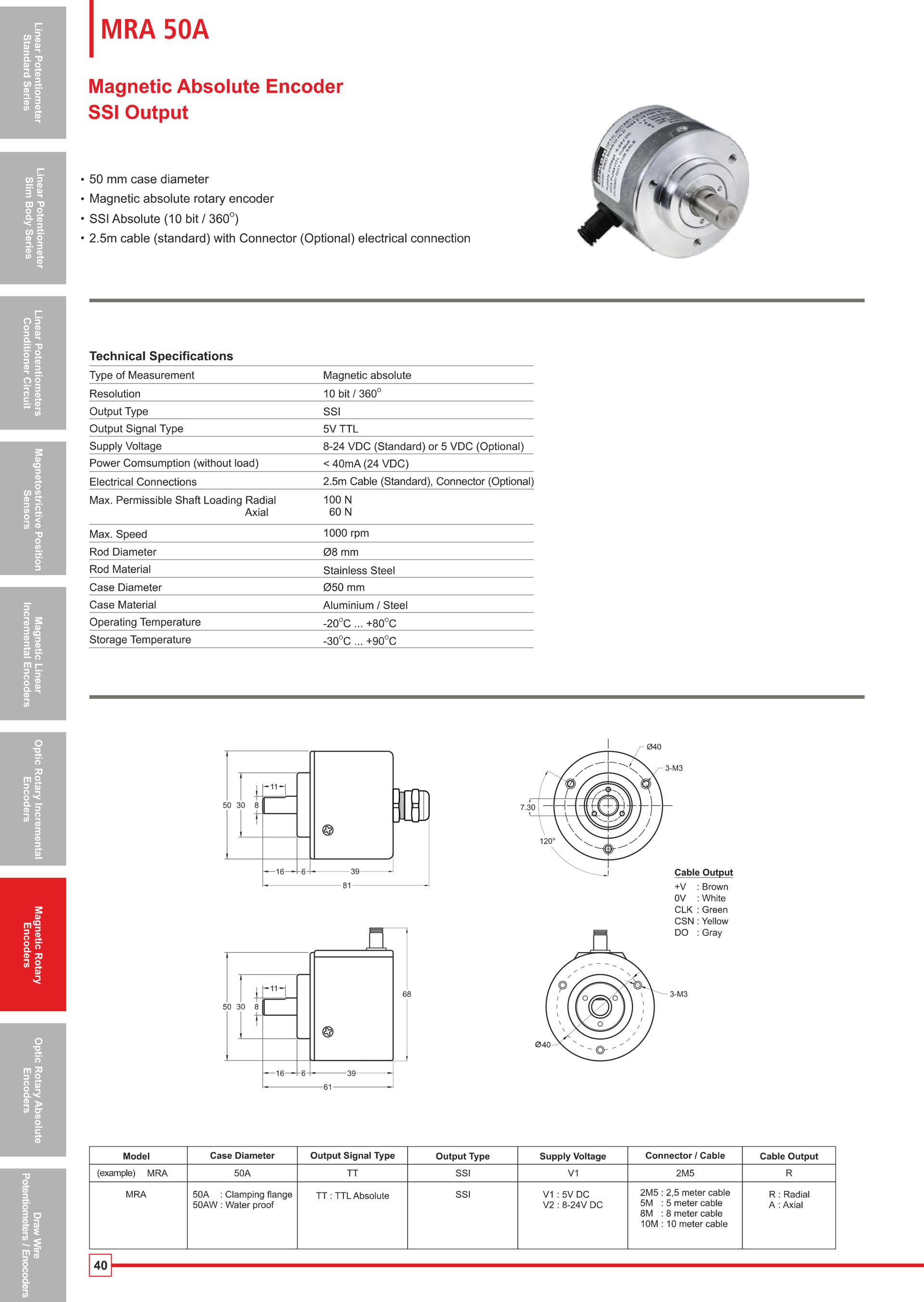

                                        MRA 50A 카탈로그

●Resolution=(10bbut /360)

●output channels =(SSI)  ●output type=(5V TTL)

●voltang=(DC8~24V standard)(5V optional)

●loading Radial=(100N)  ●loading axial=(60N)

●shaft dimeter=(8mm)  ●speed=(1000RPM)

●Diameter=(50mm)  ●material=(AL/STEEL)

(control output=TTL) (output type=SS1)
