(SUS)CS720WS●CS720WS-15●2/2way NC Stainless High Pressure Solenoid Valve●SUS고압 솔레노이드 벨브●고압 밸브●스테인레스 고압 솔레노이드 밸브●RFS 스테인레스 밸브●RFS 스텐 밸브●RFS 고압 솔밸브●RFS 고압 밸브●(G1/4 F~G1/2 F)●(0~16bar)●(0~80bar)●(RFS)

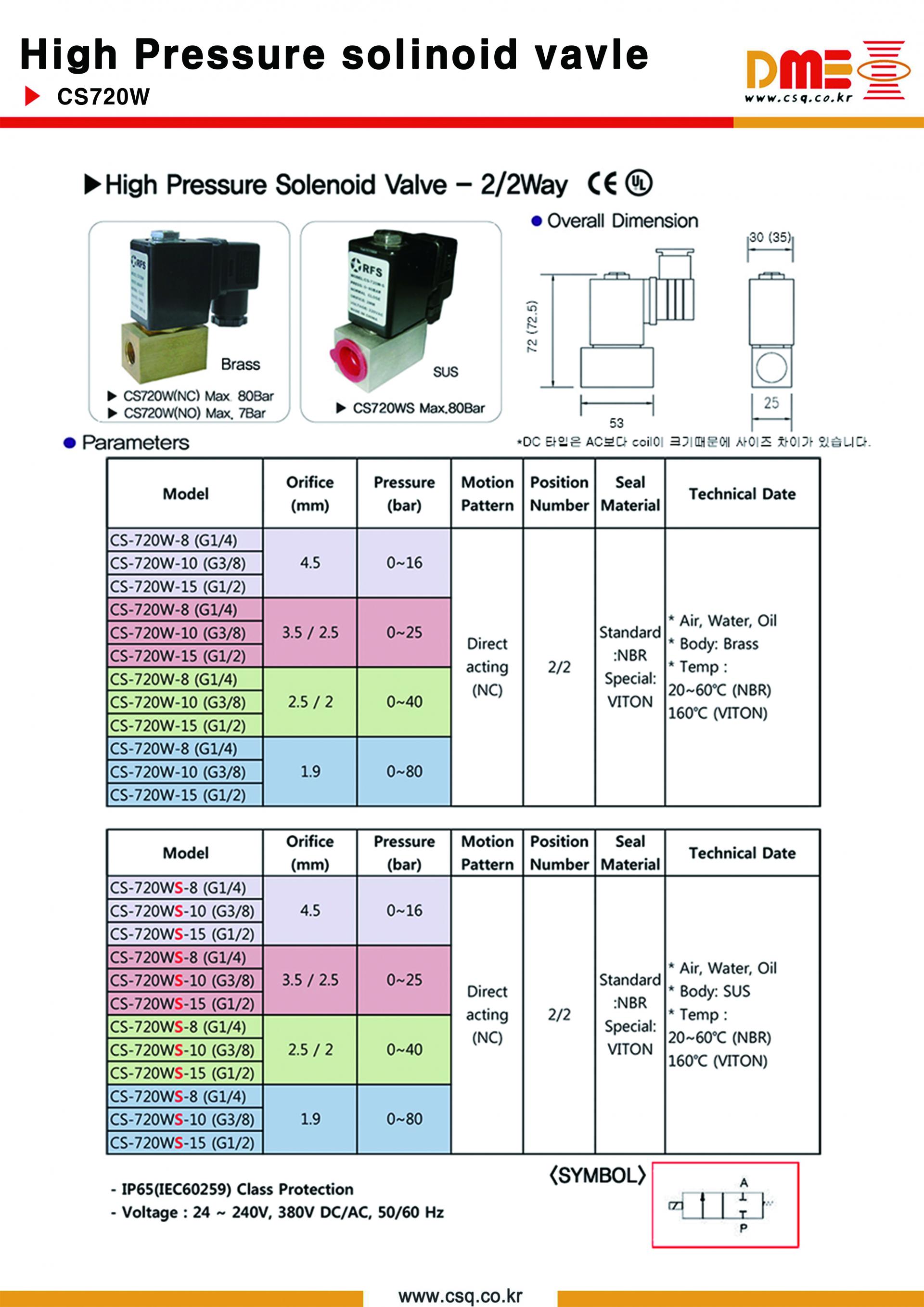

CS-720WS 카탈로그

●(2/2way, NC, sus304, viton, stainless steel solenoid valve) (16bar)

(body=SUS 304) (seal=VITON) (G1/2 F) (Media=Air, Water, oil)

●CS720WS-15-(orifice=4.5mm)-(16bar)-2D-AC220V (G1/2 F)

   (DME5987)

●CS720WS-15-(orifice=4.5mm)-(16bar)-1D-AC110V (G1/2 F)

   (DME8250)

●CS720WS-15-(orifice=4.5mm)-(16bar)-8D-DC24V (G1/2 F)

  (DME8251)

●(2/2way, NC, sus304, viton, stainless steel solenoid valve) (80bar)

(body=SUS 304) (seal=VITON) (G1/2 F) (Media=Air, Water, oil)

●CS720WS-15-(orifice=2mm)-(80bar)-2D-AC220V (G1/2 F)

  (DME5986)

●CS720WS-15-(orifice=2mm)-(80bar)-1D-AC110V (G1/2 F)

  (DME5985)

●CS720WS-15-(orifice=2mm)-(80bar)-8D-DC24V (G1/2 F)

 (DME8252)

●(2/2way, NC, sus304, viton, stainless steel solenoid valve) (80bar)

●CS720WS-08 (G1/4 F)

●CS720WS-10 (G3/8 F)

●CS720WS-15 (G1/2 F)

●(적용coil=SB256=AC110V, SB256=AC220V. SB256=AC380V, SB257=DC24V)

●AC coil UL인증품가능
