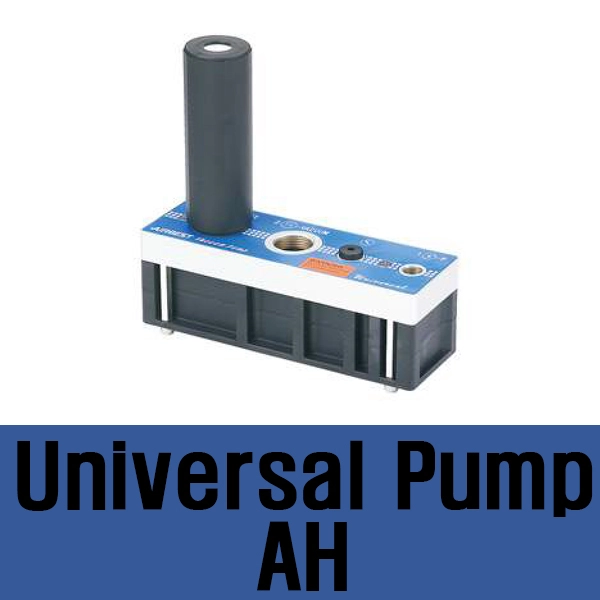

AH40●AH120●Universal Pump●에어 고바큠 펌프●에어 고진공 펌프●에어 고버큠 펌프●에어 고진공 이젝터●에어 고진공 발생기●에어 유니버셜 진공펌프●(-100.8kPa)●(530L/min)●(Air Best)●(AIRBEST)

 AH 카탈로그    Airbest Catalog-A B part Airbest Catalog-C part Airbest Catalog- D part Airbest Catalog-E F G part

●(at 6bar) Vacuum Pump

(seai=NBR) (vacuum=-99.8kPa) (material=AL) (seal=NBR)

●AH40-AD-N-Nit (vacuum flow=150NL/min) (DME4769)

(air=G1/4 F) (vacuum=G3/4 F) (EX=G3/4 F)

●AH40-AD-N-A (vacuum flow=150NL/min) (DME4770)

(air=G1/4 F) (vacuum=G3/4 F) (EX=G3/4 F) (non retun v/v)

●(at 6bar) Vacuum Pump

(seal=NBR) (vacuum=-100.8kPa) (material=AL) (seal=NBR)

●AH120-AD-N-Nil (vacuum flow=530NL/min) (DME4768)

(air=G1/4 F) (vacuum=G3/4 F) (EX=G3/4 F)

●AH120-AD-N-A (vacuum flow=530NL/min) (DME4645)

(air=G1/4 F) (vacuum=G3/4 F)(EX=G3/4 F) (non retun v/v)

● AH40-AD-(Ematerial=AL) (seal=EPDM) (CSQ2627) (생산중단)

●AH120-AD-(Ematerial=AL) (seal=EPDM)  (생산중단)
