TL-S280(dia=80m)●TL-S200(dia=100mm)●TL-S260(dia=60mm)●(TLS280)●(old PCM510)●battery supply Digital pressure gauge●배터리타입 디지털 압력 게이지)●디지털 압력 게이지●(max 100MPa)●(0.2%FS) ●(0.4%FS) ●(1%FS)●(Changzhou)

TL-S280 카탈로그 TL-S280 매뉴얼

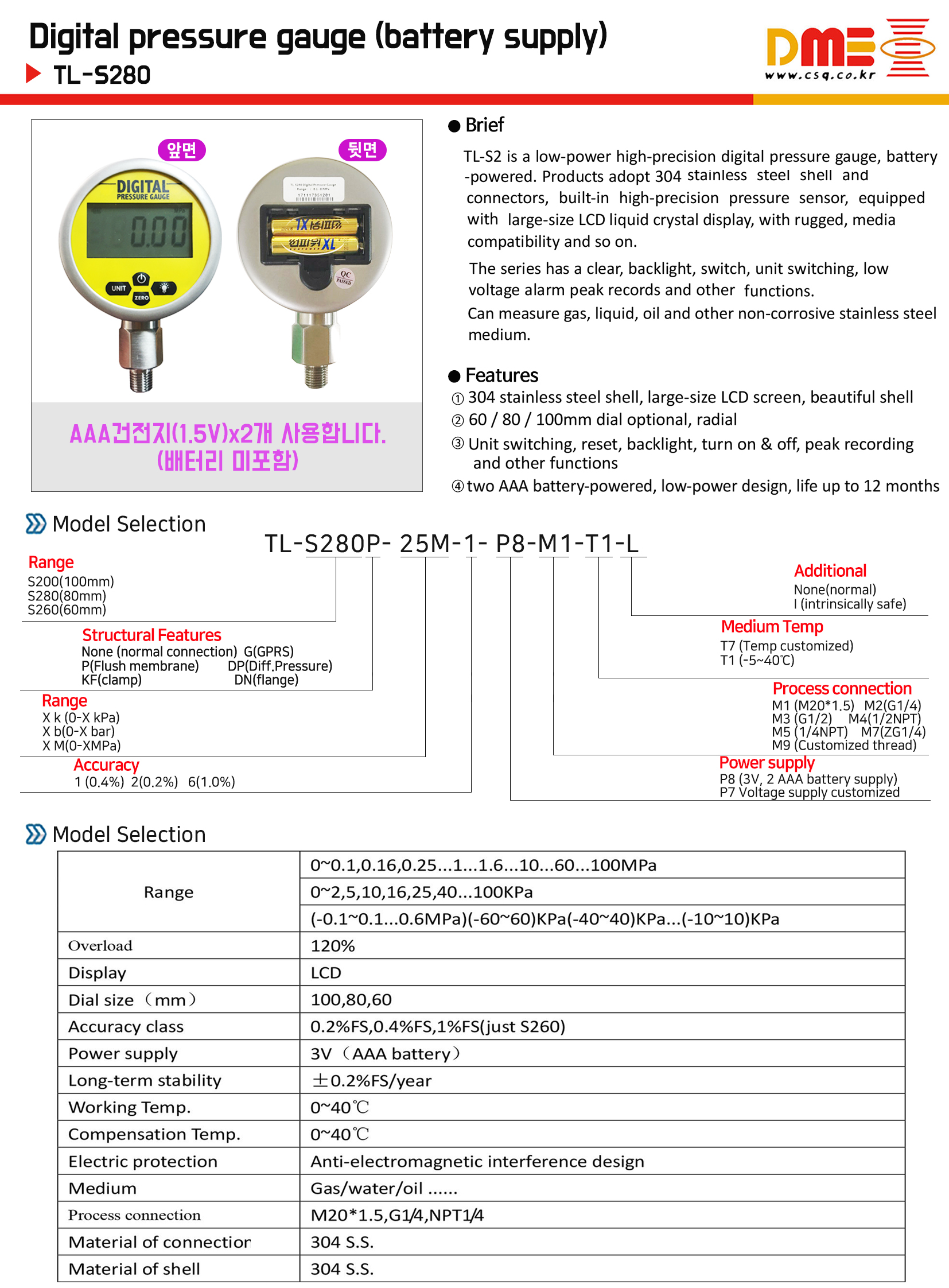

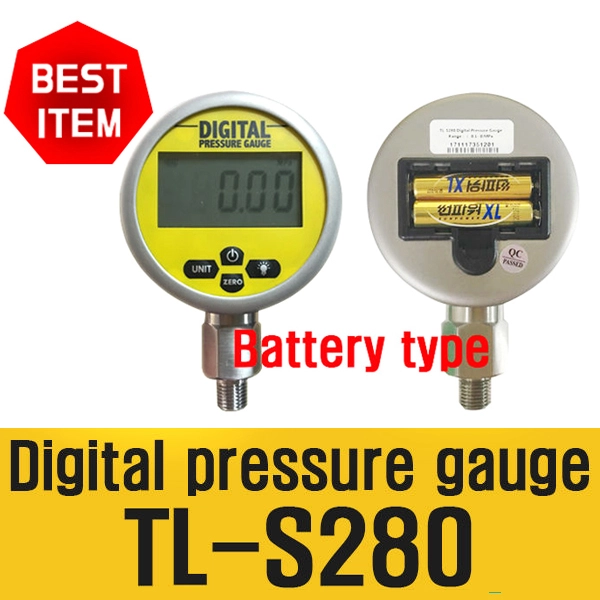

●(TL-S280, dia=80mm)

battery power supply type  Digital pressure gauge (0.4%FS)

●TL-S280-(-0.1~0Mpa)-1-P8-M5-T1 (NPT1/4 Male) (vacuum) (csq2735)

●TL-S280-(0.25Mpa)-1-P8-M5-T1 (NPT1/4 Male) (csq2784)

●TL-S280-(1.6Mpa)-1-P8-M5-T1 (NPT1/4 Male) (csq2785)

●TL-S280-(4Mpa)-1-P8-M5-T1 (NPT1/4 Male) (csq2786)

●TL-S280-(6Mpa)-1-P8-M5-T1 (NPT1/4 Male) (csq2787)

●TL-S280-(10Mpa)-1-P8-M5-T1 (NPT1/4 Male)

●TL-S280-(16Mpa)-1-P8-M5-T1 (NPT1/4 Male) (csq2788)

●TL-S280-(25Mpa)-1-P8-M5-T1 (NPT1/4 Male) (csq2789)

●TL-S280-(40Mpa)-1-P8-M5-T1 (NPT1/4 Male) (csq2790)

●TL-S280-(60Mpa)-1-P8-M5-T1 (NPT1/4 Male)

●TL-S280-(100Mpa)-1-P8-M5-T1 (NPT1/4 Male) (csq2791)

●(TL-S200, dia=100mm)

battery power supply type Digital pressure gauge (0.4%FS)

●TL-S200-(-0.1~0Mpa)-1-P8-M4-T1 (NPT1/2 Male) (vacuum)

●TL-S200-(0.25Mpa)-1-P8-M4-T1 (NPT1/2 Male)

●TL-S200-(1.6Mpa)-1-P8-M4-T1 (NPT1/2 Male)

●TL-S200-(4Mpa)-1-P8-M4-T1 (NPT1/2 Male)

●TL-S200-(6Mpa)-1-P8-M4-T1 (NPT1/2 Male)

●TL-S200-(10Mpa)-1-P8-M4-T1 (NPT1/2 Male)

●TL-S280-(16Mpa)-1-P8-M4-T1 (NPT1/2 Male)

●TL-S200-(25Mpa)-1-P8-M4-T1 (NPT1/2 Male)

●TL-S200-(40Mpa)-1-P8-M4-T1 (NPT1/2 Male)

●TL-S200-(60Mpa)-1-P8-M4-T1 (NPT1/2 Male)

●TL-S200-(100Mpa)-1-P8-M4-T1 (NPT1/2 Male)

●TL-S280 (dia =80mm)

●TL-S200 (dia =100mm)

●TL-S260 (dia =60mm)

●(TL-S280) Power ON 이후는 압력 표시 화면이 켜진 상태로 계속 유지됩니다,

●(TL-S200) Power ON 이후는 압력 표시 화면이 켜진 상태로 계속 유지됩니다,
