TL-S628E(dia=60mm)●TLS628-Z●(TLS628E,TL628Z)●Radial type R type, Digital pressure gauge●Radial type 디지털 압력 게이지●디지털 압력 센서●디지털 압력 스위치●디지털 진공 스위치●(max 160MPa)●(0.5%FS)●(only Output=2set)●(Changzhou)

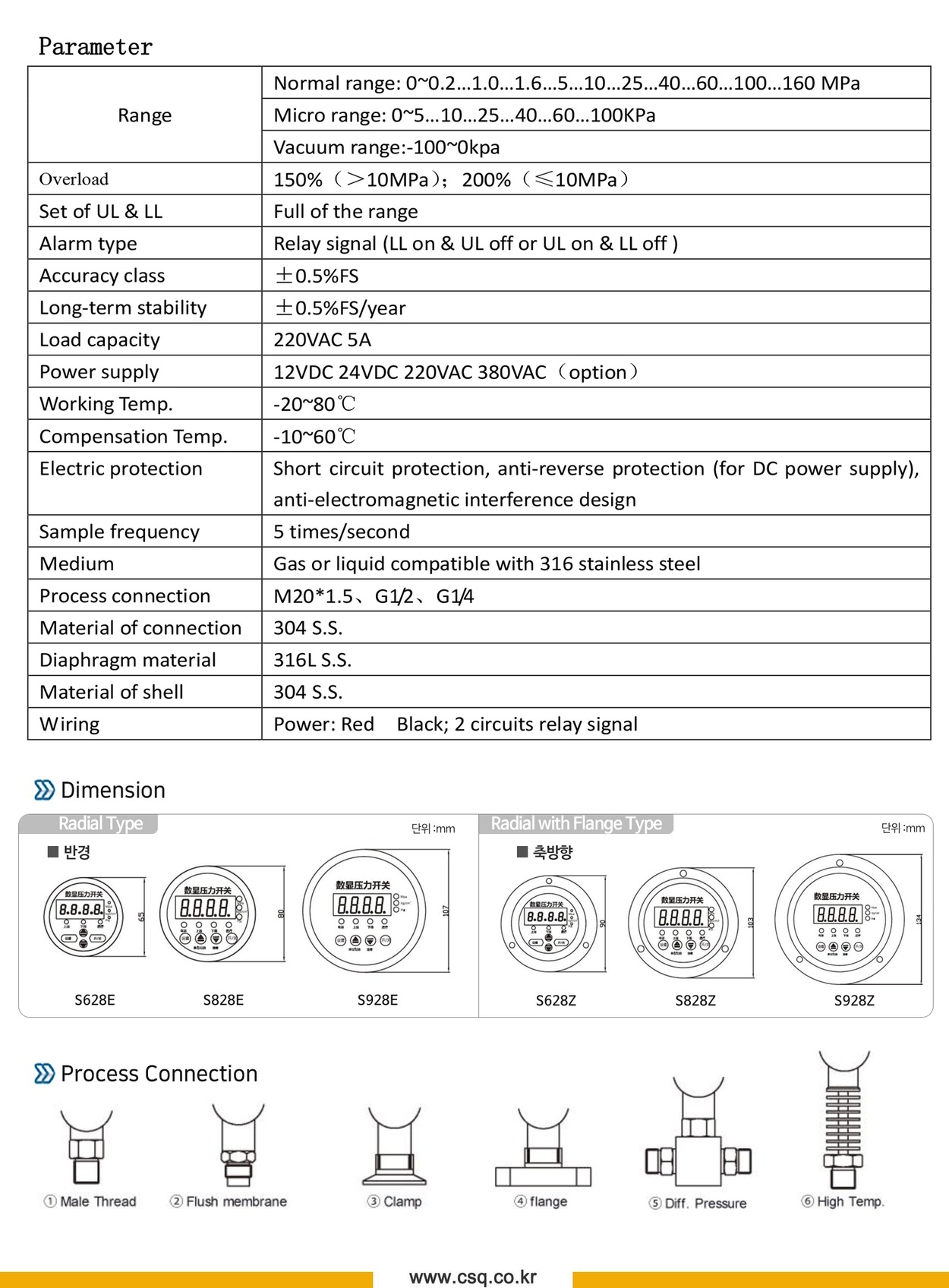

TL-S628E  카탈로그  TL-S628E 매뉴얼(영문) TL-S628E User매뉴얼

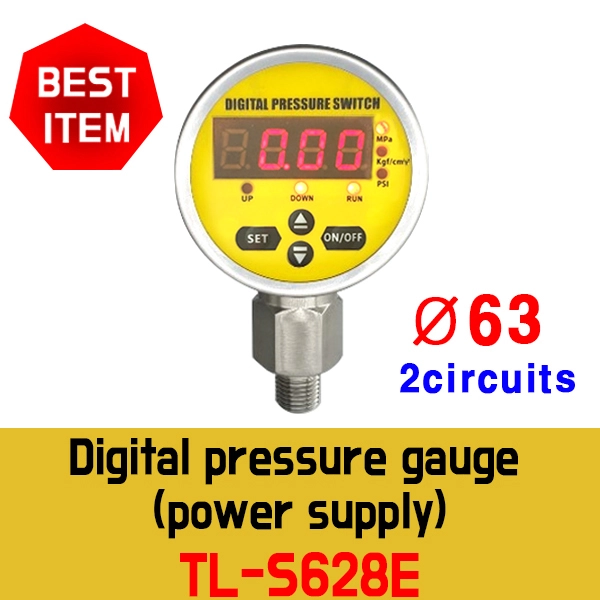

●TL-S628E (60mm) (Output=only 2 circuits) (radial type)

●TL-S628Z (60mm) (Output=only 2 circuits) (radial with flange type)

●(Radial type, dia=60mm) Digital pressure gauge (0.5% FS)

(output=only 2 circuits of relay) (power supply=DC24V)

(Male+Female Connector=8Pin) (Lead wire=8Line)

●TL-S628E-1.6M-1-P2-J-M5-T1-L-(1.6Mpa)

(NPT1/4 Male) (csq3337)

●TL-S628E-5M-1-P2-J-M5-T1-L-(5Mpa)

(NPT1/4 Male) (csq3595)

●TL-S628E-16M-1-P2-J-M5-T1-L-(16Mpa)

( NPT1/4 Male) (csq2793)

●TL-S628E-25M-1-P2-J-M5-T1-L-(25Mpa)

(NPT1/4 Male) (csq2737)

●TL-S628E-25M-1-P2-J-M2-T1-L-(25Mpa)

(G1/4 Male) (csq2737)

●TL-S628E-40M-1-P2-J-M5-T1-L-(40Mpa)

(NPT1/4 Mhale) (csq2792)

●(Radial with flange, dia=60mm) Digital pressure gauge (0.5% FS)

(output=only 2 circuits of relay) (power supply=DC24V)

(Male+Female Connector=8Pin) (Lead wire=8Line)

●TL-S628Z-40M-1-P2-J-M5-T1-L-(40Mpa)

(NPT1/4 Male ) (csq3338)

●(EDH-2) (CF1-4OS, CFI40N) (TAZP2, TXZC4, TXZC4)

●(DTESE, DTESF) (PB901) (TXZ-S8) (PCM700)

●(Output=2 circuits of relay + 1 analog)

(TL-S828E , dai=80mm) 으로만가능합니다,
