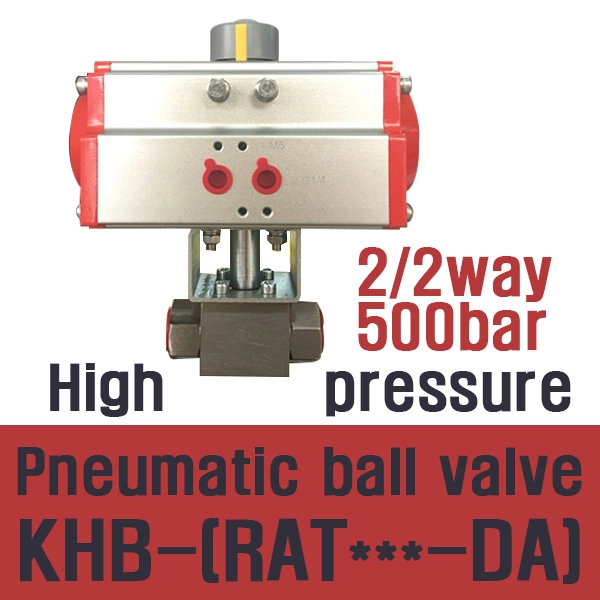

KHB-(RAT+++-DA)●2/2way High pressure Pneumatic ball valve●고압 뉴매틱 볼밸브●고압 뉴마틱엑츄레다볼밸브●High pressure Pneumatic ball valve●고압 뉴매틱 볼밸브●엑츄레다 고압볼밸브●뉴마틱고압밸브●(G1/8 F~G2 F)●(315bar,500bar)●(RFS)

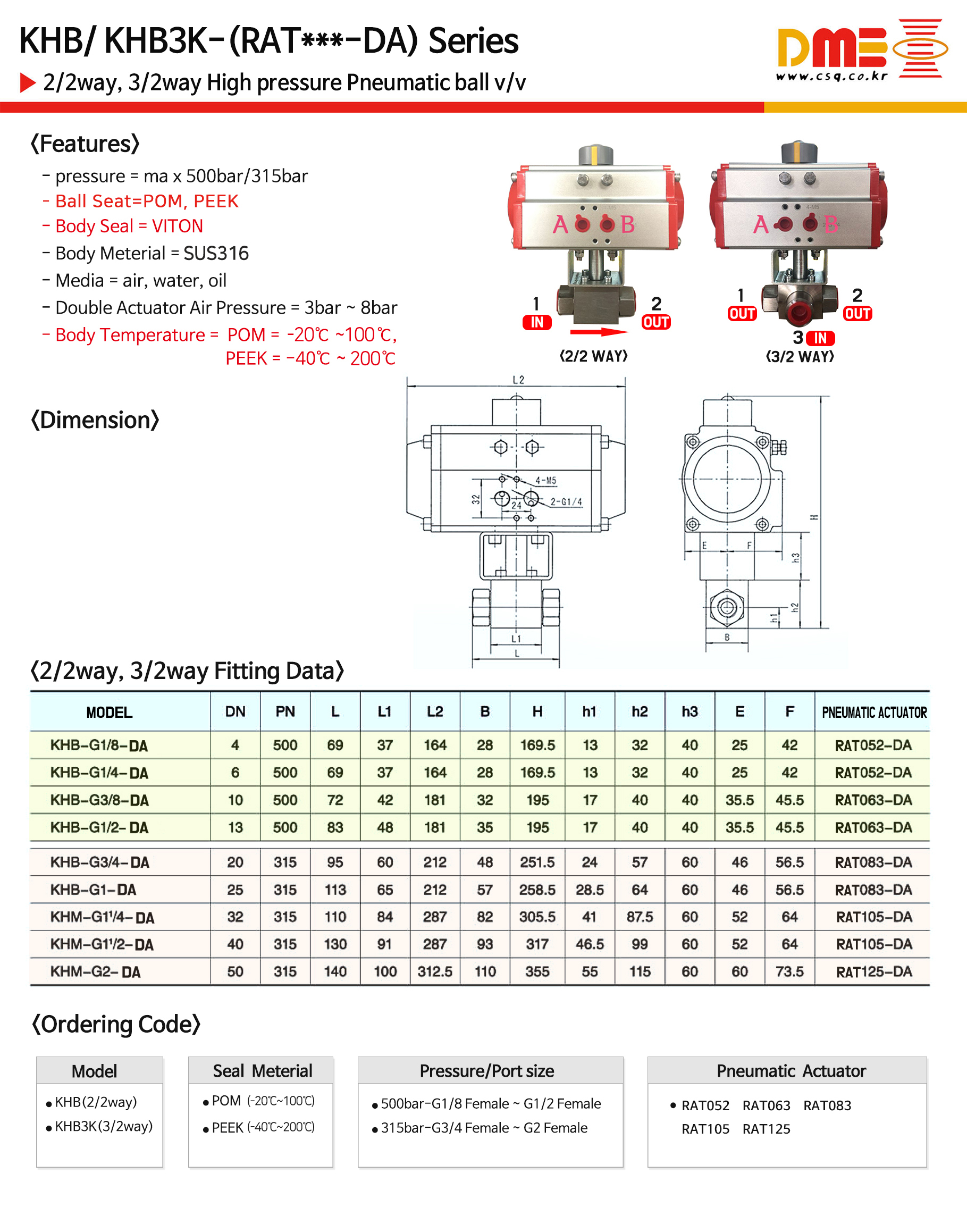

 KHB/KHB3K-(RAT***-DA) 카달로그   RAT Series 카달로그

●(2way, PEEK) High pressure Pneumatic ball valve (55Nm)

(pressure=500bar, 315bar) (Media=air, water, oil)

(Ball Seat=PEEK) (Body Material=SUS316)

(Double Actuator Air Pressure=3bar~8bar)

(Double Actuator temperature=-20~80ºC)

(Body temperature, PEEK=-40ºC~200ºC)

●KHB-PEEK-(500bar)-(G1/8 F)-(RAT052-DA)

●KHB-PEEK-(500bar)-(G1/4 F)-(RAT052-DA) (csq2686)

●KHB-PEEK-(500bar)-(G3/8 F)-(RAT063-DA)

●KHB-PEEK-(500bar)-(G1/2 F)-(RAT063-DA) (csq4718)

●KHB-PEEK-(315bar)-(G3/4 F)-(RAT083-DA) (csq4719)

●KHB-PEEK-(315bar)-(G1 F)-(RAT083-DA) (csq4720)

●KHB-PEEK-(315bar)-(G11/4 F)-(RAT105-DA) (csq4721)

●KHB-PEEK-(315bar)-(G11/2 F)-(RAT105-DA) (csq4722)

●KHB-PEEK-(315bar)-(G2 F)-(RAT125-DA)

●(2way, POM) High pressure Pneumatic ball valve (55Nm)

(pressure=500bar, 315bar) (Media=air, water, oil)

(ball Seat=POM) (Body Material=SUS316)

(Double Actuator Air Pressure=3bar~8bar)

(Double Actuator temperature=-20~80ºC)

(Body temperatur, POM=-20ºC~100ºC)

●(사용중단) KHB-POM-(500bar)-(G1/8 F)-(RAT052-DA)

●(사용중단) KHB-POM-(500bar)-(G1/4 F)-(RAT052-DA) (csq4485)

●(사용중단)KHB-POM-(500bar)-(G3/8 F)-(RAT063-DA) (csq2687)

●(사용중단)KHB-POM-(500bar)-(G1/2 F)-(RAT063-DA) (csq2688)

●(사용중단) KHB-POM-(315bar)-(G3/4 F)-(RAT083-DA) (csq2708)

●(사용중단) KHB-POM-(315bar)-(G1 F)-(RAT083-DA) (csq2709)

●(사용중단) KHB-POM-(315bar)-(G11/4 F)-(RAT105-DA)

●(사용중단) KHB-POM-(315bar)-(G11/2 F)-(RAT105-DA)

●(사용중단) KHB-POM-(315bar)-(G2 F)-(RAT125-DA) (csq2712)

●(2way, PEEK) High pressure only ball valve with holder

(Media=air, water, oil) (temp-20~200c)

●KHBK-PEEK-(315bar)-(SUS316)-(with holder) (G1/4 F) (csq4902)

●KHBK-PEEK-(500bar)-(SUS316)-(with holder) (G3/8 F) (csq4895)

●KHBK-PEEK-(500bar)-(SUS316)-(with holder) (G1/2 F) (csq4896)

● KHBK-PEEK-(315bar)-(SUS316)-(with holder) (G3/4 F) (csq4897)

●KHBK-PEEK-(315bar)-(SUS316)-(with holder) (G1 F) (csq4898)

●KHBK-PEEK-(315bar)-(SUS316)-(with holder) (G11/4 F) (csq4899)

●KHBK-PEEK-(315bar)-(SUS316)-(with holder) (G11/2 F) (csq4900)

●KHBK-PEEK-(315bar)-(SUS316)-(with holder) (G2 F) (csq4901)
