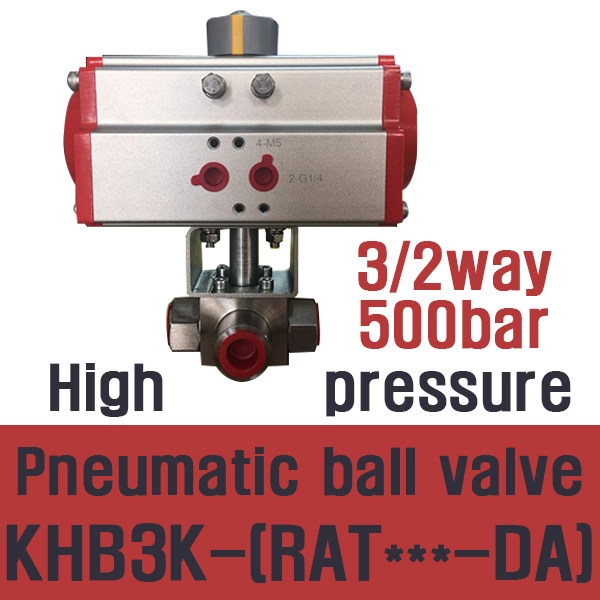

KHB3K-(RAT+++-DA)●3/2way High pressure Pneumatic ball valve●고압 뉴매틱 볼 밸브●뉴매틱 고입 밸브●뉴마틱 엑츄레다 고압 볼 밸브●High pressure Pneumatic ball valve●고압 뉴매틱 볼 밸브●고압 엑츄레다 볼 밸브●(G1/8 F~G2 F)●(315bar,500bar)●(RFS)

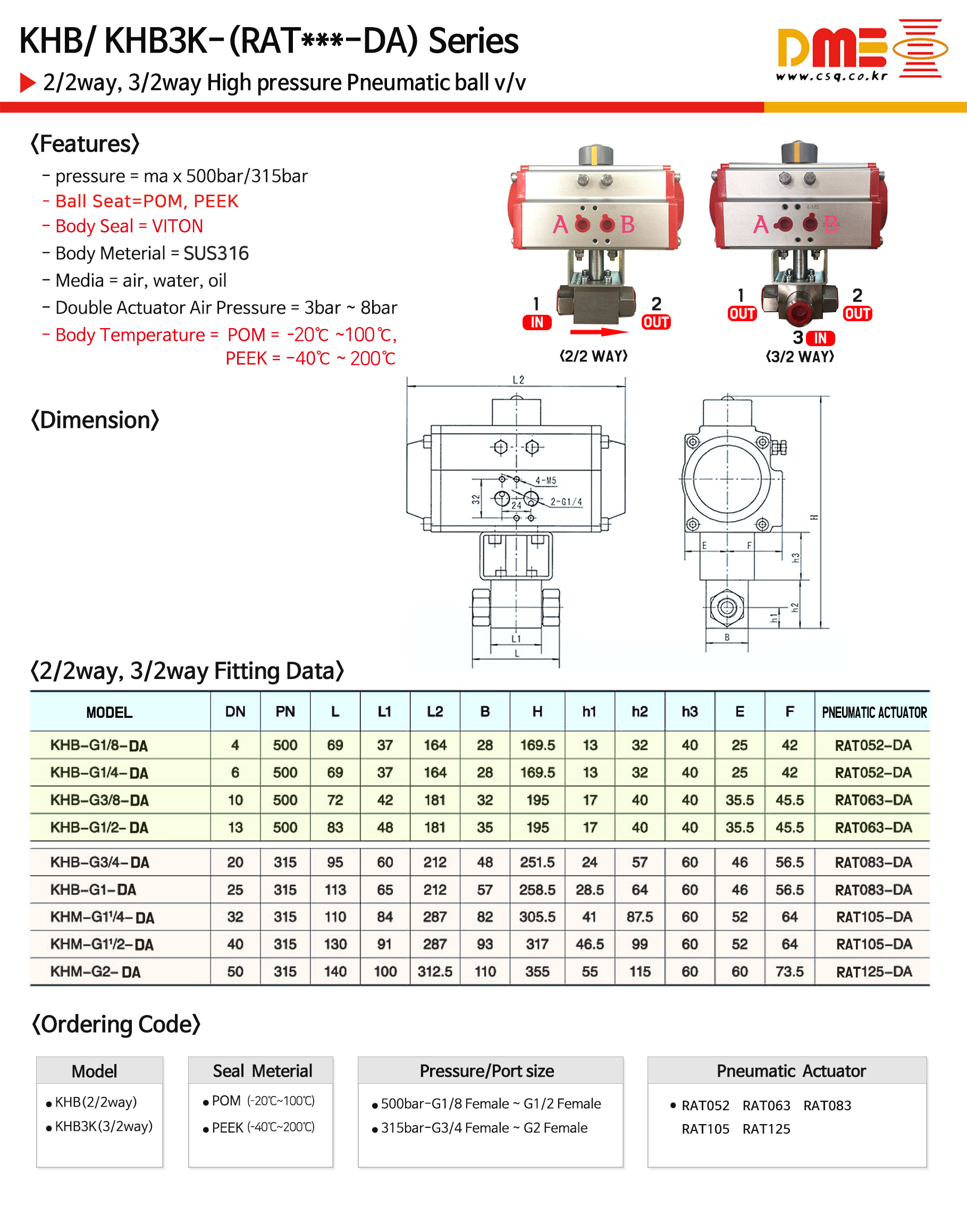

KHB/KHB3K-(RAT***-DA) 카달로그  RAT Series 카달로그

●(3way, L type, POM) High pressure Pneumatic ball valve

(pressure=500bar, 315bar) (Media=air, water, oil)

(ball Seat=PEEK) (Body Material=SUS316)

(Double Actuator Air Pressure=3bar~8bar)

(Double Actuator temperature=-20~80ºC)

(Body temperature, POM=-40ºC~200ºC)

●KHB3K-PEEK-(500bar)-(G1/8 F)-(RAT052-DA)

●KHB3K-PEEK-(500bar)-(G1/4 F)-(RAT052-DA) (csq2689)

●KHB3K-PEEK-(500bar)-(G3/8 F)-(RAT063-DA)

●KHB3K-PEEK-(500bar)-(G1/2 F)-(RAT063-DA) (csq2691)

●KHB3K-PEEK-(315bar)-(G3/4 F)-(RAT083-DA)

●KHB3K-PEEK-(315bar)-(G1 F)-(RAT083-DA) (csq4712)

●KHB3K-PEEK-(315bar)-(G11/4 F)-(RAT105-DA)

●KHB3K-PEEK-(315bar)-(G11/2 F)-(RAT105-DA)

●KHB3K-PEEK-(315bar)-(G2 F)-(RAT125-DA)

●(3way, T type, PEEK) High pressure Pneumatic ball valve

(pressure=500bar, 315bar) (Media=air, water, oil)

(ball Seat=PEEK) (Body Material=SUS316)

(Double Actuator Air Pressure=3bar~8bar)

(Double Actuator temperature=-20~80ºC)

(Body temperature, PEEK=-40ºC~200ºC)

●KHB3K-PEEK-(T type)-(500bar)-(G1/8 F)-(RAT052-DA)

●KHB3K-PEEK-(T type)-(500bar)-(G1/4 F)-(RAT052-DA) (csq4707)

●KHB3K-PEEK-(T type)-(500bar)-(G3/8 F)-(RAT063-DA) (csq4706)

●KHB3K-PEEK-(T type)-(500bar)-(G1/2 F)-(RAT063-DA) (csq4705)

●KHB3KT-PEEK-(T type)-(315bar)-(G3/4 F)-(RAT083-DA) (csq4704)

●KHB3K-PEEK-(T type)-(315bar)-(G1 F)-(RAT083-DA)  (csq4643)

●KHB3K-PEEK-(T type)-(315bar)-(G11/4 F)-(RAT105-DA) (csq4702)

●KHB3K-PEEK-(T type)-(315bar)-(G11/2 F)-(RAT105-DA) (csq4701)

●KHB3K-PEEK-(T type)-(315bar)-(G2 F)-(RAT125-DA) (csq4700)

●(3way, L type, POM) High pressure Pneumatic ball valve

(pressure=500bar, 315bar) (Media=air, water, oil)

(ball Seat=POM) (Body Material=SUS316)

(Double Actuator Air Pressure=3bar~8bar)

(Double Actuator temperature=-20~80ºC)

(Body temperature, POM=-20ºC~100ºC)

●(사용중단)KHB3K-POM-(500bar)-(G1/8 F)-(RAT052-DA)

●(사용중단) KHB3K-POM-(500bar)-(G1/4 F)-(RAT052-DA) (csq4370)

●(사용중단) KHB3K-POM-(500bar)-(G3/8 F)-(RAT063-DA) (csq2690)

●(사용중단) KHB3K-POM-(500bar)-(G1/2 F)-(RAT063-DA) (csq4234)

●(사용중단) KHB3K-POM-(315bar)-(G3/4 F)-(RAT083-DA)

●(사용중단) KHB3K-POM-(315bar)-(G1 F)-(RAT083-DA) (csq2714)

●(사용중단) KHB3K-POM-(315bar)-(G11/4 F)-(RAT105-DA)

●(사용중단) KHB3K-POM-(315bar)-(G11/2 F)-(RAT105-DA)

●(사용중단) KHB3K-POM-(315bar)-(G2 F)-(RAT125-DA) (csq2717)

●(3way,L type, PEEK) High pressure only ball valve (with holder)

(Media=air, water, oil)(temp-20~200c)

KHB3K-PEEK-(500bar)-(SUS316)-(with holder)(G1/4 F) (csq4903)

KHB3K-PEEK-(500bar)-(SUS316)-(with holder)(G3/8 F) (csq4904)

KHB3K-PEEK-(500bar)-(SUS316)-(with holder)(G1/2 F) (csq4905)

KHB3K-PEEK-(500bar)-(SUS316)-(with holder)(G1 F) (csq4906)

KHB3K-PEEK-(500bar)-(SUS316)-(with holder)(G11/4 F) (csq4907)

KHB3K-PEEK-(500bar)-(SUS316)-(with holder)(G11/2 F) (csq4908)

KHB3K-PEEK-(500bar)-(SUS316)-(with holder)(2 F) (csq4909)
