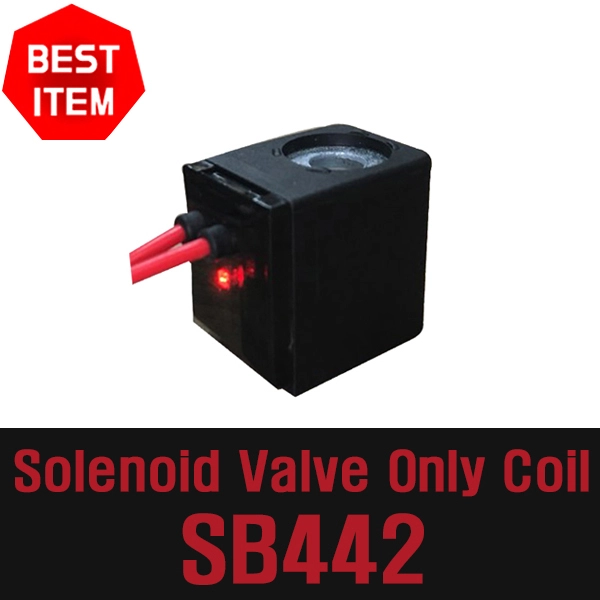

(SB442, for VF3130E with lamp,lead)●Solenoid Valve Only Coil●Solenoid Valve Coil●솔레노이드 밸브 코일●(VF3130,VF5120,4V410,4V310,4V310B,4V210,2P025,3V)(SB115,SB116,SB157,SB165,V5211)●(RFS)

SB579 Series & SB442 카탈로그 SB579 Series & SB442 코드번호

●(for VF3130, VF5120, 4V410, 4V310, 4V310B, 4V210)

●(for 2P-025, 3V, SB115, SB116, SB157, SB165, V5211)

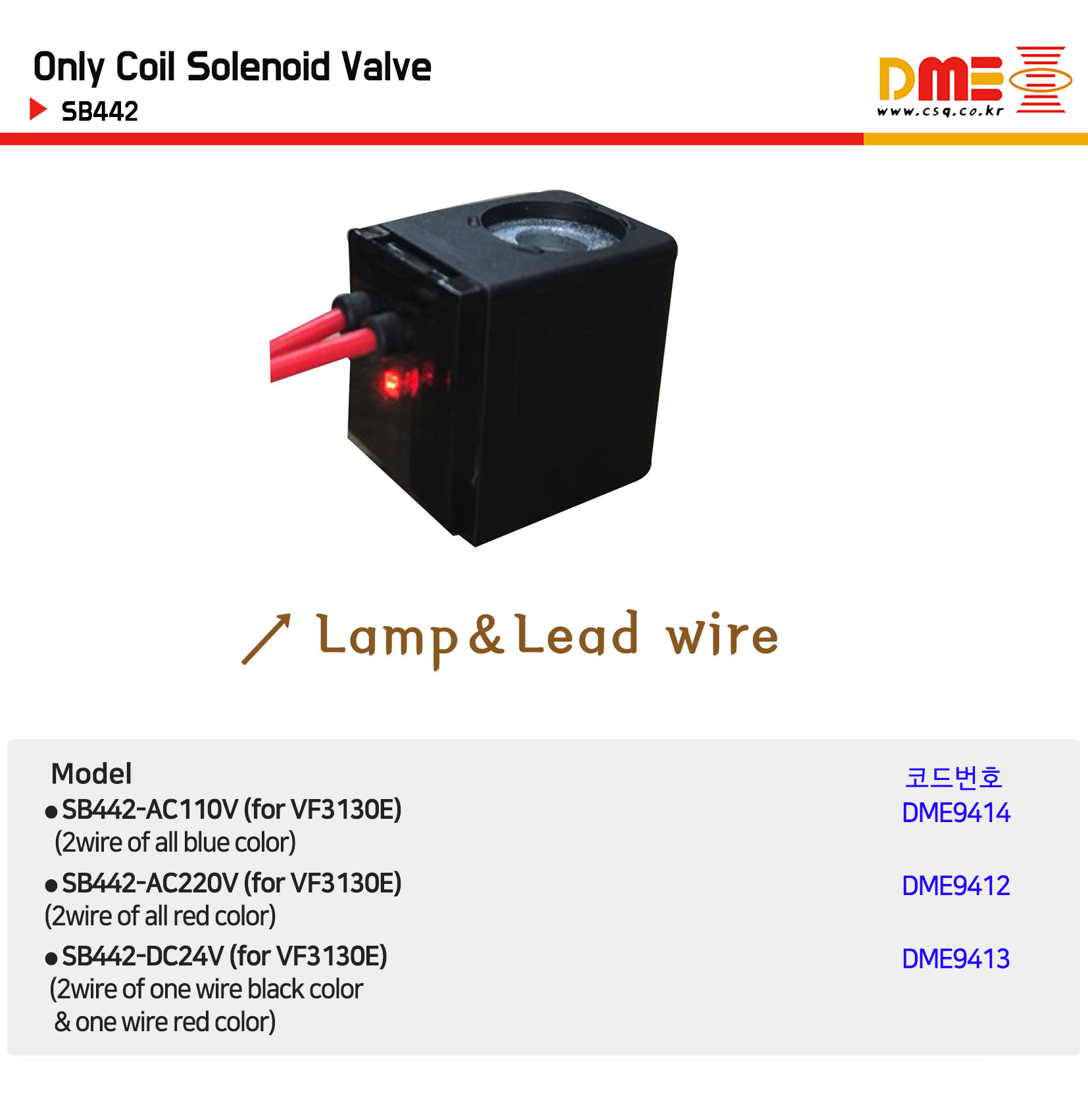

●(SB442) (with lamp & 2wire of all red color)

(bottom dai=9.1mm) (top dai=8mm, 18mm ) (height=29.8mm)

●SB442-AC220V (for VF3130E) (DME9412)

●(SB442) (with lamp & 2wire of all blue color)

(bottom dai=9.1mm) (top dai=8mm, 18mm ) (height=29.8mm)

●SB442-AC110V (for VF3130E) (DME9414)

●(SB442) (with lamp & 2wire of one wire black color, one wire red color)

(bottom dai=9.1mm) (top dai=8mm, 18mm ) (height=29.8mm)

●SB442-DC24V (for VF3130E) (DME9413)

●(SB442) (with lamp & 2wire of all purple color)

(bottom dai=9.1mm) (top dai=8mm, 18mm ) (height=29.8mm)

●SB442-AC24V (for VF3130E) (DME9415)

●(SB442) (with lamp & 2wire of all white color)

(bottom dai=9.1mm) (top dai=8mm, 18mm ) (height=29.8mm)

●SB442-AC12V (for VF3130E) (DME9416)
