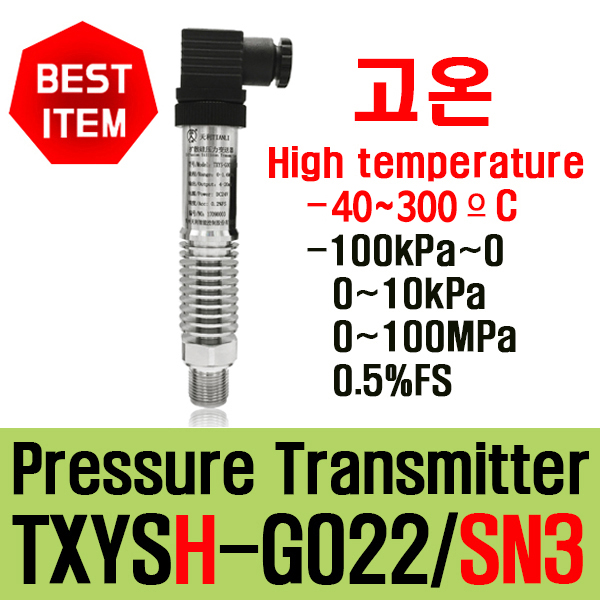

(고온타입, TXYS-G022/SN3)●Changzhou High Temp Transmitter●Temp=-20~200ºC●Max Temp Steam=300℃●Changzhou 고온 압력 트랜스미터●Changzhou 고온 압력 센서●Chang 고온 압력센서●(-100kPa~0)(0~10kPa)●(0~100MPa)●(0.5%FS)●(Changzhou)

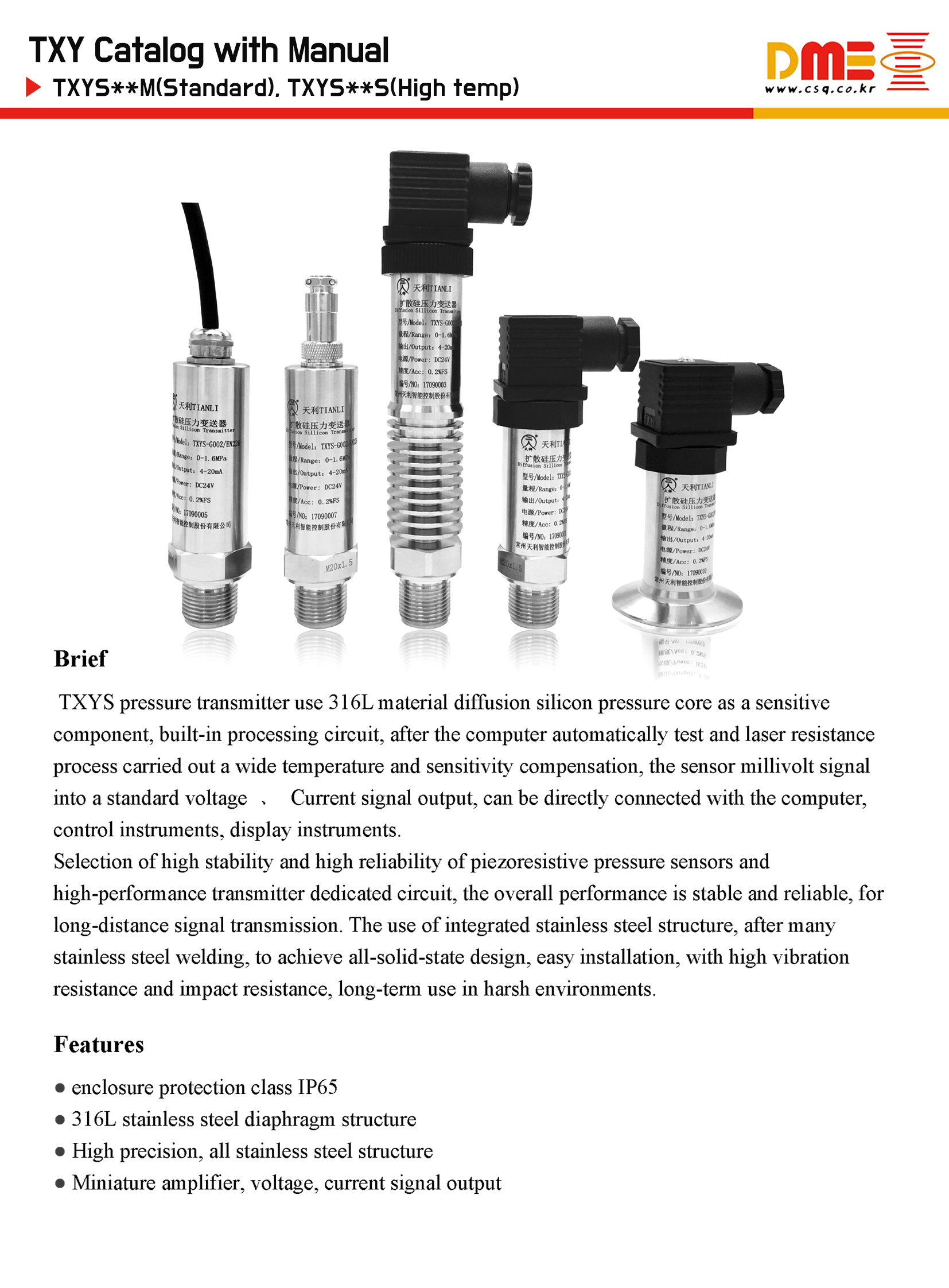

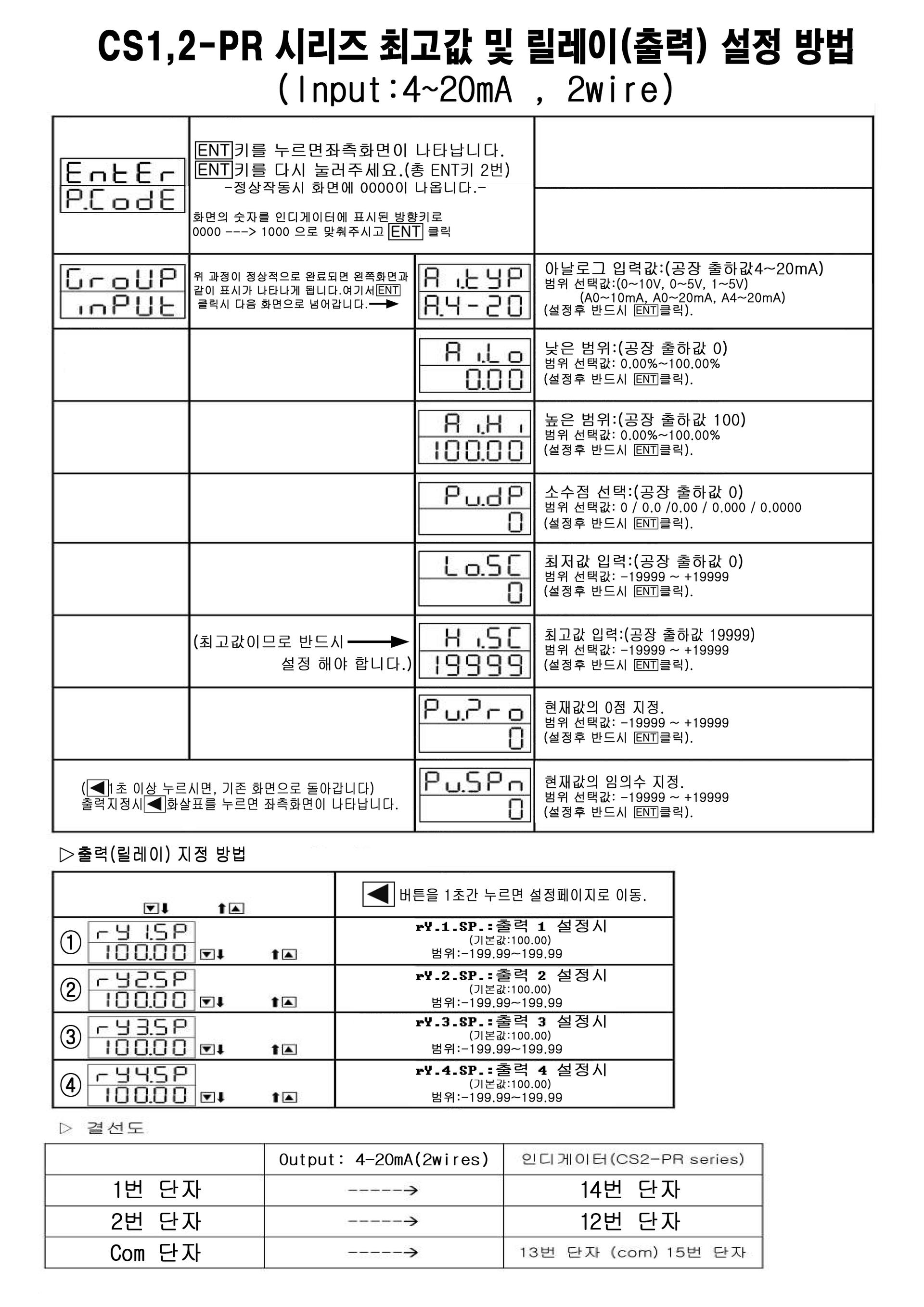

TXYSH-G042  카탈로그 CS1,2-PR 0~10V 결선도

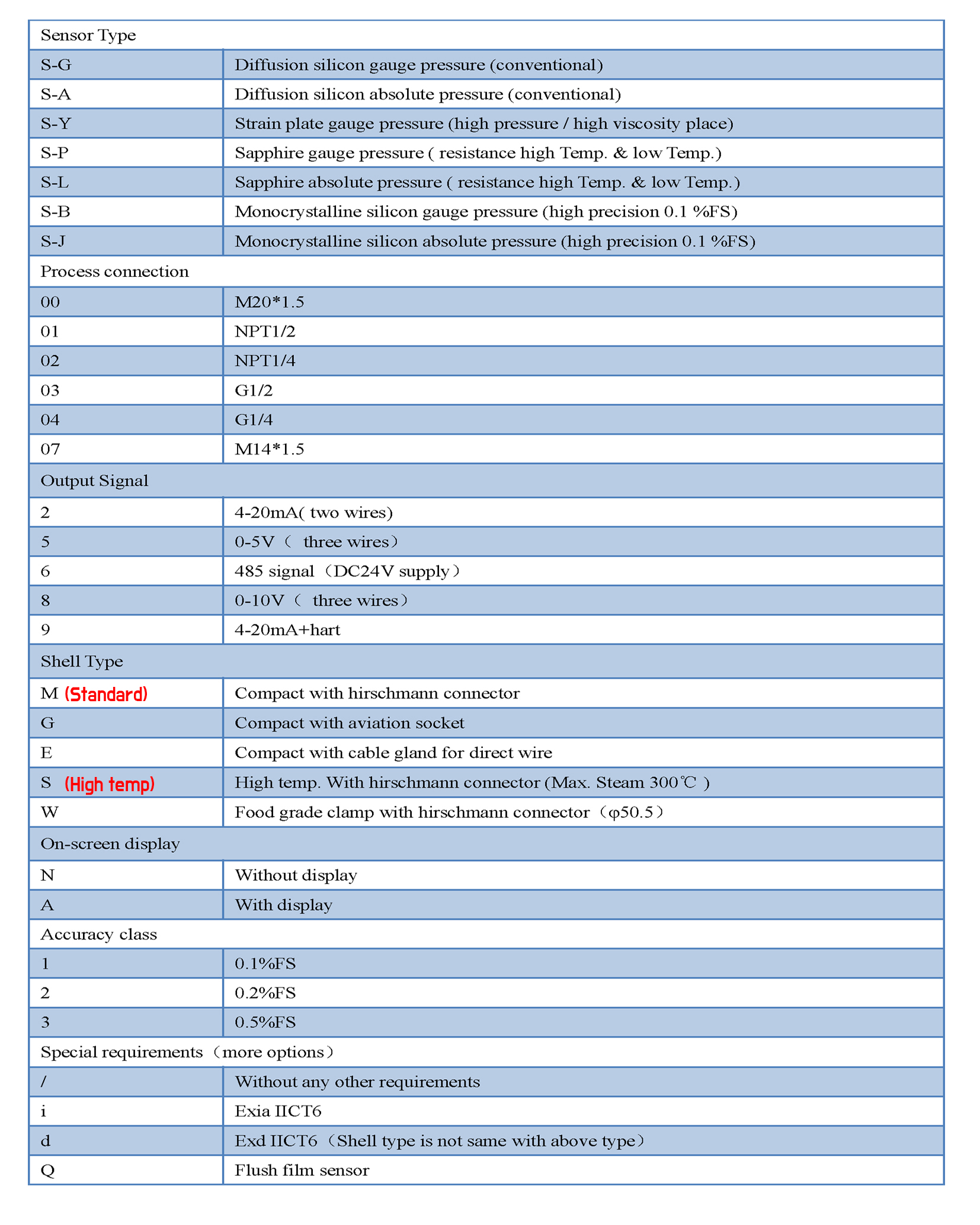

CS1,2-PR 4~20mA 결선도 Changzhou 코드표

●(output=4~20mA, 2wire) High Temp Pressure Transmitter (0.5%)

(Temp=-20~300ºC)

(connection=bottom NPT1/4 M)

(gauge pressure)

●TXYS-G022/SN366-(4~20mA, 2wire)-(-0.1~0Mpa)

(Vacuum) (csq2806)

●TXYS-G022/SN326-(4~20mA, 2wire)-(1.6Mpa) (csq2807)

●TXYS-G022/SN322--(4~20mA, 2wire)-(2.5Mpa)

●TXYS-G022/SN323--(4~20mA,2wire)-(4Mpa)

●TXYS-G022/SN320-(4~20mA, 2wire)-(6Mpa) (csq2808)

●TXYS-G022/SN311-(4~20mA, 2wire)-(10Mpa)

●TXYS-G022/SN338-(4~20mA, 2wire)-(16Mpa) (csq4687)

●TXYS-G022/SN313-(4~20mA, 2wire)-(25Mpa) (csq2734)

●TXYS-G022/SN316-(4~20mA, 2wire)-(40Mpa) (csq4685)

●TXYS-G022/SN317-(4~20mA, 2wire)-(60Mpa) (csq4686)

●TXYS-G022/SN3Z6-(4~20mA, 2wire)-(100Mpa) (생산안됨)

●(output=4~20mA, 2wire) High Temp Pressure Transmitter (0.5%)

(Temp=-20~300ºC)

(connection=bottom G1/4 M)

(gauge pressure)

●TXYS-G042/SN313-(4~20mA, 2wire) (G1/4 Male)-(25Mpa) (csq2734)

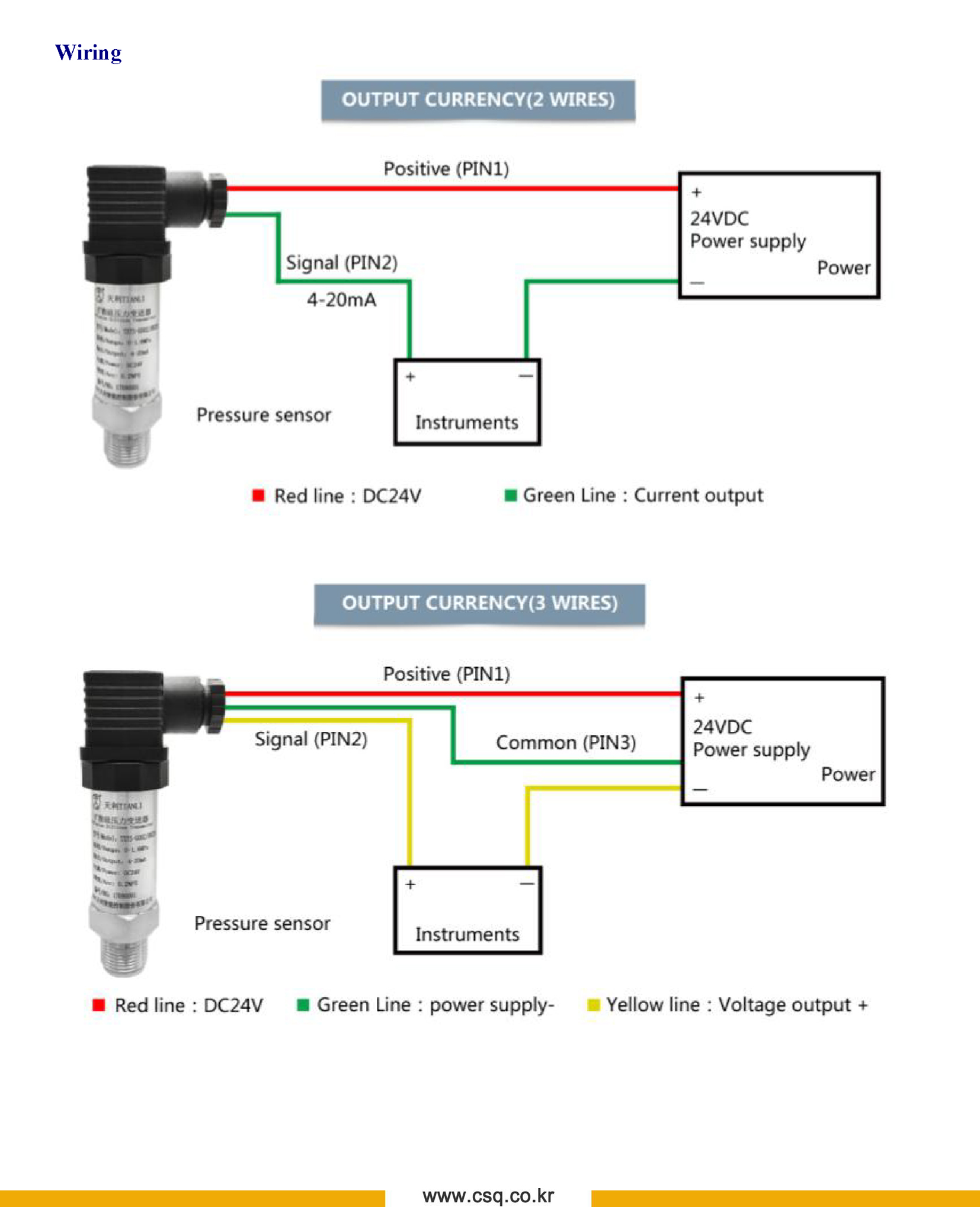

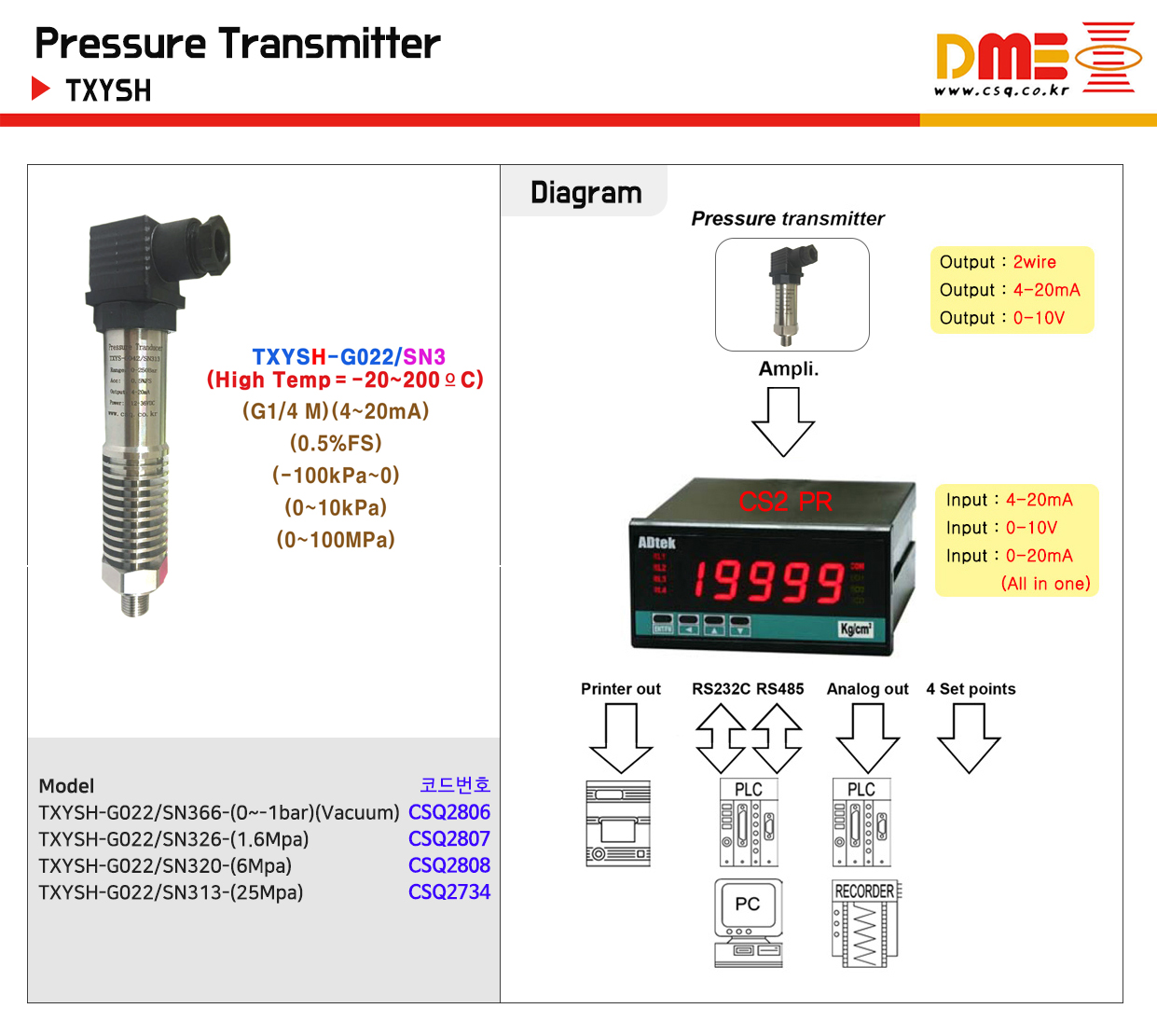

●( TXYS) with (CS2-PR 인디게이터 결선도) (4-20mA)(0-10V) (2wire or 3wire)

●(TXYS) with (CS1-PR 인디게이터 결선도) (4-20mA)(0-10V) (2wire or 3wire)

●WTR01 (PCM300) ●PCM300T (High Temp)
