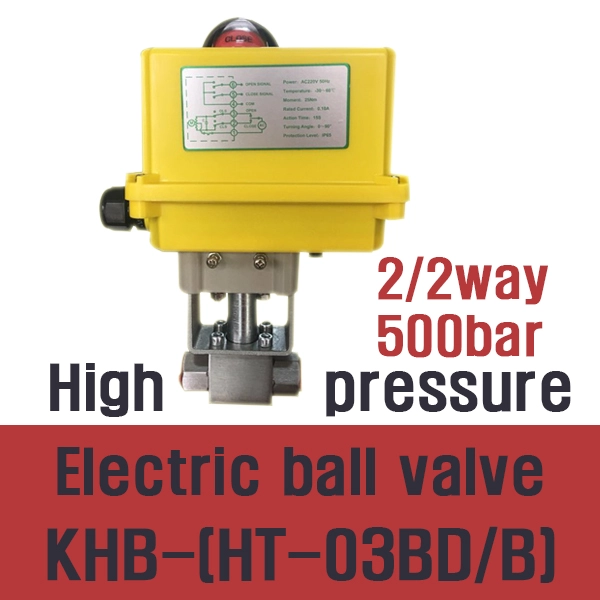

KHB-(HT-03BD/B)●2/2way High pressure Electric ball valve●고압 일렉트릭 볼 밸브●일렉트릭 고압 볼 밸브●고압 전동 볼 밸브●전동 고압 볼 밸브●전동 고압 밸브●유량계●(G1/8 F~G3/8 F)●(500bar)●(RFS)

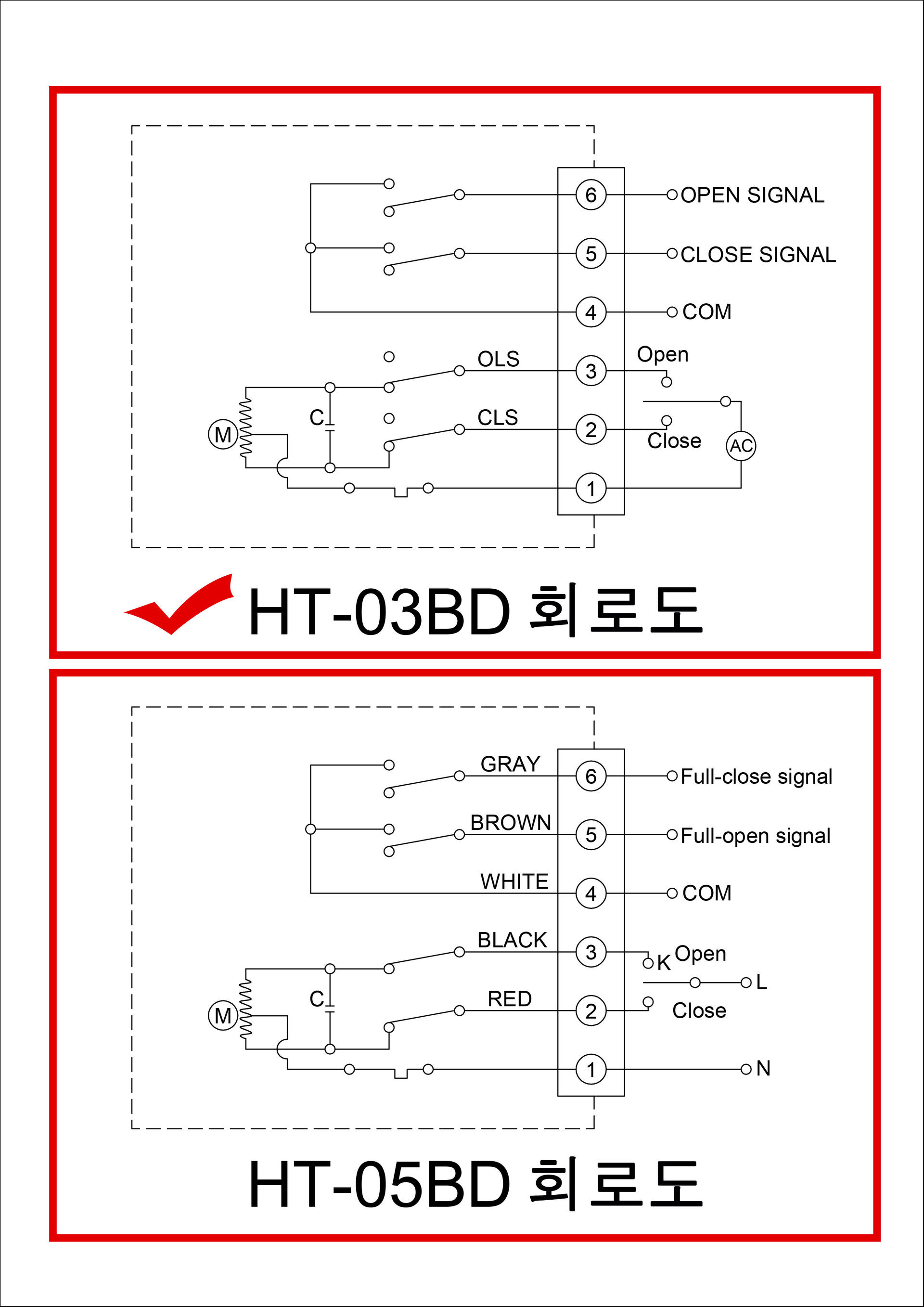

KHB-(HT-03BD/B) 카탈로그 KHB-(HT-03BD/B) 회로도

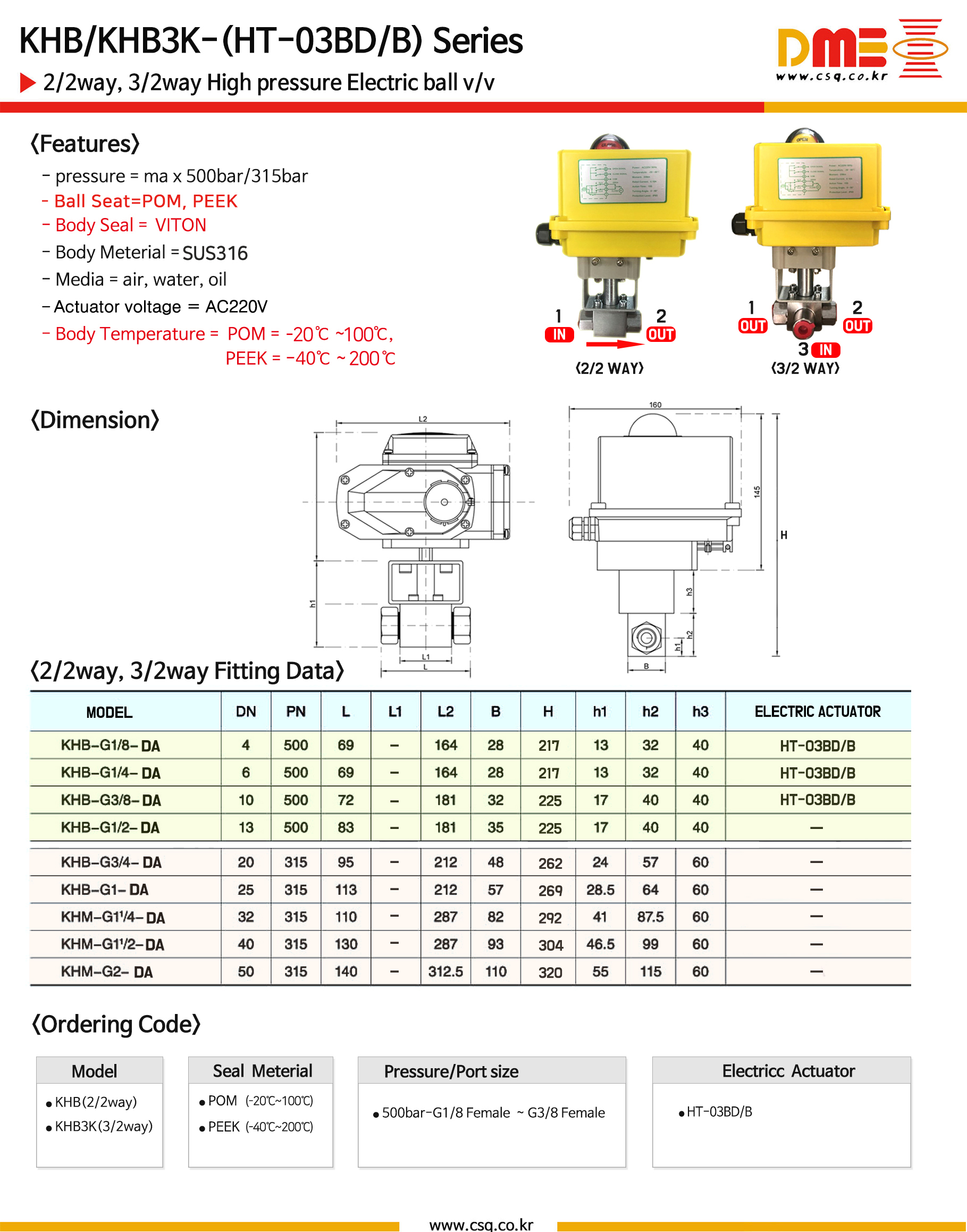

                                HT-03BD/B카달로그

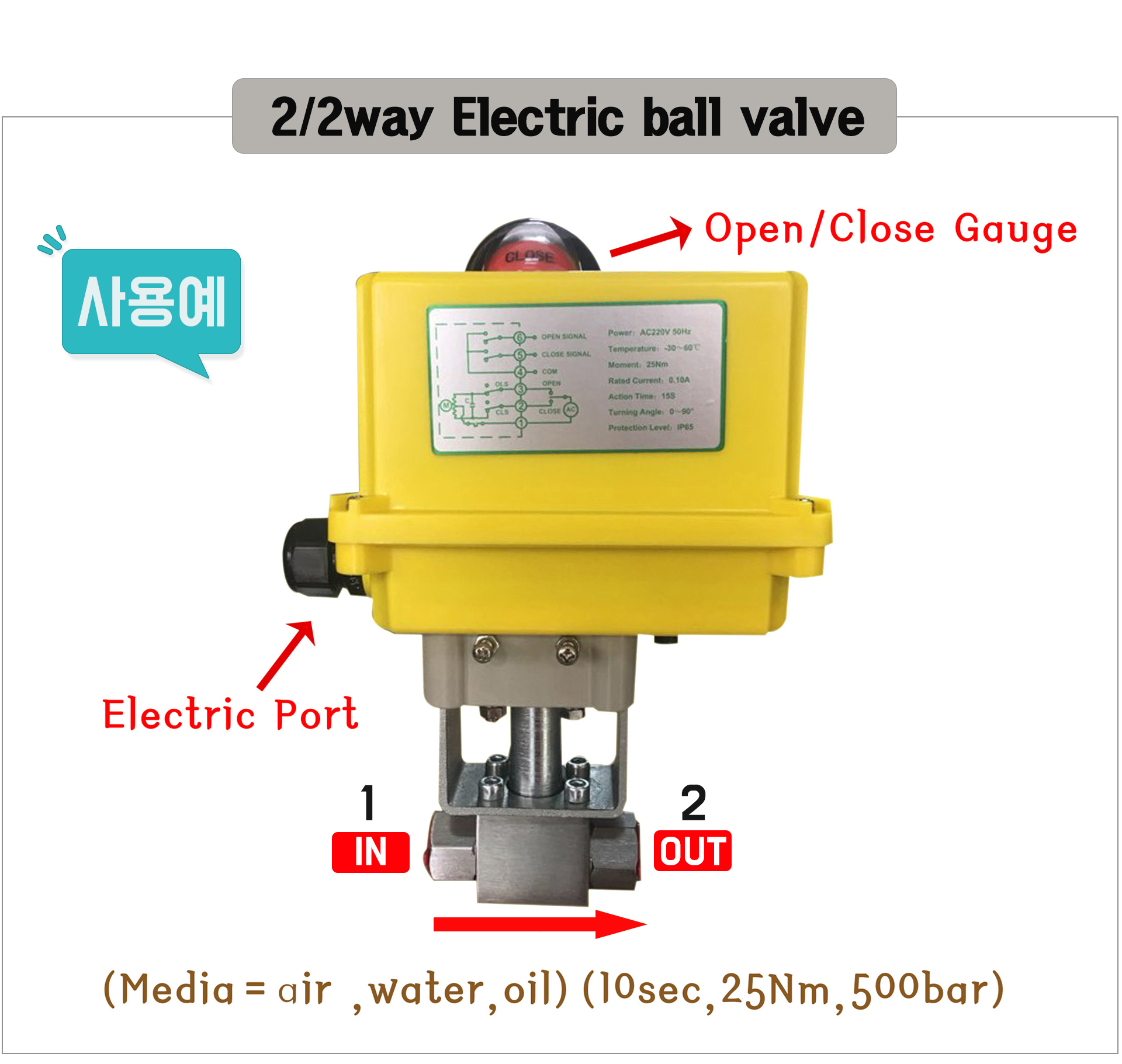

●(2way, POM) High pressure Electric ball valve

(pressure=500bar)(Media=air, water, oil)

(ball Seat=POM) (Body Meterial=SUS316)

(HT-03BD / B=90º Operational Time=10S)

(Electric Actuator temperature=-30~60ºC)

(Body temperature, POM=-20ºC~100ºC)

●KHB-POM-(500bar,25Nm,10sec)-(G1/8 F)-(HT-03BD/B)-AC220V

●KHB-POM-(500bar,25Nm,10sec)-(G1/4 F)-(HT-03BD/B)-AC220V (csq2692)

●KHB-POM-(500bar,25Nm,10sec)-(G3/8 F)-(HT-03BD/B)-AC220V (csq2693)

●(2way, PEEK) High pressure Electric ball valve

(pressure=500bar) (Media=air, water, oil)

(ball Seat=PEEK) (Body Meterial=SUS316)

(HT-03BD/B=90º Operational Time=10S)

(Body temperature, PEEK=-40ºC~200ºC)

●KHB-PEEK-(500bar,25Nm,10sec)-(G1/8 F)-(HT-03BD/B)-AC220V

●KHB-PEEK-(500bar,25Nm,10sec)-(G1/4 F)-(HT-03BD/B)-AC220V

●KHB-PEEK-(500bar,25Nm,10sec)-(G3/8 F)-(HT-03BD/B)-AC220V

●(2way, PEEK) High pressure only ball valve (with holder)

(Media=air ,water,oil) (temp=-20~200c)

●KHBK-PEEK-(315bar)-(SUS316)-(with holder) (G1/4 F) (csq4902)

●KHBK-PEEK-(500bar)-(SUS316)-(with holder) (G3/8 F) (csq4895)

●KHBK-PEEK-(500bar)-(SUS316)-(with holder) (G1/2 F) (csq4896)

● KHBK-PEEK-(315bar)-(SUS316)-(with holder) (G3/4 F) (csq4897)

●KHBK-PEEK-(315bar)-(SUS316)-(with holder) (G1 F) (csq4898)

●KHBK-PEEK-(315bar)-(SUS316)-(with holder) (G11/4 F) (csq4899)

●KHBK-PEEK-(315bar)-(SUS316)-(with holder) (G11/2 F) (csq4900)

●KHBK-PEEK-(315bar)-(SUS316)-(with holder) (G2 F) (csq4901)
