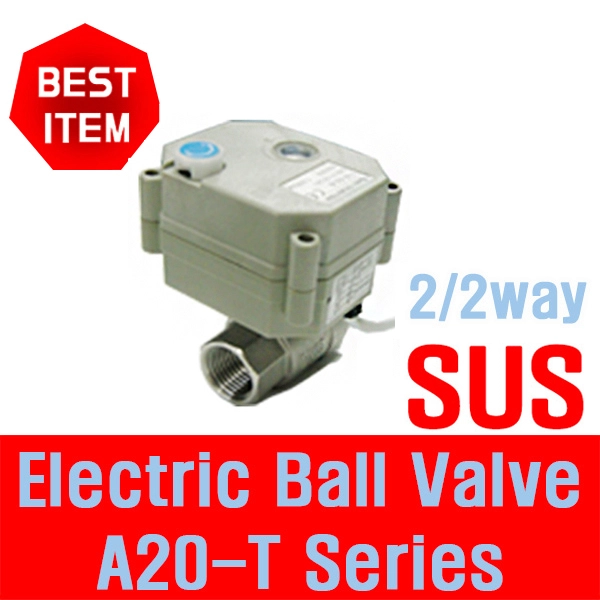

A20-T-(SUS)●(A20T)●2/2way SUS plated Electric Ball Valve●RFS 전기 볼밸브●RFS 전동 볼 밸브●Electric Ball Valve●스텐레스 전동볼밸브●스텐레스 전기볼밸브●(NPT 1/2 F-NPT 1 1/4 F)●(0~15bar)●(RFS)

A20-T Series(BODY-SUS) 카탈로그

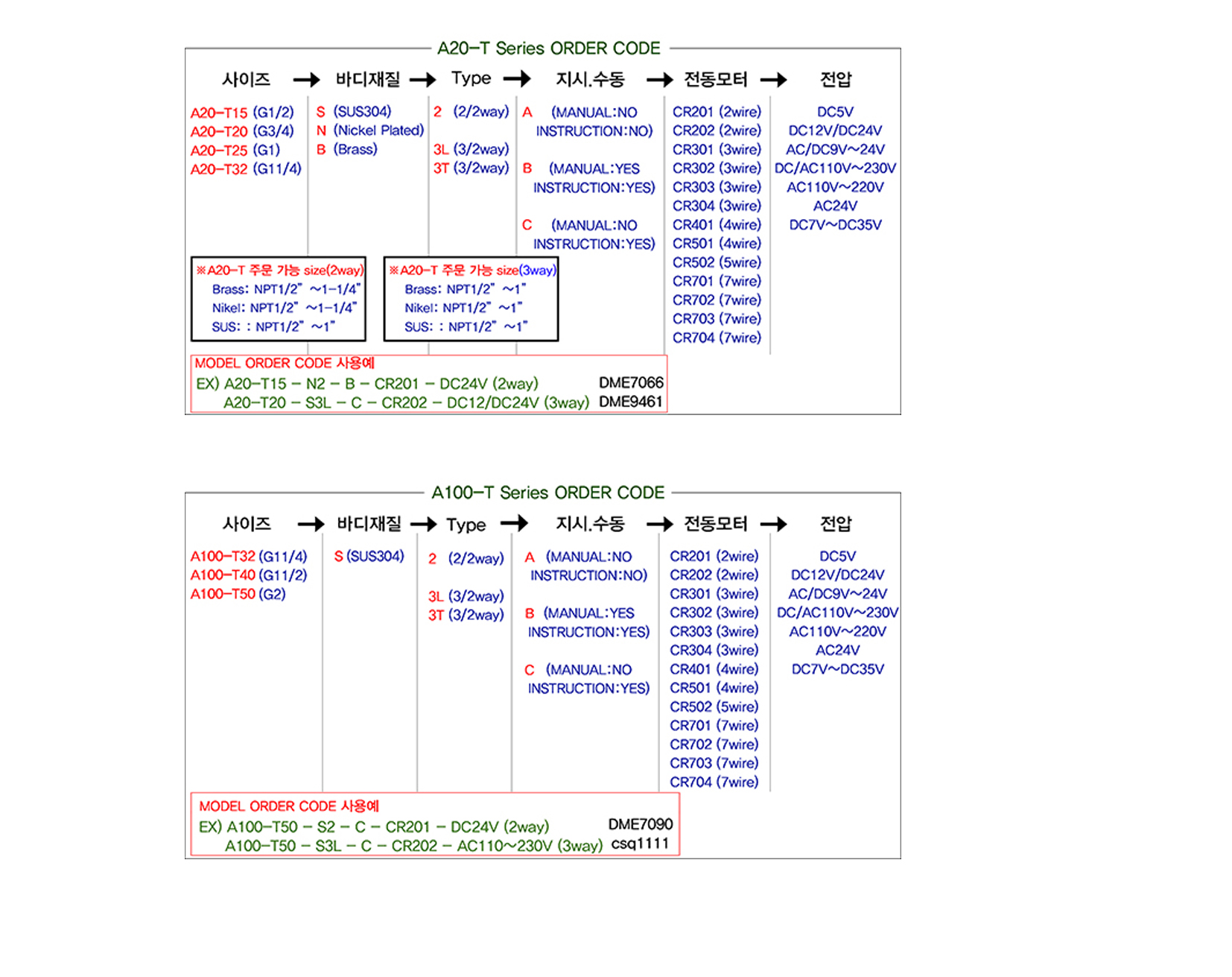

A20-T Series(BODY-SUS) 코드번호

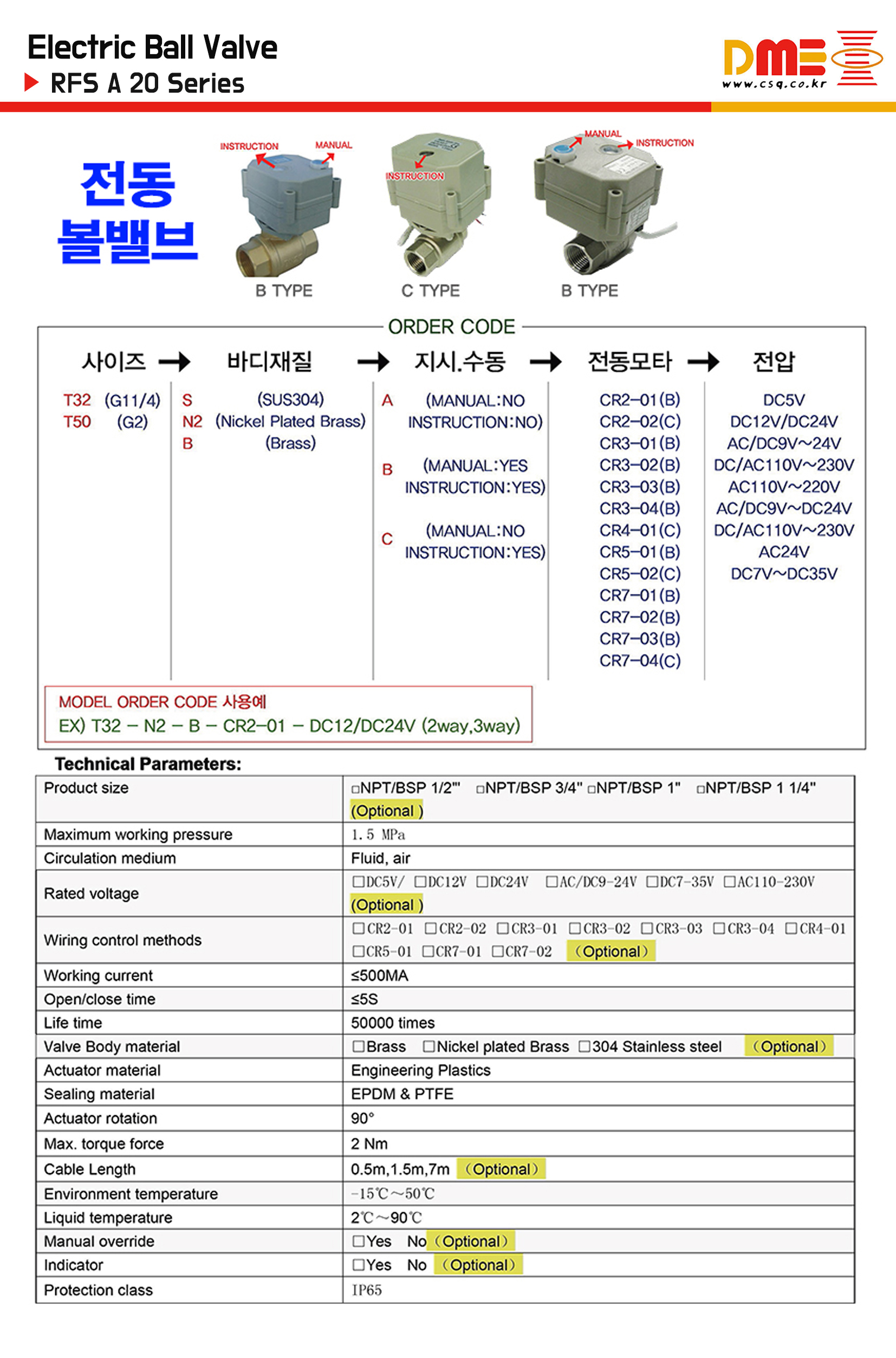

Electric Ball Valve 전체 카탈로그

  Electric Ball Valve 전체 코드번호

●(2/2way. SUS304) Electric ball valve (power reset, 2wire)

(on/off time=5S)

(NO manual) (with open/close Indicator)

(body=SUS304) (seat=PFTE) (torque=2 Nm)

●A20-T15-S2-C-CR202-(2wires)-(voltage=AC110V~230V)

(NPT1/2 F) (DME7102)

●A20-T15-S2-C-CR202-(2wires)-(voltage=AC/DC 9-24V)

 (NPT1/2 F) (DME7098)

●A20-T20-S2-C-CR202-(2wires)-(voltage=AC110V~230V)

(NPT3/4 F) (DME7103)

●A20-T20-S2-C-CR201-(2wires)-(voltage=AC/DC9-24V)

 (NPT3/4 F) (DME7099)

●A20-T25-S2-C-CR202-(2wires)-(voltage=AC/DC9-24V)

(NPT1 F) (DME7100)

●A20-T25-S2-C-CR202-(2wires)-(voltage=AC110V~230V)

(NPT1 F) (DME7104)

●A20-T32-S2-C-CR202-(2wires)-(voltage=AC110V~230V)

(NPT11/4 F)

●(2/2way, SUS304) Electric ball valve (no power reset, 2wire)

(on/off time=5S)

(with manual) (with open/close Indicator)

(body=SUS304) (seat=PFTE) (torque=2 Nm)

●A20-T15-S2-B-CR201-(2wires)-(voltage=DC24V)

(NPT1/2 F) (DME7094)

●A20-T20-S2-B-CR201-(2wires)-(voltage=DC24V)

(NPT3/4 F) (DME7095)

●A20-T25-S2-B-CR201-(2wires)-(voltage=DC24V)

(NPT1 F) (DME7096)

●(2/2way, SUS304) Electric ball valve

(no power reset) (5wires feedback)

(on/off time=5S)

(with manual) (NO instructionl)

(body=SUS304) (seat=PFTE) (torque=2 Nm)

●A20-T15-S2-A-CR501-(5wires)-(voltage=DC24V)

(NPT1/2 F) (DME7044)

●A20-T25-S2-A-CR501-(5wires)-(voltage=DC24V)

(NPT1 F) (DME7046)

●(2/2way, SUS304) Electric ball valve

(no power reset) (5wires feedback)

(on/off time=5S)

(with manual) (with open/close Indicator)  )

(body=SUS304) (seat=PFTE) (torque=2 Nm)

●A20-T15-S2-B-CR501-(5wires)-(voltage=DC24V)

(NPT1/2 F) (DME7040)

●A20-T20-S2-B-CR501-(5wires)-(voltage=DC24V)

(NPT3/4 F) (DME7041)

●A20-T25-S2-B-CR501-(5wires)-(voltage=DC24V)

(NPT1 F) (DME7042)

●A20-T32-S2-B-CR501-(5wires)-(voltage=DC24V)

(NPT11/4 F) (DME7043)

●(2/2way, SUS304) Electric ball valve

(power reset) (5wires feedback)

(on/off time=5S) (no manual)

(with open/close Indicator) )

(body=SUS304) (seat=PFTE) (torque=10 Nm)

●A20-T15-S2-C-CR502-(5wires)-(voltage=DC/AC110V~230V)

(NPT1/2 F) (DME7048)

●A20-T20-S2-C-CR502-(5wires)-(voltage=DC/AC110V~230V)

(NPT3/4 F) (DME7049)

●A20-T25-S2-C-CR502-(5wires)-(voltage=DC/AC110V~230V)

(NPT1 F) (DME7050)
