CS2-PM●CS2-PM-P2-R2●(CS2PM)●Potention meter Indicator●Potention meter Digital Indicator●디지털 인디게이트●포텐션 메타 디지털 인디게이터●포텐션메타 인디게이트●가변저항 포텐션미터●변위센서 인디게이트●Digital Indicator●(W=96mm, H=48mm, D=120mm)●(ADTek)

관련자료 (CLICK)

●Dimensions=W=96mm, H=48mm, D=120mm

●P1= input signal (0~50Ω) (0~2.0㏀)

●P2=input signal (0~2㏀) (o~100㏀)

●PO=input signal (specify input)

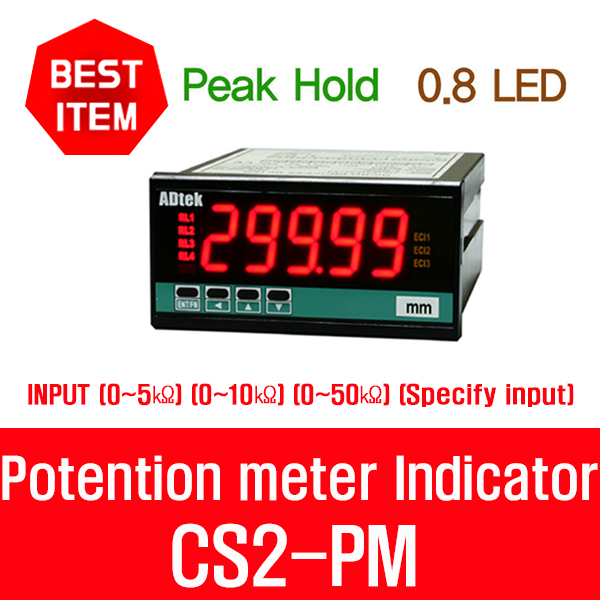

●(CS2-PM, 5㏀) Potention meter Indicator

● Power supply=(AC115/230V)

●CS2-PM-P2-R2-N-N-A (DME1013)

(input=0~5㏀) (3wired) (output=2 Relay)

●CS2-PM-P2-R4-N-N-A (DME1019)

(input=~5㏀) (3wired) (output=4Relay)

●CS2-PM-P2-R2-N-8-A (DME1018)

(input=0~5㏀) (3wired) (output=2 Relay,RS485)

●CS2-PM-P2-R2-I-N-A (DME1017)

(input=0~5㏀) (3wired) (output=2 Relay, 0~10mA, 4(0)~20mA)

●(CS2-PM,  10㏀) Potention meter Indicator

● Power supply=(AC115/230V)

●CS2-PM-P2-R2-N-N-A (DME1012)

(input=0~10㏀) (3wired) (output=2 Relay)

●(CS2-PM,  0~2㏀) Potention meter Indicator

● Power supply=(AC115/230V)

●CS2-PM-P2(0~2㏀)-R2-I-N-A(Power=AC115/230V) (csq4828)

●CS2-PM-P2(0~2㏀)-R2-N-N-A(Power=AC115/230V) (csq5470)

(input=0~2㏀) (3wired) (output=2 Relay)
