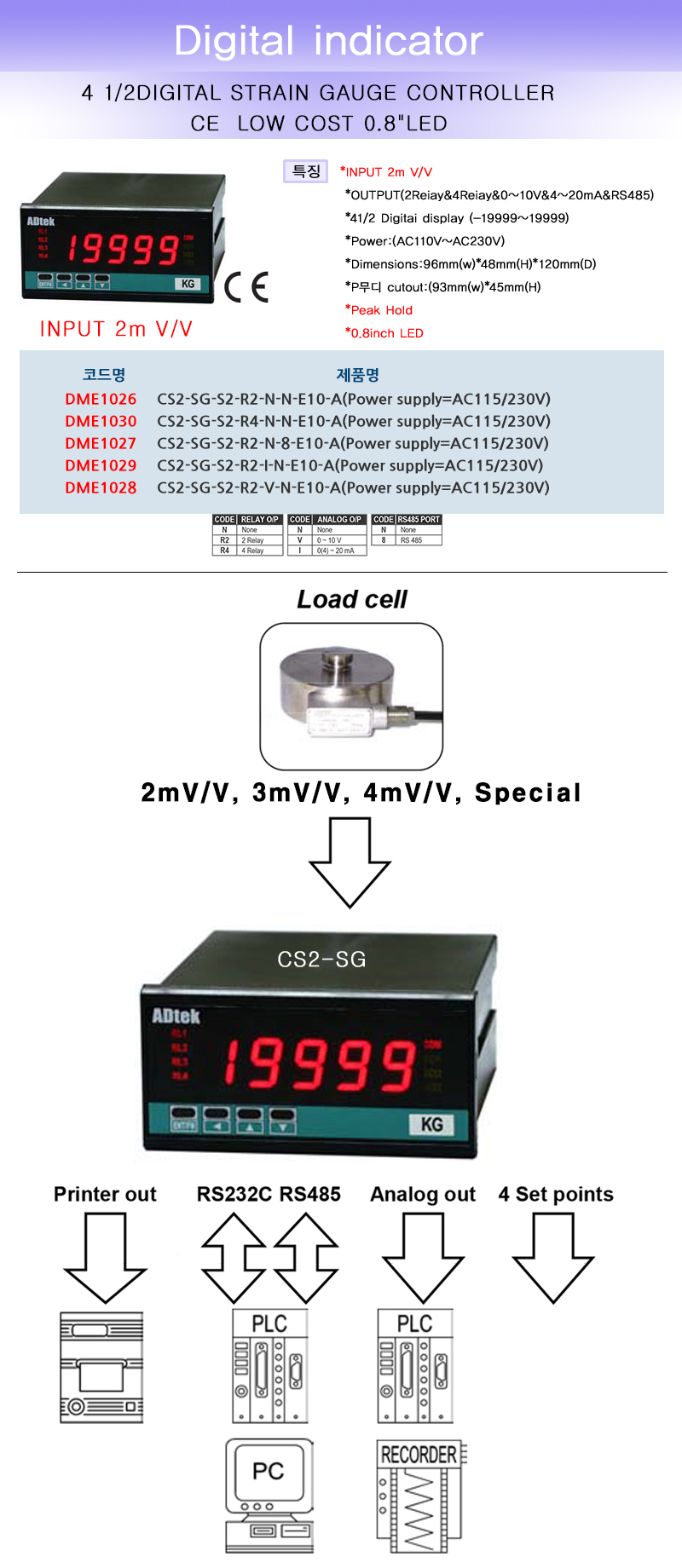

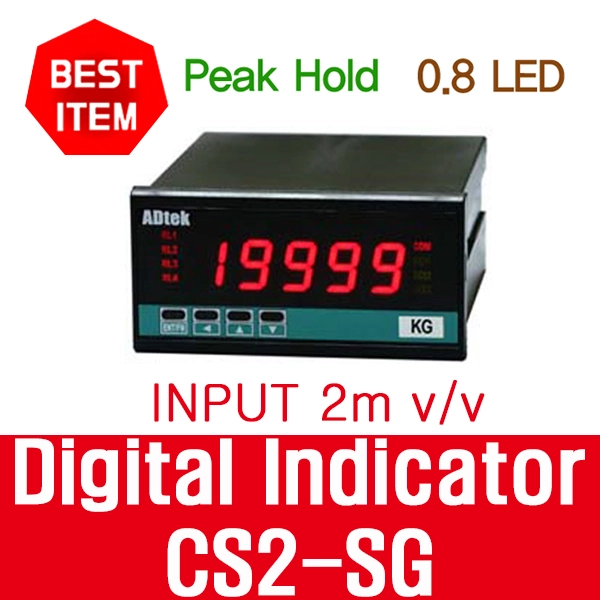

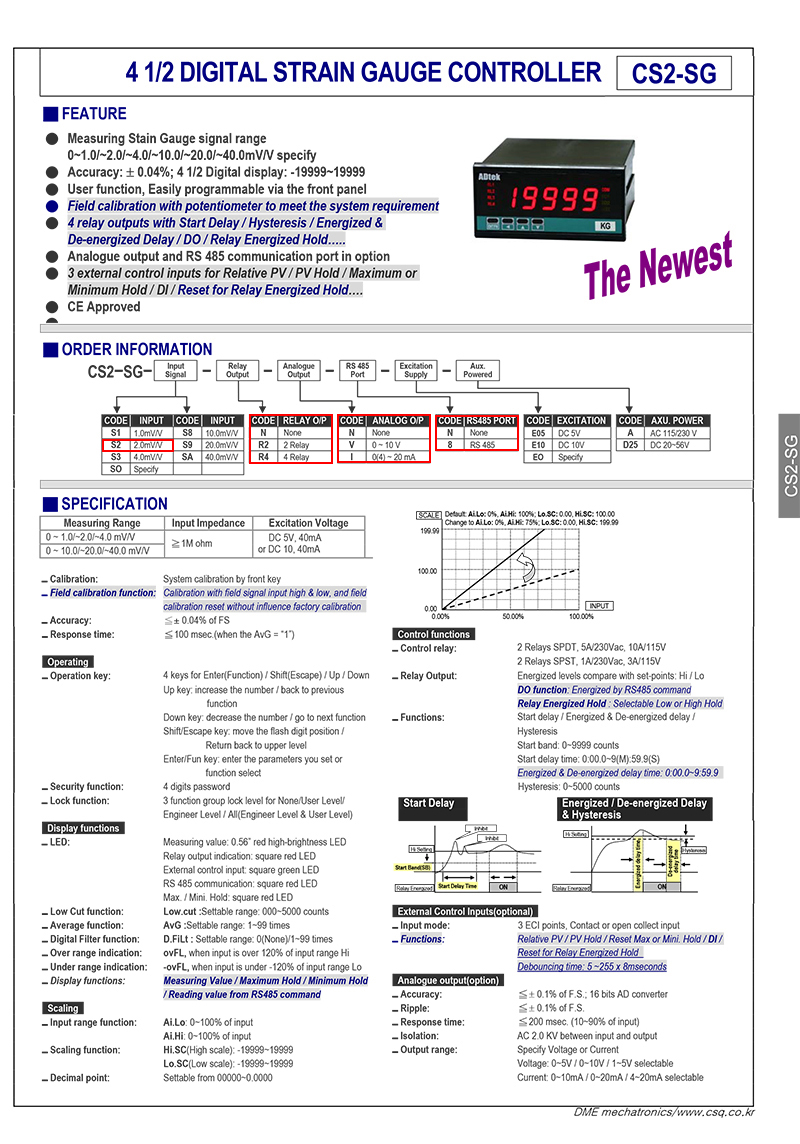

CS2-SG●CS2-SG-S2-R2●(CS2SG)●ADTek strain gauge Indicator●strain gauge Digita lIndicator●로드셀 디지털 인디게이터●로드셀 인디게이터●스트레인 게이지 인디게이터●Digital Indicator●(W=96mm, H=48mm, D=120mm)●(ADTek)

관련자료 (CLICK)

●(CS2-SG) strain gauge Indicator=W=96mm, H=48mm, D=120mm

●(Power supply=AC115/230V)

●(input=2mv/v)

●CS2-SG-S2-R2-N-N-E10-A (DME1026)

(output=2Relay) (Excitation supply=DC10V)

●CS2-SG-S2-R4-N-N-E10-A (DME1030)

(output=4Relay) (Excitation supply=DC10V)

●CS2-SG-S2-R2-N-8-E10-A  (DME1027)

(output=2Relay+ RS485) (Excitation supply=DC10V)

●CS2-SG-S2-R2-I-N-E10-A  (DME1029)

(output=2Relay + 0~10mA + 4(0)~20mA) (Excitation supply=DC10V)

●CS2-SG-S2-R2-V-N-E10-A  (DME1028)

(output=2Relay + 0(1)~5V + 0~10V) (Excitation supply=DC10V)
