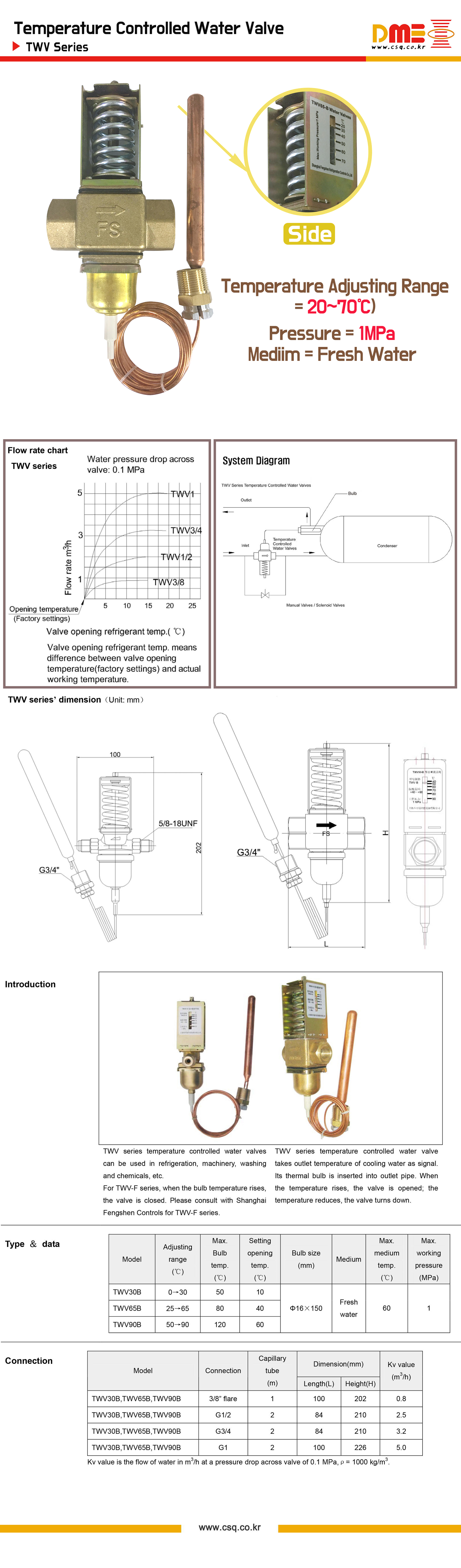

TWV 카탈로그

●(TWB30B) (TWB65B) (TWB90B)

●온도자동 조절밸브는  (물 or 유체)의 설정온도에의해서

밸브가 Ppen Close 를 반복해서동작한다

●밸브에 설정된온도에 도달되면 밸브가열리고,

밸브에설정된 온도보다낮으면밸브는닫힌다

●사용용도=(Colling system)

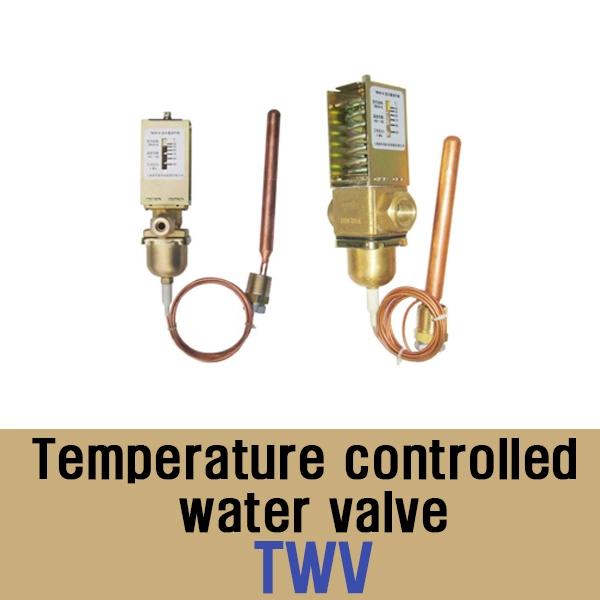

●(TWV30B) Temperature controlled water valve

(Medium=Fresh water) (max pressure=1MPa)

(temp adjusting range=0~30℃)

●TWV30B-(temp adjusting range=0~30℃)-(KV value=0.8 m3/h)  (water valve connection 3/8" flare) (temp connection G3/4M)

●TWV30B-(temp adjusting range=0~30℃)-(KV value=2.5 m3/h) (water valve connection G1/2 F) (temp connection G3/4M)

●TWV30B-(temp adjusting range=0~30℃) -(KV value=3.5 m3/h) ( water valve connection G3/4 F) (temp connection(G3/4M))

●TWV30B-(temp adjusting range=0~30℃)-(KV value=5.0 m3/h)

(water valve connection G1 F)  (temp connection G3/4M)

●(TWV65B) Temperature controlled water valve

(Medium=Fresh water) (max pressure=1MPa)

(temp adjusting range=25~65℃)

●TWV65B-(temp adjusting range=0~30℃)-(KV value=0.8 m3/h) (water valve connection 3/8" flare) (temp connection G3/4M)

●TWV65B-(temp adjusting range=25~65℃)-(KV value=2.5 m3/h) (water valve connection G1/2 F) (temp connection G3/4M)  (csq2850)

●TWV65B-(temp adjusting range=25~65℃)-(KV value=3.5 m3/h) (water valve connection G3/4 F) (temp connection G3/4M)  (csq2851)

●TWV65B-(temp adjusting range=25~65℃)-(KV value=5.0 m3/h)

(water valve connection G1 F) (temp connection G3/4M)  (csq2852)

●(TWV90B) Temperature controlled water valve

(Medium=Fresh water) (max pressure=1MPa)

(temp adjusting range=50~90℃)

●TWV90B-(temp adjusting range=50~90℃)-(KV value=0.8 m3/h) (water valve connection 3/8" flare) (temp connection G3/4M)

●TWV90B-(temp adjusting range=50~90℃)-(KV value=2.5 m3/h) (water valve connection G1/2F) (temp connection G3/4M)

●TWV90B-(temp adjusting range=50~90℃)-(KV value=3.5 m3/h) (water valve connection G1/4 F) (temp connection G3/4M)

●TWV90B-(temp adjusting range=50~90℃)-(KV value=5.0 m3/h)

(water valve connection G1 F) (temp connection G3/4M)
