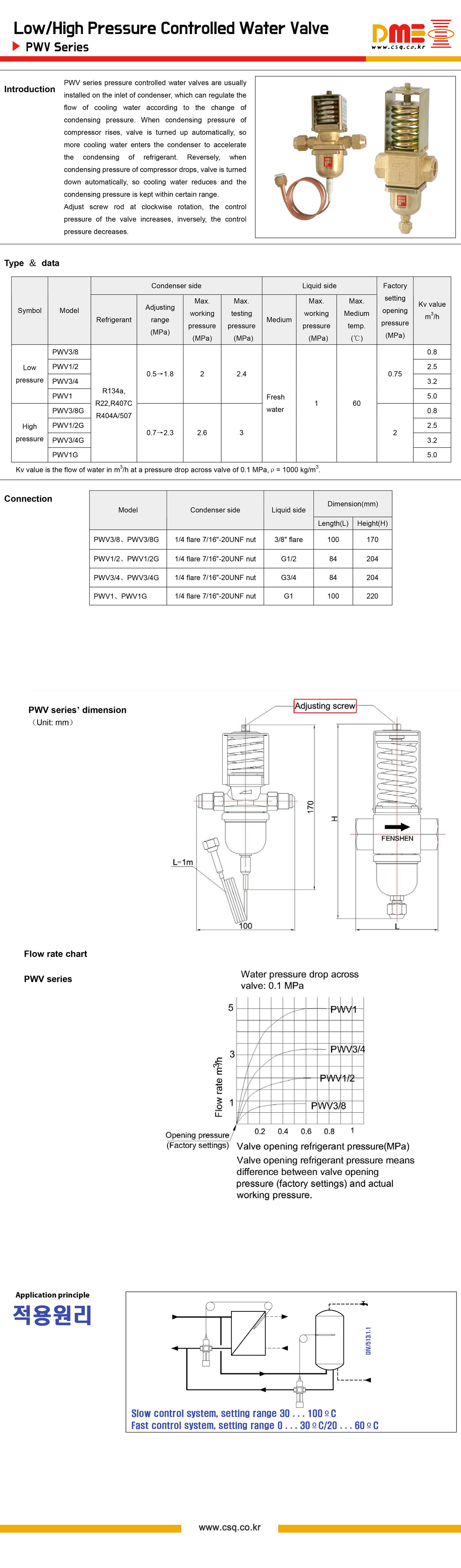

PWV 카탈로그

●(PWV3/8) (PWV1/2) (PWV3/4) (PWV1)

●PWV3/8G) (PWV1/2G) (PWV3/4G) (PWV1G)

●압력자동 조절밸브는  (물 or 유체)의 설정압력에의해서

밸브가 (Ppen+Close)를반복해서동작한다

●밸브에 설정된압력에 도달되면 밸브가열리고,

밸브에설정된 압력보다낮으면 밸브는닫힌다

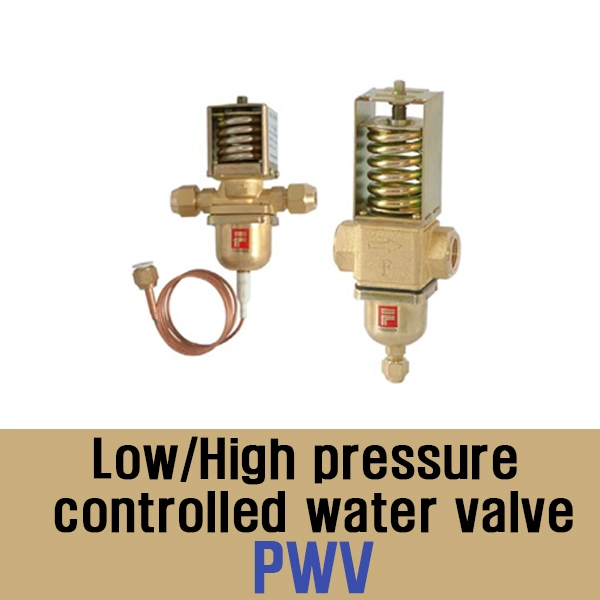

●(PWV) Low pressure  controlled water valve

(Medium=Fresh water)

(condenser side=1/4flare 7/18"20UNF net)

(Liquid side=3/8"flare,G1/2F,G3/4,G1)

(temp adjusting range=60℃) (Adjusting range pressure=0.5~1.8MPa)

●PWV3/8-(adjusting rang=0.5~1.8Mpa)-(KV value=0.8 m3/h) (3/8"flare)

●PWV1/2-(adjusting rang=0.5~1.8Mpa)-(KV value=2.5 m3/h)

(G1/2 F)

●PWV3/4-(adjusting rang=0.5~1.8Mpa)-(KV value=3.2 m3/h)

(G3/4 F)

●PWV1-(adjusting rang=0.5~1.8Mpa)-(KV value=5.0 m3/h)

(G1 F)

●(PWV) High pressure  controlled water valve

(Medium=Fresh water)

(condenser side=1/4flare 7/18"20UNF net)

(Liquid side=3/8"flare,G1/2F,G3/4,G1)

(temp adjusting range=60℃) (Adjusting range pressure=0.7~2.3MPa)

●PWV3/8G-(adjusting rang=0.7~2.3Mpa)-(KV value=0.8 m3/h) (3/8"flare)

●PWV1/2G-(adjusting rang=0.7~2.3Mpa)-(KV value=2.5 m3/h) (G1/2F)

●PWV3/4G-(adjusting rang=0.7~2.3Mpa)-(KV value=3.2 m3/h) (G3/4)

●PWV1G-(adjusting rang=0.7~2.3Mpa)-(KV value=5.0 m3/h) (G1F)

●DANFOSS= AVTB(PN16)=003N
