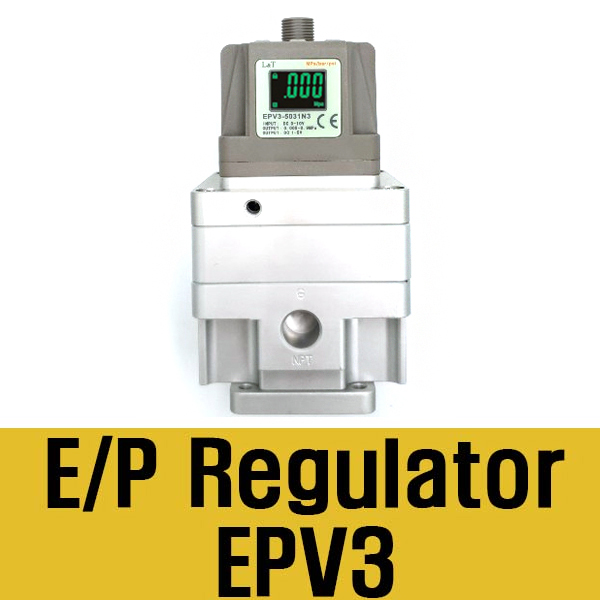

●(EPV3, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~9Bar) (Input=0~10V) (output=1~5V) (straight=3m)

●EPV3-5031N3S (Input=0~10V) (output=1~5V) (NPT3/8 F) (csq3691)

●EPV3-5031N2S (Input=0~10V) (output=1~5V) (NPT1/4 F)

●EPV3-5031N4S (Input=0~10V) (output=1~5V) (NPT1/2 F) (csq4681)

●(EPV3, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~9Bar) (Input=0~10V) (Output=4~20mA) (

●EPV3-5034N3S (Input=0~10V) (output=4~20mA) (NPT3/8 F) (csq3372)

●EPV3-5034N2S (Input=0~10V) (output=4~20mA) (NPT1/4 F)

●EPV3-5034N4S (Input=0~10V) (output=4~20mA) (NPT1/2 F)

●(EPV3, E/P Regulator) (power=DC24V (straight=3m)

(pressure=0.005~9Bar) (Input=4~20mA) (Output=1~5V)

●EPV3-5001N3S (Input=4~20mA) (output=1~5V) (NPT3/8 F)

●EPV3-5001N2S (Input=4~20mA) (output=1~5V) (NPT1/4 F)

●EPV3-5001N4S (Input=4~20mA) (output=1~5V) (NPT1/2 F)

●(EPV3, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~9Bar) (Input=4~20mA) (output=NPN)

●EPV3-5002N3S (Input=4~20mA) (output=NPN) (NPT3/8 F)

●EPV3-5002N2S (Input=4~20mA) (output=NPN) (NPT1/4 F)

●EPV3-5002N4S (Input=4~20mA) (output=NPN) (NPT1/2 F)

●(EPV3, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~5Bar) (Input=4~20mA) (Output=1~5V)

●EPV3-3001N3S (Input=4~20mA) (output=1~5V) (NPT3/8 F)

●EPV3-3001N2S (Input=4~20mA) (output=1~5V) (NPT1/4 F)

●EPV3-3001N4S (Input=4~20mA) (output=1~5V) (NPT1/2 F)

●EPV3-3001N4S (Input=4~20mA) (output=1~5V) (NPT1/2 F)(csq4484)

●(EPV3, E/P Regulator) (power=DC24V) (straight=3m)

(Input=4~20mA) (output=MODBUS)

●EPV3-100MBN3S (pressure=0.005~1bar) (NPT3/8 F)

● EPV3-3001N3S (pressure=0.005~5bar) (NPT3/8 F)

●EPV3-500MBN3S (pressure=0.005~9bar) (NPT3/8 F)

●(only, EPV1. EPV2, EPV3,  bracked )

●B code (for EPV1. EPV2, EPV3  Flat type bracked) (csq3526)

●C code (for EPV1. EPV2, EPV3  L bracked) (csq3373)

●option OUTPUT=(MODBUS OVER SERIAL LINE)

●전기신호에 비례하여 공기압력 을 무단계로 제어

●전기신호에 비례하여 공가 압력을 다단 제어를 한번에 가능

●전기신호에 비례하여  원격 조절에 매우 능함

●EVP31 ●EVP33 ●EVP35

●ITV3000 ● ITV3010 ● ITV3030 ● ITV3050
