●HB-DJ806-24 (YHBA6-24) (operation=build in limit switch)

(PUSH lond=max 1200N)  (PULL lond=max1000N)

(speed=(5mm/s~60mm/S)  (stroke=50mm~600mm)

●(24VDC) (speed=10mm/s) Linear actuator

●2wire + male 2pin connection

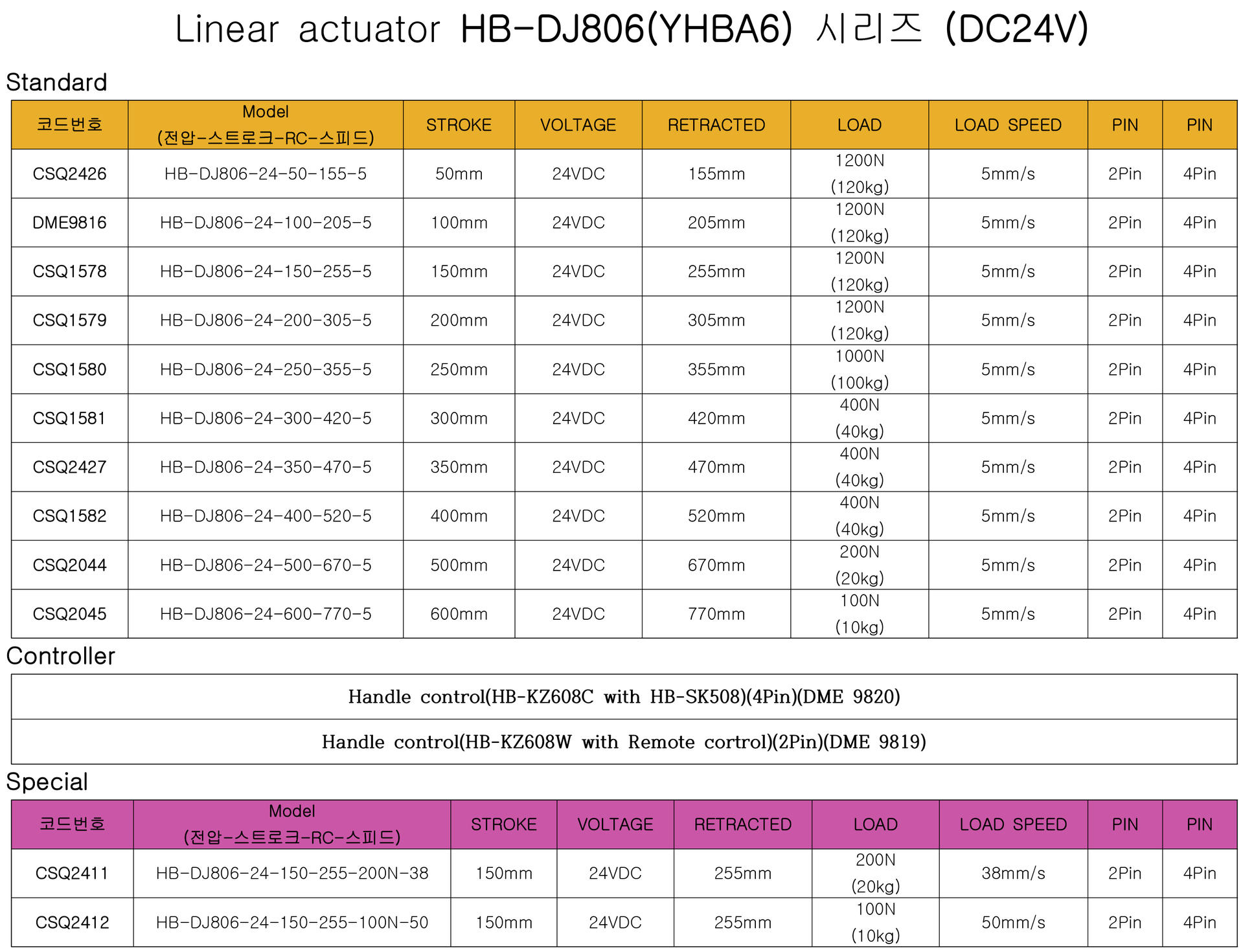

●HB-DJ806-24-50-155-10-600N (csq4359)

(24VDC) (load=600N) (stroke=50mm) (retracted=205mm)

●HB-DJ806-24-100-205-10-600N (csq3284)

(24VDC) (load=600N) (stroke=100mm) (retracted=205mm)

●HB-DJ806-24-150-255-10-600N (csq3370)

(24VDC) (load=600N) (stroke=150mm) (retracted=255mm)

●HB-DJ806-24-200-305-10-600N

(24VDC) (load=600N) (stroke=200mm) (retracted=305mm)

●HB-DJ806-24-250-355-10-600N (csq3368)

(24VDC) (load=600N) (stroke=250mm) (retracted=355mm)

●HB-DJ806-24-300-420-10-600N

(24VDC) (load=600N) (stroke=300mm) (retracted=420mm)

●HB-DJ806-24-350-470-10-400N (csq3369)

(24VDC) (load=400N) (stroke=350mm) (retracted=470mm)

●HB-DJ806-24-400-520-10-400N

(24VDC) (load=400N) (stroke=400mm) (retracted=520mm)

●HB-DJ806-24-450-570-10-400N

(24VDC) (load=400N) (stroke=450mm) (retracted=570mm)

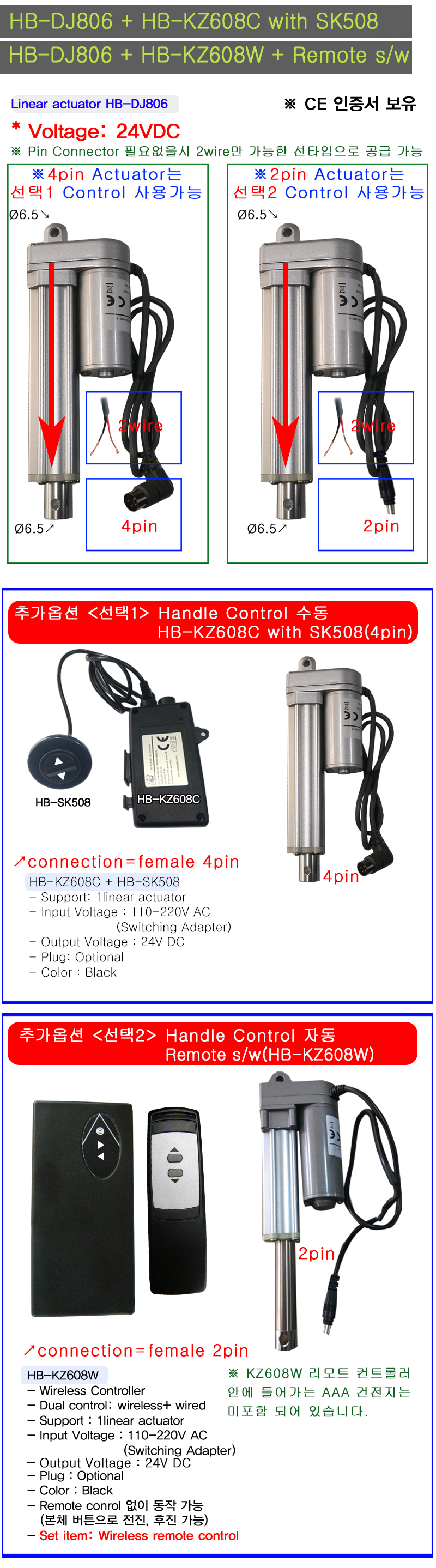

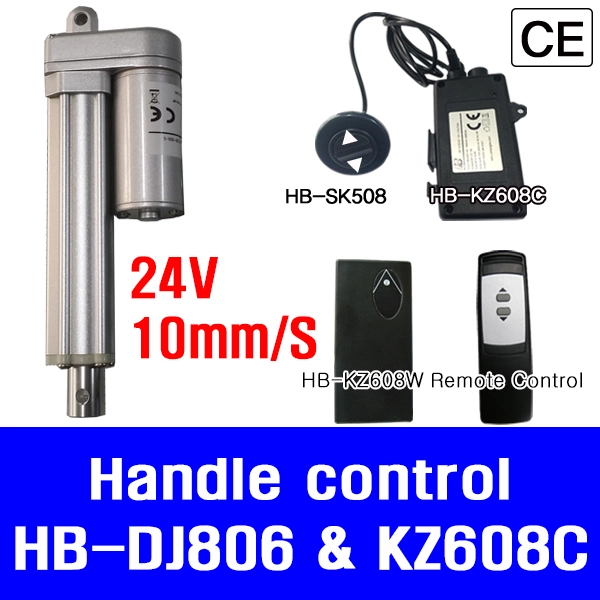

●(KZ608C) Cortrol s/w (manual)

●HB-(KZ608C with SK508) (DME9820)

(input voltage=110~220VAC) (output voltage=24VDC)

●(KZ608W) Cortrol s/w (Remote cortrol )

●HB-(KZ608W with Remote cortrol s/w) (DME9819)

(input voltage=110~220VAC) (output voltage=24VDC)

●DC Linear actuator ●리니어 액츄에이터 ●일렉트로닉 액츄에이터 실린더

●DC 모터형 실린더 ●DC 액추에이터 실린더(HBDJ806)

●DC모터형 전동실린더 ●태양광설치 ●Electronic Cylinder
