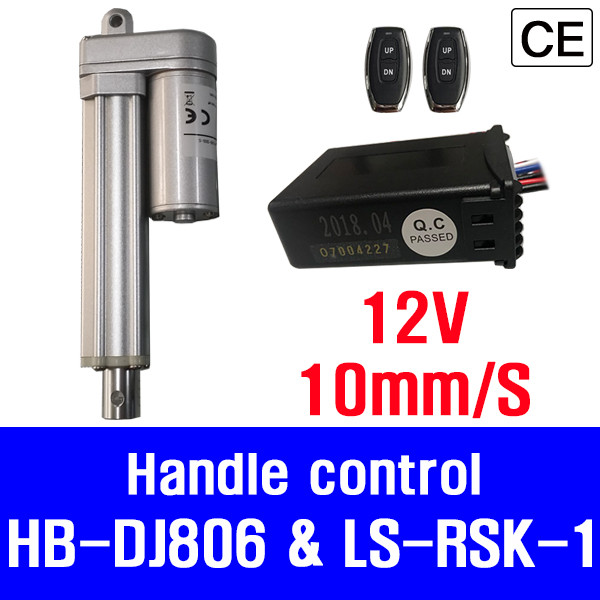

●(DC12V)(speed=10mm/s)●HB-DJ806-12 (YHBA6-12)●(HBDJ806)●Linear actuator●전동실린더●전기실린더●(speed=5mm/S)●(stroke=50~600mm)●(PUSH lond=max 1200N)●(HONGBA)

관련자료 (CLICK)

●HB-DJ806-12 (YHBA6-12) (operation=build in limit switch)

(PUSH lond=(max 1200N) (PULL lond=max1000N)

(speed=max 60mm/S) (stroke=50~600mm)

●(12VDC) (speed=10mm/s) Linear actuator

●2wire + male 2pin connection

●HB-DJ806-12-50-155-10-600N (CSQ2424)

(12VDC) (load=600N) (stroke=50mm) (retracted=155mm)

●HB-DJ806-12-100-205-10-600N

(12VDC) (load=600N) (stroke=100mm) (retracted=205mm)

●HB-DJ806-12-150-255-10-600N

(12VDC) (load=600N) (stroke=150mm) (retracted=255mm)

●HB-DJ806-12-200-305-10-600N

(12VDC) (load=600N) (stroke=200mm) (retracted=305mm)

●HB-DJ806-12-250-355-10-600N

(12VDC) (load=600N) (stroke=250mm) (retracted=355mm)

●HB-DJ806-12-300-420-10-600N(CSQ3382)

(12VDC) (load=600N) (stroke=300mm) (retracted=420mm)

●HB-DJ806-12-350-470-10-400N

(12VDC) (load=400N) (stroke=350mm) (retracted=470mm)

●HB-DJ806-12-400-520-10-400N

(12VDC) (load=400N) (stroke=400mm) (retracted=520mm)

●HB-DJ806-12-450-570-10-400N

(12VDC) (load=400N) (stroke=450mm) (retracted=570mm)

●리니어 액츄에이터  ●일렉트로닉 액츄에이터 실린더  ●DC 모터형 실린더

●DC 액추에이터 실린더 ●DC모터형 전동실린더  ●태양광설치

●Electronic Cylinder
