M07L●M10L●M16L●M25L●M45L●M64L●M100L●M130L●P801●Single acting Liquid booster●air drive liquid booster●싱글타입 부스터●리퀴드 부스터●SITEK 오일 펌프●수압 펌프●씨택 워터 펌프●리퀴드 펌프●CO2펌프●max ratio=130:1)●(SITEKE,SITEC)

SITEKE 전체 카탈로그1(중문)

SITEKE 전체카탈로그2(중문)

SITEKE(SITEC) Pump 카탈로그 M Series 카탈로그

M 카탈로그(영문) M 카탈로그(중문)

M25L 카탈로그 M45L 카탈로그

M64L 카탈로그  M100L 카탈로그

 M130L 카탈로그

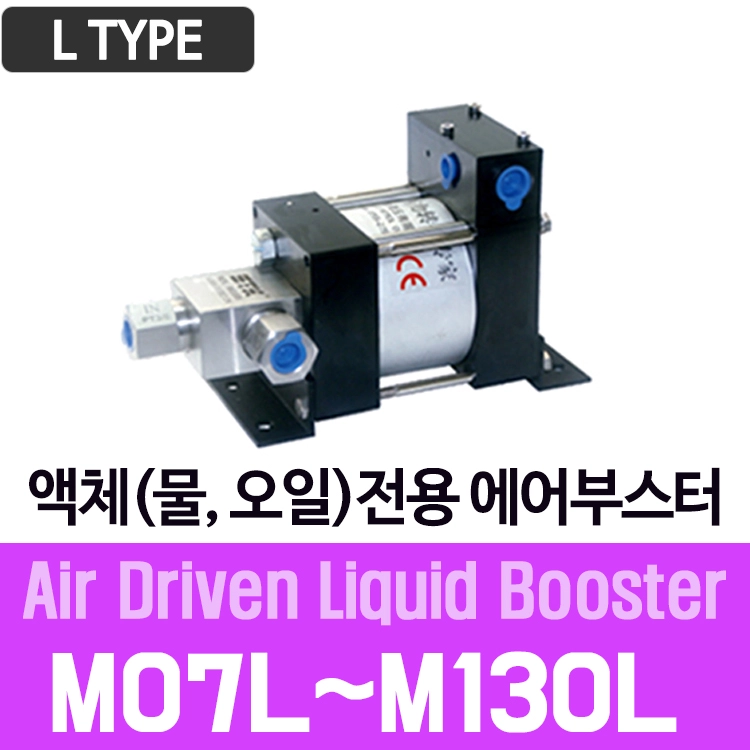

●Single acting (L type) Air Drive Liquid Booster (Fluid=water, oil,CO2)

●M07L (raido=10:1) (at 7bar/ flow=6.36~0.85L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water + oil max output pressure=58.1bar)

●M10L (raido=10:1) (at 7bar/ flow=4.42~0.59L/min) (DME6712)

(Pa=max air drive  input pressure=8.3bar)

(Po=water + oil max output pressure=83bar)

●M16L (raido=16:1) (at 7bar/ flow=2.83~0.57L/min) (DME6713)

(Pa=max air drive  input pressure=8.3bar)

(Po=water + oil max output pressure=132.8bar)

●M25L (raido=16:1) (at 7bar/ flow=1.81~0.12L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water + oil max output pressure=207.5bar)

●M45L (raido=45:1) (at 7bar/ flow=1.02~0.14L/min) (DME6714)

(Pa=max air drive  input pressure=8.3bar)

(Po=water + oil max output pressure=373.5bar)

●M64L (raido=64:1) (at 7bar/ flow=0.71~0.09L/min) (csq3411)

(Pa=max air drive  input pressure=8.3bar)

(Po=water + oil max output pressure=531.2bar)

●M100L (raido=1:100) (at 7bar/ flow=0.45~0L/min) (DME6626)

(Pa=max air drive  input pressure=8.3bar)

(Po=water + oil max output pressure=830bar)

●M130L (raido=1:130) (at 7bar/ flow=0.35~0.12L/min)

(Pa=max air drive  input pressure=8.3bar)

(Po=water + oil max output pressure=1079bar)

●압력누설테스트 ●내압누설테스트 ●고압 회로장치 ●고압수압펌프

●고압유압펌프 ●에어증압기 ●에어압력누설테스트기 ●가스압력누설테스트기
