EPV1(E/P)●EPV1-5031●EPV1-5032●EPV1-5034●ITV1000●ITV1010●ITV1030●ITV1050●2/2way E/P Regulator●RFS 전공 레귤레이터●전기식 압력조절기●전공 레귤레이터●압력 전공밸브●(option output=MODBUS OVER SERIAL)●(NPT1/8 F, NO)●(NPT1/4 F)●(RFS)

BEST

관련자료 (CLICK)

관련자료2 (CLICK)

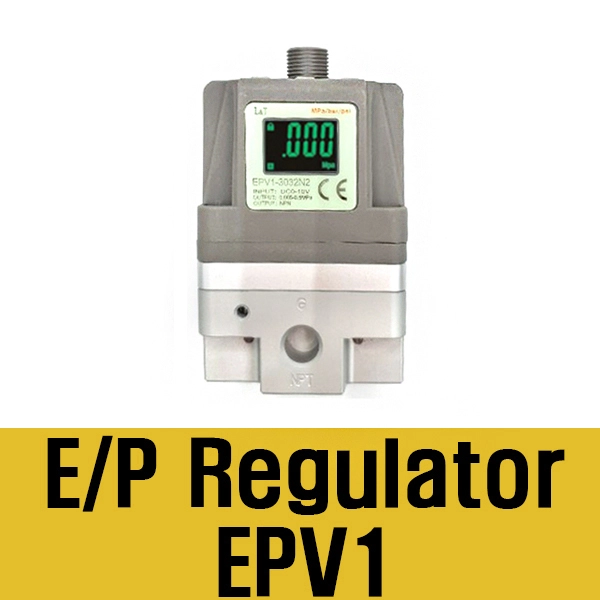

●(EPV1, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~9Bar) (Input=0~10V) (Output=1~5V)

●EPV1-5031N2S (Input=0~10V) (output=1~5V) (NPT1/4 F) (csq3690)

●(EPV1, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~9Bar) (Input=0~10V) (Output=4~20mA)

●EPV1-5034N2S(Input=0~10V) (output=4~20mA) (NPT1/4 F) (csq3524)

●(EPV1, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~9Bar) (Input=4~20mA) (Output=1~5V)

●EPV1-5001N2S (Input=4~20mA) (output=1~5V) (NPT1/4 F)

●(EPV1, E/P Regulator) (power=DC24V)  (Rightangle=3m)

(pressure=0.005~9Bar) (Input=4~20mA) (Output=NPT)

●EPV1-5032N2L (Input=0~10V) (output=NPN) (NPT1/4 F) (csq4346)

●●(EPV1, E/P Regulator) (power=DC24V) (Rightangle=3m)

(pressure=0.005~5Bar) (Input=4~20mA) (Output=NPT)

●EPV1-3032N2L (Input=0~10V) (output=NPN) (NPT1/4 F) (csq4345)

●(EPV1, E/P Regulator) (power=DC24V) (straight=3m)

(pressure=0.005~5Bar) (Input=4~20mA) (Output=1~5V)

●EPV1-3001N2S (Input=4~20mA) (output=1~5V) (NPT1/4 F)

●(only) bracked (EV1  bracked)

●B code (for EPV1.EPV2,EPV3   Flat type bracked) (csq3526)

●C code (for EPV1.EPV2,EPV3  L type bracked) (csq3373)

●전기신호에 비례하여 공기압력 을 무단계로 제어

●전기신호에 비례하여 공가 압력을 다단 제어를 한번에 가능

●전기신호에 비례하여  원격 조절에 매우 능함

●EVP11 ●EVP12 ●EVP15

●ITV0000 ●ITV1000 ● ITV1010 ● ITV1030 ● ITV1050
