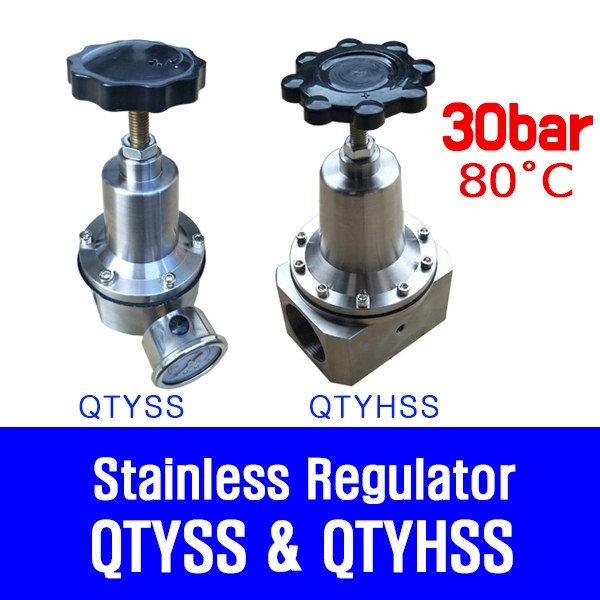

QTYSS●QTYHSS●(Relief Type, Stainless Regulator)●Stainless High Pressure Regulator●고압 스텐레스 레귤레이터●고온 스텐레스 레귤레이터●고압 스텐 레귤레이터●스텐레스 고압 레귤레이터●스텐레스 고온 레귤레이터●(temp=80C)●(30bar)(8bar)●(DME)

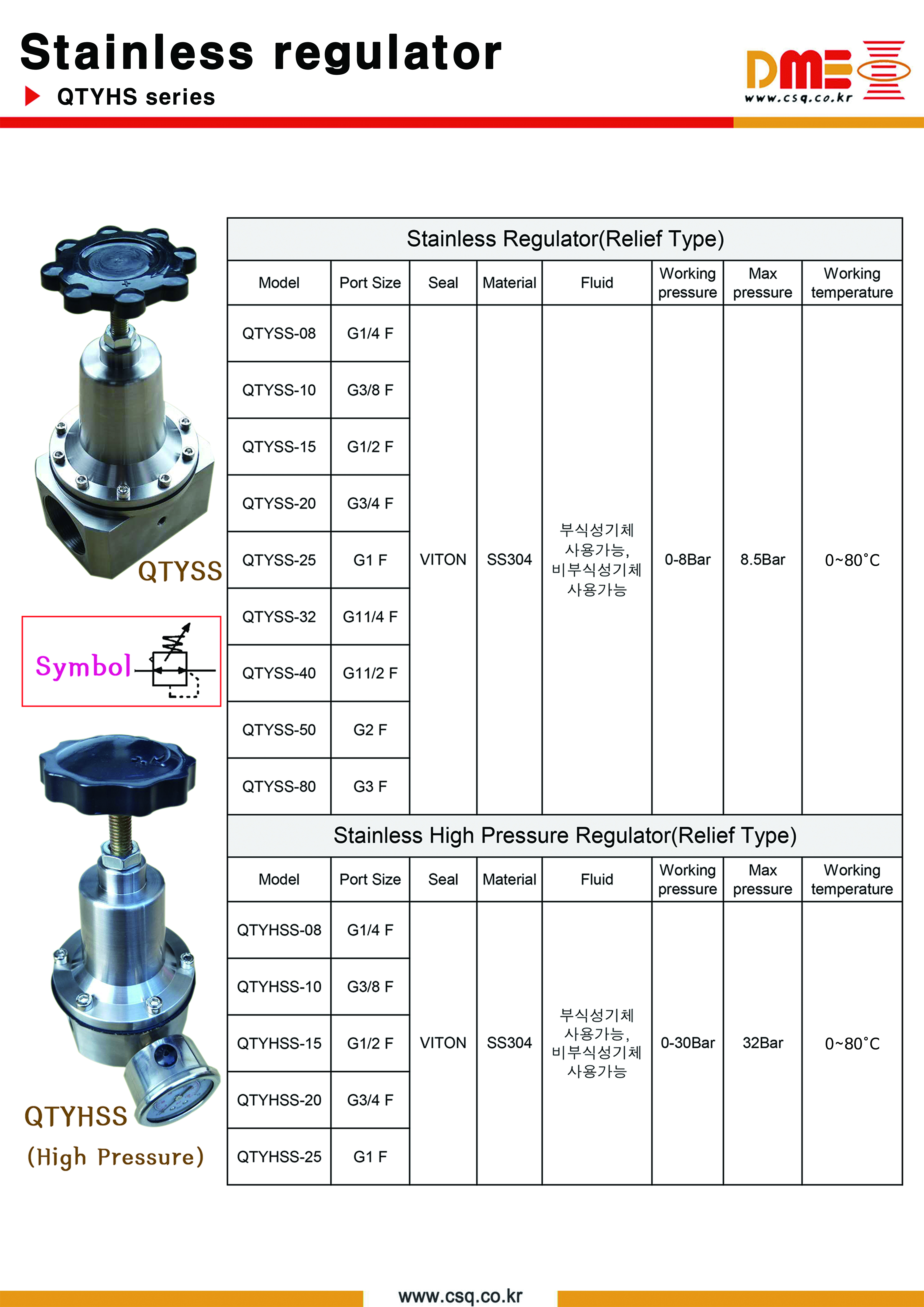

QTYSS & QTYHSS 카탈로그

●(SUS304, Relief Type, 8bar ) Stainless Regulator

(temp=0~80C) (seal＝VITON) (Pressure gauge Port=G1/8 Male)

●QTYSS-08 (G1/4 F) (csq3651)

●QTYSS-10 (G3/8 F) (csq3652)

●QTYSS-15 (G1/2 F) (csq3653)

●(SUS304, Relief Type, 8bar ) Stainless Regulator

(working pressure=0~8bar) (max pressure=0~8.5bar)

(temp=0~80C) (seal＝VITON) (Pressure gauge Port=G1/8 Male)

 (W=75mm,L=75mm,H=200mm)

●QTYSS-20 (G3/4 F) (csq3654)

●QTYSS-25 (G1 F) (csq3655)

●(SUS304, Relief Type, 8bar ) Stainless Regulator

(working pressure=0~8bar) (max pressure=0~8.5bar)

(temp=0~80C) (seal＝VITON) (Pressure gauge Port=G1/8 Male)

●QTYSS-32 (G11/4 F) (csq3656)

●QTYSS-40 (G1/2 F) (csq3657)

●QTYSS-50 (G2 F) (csq3658)

●(SUS304, Relief Type, 8bar ) Stainless Regulator

(working pressure=0~8bar) (max pressure=0~8.5bar)

(temp=0~80C) (seal=VITON) (Pressure gauge Port=G1/8 Male)

●QTYSS-80 (G3 F) (csq3659)

●(SUS304, Relief Type, 30bar) Stainless High Pressure Regulator

(working pressure=0~30bar) (max pressure=0~32bar)

(temp=0~80C) (seal＝VITON) (Pressure gauge Port=G1/8 Male)

●QTYHSS-08 (G1/4 F) (csq3660)

●QTYHSS-10 (G3/8 F) (csq3661)

●QTYHSS-15 (G1/2 F) (csq3662)

●(SUS304, Relief Type, 30bar) Stainless High Pressure Regulator

(working pressure=0~30bar) (max pressure=0~32bar)

(temp=0~80C) (seal＝VITON) (Pressure gauge Port=G1/8 Male)

(D=118mm,H=200mm)

●QTYHSS-20 (G3/4 F) (csq3663)

●QTYHSS-25 (G1 F) (csq3664)

●(only, dia 40mm, not oil, back type) Pressure gauge

●Y40-10K (1Mpa)-B-(back G1/8 M) (for QTYSS)  (DME2906)

●Y40-40K (4Mpa)-B-(back G1/8 M) (for QTYHSS) (csq4773)
