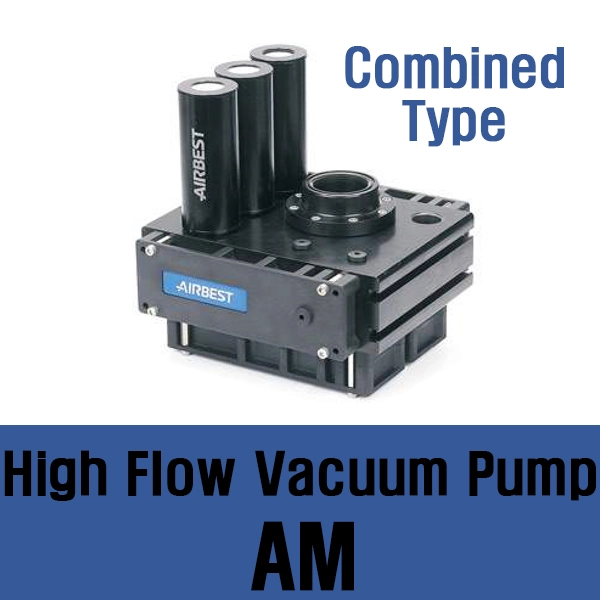

AM150M●AM200M●AM300M●AM400M●AM500M●(Combined Type)High Flow Vacuum Pump●대용량 에어 바큠 펌프●대량량 에어 진공 펌프●대용량 에어 버큠 펌프●대용랑 에어 진공 이젝터●대용량 에어 진공 발생기●대용량 에어 유니버셜 진공펌프●(-92kPa)●(4570L/min)●(Air Best)●(AIRBEST)

 AM 카탈로그    Airbest Catalog-A B part Airbest Catalog-C part Airbest Catalog- D part Airbest Catalog-E F G part

●(at 6bat) Vacuum Pump

(material=AL) (sealing=NBR) (vacuum=-89kPa)

●AM150M-Nil-Nil -Nil (-89kPa) (1880L/min) (csq1810)

(air=3/4 F) (vacuum=G11/2 F) (EX=2* G1 F)

●AM200M-NIL-Nil-Nil  (-89kPa) (2220L/min) (csq1811)

(air=3/4 F) (vacuum=G11/2 F) (EX=2* G1 F)

●AM300M-NIL-Nil-Nil  (-89kPa) (3150L/min) (csq1812)

(air=3/4 F) (vacuum=G11/2 F) (EX=3* G1 F)

●AM400M-NIL-Nil-Nil (-89kPa) (3710L/min)(csq1813)

(air=G3/4 F) (vacuum=G11/2 F) (EX=4* G1 F)

●AM500M-NIL-Nil-Nil (-89kPa) (4570L/min) (csq1814)

(air=3/4 F) (vacuum=G11/2 F) (EX=5* G1 F)

●(at 3bat) Vacuum Pump

(material=AL) (sealing=NBR) (vacuum=-92kPa)

●AM150M-NIL-Nil -Nil (-92kPa) (1550L/min)

(air=3/4 F) (vacuum=G11/2 F) (EX=2* G1 F)

●AM200M-Nil-Nil-Nil  (-92kPa) (18400L/min)

(air=3/4 F) (vacuum=G11/2 F) (EX=2* G1 F)

●AM300M-NIL-Nil-Nil  (-92kPa) (2750L/min)

(air=3/4 F) (vacuum=G11/2 F) (EX=3* G1 F)

●AM400M-NIL-Nil-Nil (-92kPa) (3290L/min)

(air=G3/4 F) (vacuum=G11/2 F) (EX=4* G1 F)

●AM500M-NIL-Nil-Nil (-92kPa) (3740L/min)

(air=3/4 F) (vacuum=G11/2 F) (EX=5* G1 F)

●(at 6bar) Vacuum Pump

(material=AL) (sealing=EPDM) (vacuum=-92kPa)

●AM150M-NIL-E -Nil (-89kPa) (1880L/min) (csq1810)

(air=3/4 F) (vacuum=G11/2 F) (EX=2* G1 F)

●AM200M-NIL-E-Nil  (-89kPa) (2220L/min) (csq1811)

(air=3/4 F) (vacuum=G11/2 F) (EX=2* G1 F)

●AM300M-NIL-E-Nil  (-89kPa) (3150L/min) (csq1812)

(air=3/4 F) (vacuum=G11/2 F) (EX=3* G1 F)

●AM400M-NIL-E-Nil (-89kPa) (3710L/min)(csq1813)

(air=G3/4 F) (vacuum=G11/2 F) (EX=4* G1 F)

●AM500M-NIL-E-Nil (csq1814) (-89kPa) (4570L/min)

(air=3/4 F) (vacuum=G11/2 F) (EX=5* G1 F)

●(at 3bat) Vacuum Pump

(material=AL) (sealing=EPDM) (vacuum=-92kPa)

●AM150M-NIL-E -Nil (-92kPa) (1550L/min)

(air=3/4 F) (vacuum=G11/2 F) (EX=2* G1 F)

●AM200M-NIL-E-Nil  (-92kPa) (18400L/min)

(air=3/4 F) (vacuum=G11/2 F) (EX=2* G1 F)

●AM300M-NIL-E-Nil  (-92kPa) (2750L/min)

(air=3/4 F) (vacuum=G11/2 F) (EX=3* G1 F)

●AM400M-NIL-E-Nil (-92kPa) (3290L/min)

(air=G3/4 F) (vacuum=G11/2 F) (EX=4* G1 F)

●AM500M-NIL-E-Nil (-92kPa) (3740L/min)

(air=3/4 F) (vacuum=G11/2 F) (EX=5* G1 F)
