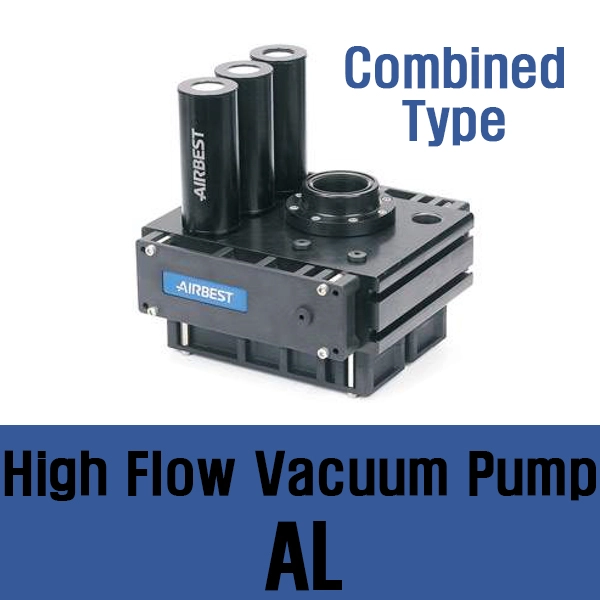

AL150M●AL200M●AL300M●AL400M●AL400M●AL500M●(Combined Type)High Flow Vacuum Pump●대용량 에어 바큠 펌프●대용량 에어 진공 펌프●대용량 에어 버큠 펌프●에어 진공 이젝터●대용량 에어 진공 발생기●대용량 에어 유니버셜 진공펌프●(-81kPa)●(4570L/min)●(Air Best)●(AIRBEST)

 AL 카탈로그    Airbest Catalog-A B part Airbest Catalog-C part Airbest Catalog- D part Airbest Catalog-E F G part

●(at 6bar) Universal Pump (material=AL) (sealing=NBR)

●AL150M-Nil-Nil (-81kPa) (1660L/min) (CSQ1815)

(air=G3/4 F) (vacuum=G11/2 F) (EX=2* G1 F)

●AL200M-Nil-Nil-Nil (-81kPa) (1950L/min) (CSQ1816)

(air=G3/4 F) (vacuum=G11/2 F) (EX=2* G1 F)

●AL300M-Nil-Nil-Nil (-81kPa) (2840L/min) (CSQ1817)

(aIr=G3/4 F) (vacuum=G11/2 F) (EX=3* G1 F)

●AL400M-Nil-Nil-Nil (-81kPa) (3340L/min) (CSQ1818)

(air=G3/4 F) (vacuum=11/2 F) (EX=4* G1 F)

●AL500M-Nil-Nil-Nil (-81kPa) (39700L/min)

(air=G3/4 F) (vacuum=2 F) (EX=5* G1 F)

●(at 6bar) Universal Pump (material=AL) (sealing=EPDM)

●AL150M-Nil-E-Nil (-81kPa) (1660L/min)

(air=G3/4 F) (vacuum=G11/2 F) (EX=2* G1 F)

●AL200M-Nil-E-Nil (-81kPa) (1950L/min)

(air=G3/4 F) (vacuum=G11/2 F) (EX=2* G1 F)

●AL300M-Nil-E-Nil (-81kPa) (2840L/min)

(aIr=G3/4 F) (vacuum=G11/2 F) (EX=3* G1 F)

●AL400M-Nil-E-Nil (-81kPa) (3340L/min)

(air=G3/4 F) (vacuum=11/2 F) (EX=4* G1 F)

●AL500M-Nil-E-Nil (-81kPa) (39700L/min)

(air=G3/4 F) (vacuum=2 F) (EX=5* G1 F)
