KF510VA-A+KF510(Compact Type)●(KF510VAA)●(H2SO4)Paddlewheel Flowmeter●(H2SO4)(패들휠 플로우메타●(PVDF)디지털 플로우메타●(PVDF)디지털 유량계 ●KIO 패들휠 플로우 메타●KIO 디지털 플로우 메타●(H2SO4 / 98%)●(3/8~2)●(1MPa)●(40m3/h)●(KIO)

KIO 전체 카탈로그 KF510 카탈로그

KF510 매뉴얼 KF510 약식 매뉴얼 통신프로토콜

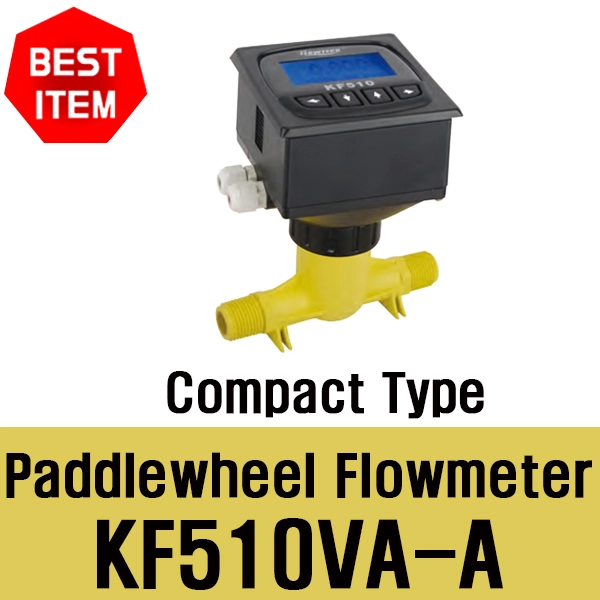

●(VA compact) Paddlewheel flow meter

  (medai=Water,  H2SO4 / 98%)

●(sensor material=PVDF) (Impeller=PVDF) (seal ring=viton, EPDM)

●(power=24VDC) (pressure=1MPa)

●(Thread=male  NPT) (flow unit=m3/h)

●(output=4~20mA + pules + RS485) (aiarm=High + LOW)

●KF510VA-A-DN10-N-AF-2-5-6 (csq3721)

(range=0.1~1.8 m3/h) (Thread=male NPT3/8)

●KF510VA-A-DN15-N-AF-2-5-6 (csq3722)

(range=0.2~4 m3/h) (Thread= MaleNPT1/2)

●KF510VA-A-DN20-N-AF-2-5-6 (csq3723)

(range=0.3~6 m3/h) (Thread= Male NPT3/4)

●KF510VA-A-DN25-N-AF-2-5-6 (csq3724)

(range=0.5~12 m3/h) (Thread=Male NPT1)

●KF510VA-A-DN40-N-AF-2-5-6 (csq3725)

(range=2~24 m3/h) (Thread=Male NPT11/2 )

●KF510VA-A-DN50-N-AF-2-5-6 (csq3726)

(range=4~40 m3/h) (Thread=Male NPT 2 )

●Paddlewheel Flowmeter ●KIO 패들휠 플로우메타

●KIO 디지털 플로우메타 ●KIO 디지털 유량계
