AC-06●AC-08●AC-10●AC-12●AC-14●AC-20●AC-25●AC-30●AC-36●ACD-20●Self-Shock absorber●Shock absorber for Cutout Breaker●Stopper cylinder Shock absorber●자기 조정형 쇼크압소버●스토파 실린더 쇼크압소버●자기 조정형 완충기●(DME)

AC 카탈로그

●Self-Shock absorber (자기조정형 쇼크압소버)

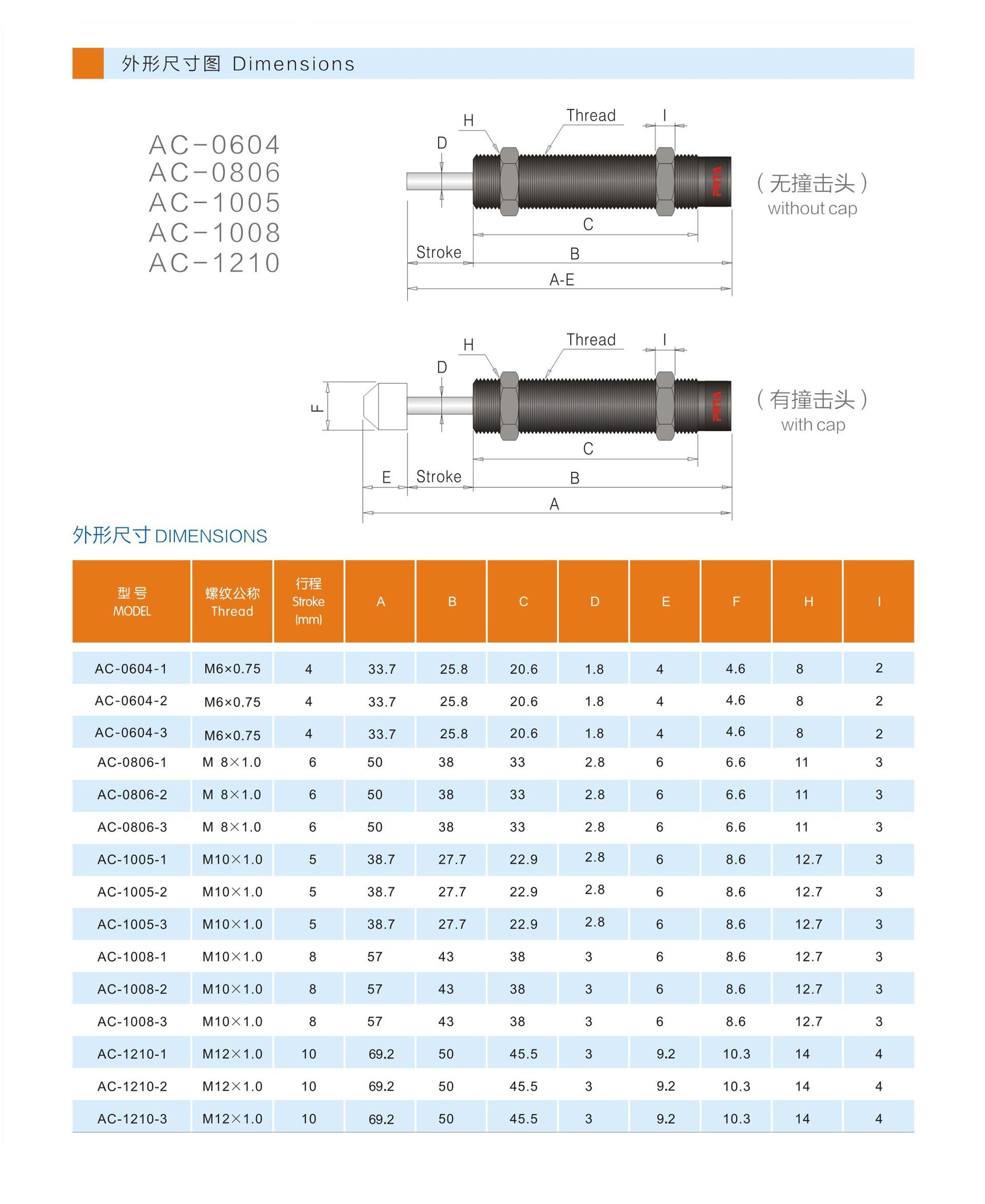

●AC-0604 (Thread=M6*0.75) (stroke=4mm)

●AC-0806 (Thread=M8*1.0) (stroke=6mm)

●AC-1005 (Thread=M10*1) (stroke=5mm)

●AC-1008 (Thread=M10*1) (stroke=8mm)

●AC-1210 (Thread=M12*1) (stroke=10mm)

●AC-1412 (Thread=M14*1.5) (stroke=12mm)

●AC-1416-C (Thread=M14*1.5) (stroke=16mm)

●AC-1416 (Thread=M14*1.5) (stroke=16mm)

●AC-1425 (Thread=M14*1.5) (stroke=25mm)

●AC-2020 (Thread=M20*1.5) (stroke=20mm)

●AC-2030 (Thread=M20*1.5) (stroke=30mm)

●AC-2050 (Thread=M20*1.5) (stroke=50mm)

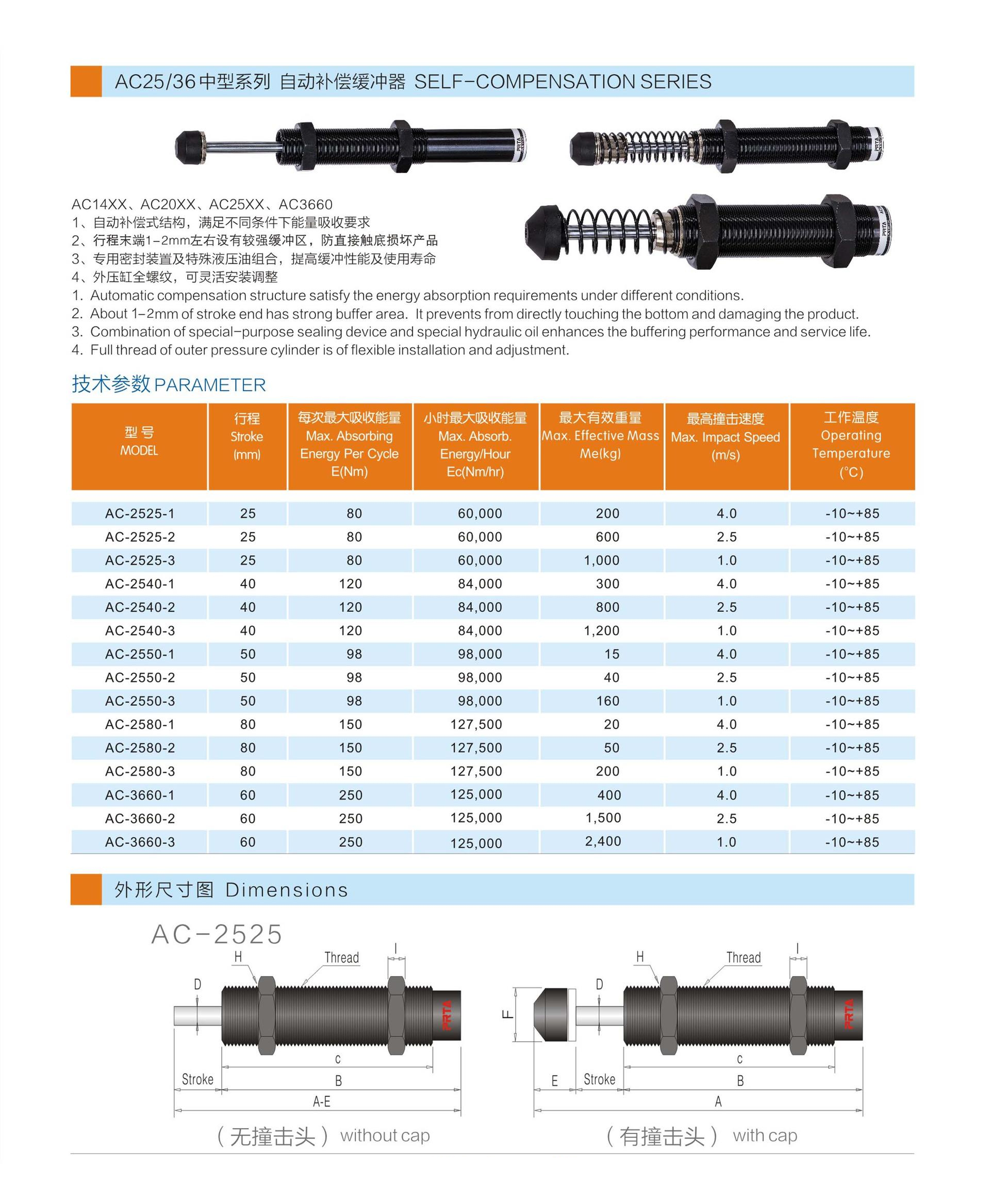

●AC-2525 (Thread=M25*1.5) (stroke=25mm)

●AC-2540 (Thread=M25*1.5) (stroke=40mm)

●AC-2550 (Thread=M25*1.5) (stroke=50mm)

●AC-2580 (Thread=M25*1.5) (stroke=80mm)

●AC-3660 (Thread=M36*1.5) (stroke=60mm)

●Self-Shock absorber (자기조정형 쇼크압소버)

●AC-0806-S (Thread=M8*1.0) (stroke=6mm)

●AC-1007-S (Thread=M10*1.0) (stroke=7mm)

●AC-1412-SC (Thread=M14*1.5) (stroke=12mm)

●AC-1412-S (Thread=M14*1.5) (stroke=12mm)

●AC-2015-S (Thread=M20*1.5) (stroke=15mm)

●AC-2725-S (Thread=M27*1.5) (stroke=25mm)

●Self-Shock absorber (자기조정형 쇼크압소버)

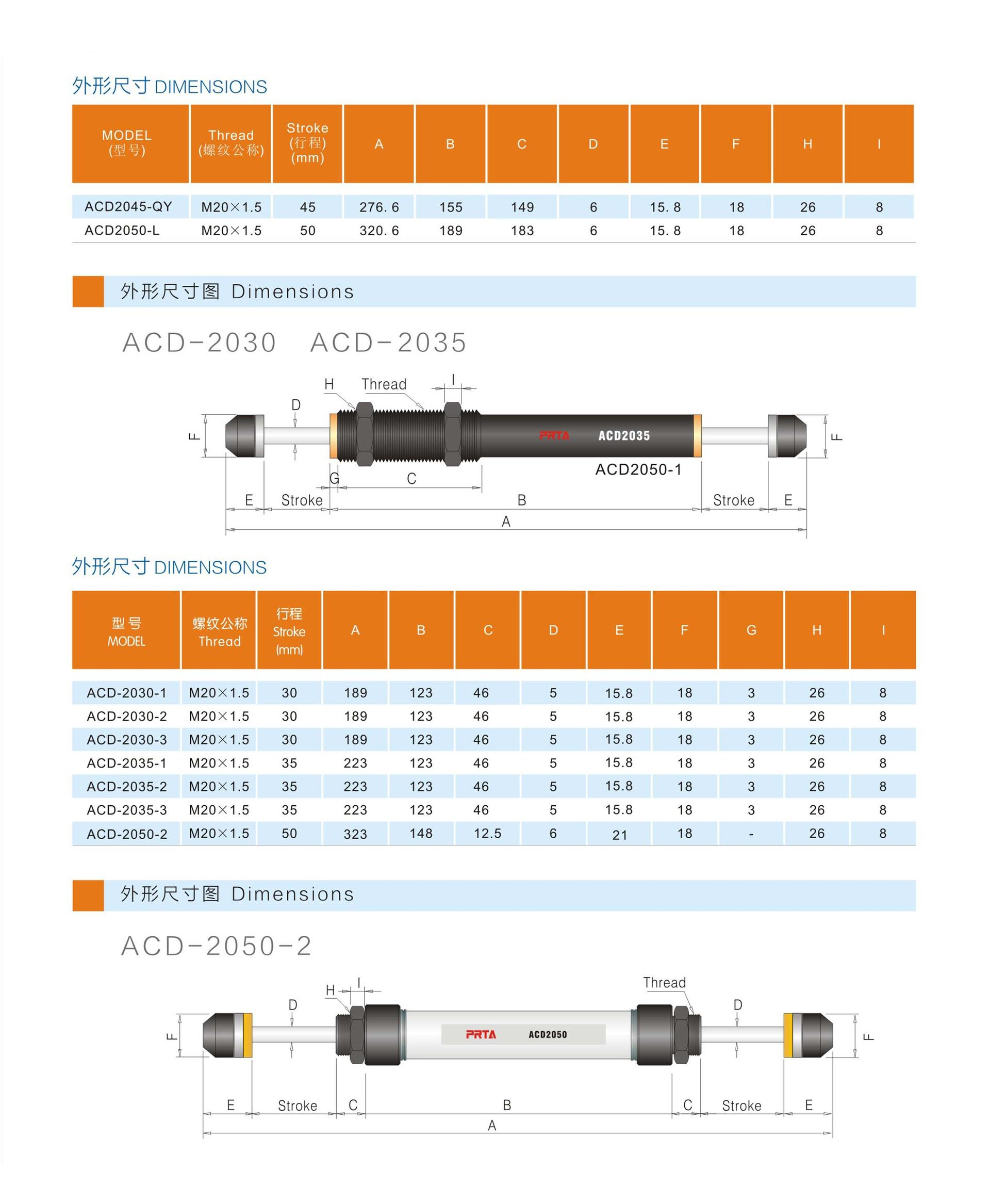

●ACD-2030 (Thread=M20*1.5) (stroke=30mm)

●ACD-2035 (Thread=M20*1.5) (stroke=35mm)

●ACD-2050 (Thread=M20*1.5) (stroke=50mm)

●ACD-2045-QY (Thread=M20*1.5) (stroke=45mm)

●ACD-2050 (Thread=M20*1.5) (stroke=50mm)

●Shock absorber for Cutout Breaker

●AC-2009 (Thread=M20*1.5) (stroke=9mm)

●AC-3010 (Thread=M30*1.5) (stroke=10mm)

●AC-3016 (Thread=M35*1.5) (stroke=16mm)

●Stopper cylinder Shock absorber

●ZC-1406 ●ZC-2010 ●FC-2010 ●ZD-1408 ●ZD-2210

●(AC06)●(AC08)●(AC10)●(AC12)●(AC14)●(AC20)●(AC25)●(AC30)

●(AC36)●(ACD20)
