KF700M-A●KF700M-B●(KF700MA)●(KF700MB)●Mini Electromagnetic Flow meter●Magnetic Inductive Flow meter●미니 일렉트로 마그네틱 플로우메타●마그네틱 인덕티브 플로우메타●(0.3m/s~10m/s)●(BSP3/8~BSP 1)●(0.6MPa~1.0MPa)●(IP67)●(2%RS)●(KIO)

KIO 전체 카탈로그 KF700M 카탈로그

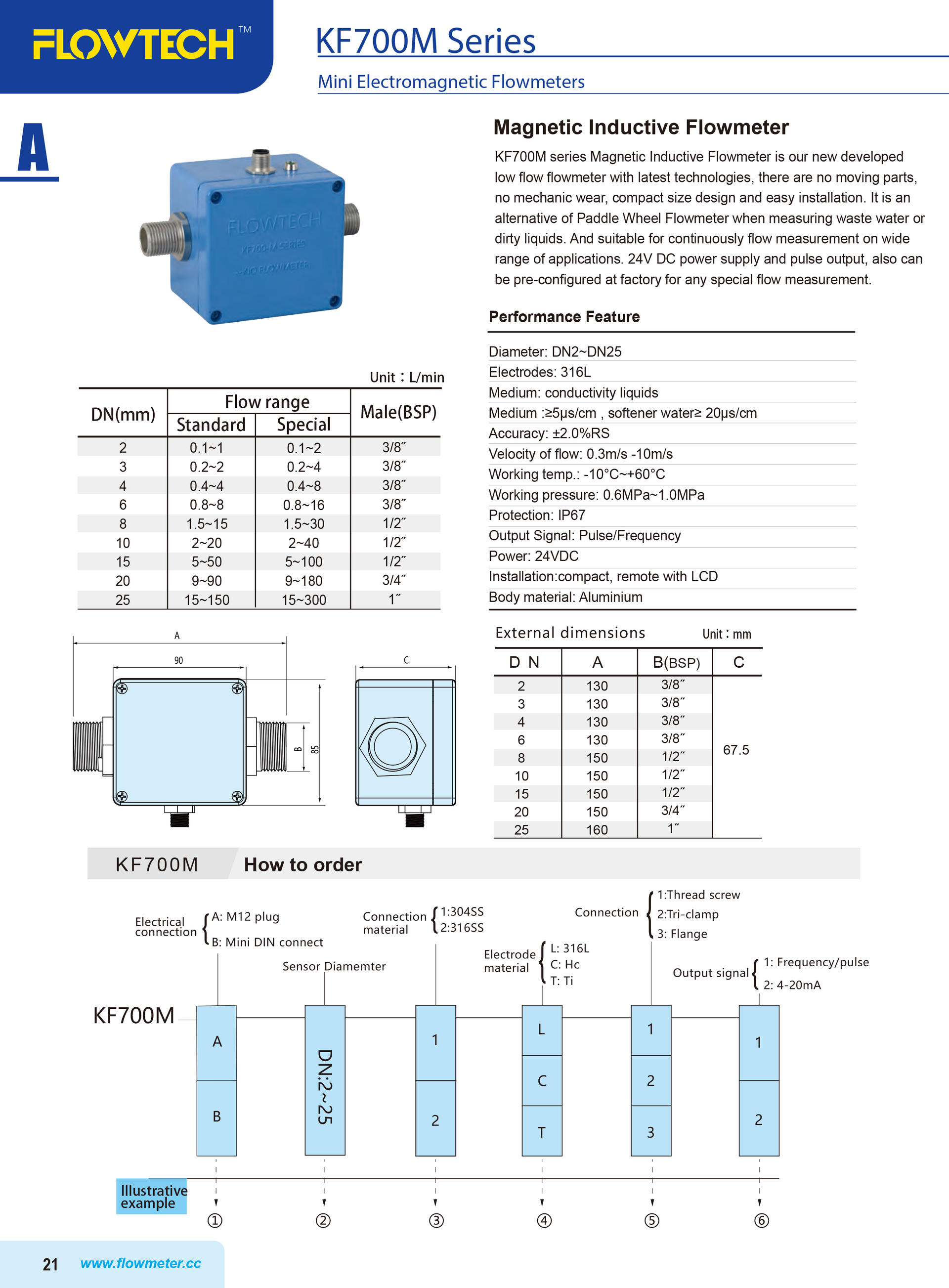

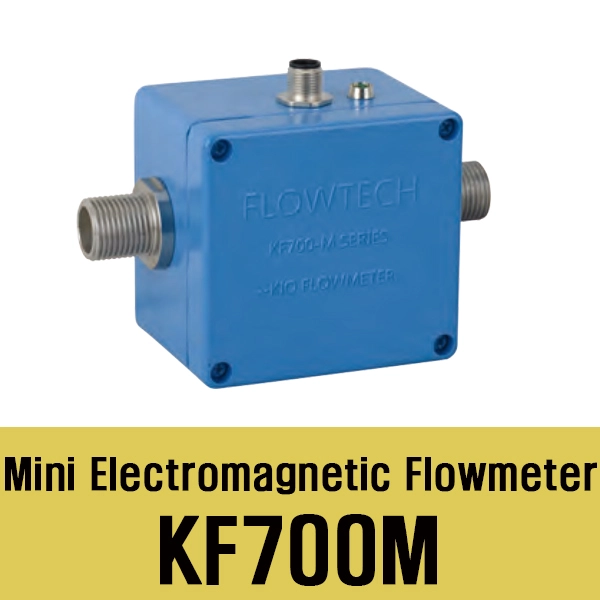

●(KF700M-A) Mini Electromagnetic Flowmeter (power=24VDC)

(Electrode=SUS316L) (Body matreriom=AL) (temp=-10C~60C)

(medum=water) (accuracf=2%RS) (Electrical connection=M12 plug)

●KF700M-A-2-1-L-1-2 (0.1~1L/min) (male BSP 3/8 M)

●KF700M-A-3-1-L-1-2 (0.2~2L/min) (male BSP 3/8 M)

●KF700M-A-4-1-L-1-2 (0.4~4L/min) (male BSP 3/8 M)

●KF700M-A-6-1-L-1-2 (0.8~18L/min) (male BSP 3/8 M)

●KF700M-A-8-1-L-1-2 (1.5~30L/min) (male BSP 1/2 M)

●KF700M-A-10-1-L-1-2 (2~20L/min) (male BSP 1/2 M)

●KF700M-A-15-1-L-1-2 (5~50L/min) (male BSP 1/2 M)

●KF700M-A-20-1-L-1-2 (9~90L/min) (male BSP 3/4 M)

●KF700M-A-25-1-L-1-2 (15~150L/min) (male BSP 1 M)

●(KF700M-B) Mini Electromagnetic Flowmeter (power=24VDC)

(Electrode=SUS316L) (Body matreriom=AL) (temp=-10C~60C)

(medum=water) ( accuracf=2%RS) (Electrical connection=minei DIN)

●KF700M-B-2-1-L-1-2 (flow=0.1~1L/min) (male BSP 3/8 M)

●KF700M-B-3-1-L-1-2 (flow=0.2~2L/min) (male BSP 3/8 M)

●KF700M-B-4-1-L-1-2 (flow=0.4~4L/min) (male BSP 3/8 M)

●KF700M-B-6-1-L-1-2 (flow=0.8~18L/min) (male BSP 3/8 M)

●KF700M-B-8-1-L-1-2 (flow=1.5~30L/min)( male BSP 1/2 M)

●KF700M-B-10-1-L-1-2 (flow=2~20L/min) (male BSP 1/2 M)

●KF700M-B-15-1-L-1-2 (flow=5~50L/min) (male BSP 1/2 M)

●KF700M-B-20-1-L-1-2 (flow=9~90L/min) (male BSP 3/4 M)

●KF700M-B-25-1-L-1-2 (flow=15~150L/min) (male BSP 1 M)

●(KF700M) Flow  converter Digital indicator

●(for KF700M) LCD converters
