DAVP7●2/2way Pneumatic Butterfly Ball valve●RFS Pneumatic wafer type soft seal Butterfly Ball valve●RFS 뉴마틱 버터 플라이 밸브●RFS 뉴마틱 볼 벨브●RFS 뉴매틱 나비형 볼 밸브●(32A~300A)●(10bar,150LBS)●(RFS)

DAVP7 도면 PDF DAVP7 도면 DWG

RAT(ART) 카탈로그 DME700 카탈로그

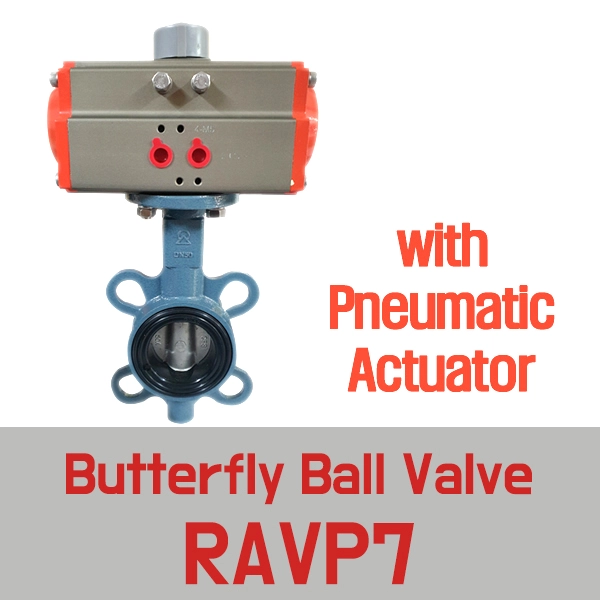

●(Pneumatic Butterfly Valve with Pneumatic Actuator)

(Wafer) (Body=FCD) (Disk=CF8) (Seat=EPDM) (One Stem=S45C)

(pressure=10bar / 150LBS) (Temp=-45~135C)

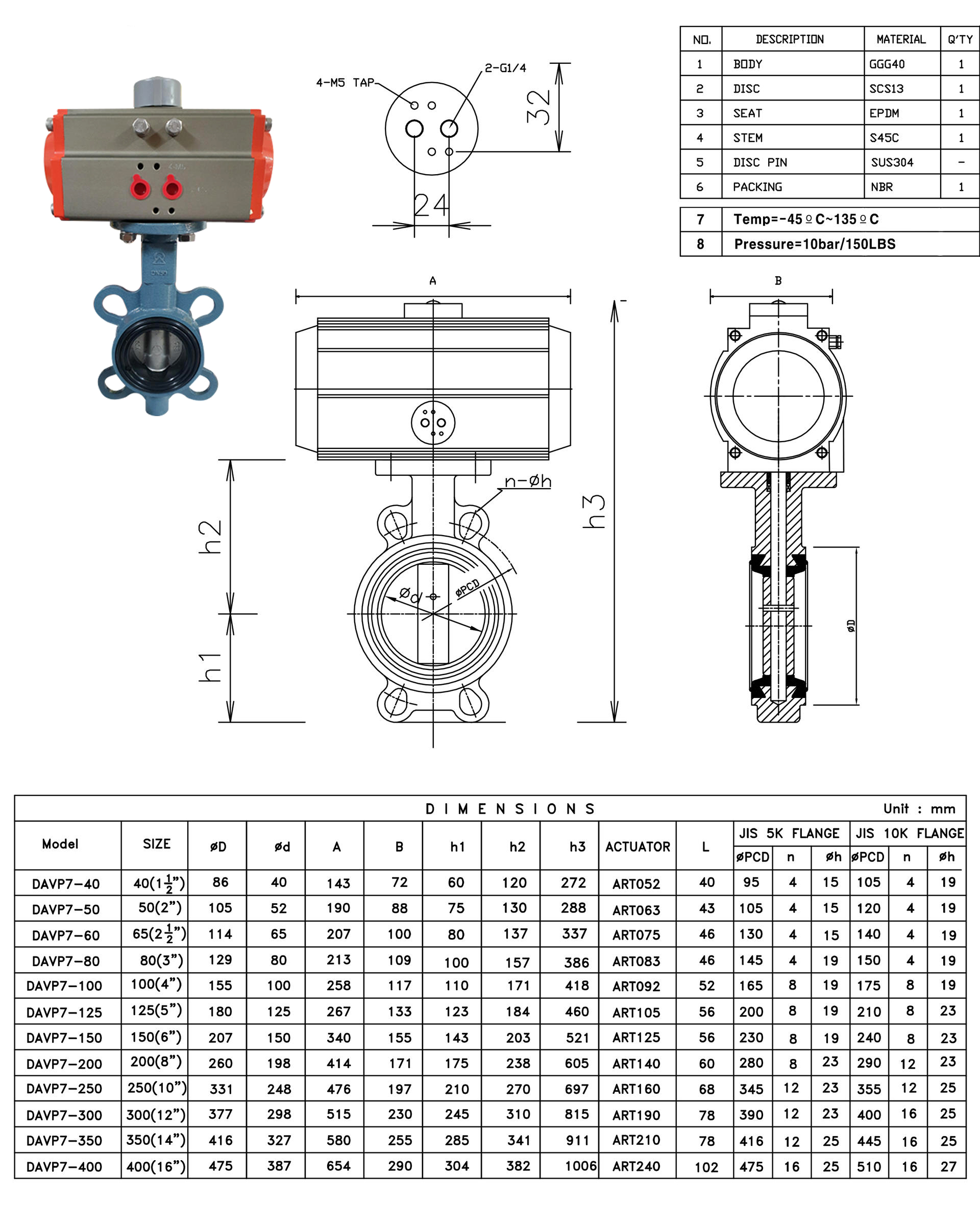

●DAVP7-32 (32A, 1.2")-(RAT063) (DME3452)

●DAVP7-40 (40A, 1.5")-(RAT063) (CSQ3807)

●DAVP7-50 (50A, 2")-(RAT063) (CSQ3808)

●DAVP7-65 (65A, 2.5")-(RAT075) (CSQ3809)

●DAVP7-80 (80A, 3")-(RAT083) (CSQ3810)

●DAVP7-100 (100A, 4")-(RAT092) (CSQ3811)

●DAVP7-125 (125A, 5")-(RAT105) (CSQ3812)

●DAVP7-150 (150A, 6")-(RAT125) (CSQ3813)

●DAVP7-200 (200A, 8")-(RAT125) (CSQ3814)

●DAVP7-300 (300A, 12")-(RAT160) (CSQ3815)

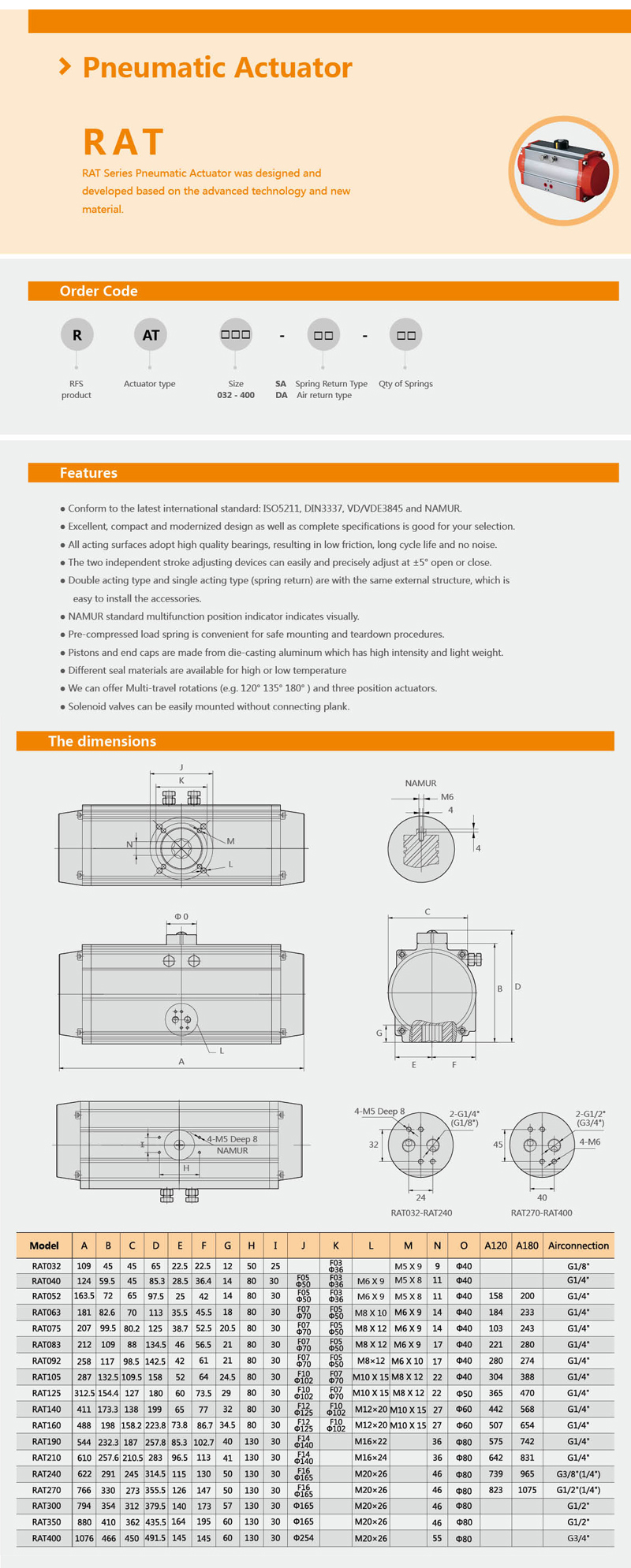

●(only, RTA, double  Pneumatic  Actuator)

●RAT063-DA (double) (for 32A, 40A, 50A) (DME1596)

●RAT075-DA (double) (for 65A) (DME1597)

●RAT083-DA (double) (for 80A) (DME1598)

●RAT092-DA (double) (for100A) (DME5249)

●RAT105-DA (double) (for 125A) (DME5250)

●RAT125-DA (double) (for 150A, 200A) (DME5251)

●RAT160-DA (double) (for 300A) (DME5253)

●(only, Direct type) (Butterfly Valve without Pneumatic Actuator)

(Wafer) (Body=FCD) (Disk=CF8) (Seat=EPDM) (One Stem=S45C)

(pressure=10bar / 150LBS) (Temp=-45~135C)

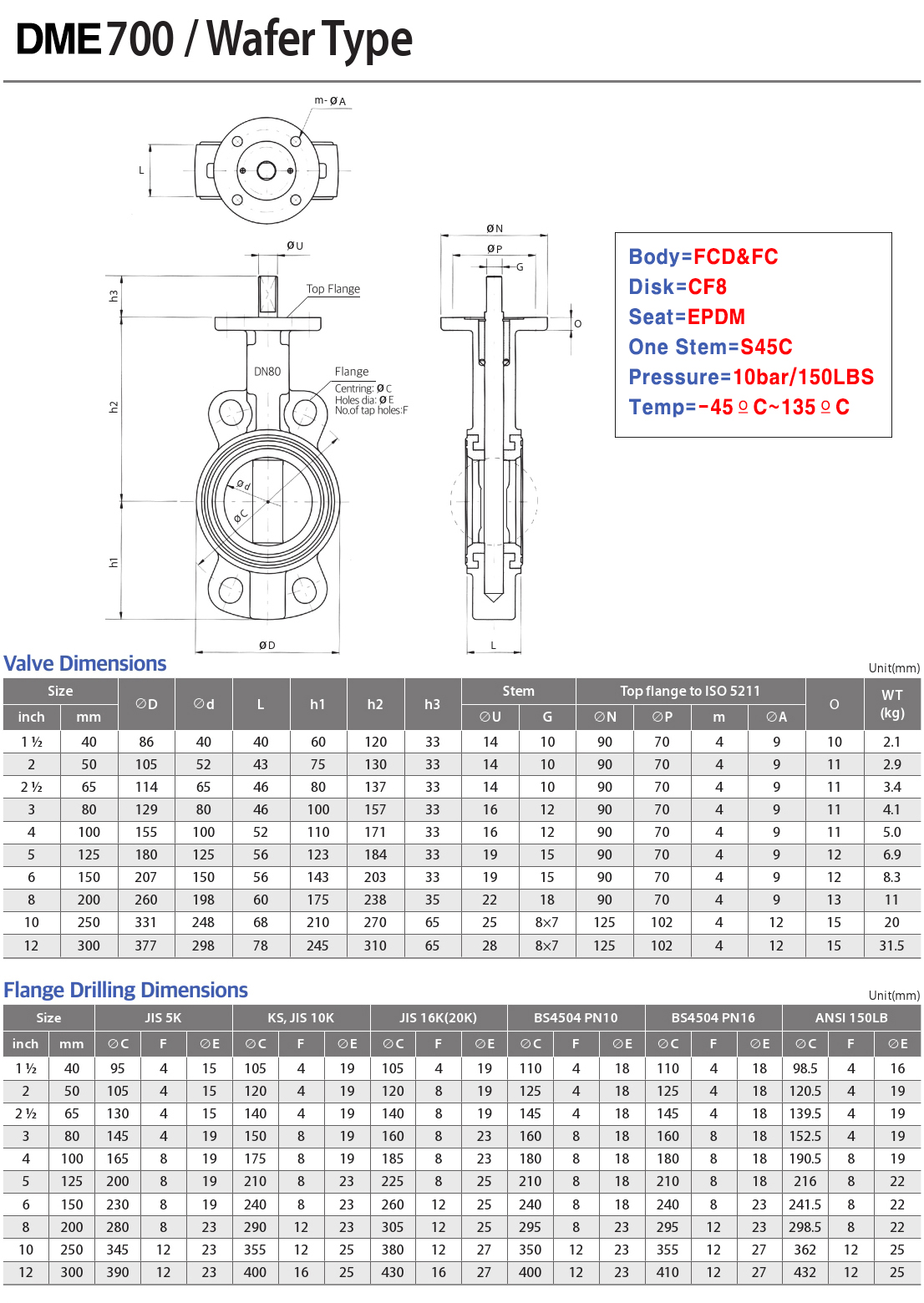

●DME700-32 (32A,1.2") (Direct type) (Body=FCD) (CSQ3797)

●DME700-40 (40A,1.5") (Direct type) (Body=only FC) (CSQ3798)

●DME700-50 (50A,2") (Direct type) (Body=FCD) (CSQ3799)

●DME700-65 (65A,2.5") (Direct type) (Body=FCD) (CSQ3800)

●DME700-80 (80A,3") (Direct type) (Body=FCD) (CSQ3801)

●DME700-100 (100A,4 ") (Direct type) (Body=FCD) (CSQ3802)

●DME700-125 (125A,5") (Direct type) (Body=FCD) (CSQ3803)

●DME700-150 (150A,6") (Direct type) (Body=FCD) (CSQ3804)

●DME700-200 (200A,8") (Direct type) (Body=FCD) (CSQ3805)

●DME700-250 (250A,10") (Direct type) (Body=FCD) (CSQ3806)

●DME700-300 (300A,10") (Direct type) (Body=FCD) (CSQ3820)

●(DME3452)=(DME1596)+(csq3797) ●(CSQ3807)=(DME1596)+(csq3798)

●(CSQ3808)=(DME1596)+(csq3799) ●(CSQ3809)=(DME1597)+(csq3800)

●(CSQ3810)=(DME1598)+(csq3801) ●(CSQ3811)=(DME5249)+(csq3802)

●(CSQ3812)=(DME5250)+(csq3803) ●(CSQ3813)=(DME5251)+(csq3804)

●(CSQ3814)=(DME5251)+(csq3805) ●(CSQ3815)=(DME5253)+(csq3820)
