CV-S-01●CV-S-02●CV-S-03●CV-S-04●CV-S-06●CVS04●(SUS316, High Pressure Check Valve)●High Temp Check Valve●스텐레스 고압 체크 밸브●스텐레스 고온 체크 밸브●air,gas,water,oil●(NPT1/8F~NPT3/4 F)●(200C, 400bar)●(DME,NBKSL)

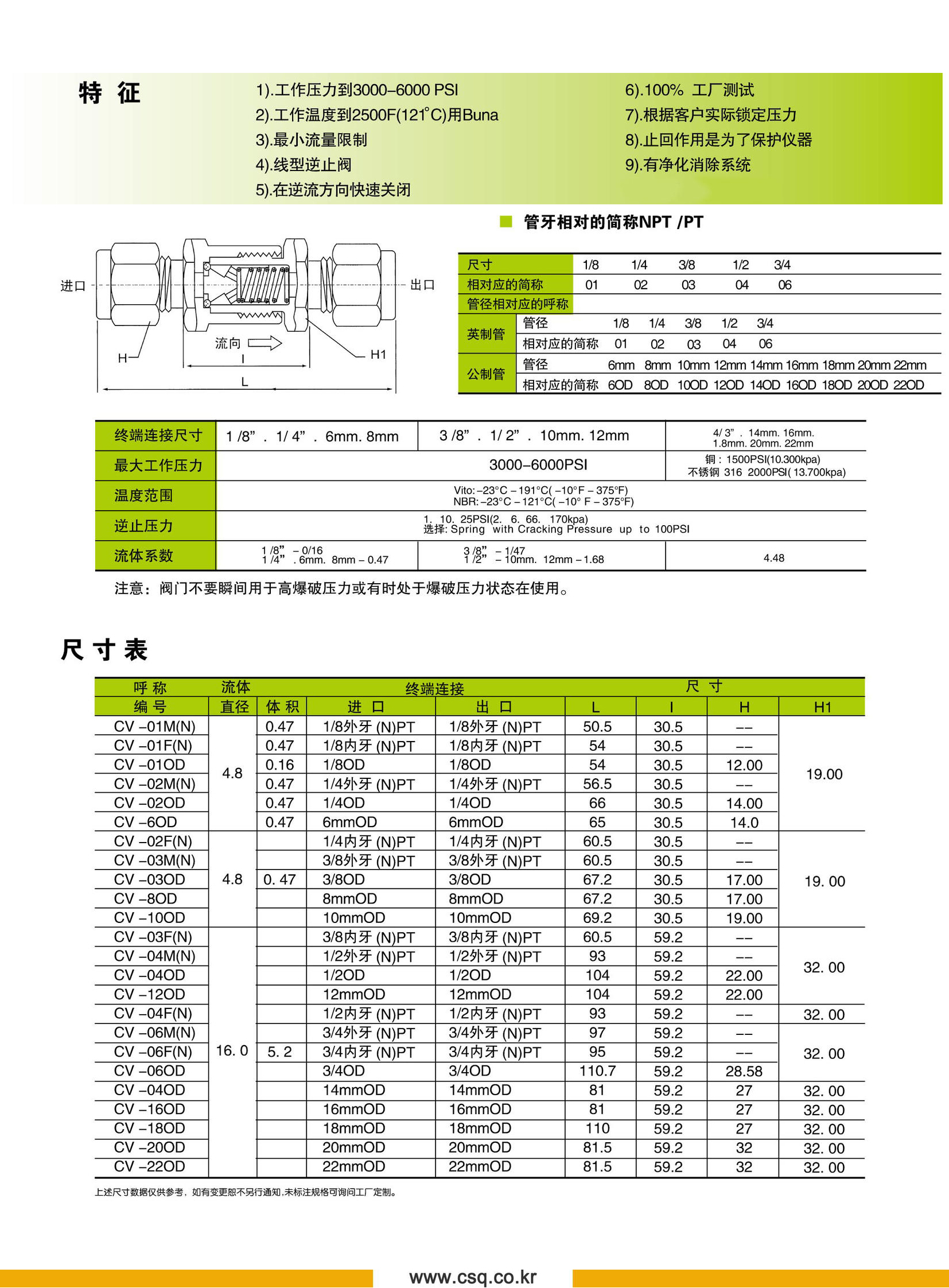

CV-S Series카달로그

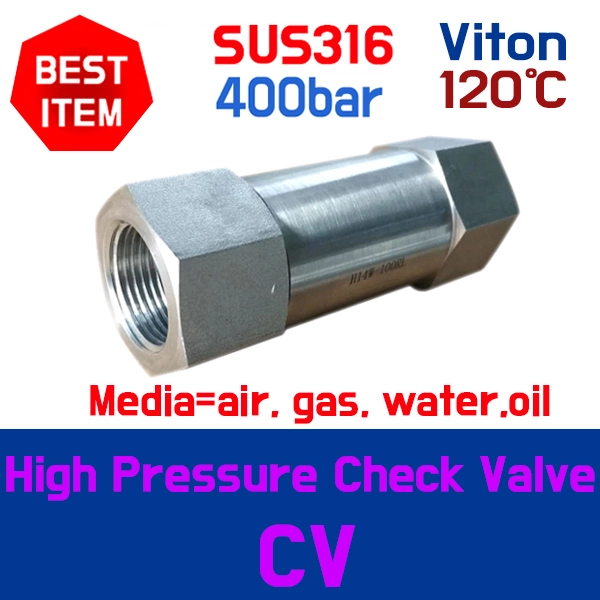

●(SUS316, viton, Female) High Pressure Check Valve

●(SUS316,, viton, Female) High temperature Check Valve

(max pressure=6000psi, 400bar) (opan pressure=25psi)

(media=air, gas, water, oil) (temp=-20~120Cº) (Seal=Viton)

●CV-S-01F(N)-25 (csq3863)

(SUS316) (6000psi, 400bar) (Viton) (NPT1/8 F)

●CV-S-02F(N)-25 (csq3864)

 (SUS316) (6000psi, 400bar) (Viton) (NPT1/4 F)

●CV-S-03F(N)-25 (csq3865)

(SUS316) (6000psi, 400bar) (Viton) (NPT3/8 F)

●CV-S-04F(N)-25 (csq3866)

(SUS316) (6000psi, 400bar) (Viton) (NPT1/2 F)

●CV-S-06F(N)-25 (csq3867)

(SUS316) (6000psi, 400bar) (Viton) (NPT3/4 F)

●(SUS316,, viton, male) High Pressure Check Valve

●(SUS316, viton, Female ) High temperature Check Valve

(max pressure=6000psi, 400bar) (opan pressure=25psi)

(media=air, gas, water, oil) (temp=-20~240Cº) (Seal=Viton)

●CV-S-01M(N)-25(SUS316) (6000psi, 400bar) (Viton) (NPT1/8 M)

●CV-S-02M(N)-25(SUS316) (6000psi, 400bar) (Viton) (NPT1/4 M)

●CV-S-03M(N)-25(SUS316) (6000psi, 400bar) (Viton) (NPT3/8 M)

●CV-S-04M(N)-25(SUS316) (6000psi, 400bar) (Viton) (NPT1/2 M)

●CV-S-06M(N)-25(SUS316) (6000psi, 400bar) (Viton) (NPT3/4 M)

●(CVS01) (CVS02) (CVS03) (CVS04) (CVS06)
