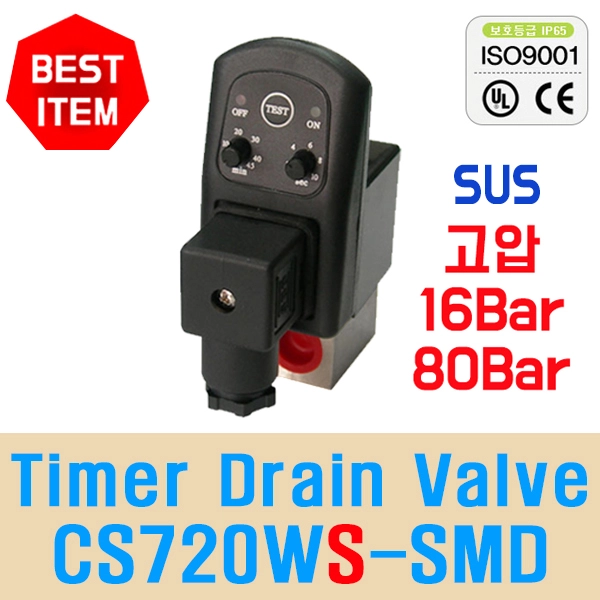

(SUS)CS720WS●2/2way NC Timer Drain Valve●RFS 스텐인레스 타이머 드레인 밸브●RFS 자동 드레인 밸브●RFS 오토 드레인 밸브●RFS 타임 드레인 밸브●RFS 타이마 드레인 밸브●(G1/4 F~G1/2 F)●(0~16bar)●(0~80bar)●(RFS)

                      CS Series 카탈로그 CS Series 코드번호

●(2/2way, NC, SUS304)

(SUS Automatic drain valve with timer, SMD) (80bar)

(body=SUS304) (seal=viton) (orifice=2mm)

●CS720WS-15-SMD-SUS-(80bar)-2D-AC220V (G1/2 F) (DME8264)

●CS720WS-15-SMD-SUS-(80bar)-8D-DC24V (G1/2 F) (DME8267)

●(2/2way, NC, SUS304)

(SUS  Automatic drain valve with timer, SMD) (16bar)

(body=SUS304) (seal=viton) (orifice=4.5mm)

●CS720WS-15-SMD-SUS-(16bar)-1D-AC110V (G1/2 F) (DME8269)

●CS720WS-15-SMD-SUS-(16bar)-2D-AC220V (G1/2 F) (csq5293)

●CS720WS-15-SMD-SUS-(16bar)-8D-DC24V (G1/2 F) (csq5294)

●(Only, 2/2way, NC, SUS304) (Solenoid Valve, 80bar)

(body=SUS304) (seal=viton) (orifice=2mm)

●CS720WS-15-(80bar)-2D-AC220V (G1/2 F) (DME5986)

●(Only, 2/2way, NC, SUS304) (Solenoid valve, 16bar)

(body=SUS304) (seal=viton) (orifice=4.5mm)

●CS720WS-15-(16bar)-2D-AC220V (G1/2 F) (DME5987)

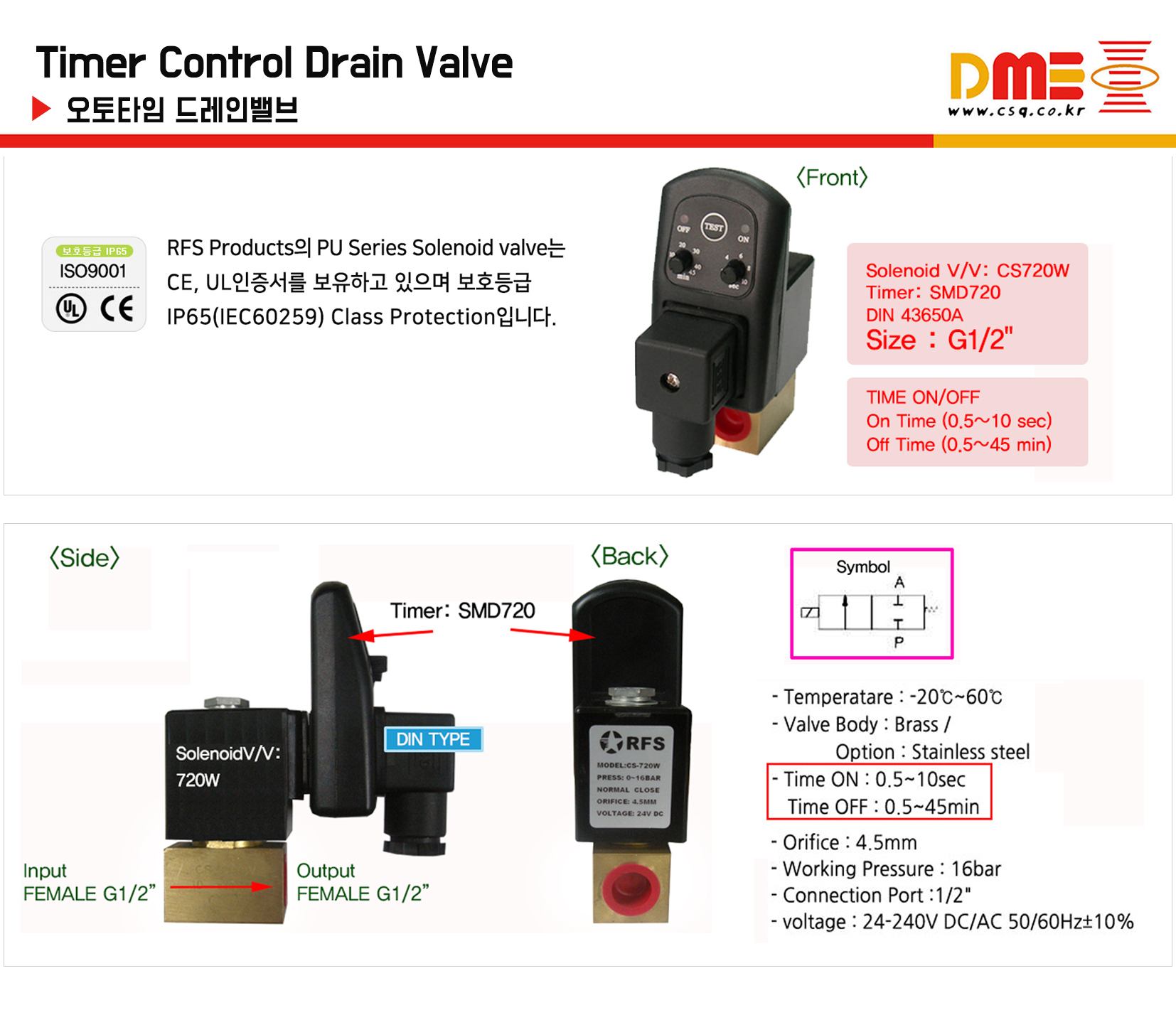

●(Only, Timer, SMD-720)

●SMD-720 (SB234)-(24~240V AC/DC) (50~60Hz) (DME2044)

(On Time=0.5sec~10sec) (Off Time=0.5min~45min)

●(적용 coil=SB256=AC220V , SB256=AC380V , SB257=DC24V)

●AC coil UL인증품가능
