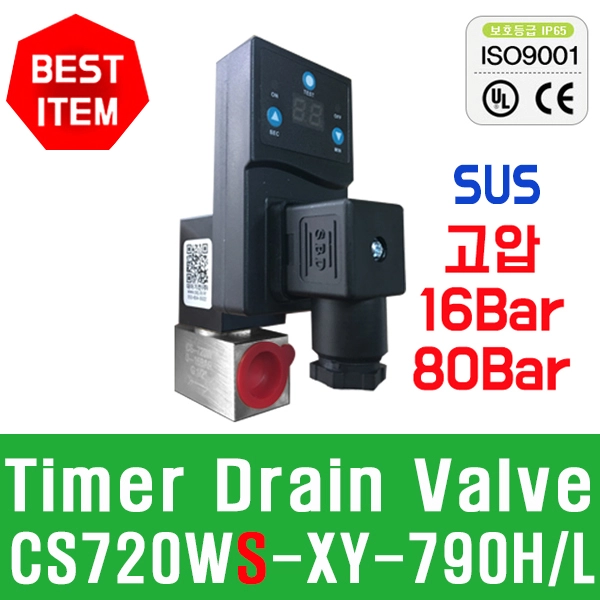

(SUS)CS720W-XY-790-SUS●XY-790H●XY-790L●CS720W-XY790●2/2way NC Timer Drain Valve)●RFS 스텐인레스 타이머 드레인 밸브●RFS 자동 드레인 밸브●RFS 오토 드레인 밸브●RFS 스텐인레스 타임드레인 밸브●타이마 드레인밸브●(G1/4 F~G1/2 F)●(0~16bar)●(0~80bar)●(RFS)

관련자료 (CLICK)

●(2/2way, NC, SUS)

(Automatic drain valve with timer XY-790H, XY-790L) (80bar)

(body=sus) (seal=viton) (orifice=2mm)

●CS720W-15-(XY-790H)-SUS-(80bar)-2D-AC220V (G1/2 F) (csq1953)

●CS720W-15-(XY-790L)-SUS-(80bar)-8D-DC24V (G1/2 F) (csq1955)

●(2/2way, NC, SUS)

(Automatic drain valve with timer XY-790H, HY-790L) (16bar)

(body=sus) (seal=viton) (orifice=4.5mm)

●CS720W-15-(XY-790H)-SUS-(16bar)-2D-AC220V (G1/2 F) (csq1956)

●CS720W-15-(XY-790L)-SUS-(16bar) -8D-DC24V (G1/2 F) (csq1958)

●(Only, 2/2way, NC, SUS) (Solenoid valve  CS720WS) (16bar,80bar)

(body=SUS304) (seal=viton)

●CS720WS-15-(orifice=2mm)-(80bar)-2D-AC220V (G1/2 F)

(DME5986)

●CS720WS-15-(orifice=4.5mm)-(16bar)-2D-AC220V (G1/2 F) (DME5987)

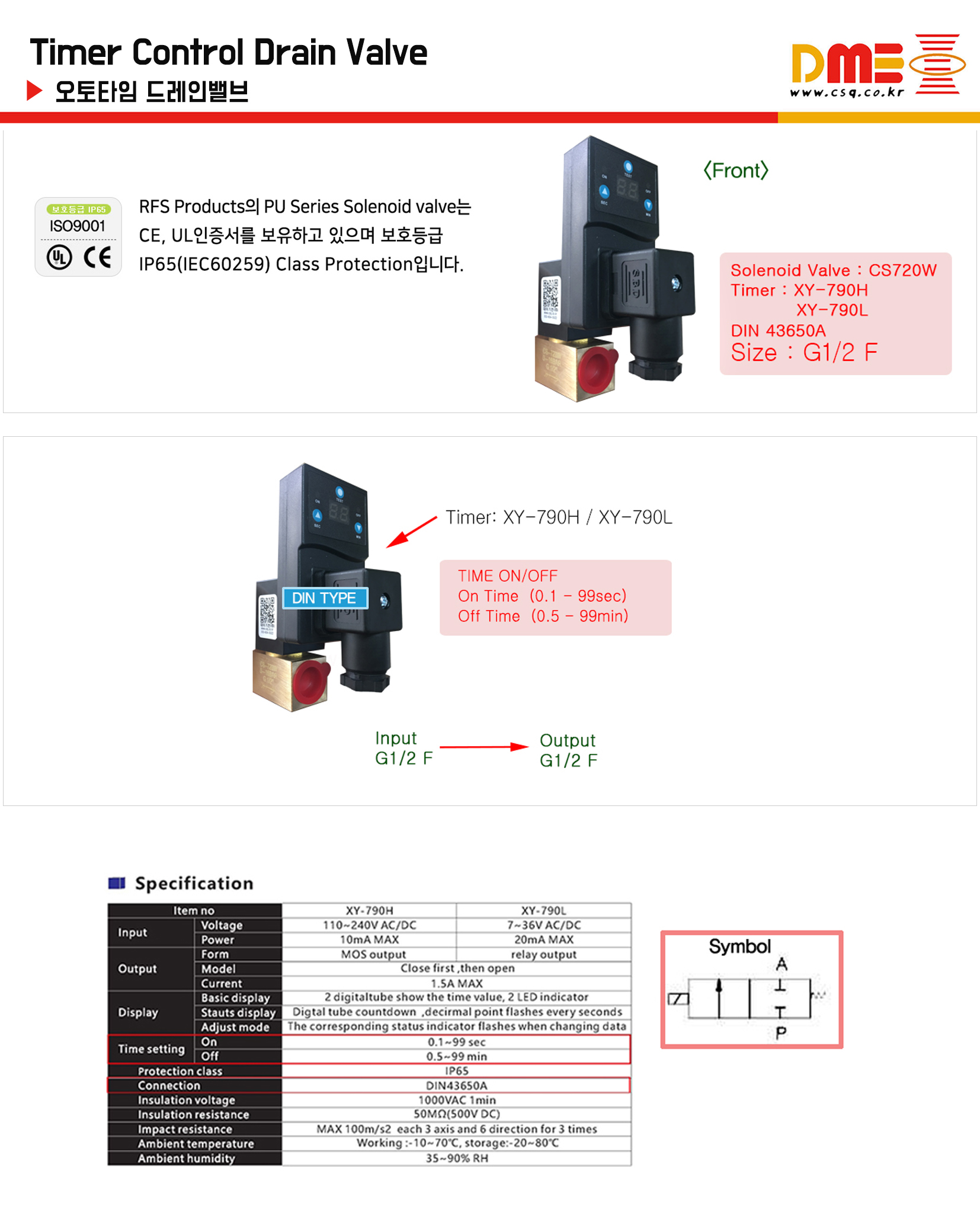

●(Only, Timer, XY-790H  or  XY-790L)

●XY-790H(100~240V AC/DC) (50~60Hz) (csq1945)

(On Time=0.1~99sec) (Off Time=0.5~99min)

●XY-790L(7~36V AC/DC) (50~60Hz) (csq1946)

(On Time=0.1~99sec) (Off Time=0.5~99min)

●(적용 coil=SB256=AC220V , SB256=AC380V , SB257=DC24V)

●AC coil UL인증품가능
