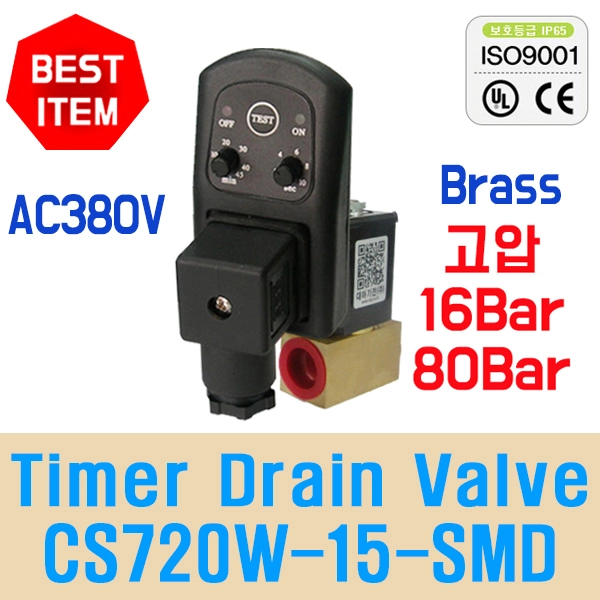

CS720W-15-SMD-(AC380V/50-60HZ)●CS720W15●2/2way NC Timer Drain Valve●RFS 전기 타이머 드레인 밸브●RFS 전기 오토 드레인 밸브●RFS 전기 자동 드레인 밸브●(AC380V)●(G1/4 F~G1/2 F)●(0~16bar)●(0~80bar)●(RFS)

CS Series 카탈로그 CS Series 코드번호

●(2/2way, NC, bress) (timer Drain Valve with timer, AC380V) (80bar)

(body=brass) (seal=viton) (orifice=2mm)

●CS720W-15-SMD-(80bar)-9D-AC380V (G1/2 F) (DME8425)

●(2/2way, NC, bress) (timer Drain Valve with timer, AC380V) (16bar)

(body=brass) (seal=viton) (orifice=4.5mm)

●CS720W-15-SMD-(16bar)-9D-AC380V (G1/2 F) (DME8416)

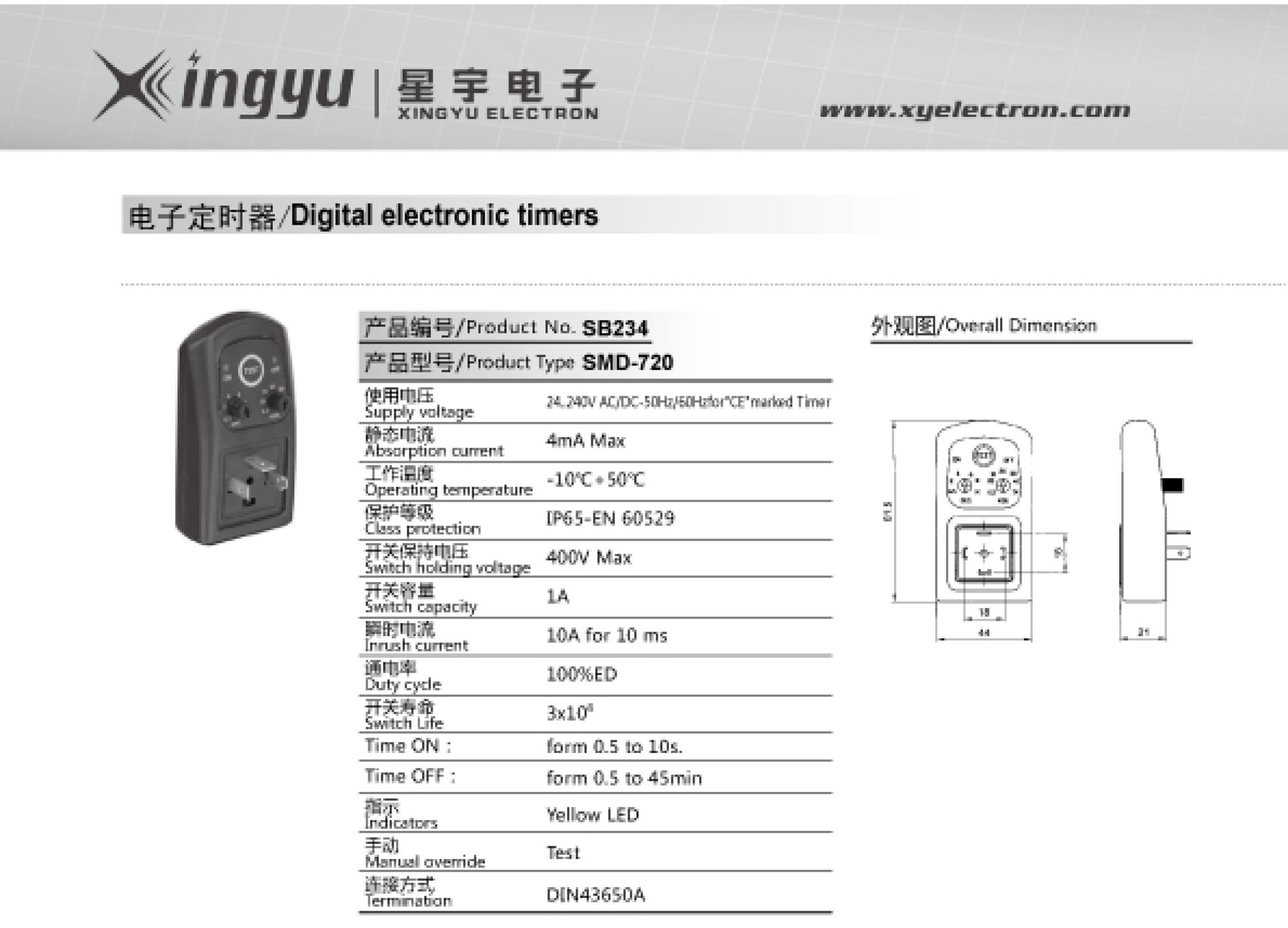

●(only, Electronic Timers  SMD) (connector=DIN43650A)

(On Time=0.5~10sec) (Off Time=0.5~45min)

●SMD-720 (SB234)-(AC380V) (50~60Hz)

●(only, solenoid valve) (16bar, 80bar)

●CS720-**-(orifice=4.5mm)-16bar- (power=AC380V) (50~60Hz)

●CS720-**-(orifice=2mm)-80bar- (power=AC380V) (50~60Hz)

●(적용 coil=SB256=AC220V , SB256=AC380V , SB257=DC24V)

●AC coil UL인증품가능

●Automatic Drain Valve  ●time control drain valve  ●ball drain

●자동 드레인 밸브 ●오토 드레인 밸브 ●타임 드레인 밸브 ●타이마 드레인 밸브
