(DC12V)(DC24V)●LS-INLA-1(Hall)●(LSINLA1)●Tubular Linear actuator●(Hall) Effect Linear actuator●튜블라 리니어 액츄에이터●위치 제어 전기실린더●위치 제어 전동실린더●(DC12V)(DC24V)●(LINSHENG,DME)

LS-INLA-1 카탈로그 LS-INLA-1 사양서

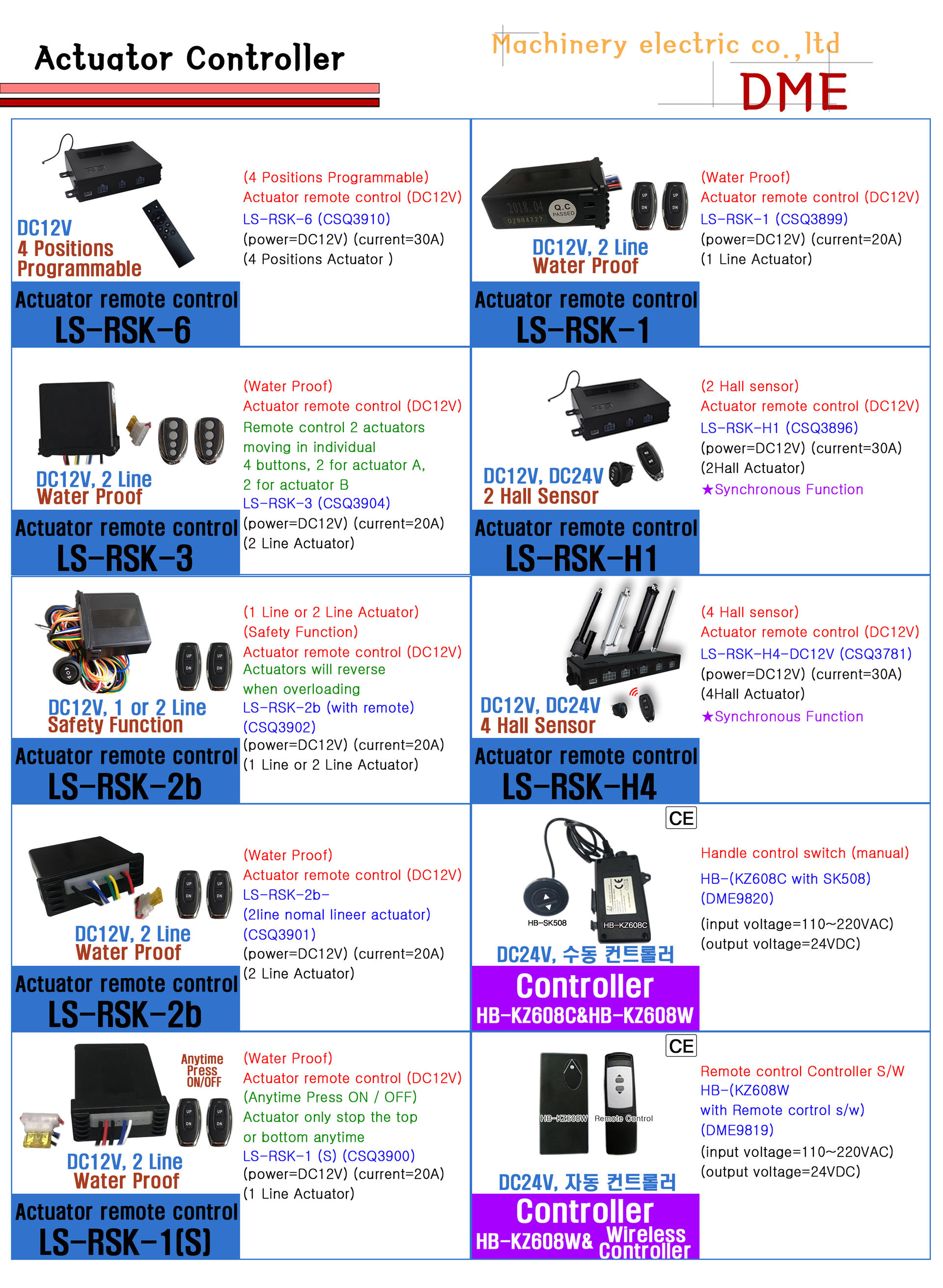

Actuator Controller 전체

●(Hall) Effect Linear actuator (DC24V)

●LS-INLA-1-(load=4500N)-(3.2mm/s)-(stroke=1000mm)-(hole=13mm)

●LS-INLA-1-(load=4500N)-(3.2mm/s)-(stroke=20mm)-(589mm)-(hole=13mm)

●(Hall) Effect Linear actuator (DC12V)

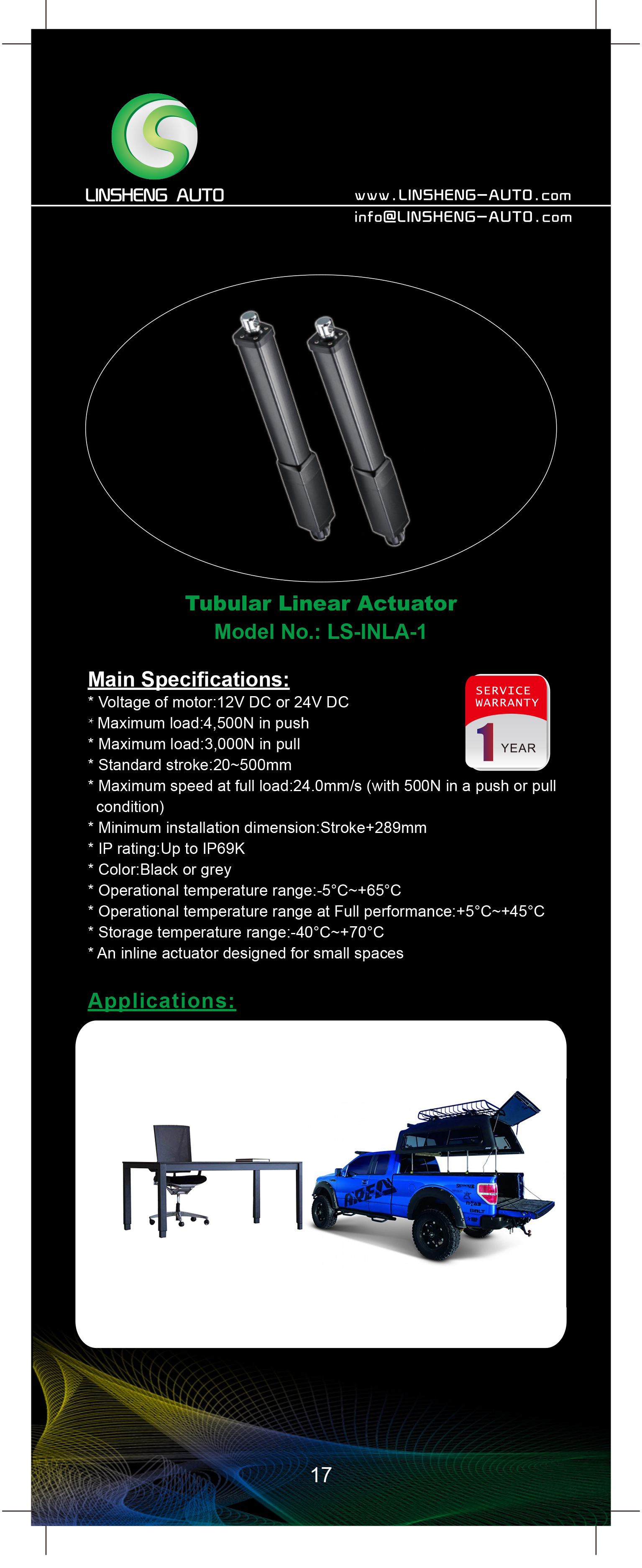

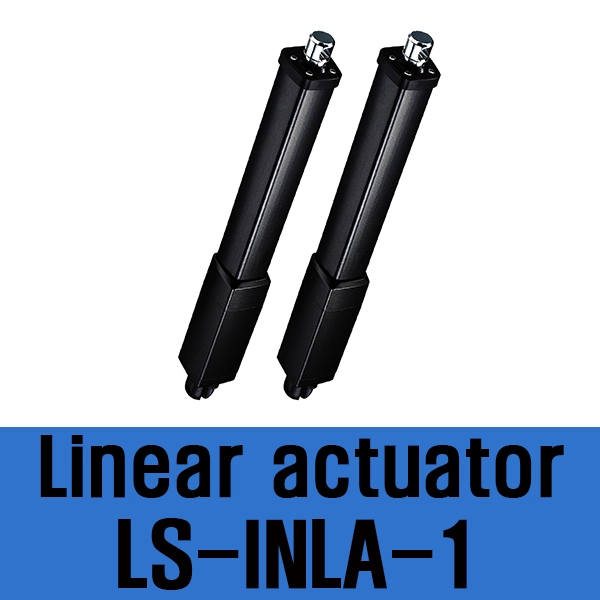

●LS-INLA-1

●stroke=(20mm~1000mm)

●Push load Fores =(500N~4500N)

●self Loking Fores =(500N~4500N)

●Pull  load  Fores =(500N~4500N)

●(24VDC) Typical speed=(3.2mm~24mm/s)

●(24VDC) Typical current=(2.0A~3.5A)
