(DC12V)(DC24V)●(LS-LC-35ES-3, with LS-RSK-H4, Actuator remote control)●(LSLC35ES3, with ,LSRSKH4)●위치 제어 실린더●(stroke=100mm~400mm)●동조 실린더 ●동조 전기실린더●(DC12V) (7mm/s)●(DC24V) (10mm/s)●(2000N)(LINSHENG,DME)

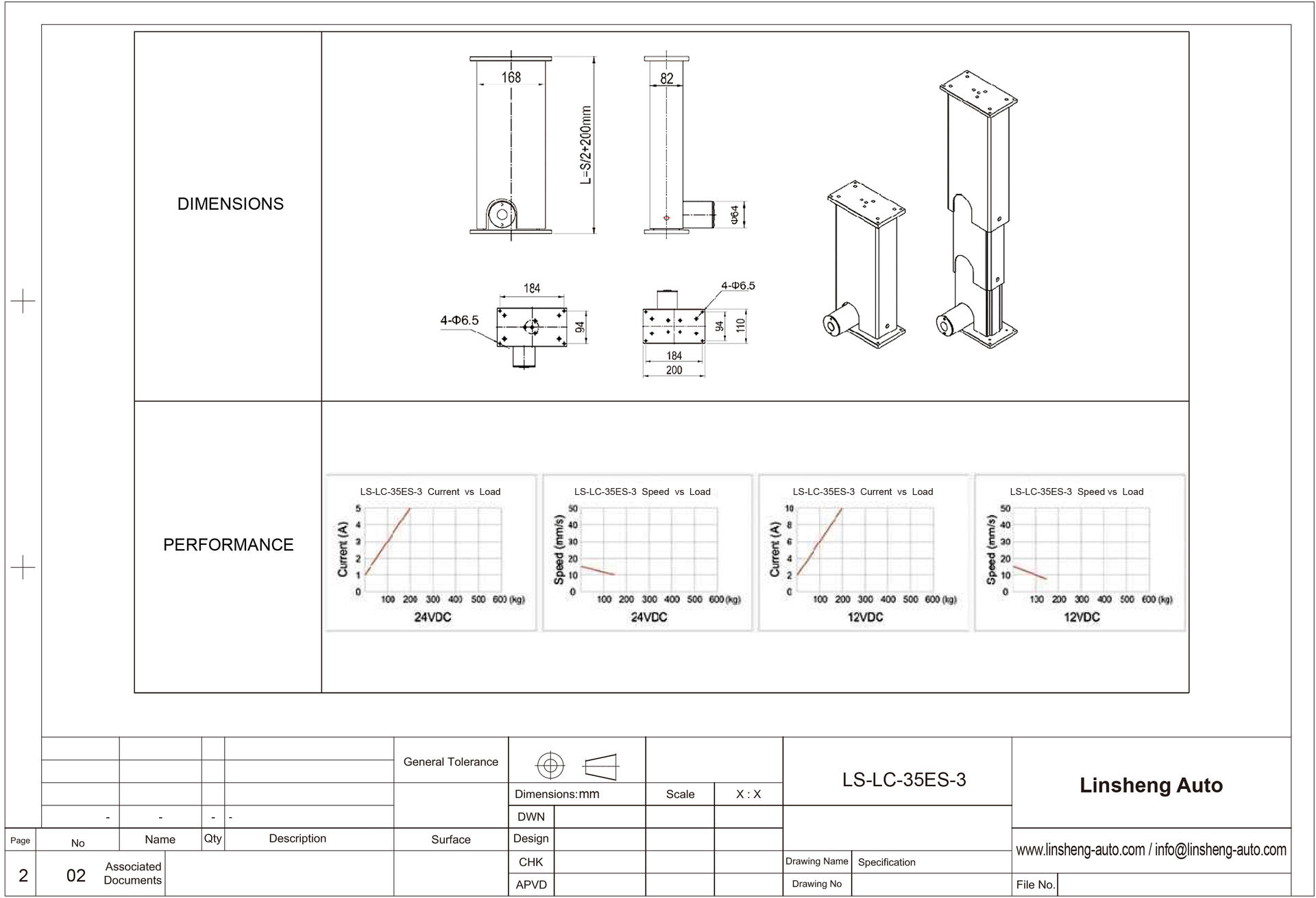

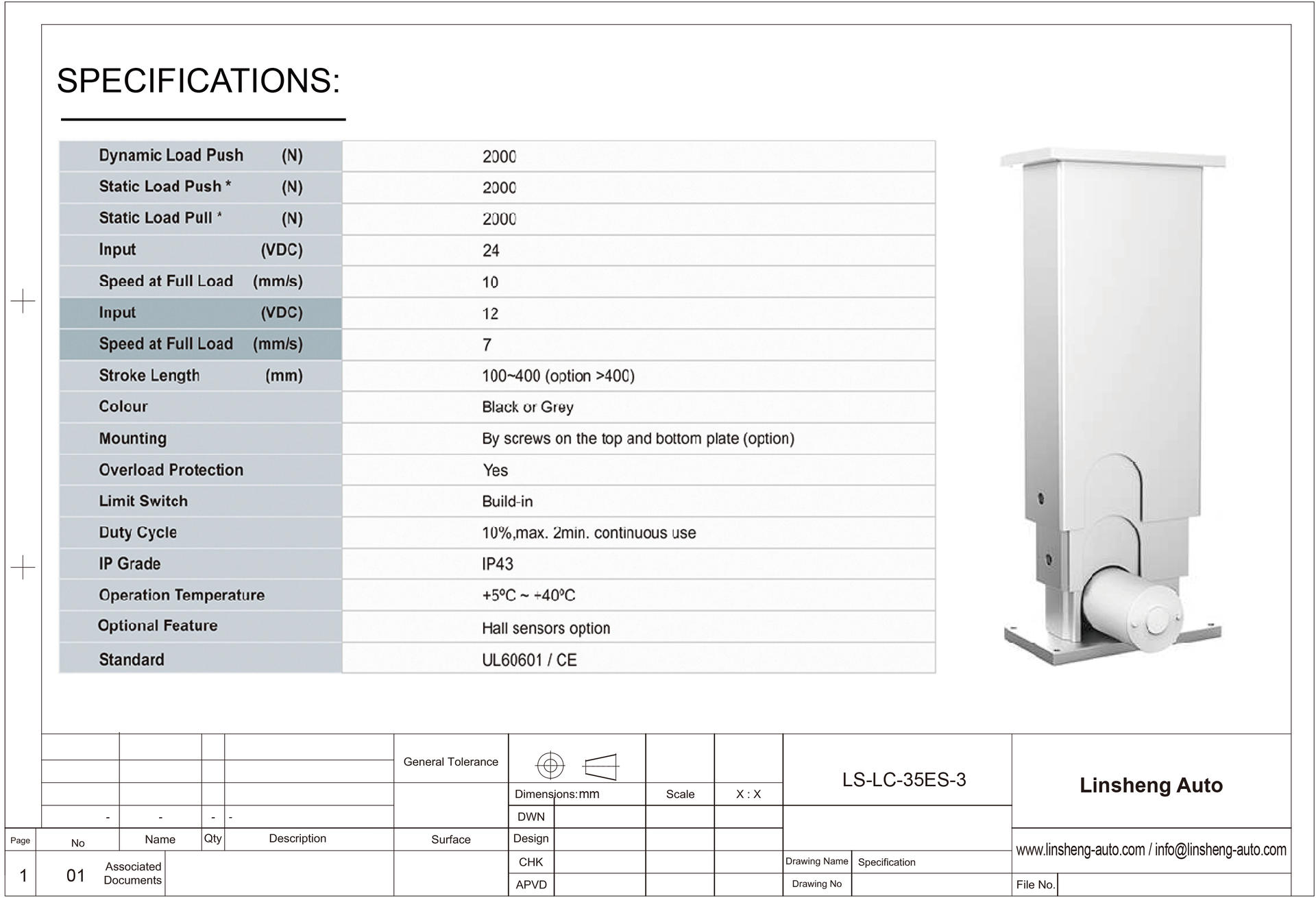

LS-LC-35ES-3 사양서 LS-LC-35ES-3 사용방법 동영상

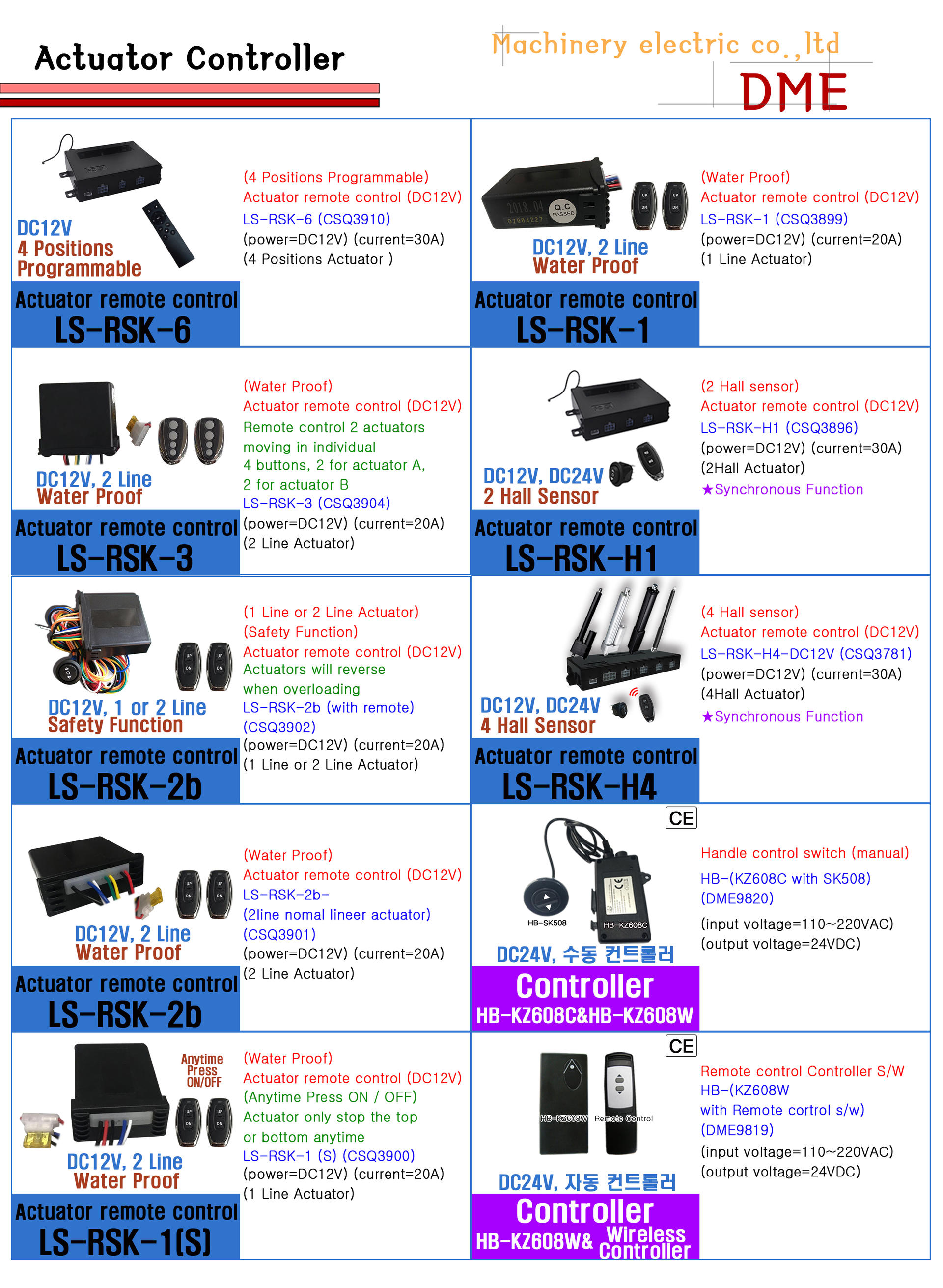

Actuator Controller 전체

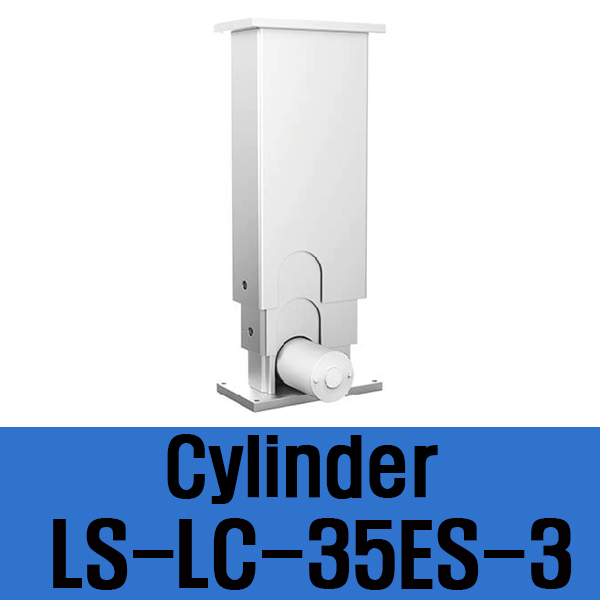

●(LS-LC-35ES-3 Cylinder) with (LS-RSK-H4 Actuator remote control)

●LS-LC-35ES-3-12VDC

(Input=DC12V) (Speed at Full Load=7mm/s) (IP43)(load=2000N)

●(LS-LC-35ES-3 Cylinder) with (LS-RSK-H4 Actuator remote control)

●LS-LC-35ES-3-24VDC

(Input=DC24V) (Speed at Full Load=10mm/s) (IP43)(load=2000N)

●Synchronous Function(동조 기능)

●동조실린더(동조전기실린더)

●최대스트로크는100mm,일반적으로 400mm이하를 권장합니다

●(LSLC35ES3) with (LSRSKH4)
