●●CTAGZ(R,W,S,P,L,M,G,H,F type)●(Vacuum Generator(two side port)(진공 발생기,진공 필터,진공 발생용 밸브, LED표시진공 스위치,진공 파괴 밸브)●(0.5mm)(0.7mm)(1.0mm)(1.2mm)●(-93Kpa)(7L/min)(13L/min)(27L/min)(38L/min)●(Pisco,VK)●(RFS)

XYZKF-CT 카탈로그

XYZKF 유저 메뉴얼

●(W type, Manolithic two side port) Vacuum generator

●CTAGZ05-W-080808E-NV (DC24V) (NC type) (csq4103)

●CTAGZ07-W-080808E-NV (DC24V) (NC type) (csq4104)

●CTAGZ10-W-080808E-NV (DC24V) (NC type) (csq4105)

●CTAGZ12-W-080808E-NV (DC24V) (NC type) (csq4106)

(진공발생기) (진공필터) (진공발생용밸브=DC24V / NC type)

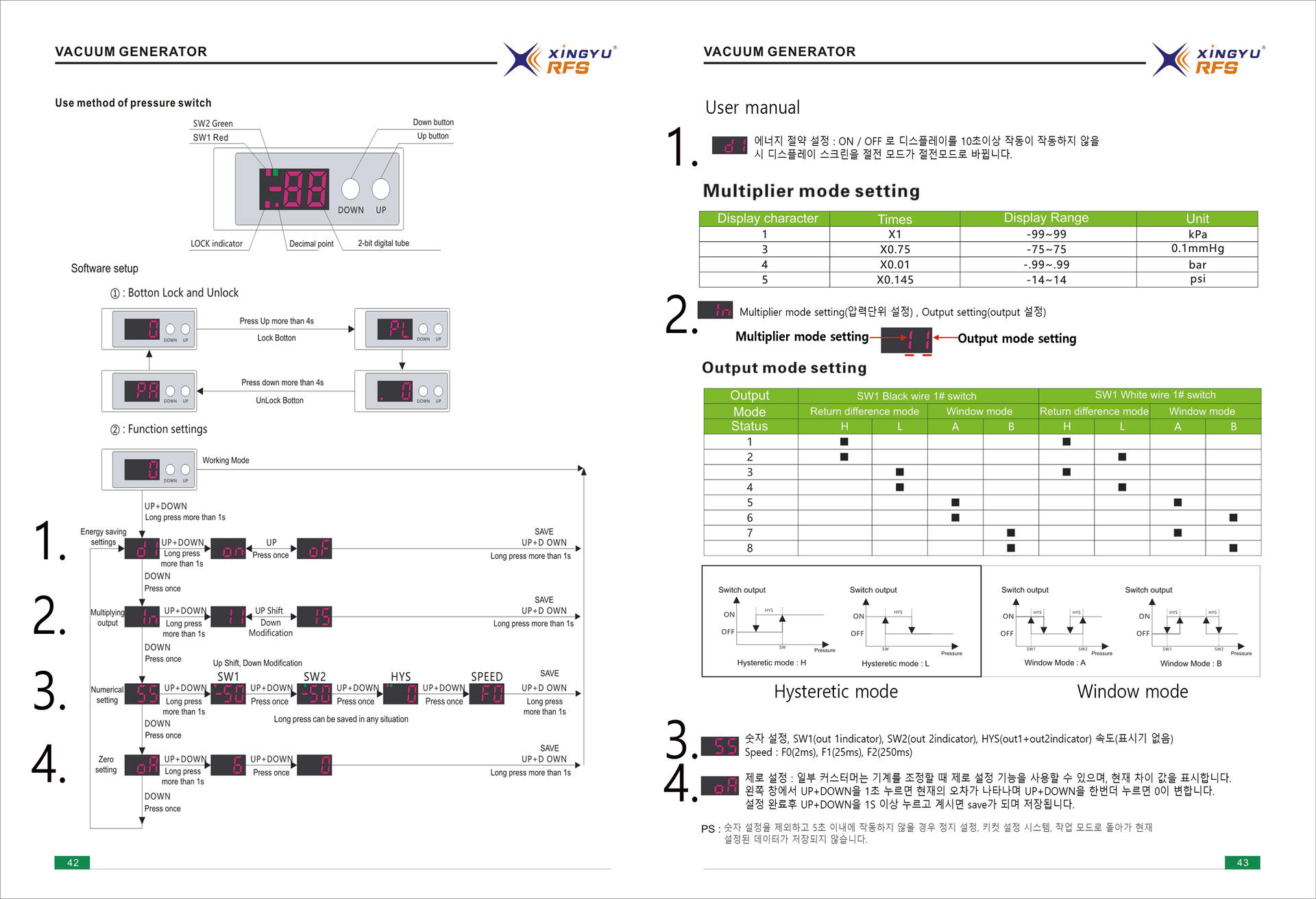

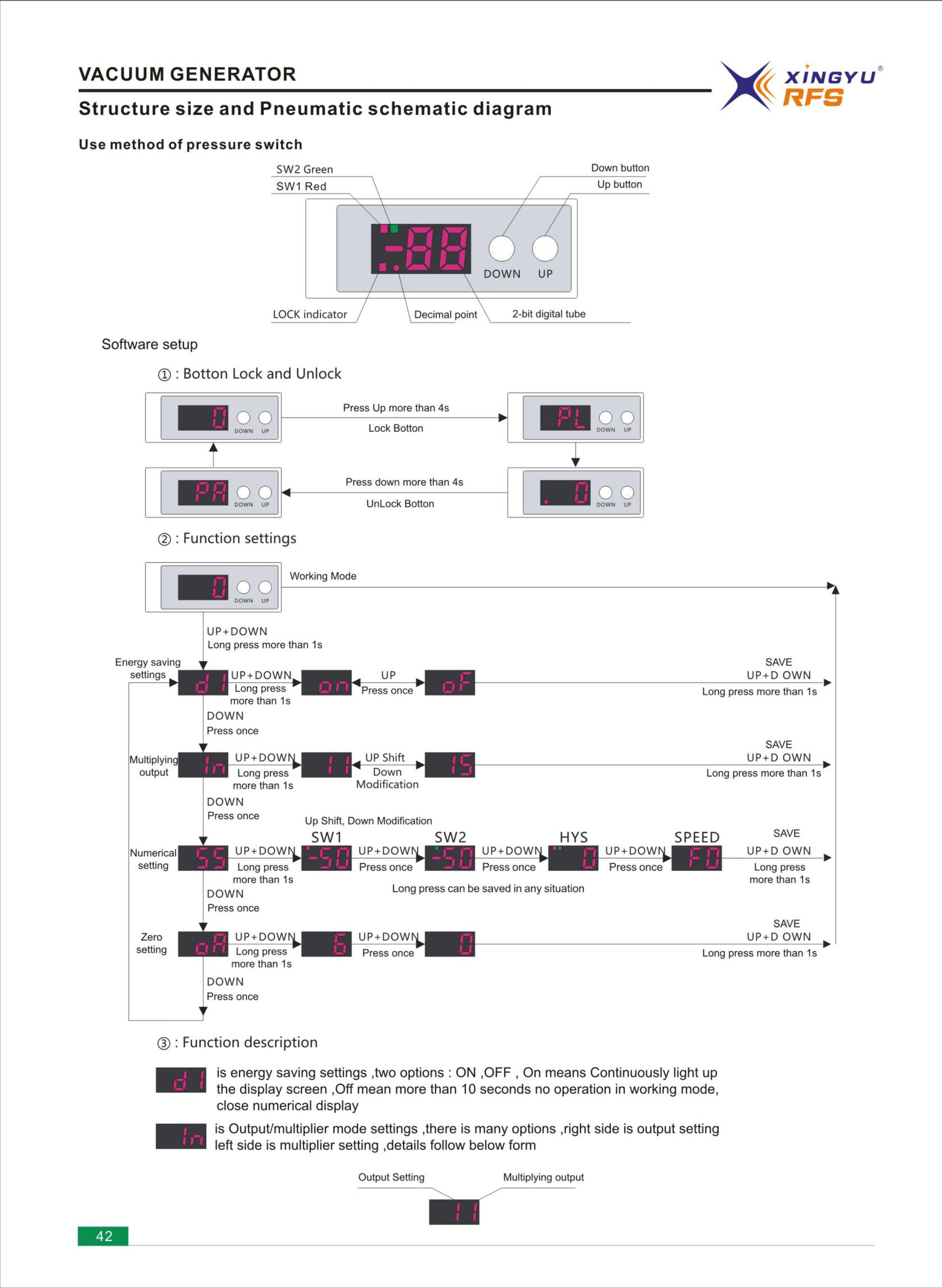

(output=2NPN + 1~5V) (LED표시형 디지털진공스위치)

(솔밸브 진공파괴밸브=DC24V / NC type)

(V=8mm) (air=8mm) (EX=8mm)

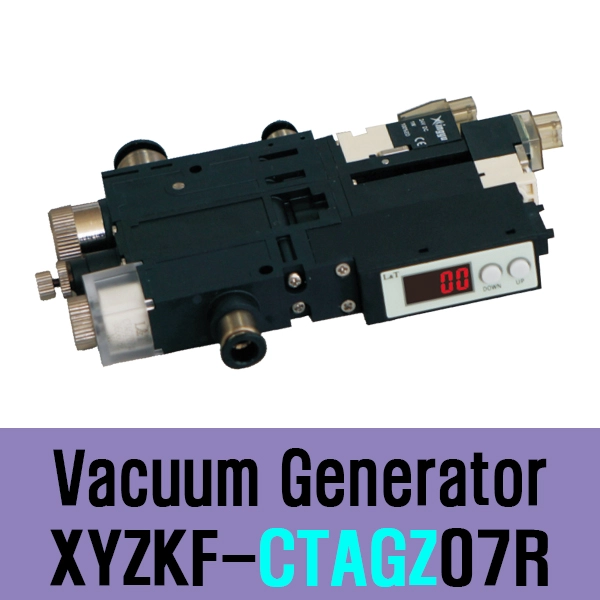

●(R type, Manolithic two side port) Vacuum generator

●CTAGZ05-R-080808E-NV (DC24V) (NC type) (csq4107)

●CTAGZ07-R-080808E-NV (DC24V) (NC type) (csq4108)

■CTAGZ07-R-060608E-NV (DC24V) (NC type) (csq4027) (재고유)

●CTAGZ10-R-080808E-NV (DC24V) (NC type) (csq4109)

●CTAGZ12-R-080808E-NV (DC24V) (NC type) (csq4110)

(진공발생기) (진공필터) (진공발생용밸브=DC24V /NC type)

(output=2NPN + 1~5V) (LED표시형 디지털진공스위치)

(에어타이머방식 진공파괴밸브) (V=8mm) (air=8mm) (EX=8mm)

●(S type, Manolithic two side port ) Vacuum generator

(진공발생기) (진공필터) (진공발생용밸브) (솔밸브 진공파괴밸브)

●CTAGZ05-S ●CTAGZ07-S ●CTAGZ10-S ●CTAGZ12-S

●(P type, Manolithic two side port) Vacuum generator

(진공발생기) (진공필터) (진공발생용밸브) (에어타이머 진공파괴밸브)

●CTAGZ05-P ●CTAGZ07-P ●CTAGZ10-P ●CTAGZ12-P

●(L type, Manolithic two side port) Vacuum generator

(진공발생기) (진공필터) (진공발생용밸브) (LED표시형디지털진공스위치)

●CTAGZ05-L ●CTAGZ07-L ●CTAGZ10-L ●CTAGZ12-L

●(M type, Manolithic two side port ) Vacuum generator

(진공발생기) (진공필터) (진공발생용밸브) (체크밸브/진공보호유지)

(LED표시형디지털진공스위치)

●CTAGZ05-M ●CTAGZ07-M ●CTAGZ10-M ●CTAGZ12-M

●(G type. Manolithic two side port ) Vacuum generator

(진공발생기) (진공필터) (진공발생용밸브)

●CTAGZ05-G ●CTAGZ07-G ●CTAGZ10-G ●CTAGZ12-G

●(H  type, Manolithic two side port ) Vacuum generator

(진공발생기) (진공필터) (진공발생용밸브) (체크밸브/진공보호유지)

●CTAGZ05-H ●CTAGZ07-H ●CTAGZ10-H ●CTAGZ12-H

●(E type, Manolithic two side port ) Vacuum generator

(진공발생기) (진공필터) (LED표시형디지털진공스위치)

●CTAGZ05-E ●CTAGZ07-E ●CTAGZ10-E ●CTAGZ12-E

●(F type, Manolithic two side port) Vacuum generator

(진공발생기) (진공필터) (체크밸브/진공보호유지)

(LED표시형디지털진공스위치)

●CTAGZ05-F ●CTAGZ07-F ●CTAGZ10-F ●CTAGZ12-F

● (Manolithic two side port) only Vacuum generator

 (진공발생기, 진공필터)

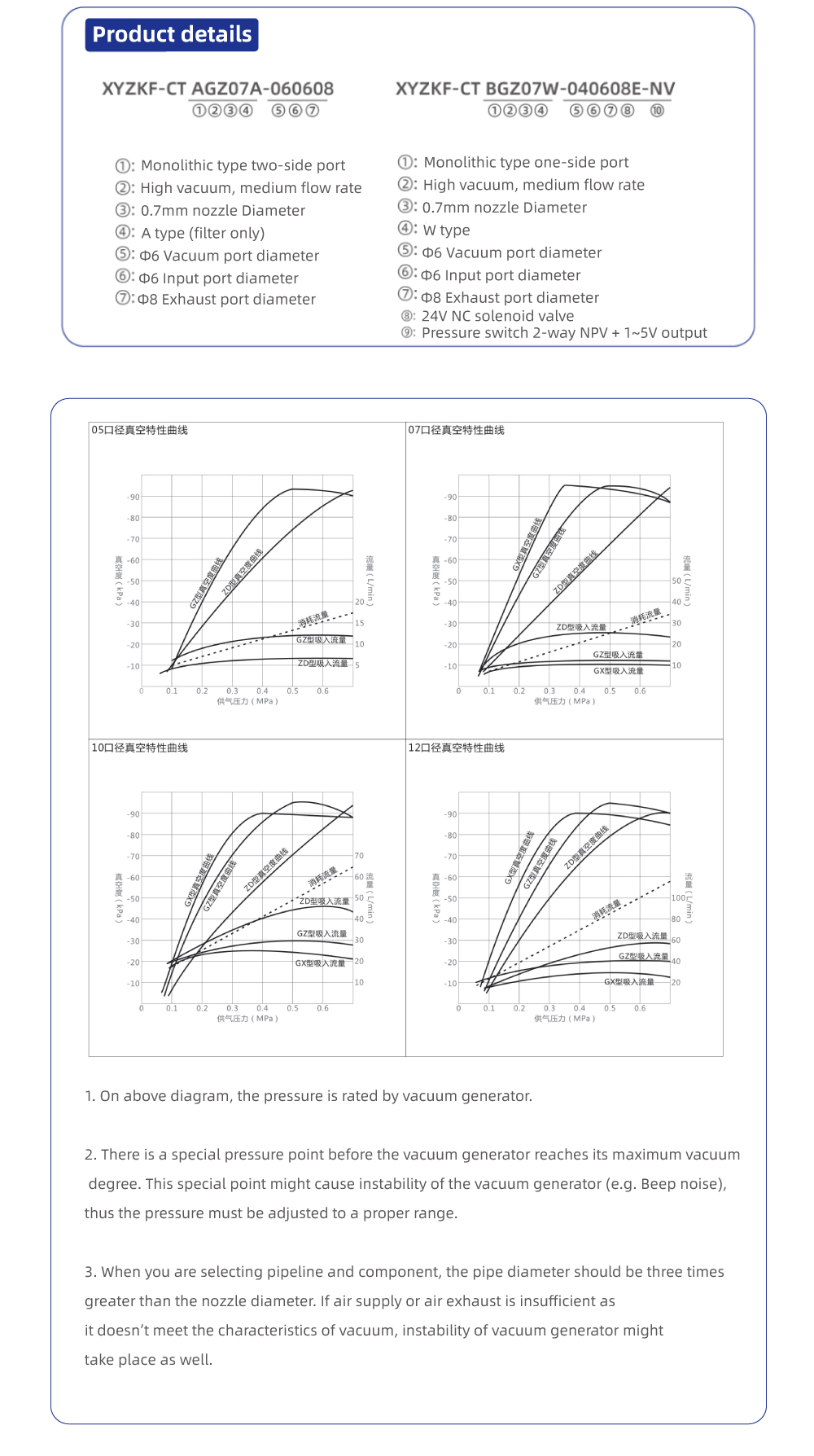

●XYZKF-CTA-GZ-05-A (0.5mm /-93kpa/7L/min) (csq5020)

●XYZKF-CTA-GZ-07-A (0.7mm /-93kpa/13L/min) (csq4028)

●XYZKF-CTA-GZ-10-A (10mm /-93kpa/27L/min) (csq5021)

●XYZKF-CTA-GZ-12-A (12mm /-93kpa/38L/min) (csq5022)

● BMC22S10HSVGL4BLR (convum) (csq5014, same4105)

● BMC22S15HSVGL4BLR (convum)
