TXZC4(M12-5P)●M12-5P Digital Pressure Switch●M12-5P 디지털 압력 스위치●Changzhou 디지털 프레샤 게이지●Changzhou 디지털 압력 게이지●디지털 프레샤 센서●디지털 압력 센서●디지털 프레샤 스위치●디지털 압력 스위치●(2set)●(max 600bar)●(0.5%)●(Changzhou)

신제품 출시로 인한

기존 제품 할인을 진행합니다.

사양은 동일합니다.

감사합니다^^

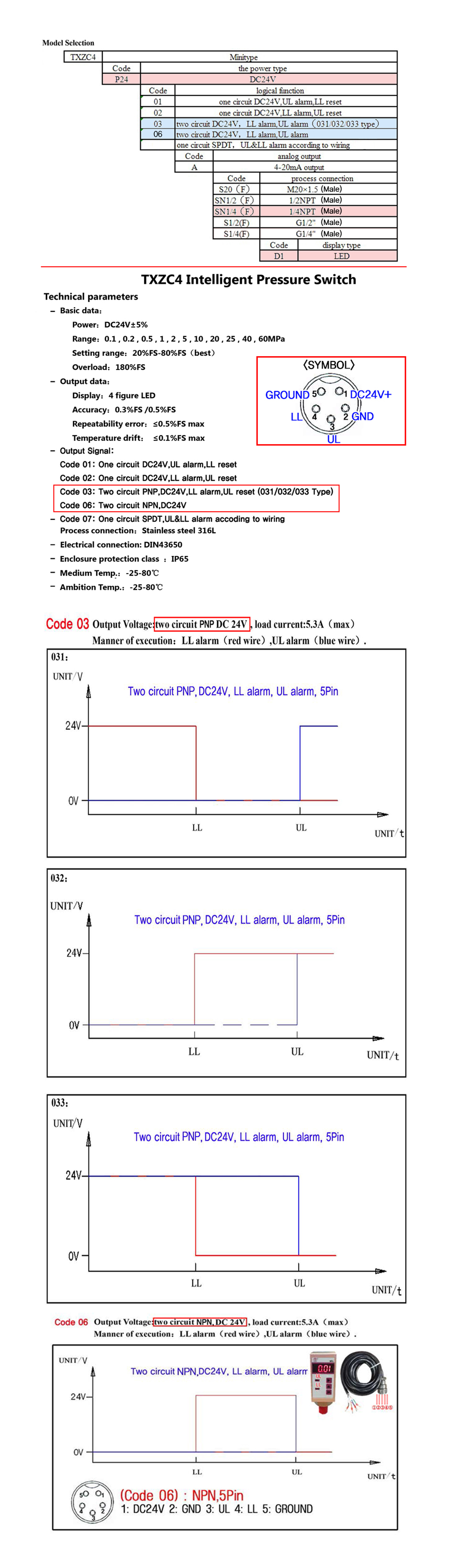

TXZC4 :5pin 카탈로그

TXZC4 :5pin 메뉴얼(한글)  TXZC4 :5pin 메뉴얼(영어)

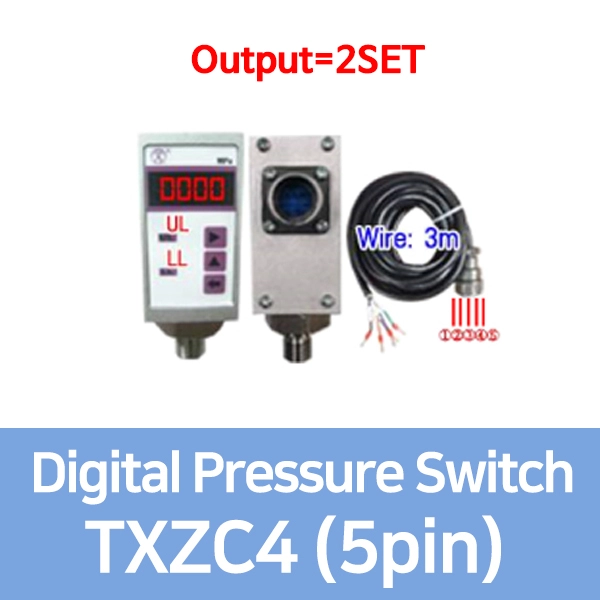

●TXZC4 (5pin)(G1/4 Male) (old) (2set) (2alarm) (2NPN) (2PNP)

(Change Same=TL-S628E) (Change Same=TL-S828E)

●TXZ-S8 (5pin) (G1/4 Male) (new) (2set) (2alarm) (2NPN) (2PNP)

(Change Same=TL-S628E) (Change Same=TL-S828E)

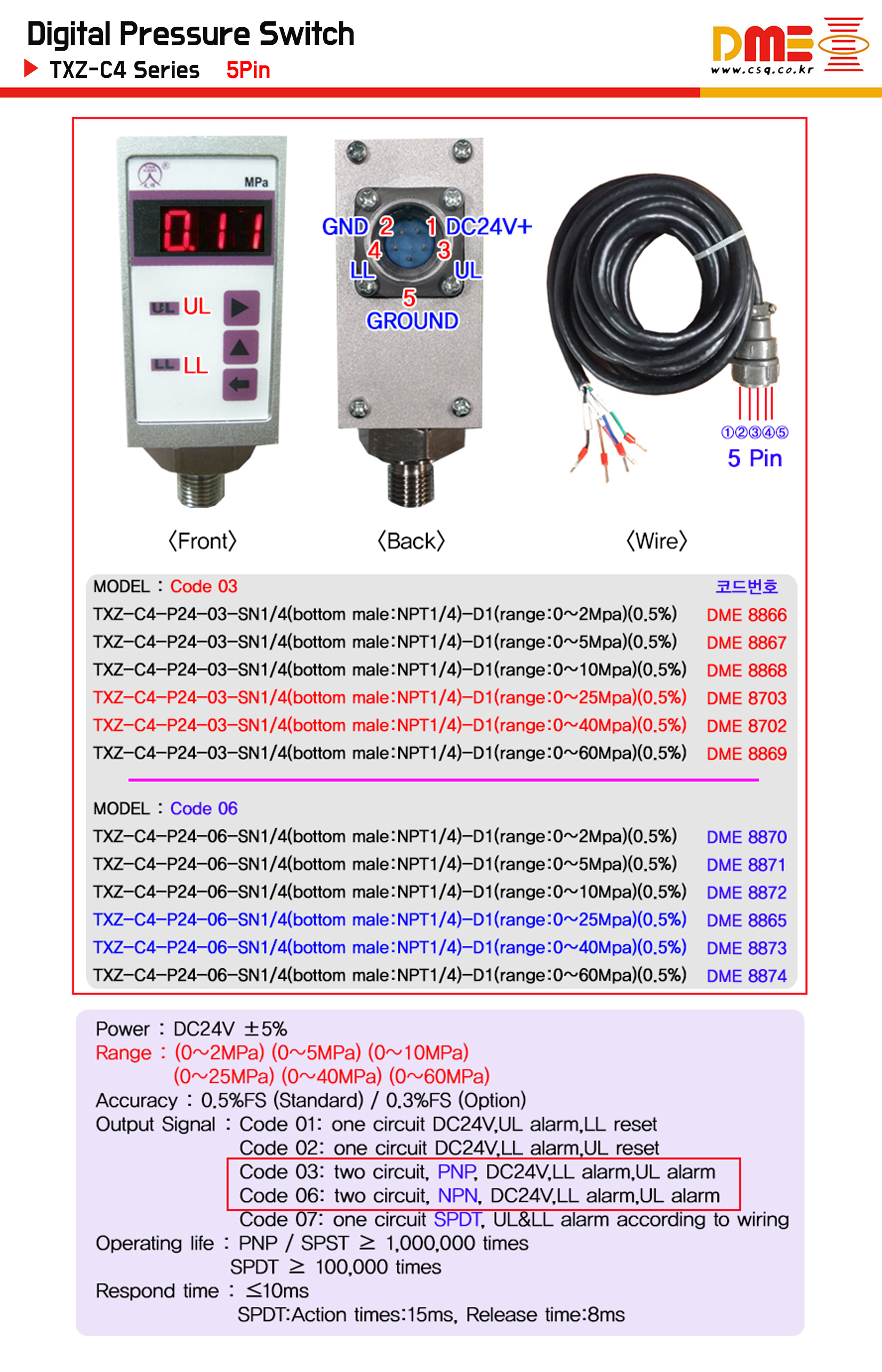

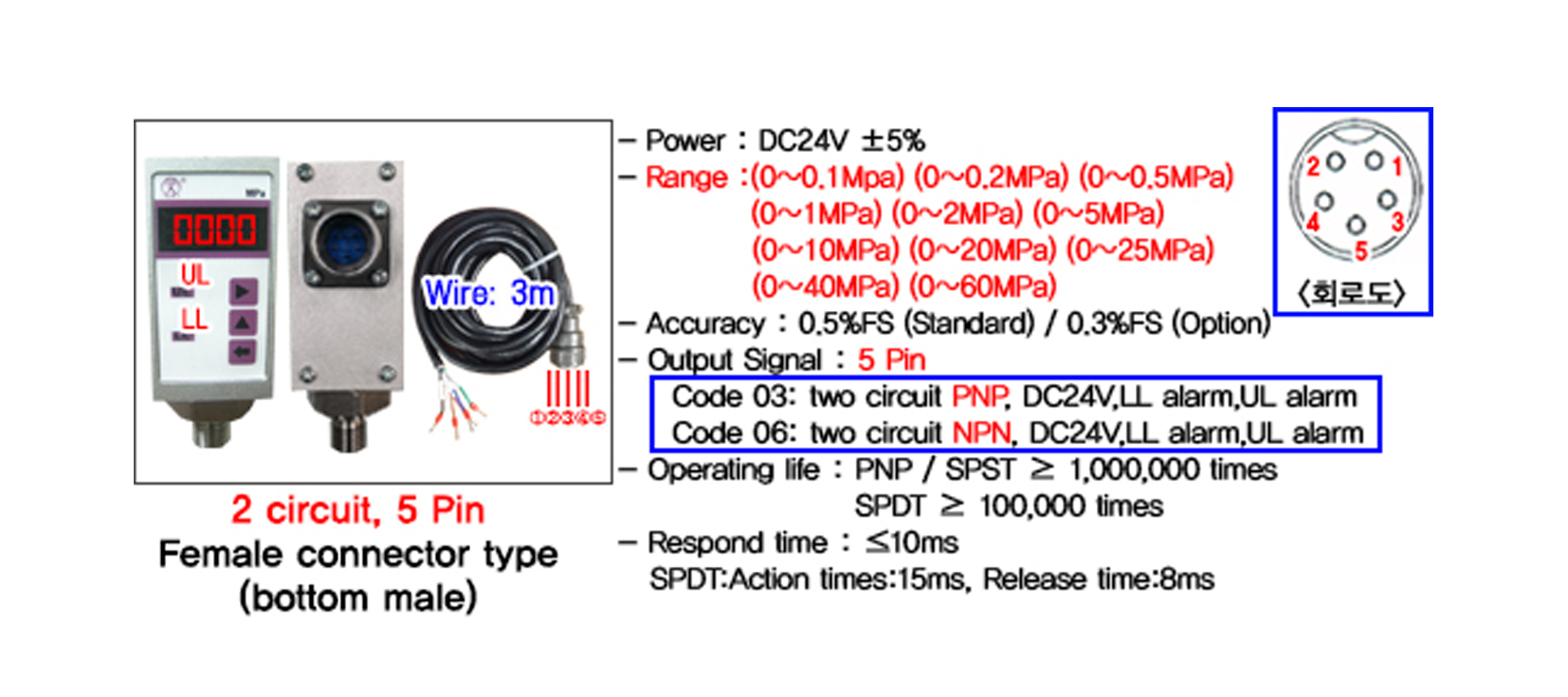

●Digital Pressure Switch (UL alarm+LL alarm) (power=DC24V)

(Electrical connection=M12-5P cable connector)

(Code03=Two circuit  DC24V, PNP) (bottom G1/4 Male)

●TXZ-C4-P24-03-S1/4-D1 (range=0~2Mpa) (0.5%) (DME8866)

●TXZ-C4-P24-03-S1/4-D1 (range=0~5Mpa) (0.5%) (DME8867)

●TXZ-C4-P24-03-S1/4-D1 (range=0~10Mpa) (0.5%) (DME8868)

●TXZ-C4-P24-03-S1/4-D1 (range=0~25Mpa) (0.5%) (DME8703)

●TXZ-C4-P24-03-S1/4-D1 (range=0~40Mpa) (0.5%) (DME8702)

●TXZ-C4-P24-03-S1/4-D1 (range=0~60Mpa) (0.5%) (DME8869)

●Digital Pressure Switch (UL alarm+LL alarm) (power=DC24V)

(Electrical connection=M12-5P cable connector)

(Code03=Two circuit  DC24V, NNP) (bottom G1/4 Male)

●TXZ-C4-P24-06-S1/4-D1 (range=0~2Mpa) (0.5%) (DME8870)

●TXZ-C4-P24-06-S1/4-D1 (range=0~5Mpa) (0.5%) (DME8871)

●TXZ-C4-P24-06-S1/4-D1 (range=0~10Mpa) (0.5%) (DME8872)

●TXZ-C4-P24-06-S1/4-D1( range=0~25Mpa) (0.5%) (DME8865)

●TXZ-C4-P24-06-S1/4-D1 (range=0~40Mpa) (0.5%) (DME8873)

●TXZ-C4-P24-06-S1/4-D1 (range=0~60Mpa) (0.5%) (DME8874)

●PCM700 , TXZ-S8
