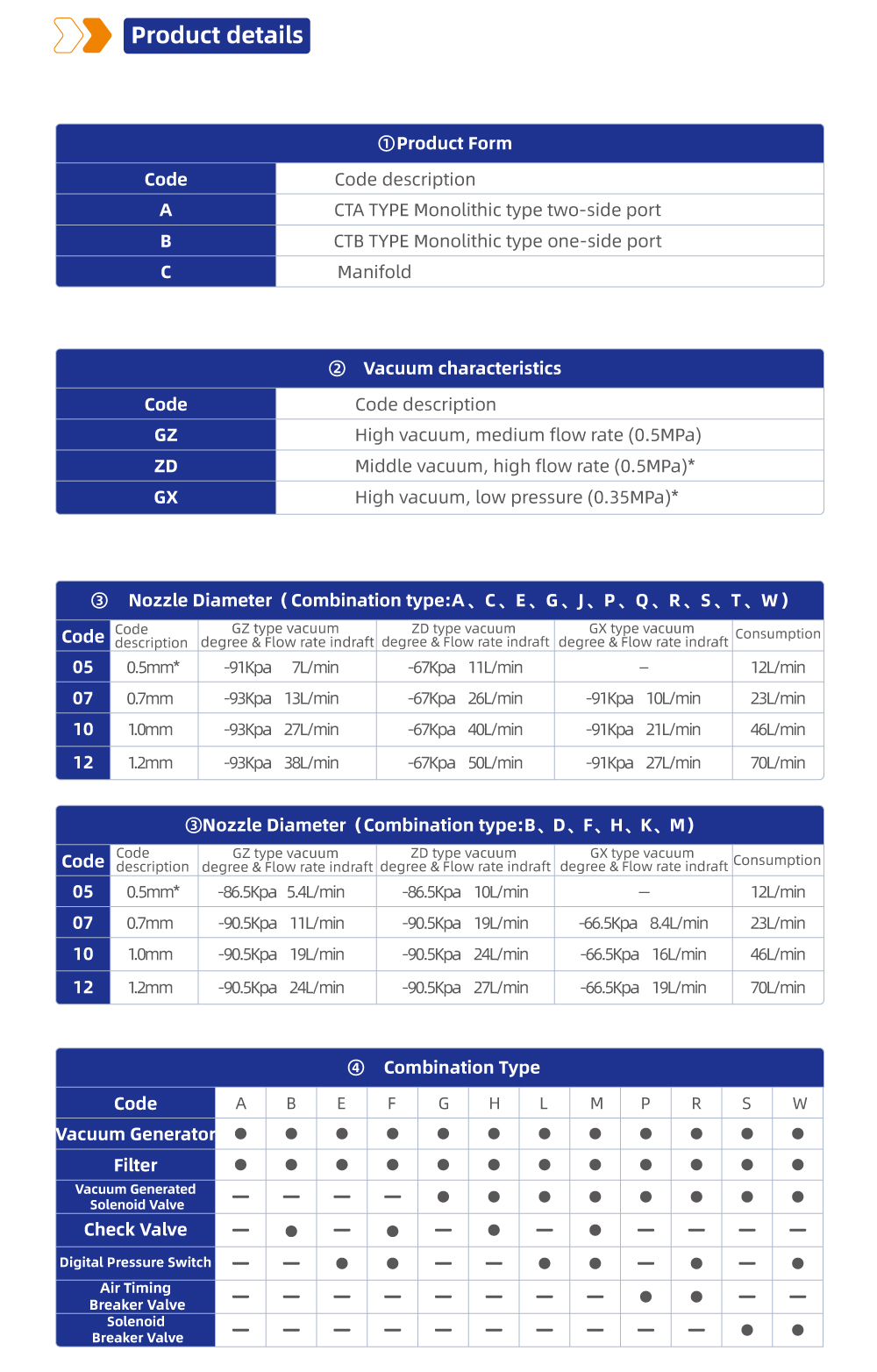

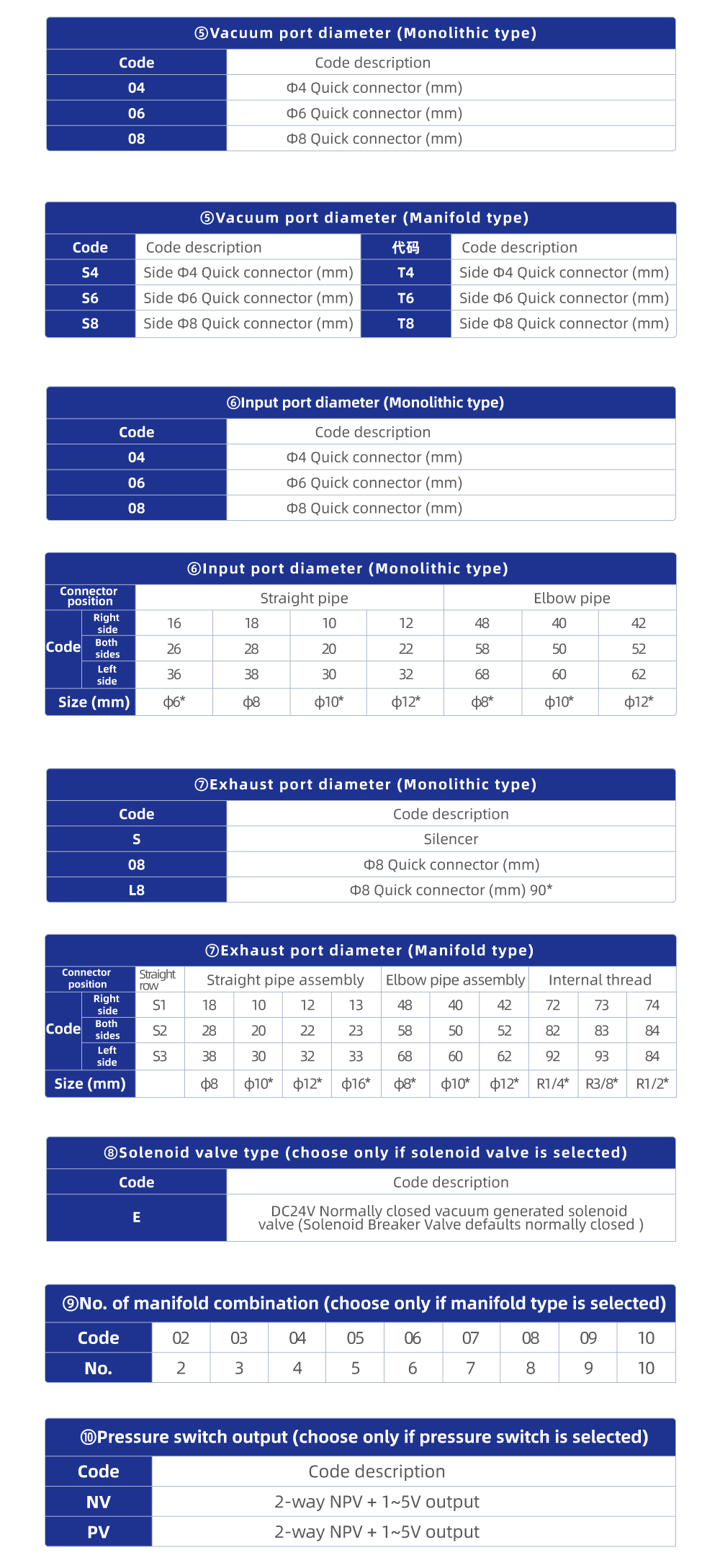

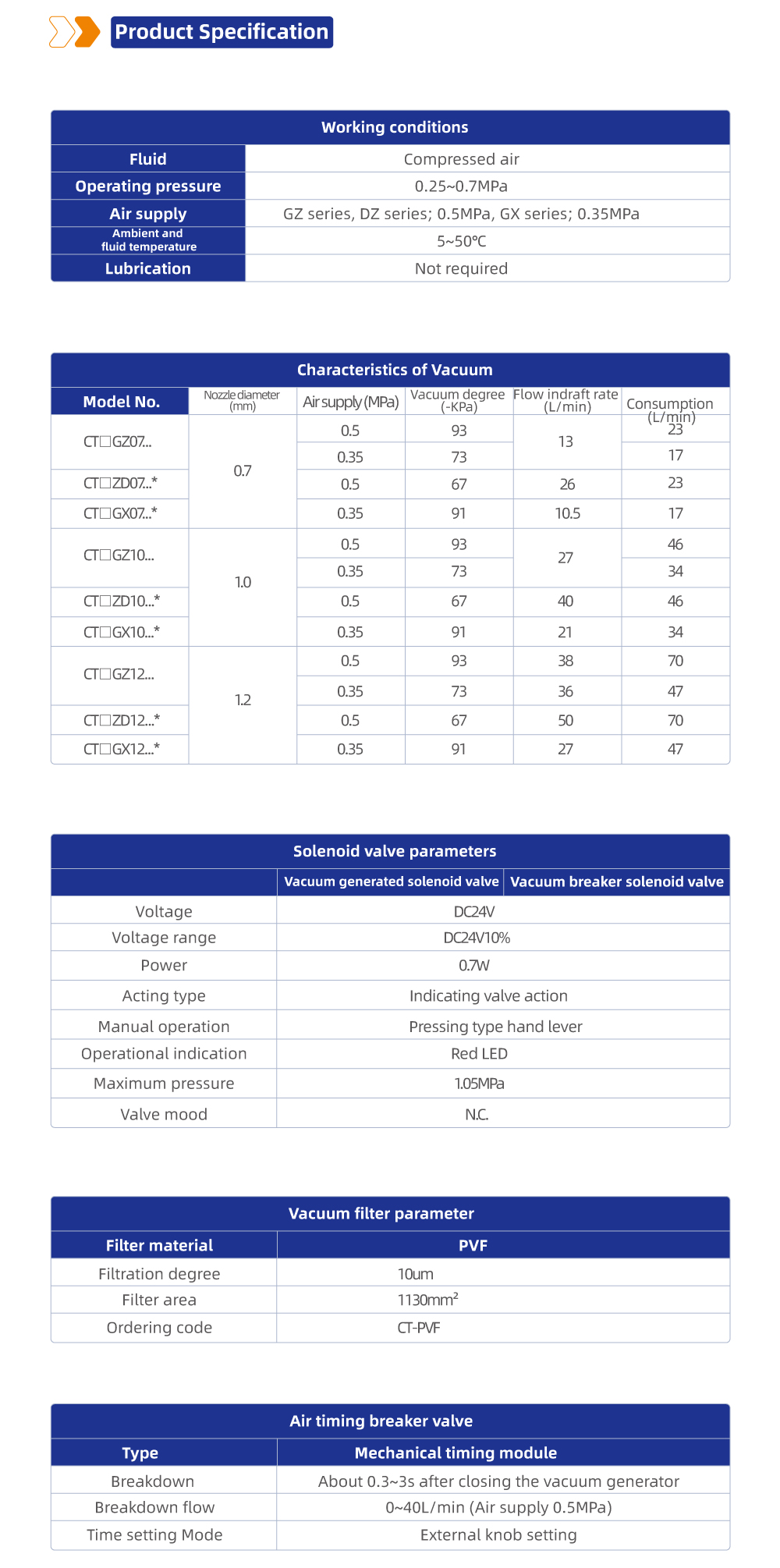

■■CTBGZ●(R,W,S,P,L,M,G,H,E,F,A,B)●Vacuum Generator (one side port)(진공 발생기,진공 필터,진공 발생용 밸브,LED디지털 진공스위치,진공파괴밸브)●(0.5mm)(0.7mm)(1.0mm)(1.2mm)●(-93Kpa)(7L/min)(13L/min)(27L/min)(38L/min)●(Pisco,VK)●(RFS)

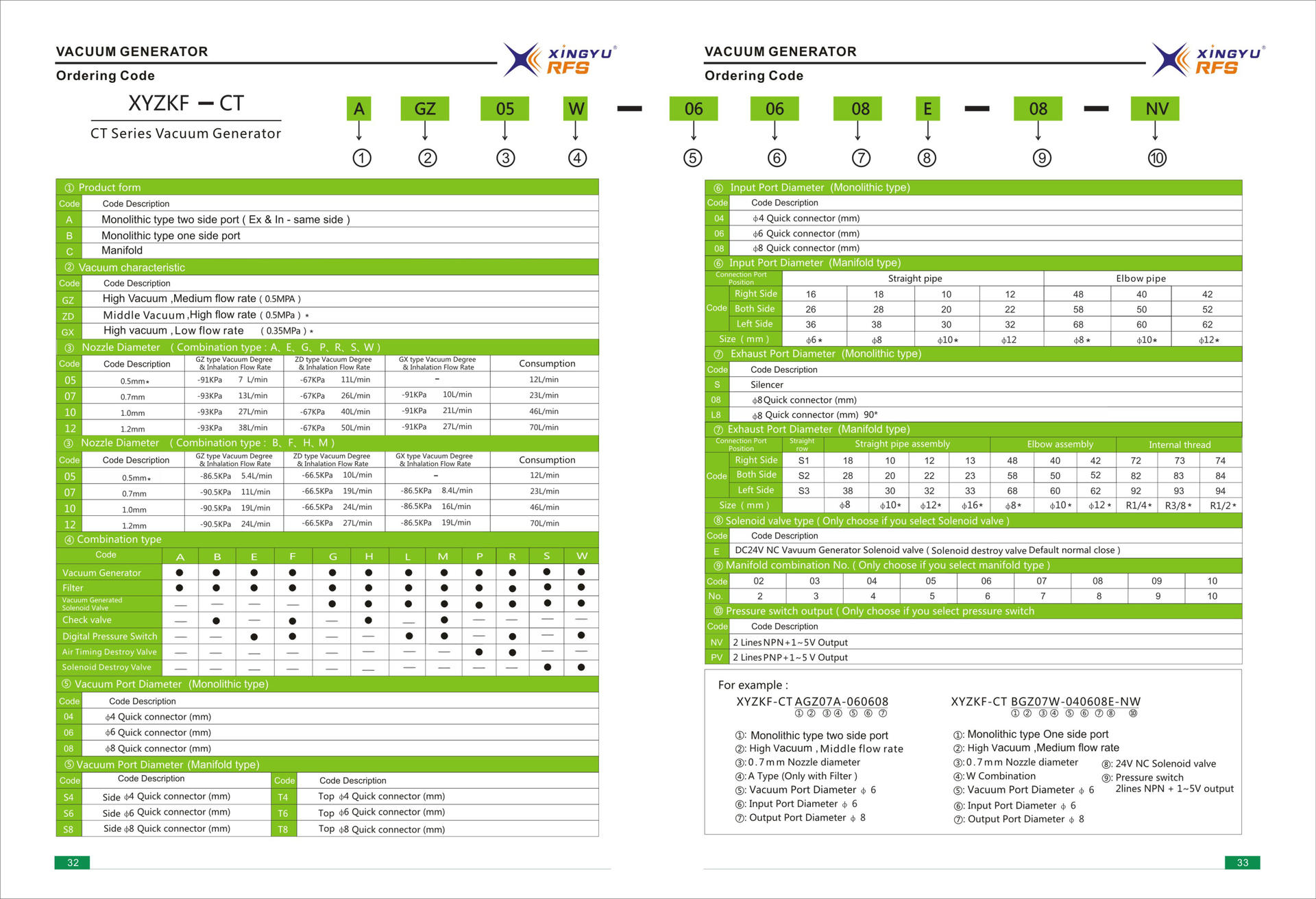

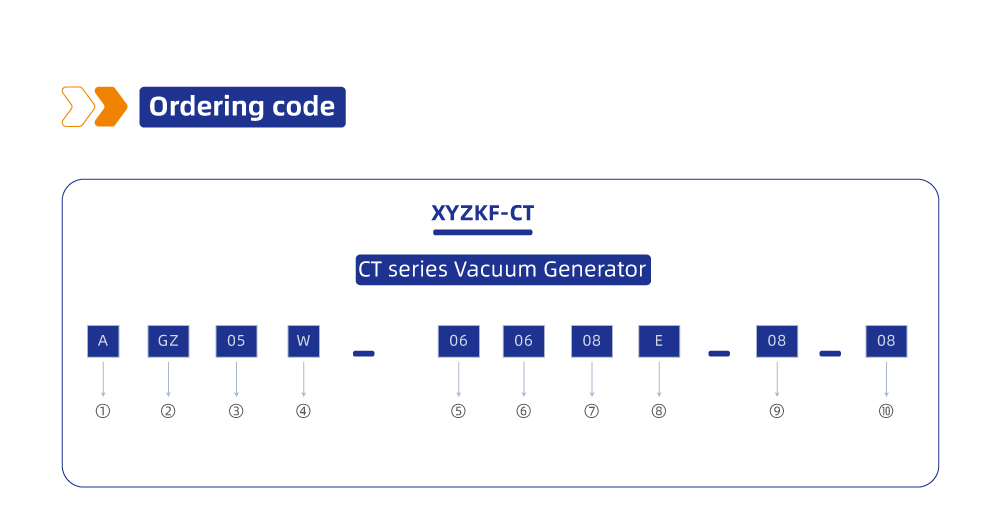

XYZKF-CT 카탈로그

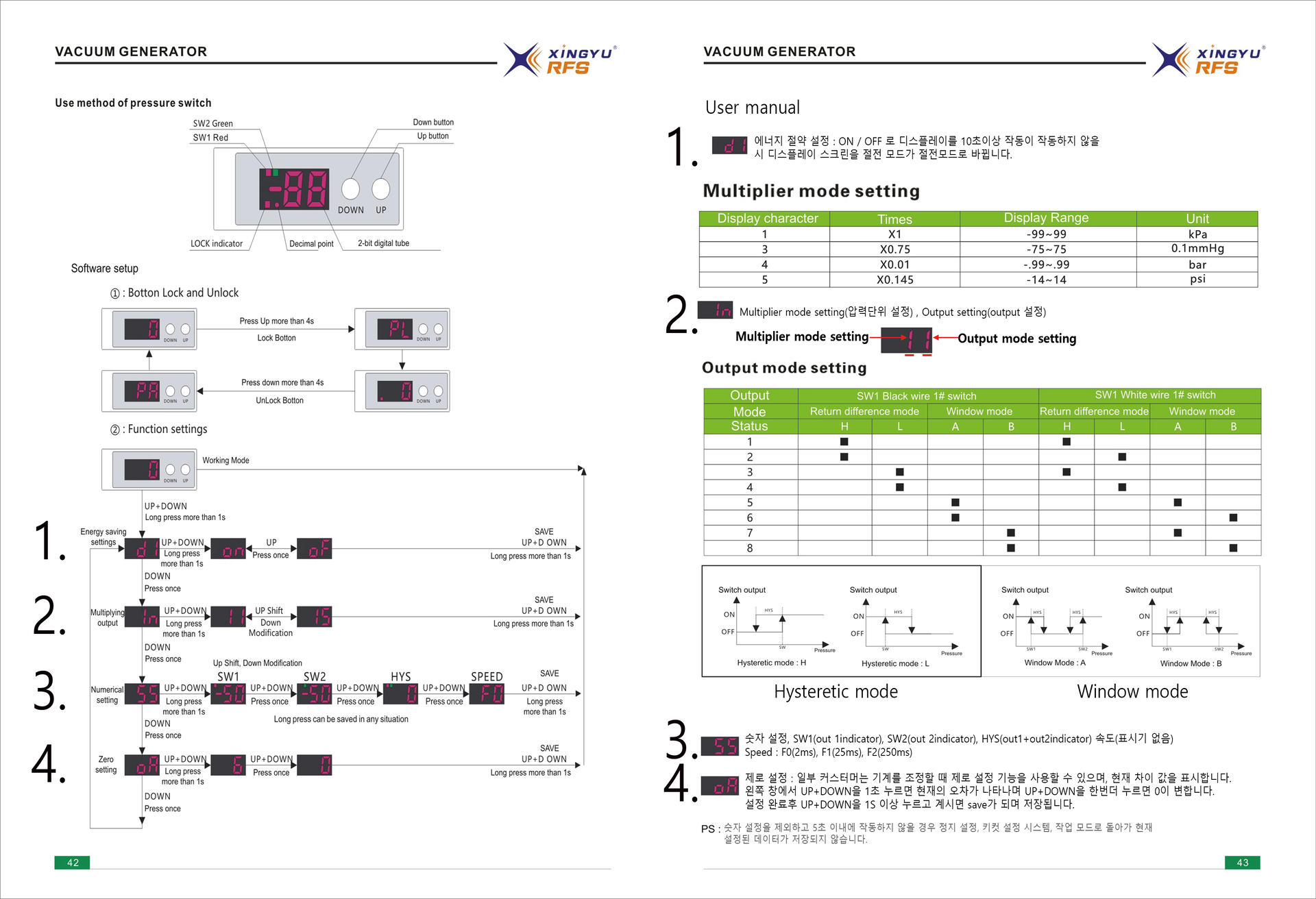

XYZKF 유저 메뉴얼

●(W type, Manolithic one side port) Vacuum generator

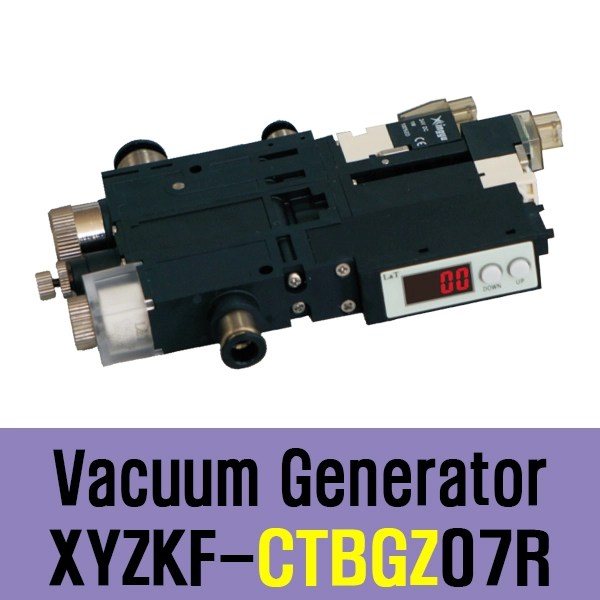

●CTBGZ05-W-080808E-NV (DC24V) (NC type) (csq4111)

●CTBGZ07-W-080808E-NV (DC24V) (NC type) (csq4112)

●CTBGZ10-W-080808E-NV (DC24V) (NC type) (csq4113)

●CTBGZ12-W-080808E-NV (DC24V) (NC type) (csq4114)

(진공발생기) (진공필터) (진공발생용밸브=DC24V / NC type)

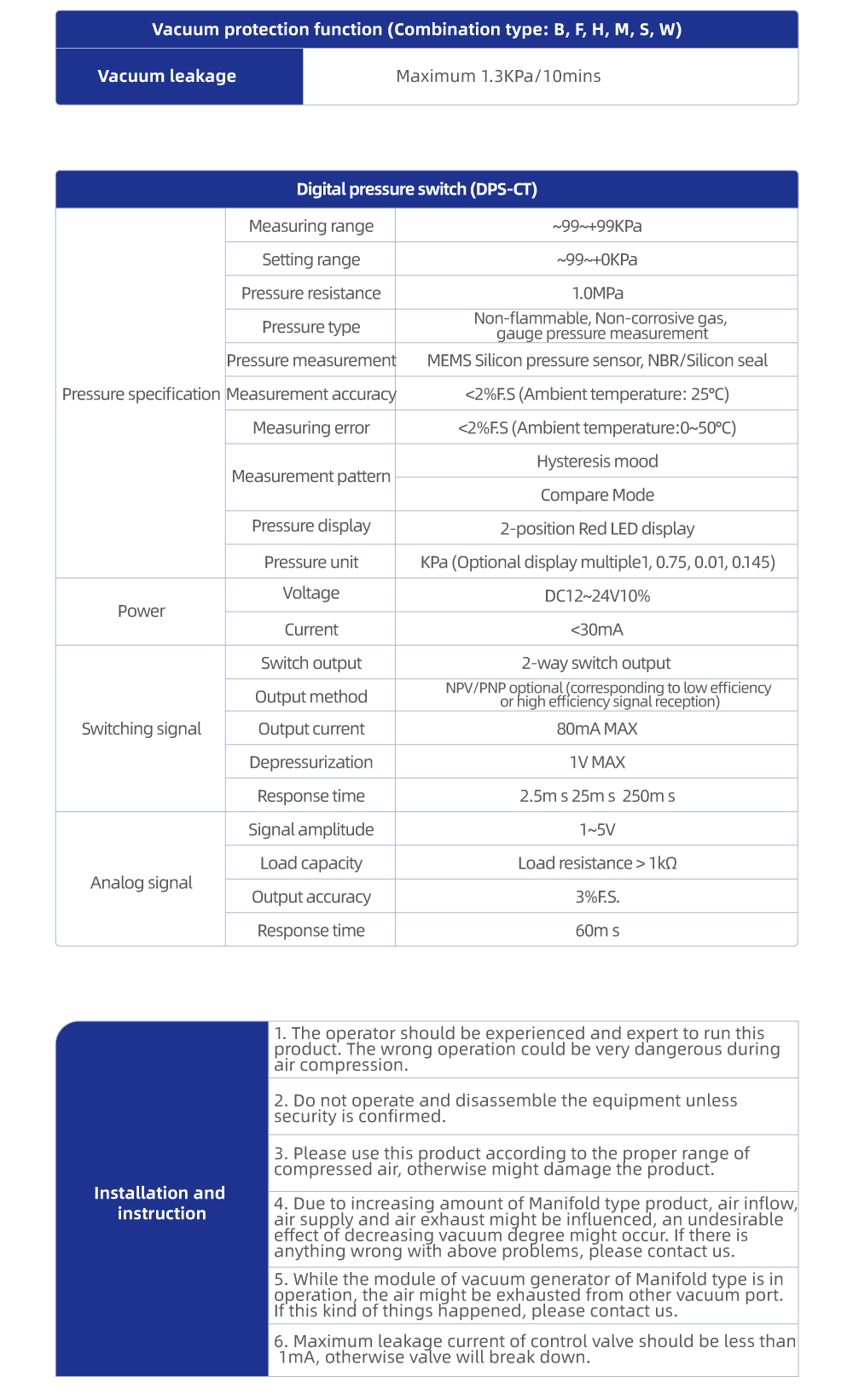

(output=2NPN + 1~5V) (LED표시형 디지털 진공스위치)

(솔밸브 진공파괴밸브=DC24V / NC type)

(V=8mm) (air=8mm) (EX=8mm)

●(R type, Manolithic one side port) Vacuum generator

●CTBGZ05-R-080808E-NV (DC24V) (NC type) (csq4115)

●CTBGZ07-R-080808E-NV (DC24V) (NC type) (csq4116)

●CTBGZ10-R-080808E-NV (DC24V) (NC type) (csq4117)

●CTBGZ12-R-080808E-NV (DC24V) (NC type) (csq4118)

(진공발생기) (진공필터) (진공발생용밸브=DC24V / NC type)

(output=2NPN + 1~5V) (LED표시형 디지털 진공스위치)

(에어타이머방식 진공파괴밸브) (V=6mm) (air=6mm) (EX=8mm)

●(S type, Manolithic one side port) Vacuum generator

(진공발생기) (진공필터) (진공발생용밸브) (솔밸브 진공파괴밸브)

●CTBGZ05-S ●CTBGZ07-S ●CTBGZ10-S ●CTBGZ12-S

●(P type, Manolithic one side port) Vacuum generator

(진공발생기) (진공필터) (진공발생용밸브) (에어타이머 진공파괴밸브)

●CTBGZ05-P ●CTBGZ07-P ●CTBGZ10-P ●CTBGZ12-P

●(L type, Manolithic one side port) Vacuum generator

(진공발생기) (진공필터) (진공발생용밸브) (LED표시형 디지털진공스위치)

●CTBGZ05-L ●CTBGZ07-L ●CTBGZ10-L ●CTBGZ12-L

●(M type, Manolithic one side port) Vacuum generator

(진공발생기) (진공필터) (진공발생용밸브) (체크밸브/진공보호유지)

(LED표시형디지털진공스위치)

●CTBGZ05-M ●CTBGZ07-M ●CTBGZ10-M ●CTBGZ12-M

●(G type, Manolithic one side port ) Vacuum generator

(진공발생기) (진공필터) (진공발생용밸브)

●CTBGZ05-G ●CTBGZ07-G ●CTBGZ10-G ●CTBGZ12-G

●(H  type, Manolithic one side port) Vacuum generator

(진공발생기) (진공필터) (진공발생용밸브) (체크밸브/진공보호유지)

●CTBGZ05-H ●CTBGZ07-H ●CTBGZ10-H ●CTBGZ12-H

●(E type, Manolithic one side port) Vacuum generator

(진공발생기) (진공필터) (LED표시형 디지털진공스위치)

●CTBGZ05-E ●CTBGZ07-E ●CTBGZ10-E ●CTBGZ12-E

●(F type, Manolithic one side port) Vacuum generator

(진공발생기) (진공필터) (체크밸브/진공보호유지)

(LED표시형 디지털진공스위치)

●CTBGZ05-F ●CTBGZ07-F ●CTBGZ10-F ●CTBGZ12-F

●(A type, Manolithic one side port) Vacuum generator

(진공발생기) (진공필터)

●CTBGZ05-A ●CTBGZ07-A ●CTBGZ10-A ●CTBGZ12-A

●(B type,Manolithic one side port) Vacuum generator

(진공발생기) (진공필터) (체크밸브/진공보호유지)

●CTBGZ05-B ●CTBGZ0B-A ●CTBGZ10-B ●CTBGZ12-B

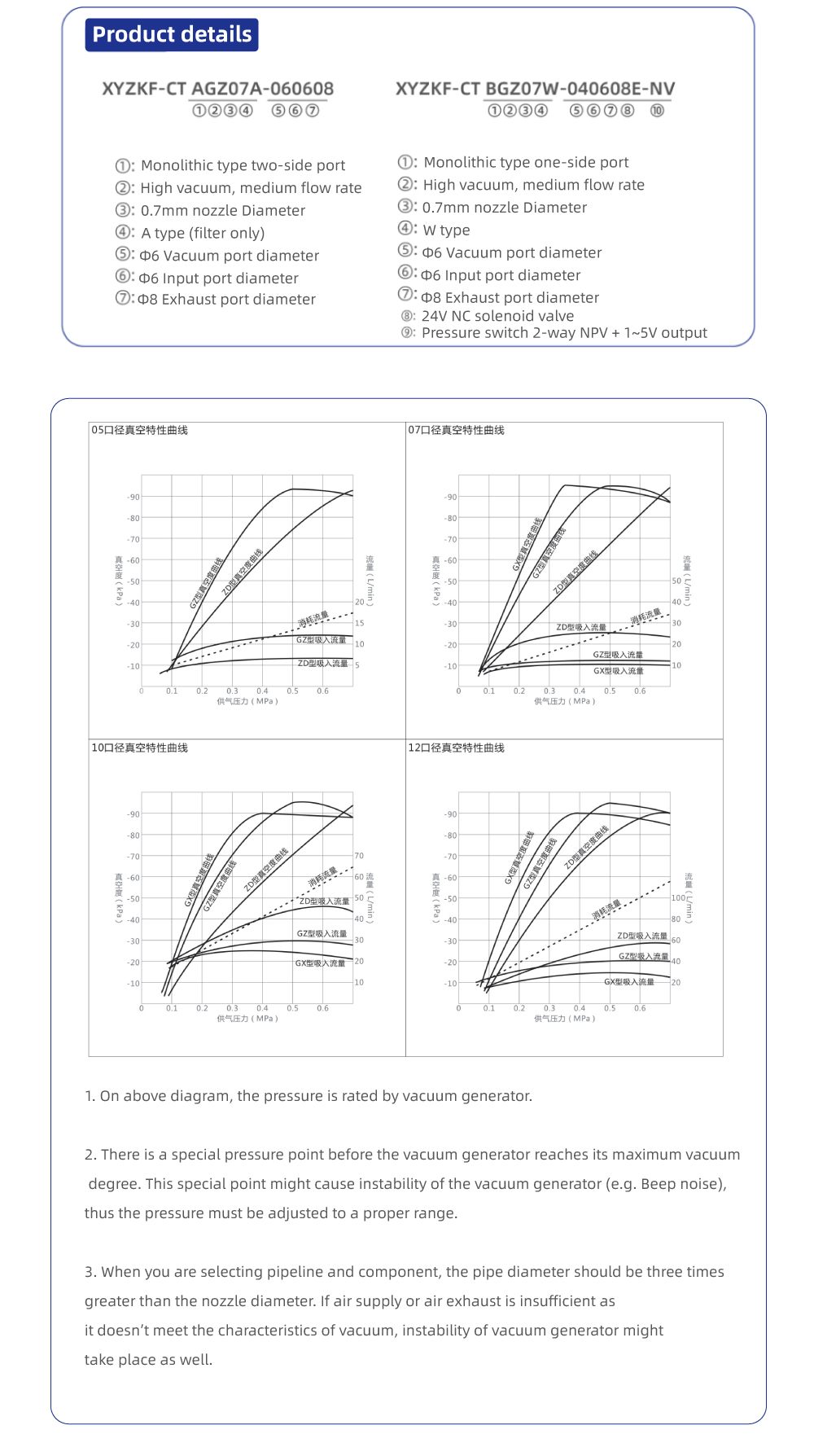

● (Manolithic two side port) only Vacuum generator

 (진공발생기, 진공필터)

●XYZKF-CTA-GZ-05-A (0.5mm/-93kpa/7L/min) (csq5020)

●XYZKF-CTA-GZ-07-A (0.7mm/-93kpa/13L/min) (csq4028)

●XYZKF-CTA-GZ-10-A (10mm/-93kpa/27L/min) (csq5021)

●XYZKF-CTA-GZ-12-A (12mm/-93kpa/38L/min) (csq5022)
