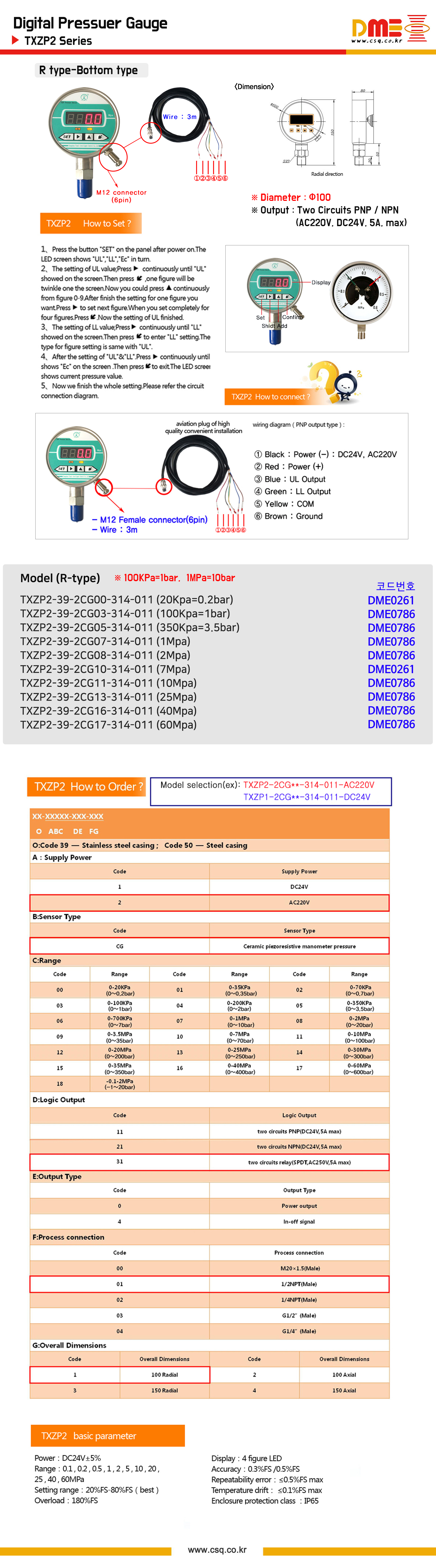

TXZP2 카탈로그  TXZP2 메뉴얼(한글)

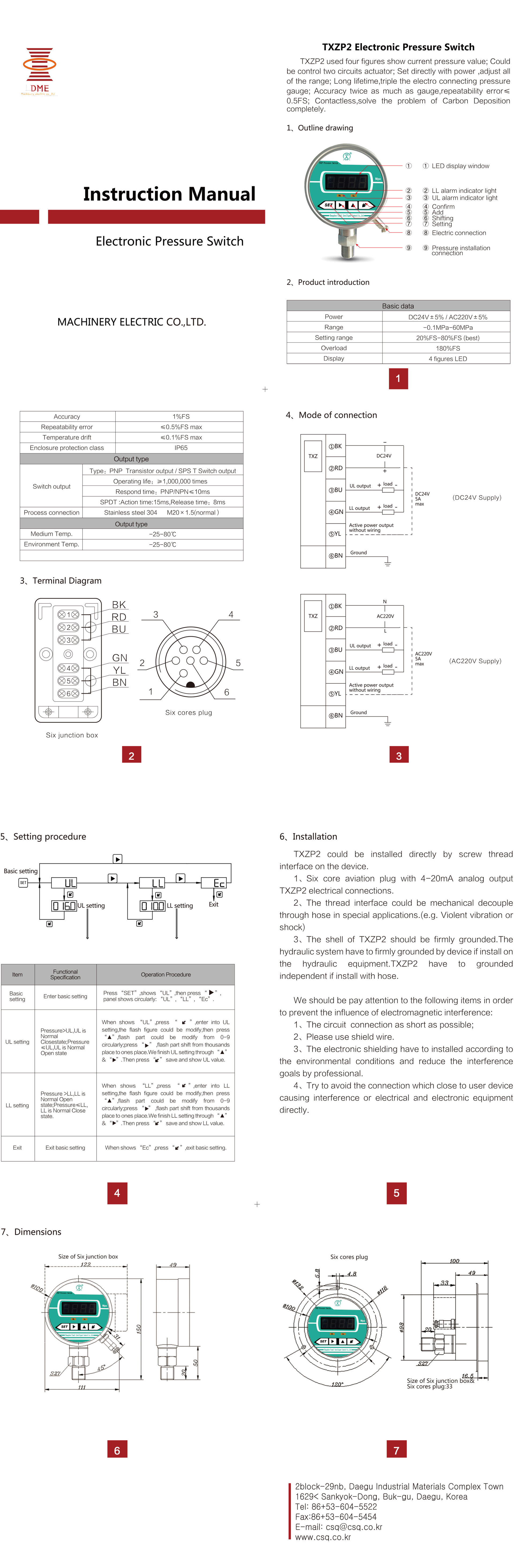

TXZP2 매뉴얼

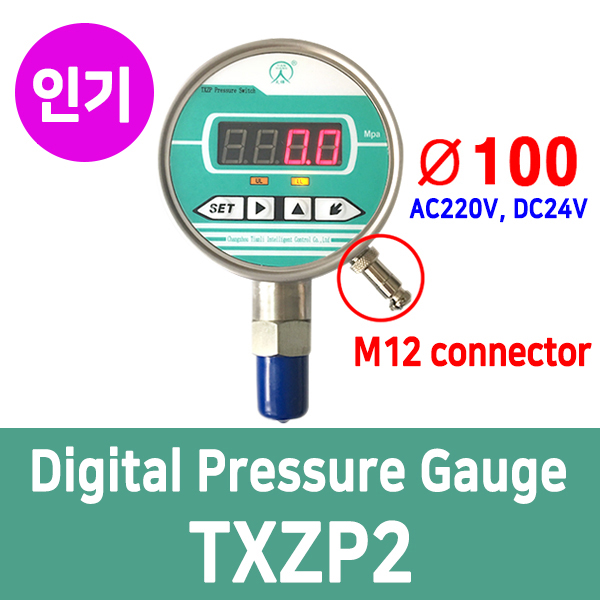

●TXZP2-39-2CG(AC220V) ●TXZP2-39-1CG(DC24V)

●(M12-6pin cable connector) ●(M12- 6pin이지만 5Pin만사용합니다)

●(R type=Bottom male) Digital pressure gauge (power=AC220V)

(output=2 relay, SPDT) (Dia=100mm) (bottom=NPT1/2 M) (1%FS)

(M12-6pin cable connector) (M12-6pin이지만 5Pin만사용합다)

●TXZP2-39-2CG00-314-011 (20Kpa=0.2bar) (DME0261)

●TXZP2-39-2CG03-314-011 (100Kpa=1bar) (DME0786)

●TXZP2-39-2CG05-314-011 (350Kpa=3.5bar)

●TXZP2-39-2CG07-314-011 (1Mpa) (DME0795)

●TXZP2-39-2CG08-314-011 (2Mpa) (DME0909)

●TXZP2-39-2CG10-314-011 (7Mpa) (DME5140)

●TXZP2-39-2CG11-314-011 (10Mpa) (DME9894)

●TXZP2-39-2CG13-314-011 (25Mpa) (DME9899)

●TXZP2-39-2CG16-314-011 (40Mpa) (DME9895)

●TXZP2-39-2CG17-314-011 (60Mpa) (DME9896)

●(R type=Bottom male) Digital pressure gauge (power=DC24V)

(output=2 relay, SPDT) (Dia=100mm) (bottom=NPT1/2 M) (1%FS)

(M12-6pin cable connector) (M12- 6pin이지만 5Pin만사용합니다)

●TXZP2-39-1CG13-314-011 (25Mpa) (CSQ0004)

●TXZP2-39-1CG16-314-011 (40Mpa) (CSQ0005)

●Digital Pressure Switch (Digital Pressure Sensor)

●PCM700

●TXZP2-2CG13-314N-011Y (25Mpa) (DME9899)

●TXZP2-1CG13-314N-011Y (25Mpa) (CSQ0004)

●(N표기=analog output NO) (Y표기=디자인명판이 영문으로 표기)
