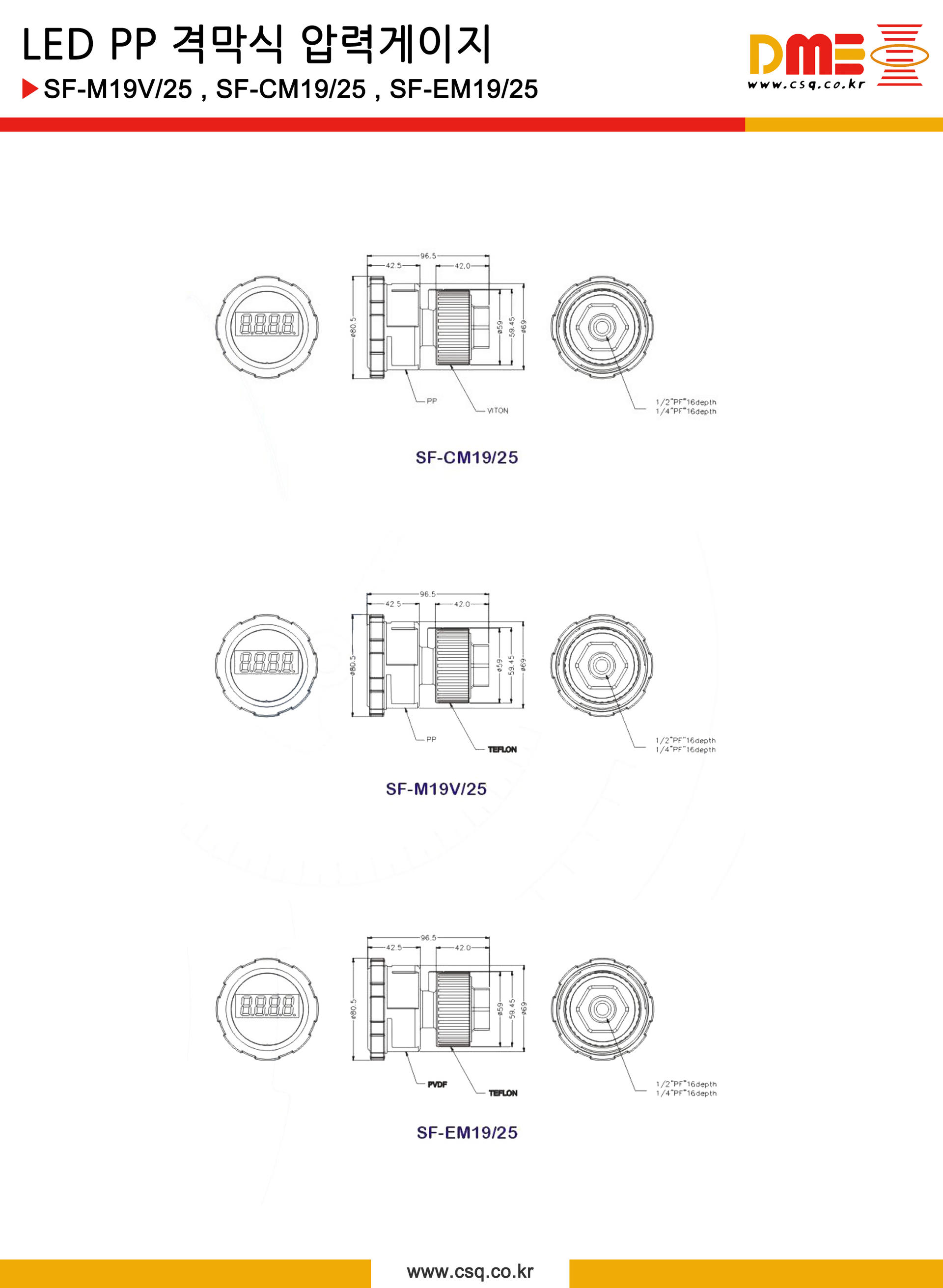

SF-CM19/25●SF-M19V/25●SF-EM19/25●(LED,PP,Single side,63mm, Diaphragm Pressure Gauge)●화가 격막식 압력계● HWACHI 싱글 사이드 다이아프램 압력 게이지●(pressure=kgf.bar,Mpa,Psi)●(output=2set+4~20mA)●(20bar)●(0.5 FS)●(HWACHI)

●LED, PP, Single side, Diaphragm Pressure Gauge (dia=63mm)

●LED, PVDF, Single side, Diaphragm Pressure Gauge (dia=63mm)

●accuracy=(1.5%FSD)

●power=(DC10~30V)

●pressure credit=(Kgf/cm, bar, Mpa, psi)

●max pressure=(0~20bar) (0~10Kgf) (0~2Mpa) (0~300Psi)

●output=(2set+4 ~20m)

●Casing + BEZEL=(PP) or (PVDF)

●capsule=(VITON) or (TEFLON )

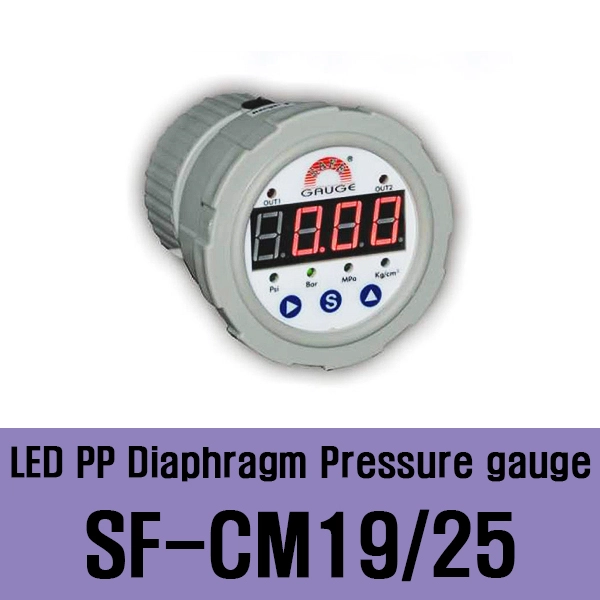

●LED, PP, Single side, Diaphragm Pressure Gauge (dia=63mm)

●SF-CM19 /25-0 /10DZ6M (range=10bar) ( back PT1/2 F)

(accuracy=1.5%FSD) (power=DC10~30V)

(pressure=0~10 bar, 0~10Kgf, 0~1Mpa, 0~150Psi)

(output=2set+4~20mA)

(Casing + BEZEL=PP) (capsule=VITON)

●LED, PP, Single side, Diaphragm Pressure Gauge (dia=63mm)

●SF-M19V /25-0 /10DZ6M (range=10bar) ( back PT1/2 F)

(accuracy=1.5%FSD) (power=DC10~30V)

(pressure=0~10 bar, 0~Kgf, 0~1Mpa, 0~150Psi)

(output=2set+4~20mA)

Casing + BEZEL=(PP) (capsule=TEFLON)

●LED, PVDF, Single side, Diaphragm Pressure Gauge (dia=63mm)

●SF-EMCM19 /25-0 /10DZ6M (range=10bar) ( back PT1/2 F)

(accuracy=1.5%FSD) (power=DC10~30V)

(pressure=0~10bar, 0~10Kg, 0~1Mpa, 0~150Psi)

(output=2set+4 ~20m)

(Casing + BEZEL=(PVDF) (capsule=TEFLON)

●화학용압력게이지,내산용압력게이지,내외산용압력게이지,해수용압력게이지
