SF-CFM19/25●SF-EFM19V/25●SF-FM19/25●(LED,PP,Single side,63mm, Diaphragm Pressure Gauge)● HWACHI 격막식 압력계● 싱글 사이드 다이아프램 압력 게이지●(pressure=kgf.bar,Mpa,Psi)●(output=2set+4~20mA)●(20bar)●(0.5 FS)●(HWACHI)

●LED, PP, Single side, Diaphragm Pressure Gauge (dia=63mm)

●LED, PVDF, Single side, Diaphragm Pressure Gauge (dia=63mm)

●accuracy=(1.5%FSD)

●power=(DC10~30V)

●pressure credit=(Kgf/cm, bar, Mpa, psi)

●max pressure=(0~20bar) (0~10Kgf) (0~2Mpa) (0~300Psi)

●output=(2set+4 ~20m)

●Casing + BEZEL=(PP) or (PVDF)

●capsule=(VITON) or (TEFLON )

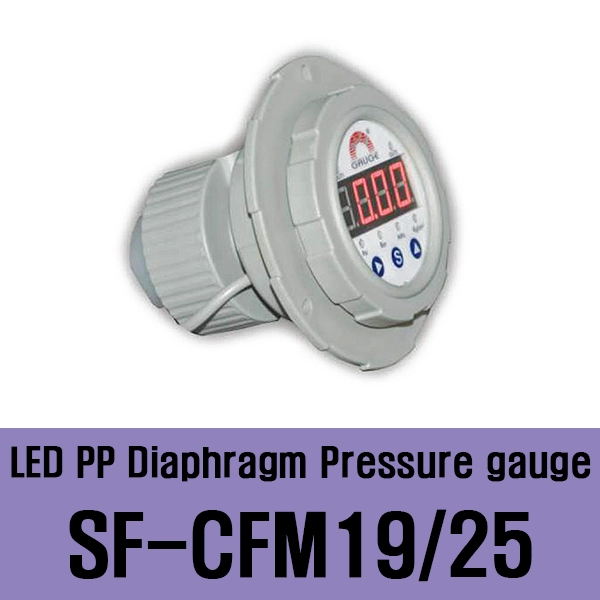

●LED, PP, Single side, Diaphragm Pressure Gauge (dia=63mm)

●SF-CFM19 /25-0 /10DZ6M (range=10bar) (flange back PT1/2 F)

●accuracy=(1.5%FSD)

●power=(DC10~30V)

●pressure=(0~10 bar, 0~10Kgf, 0~1Mpa, 0~150Psi)

●output=(2set+4~20mA)

●Casing + BEZEL=(PP)

●capsule=(VITON)

●LED, PP, Single side, Diaphragm Pressure Gauge (dia=63mm)

●SF-FM19V /25-0 /10DZ6M (range=10bar) (flange back PT1/2 F)

●accuracy=(1.5%FSD)

●power=(DC10~30V)

●pressure=(0~10 bar, 0~10Kgf, 0~1Mpa, 0~150Psi)

●output=(2set+4~20mA)

●Casing + BEZEL=(PP)

●capsule=(TEFLON)

●LED, PVDF, Single side, Diaphragm Pressure Gauge (dia=63mm)

●SF-EFM19 /25-0 /10DZ6M (range=10bar) (flange back PT1/2 F)

●(accuracy=1.5%FSD) (power=DC10~30V)

●pressure=(0~10bar, 0~10Kg, 0~1Mpa, 0~150Psi)

●output=(2set+4 ~20m)

●Casing + BEZEL=(PVDF)

●capsule=(TEFLON)
