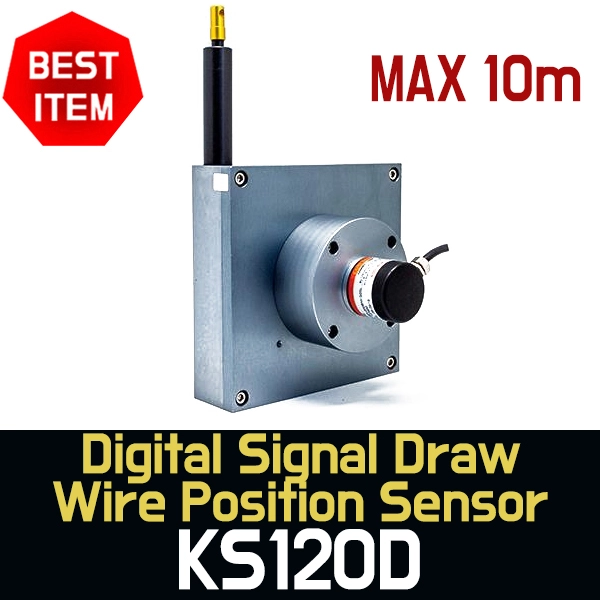

(KS120D, 0~10m)●Digital Signal,Draw Wire Position Sensor●Draw Wire Displacement Sensor●Wire Potencial Meter●Wire Encorder●드로우 와이어 센서●와이어 포텐션 메타●와이어 엔코더●(stroke range=0-10m)●(KAISI)

KAISI 전체 카탈로그 KS Series 영문 카탈로그 KAISI 중문 카탈로그

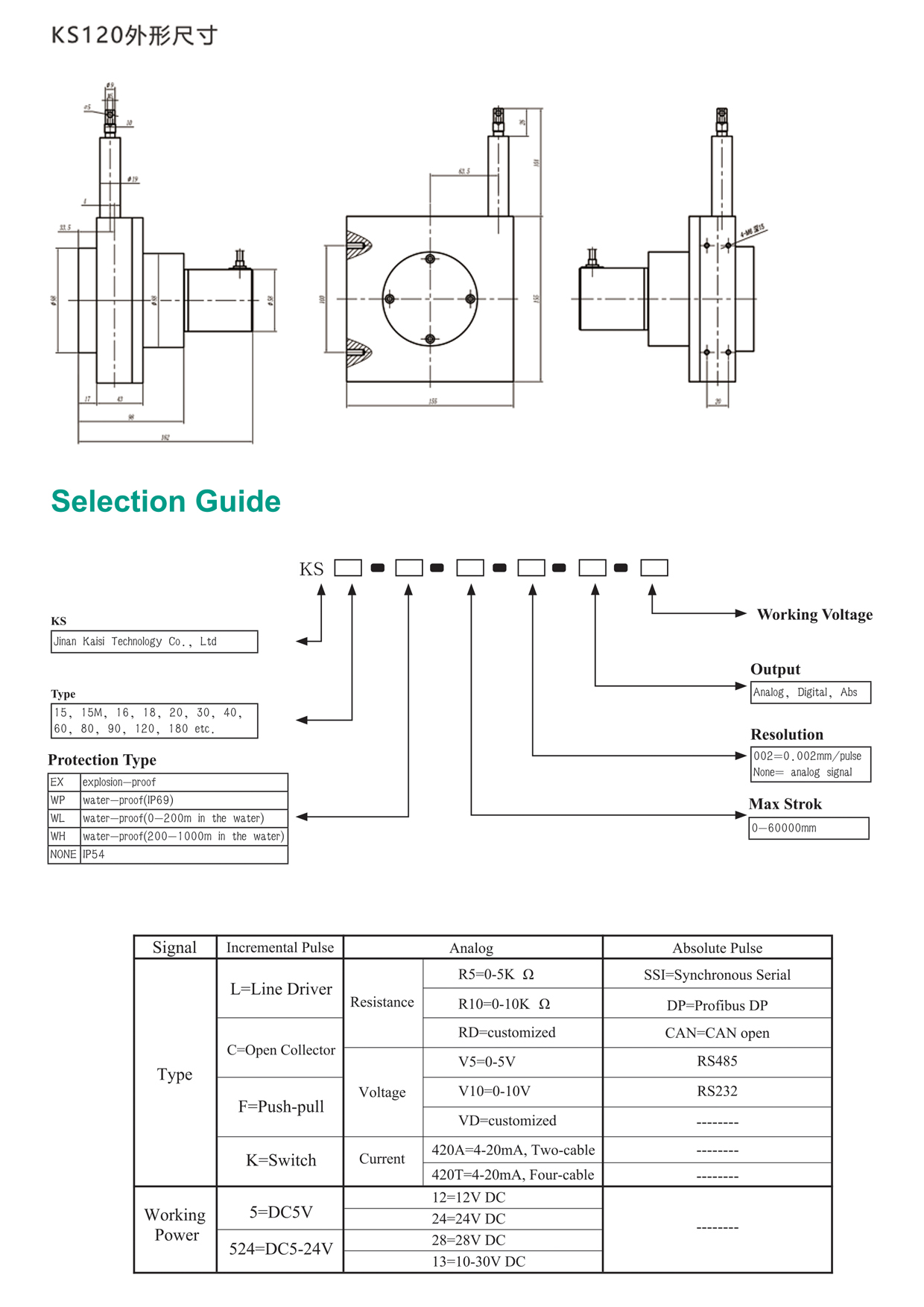

KS120 Digital 영문 카탈로그 KS120SA 외형치수

●(KS120D, 8wire) Dignal Draw Wire Displacement Sensor (0.05% FS)

●(resolution=0.01/pulse) (Linerity=0.05%FS) (Repeatability=0.01%)

●(maxspeed=2000mm/s) (cable length=4m) (IP54 standard / IP65)

●(Line Driver  Signal output) (working voltage=5VDC)(1000PPR)

●KS120D-10000 (10m)-01-L-(Linedriver)-(0.01mm/pulse) (csq2528)

●KS120D-9000 (9m)-01-L-(Linedriver)-(0.01mm/pulse)

●KS120D-8000 (8m)-01-L-(Linedriver)-(0.01mm/pulse)

●KS120D-7000 (7m)-01-L-(Linedriver)-(0.01mm/pulse)

●KS120D-6000 (6m)-01-L-(Linedriver)-(0.01mm/pulse)

●KS120D-5000 (5m)-01-L-(Linedriver)-(0.01mm/pulse)

●KS120D-4000 (4m)-01-L-(Linedriver)-(0.01mm/pulse)

●(KS120D, 8wire) Dignal Draw Wire Displacement Sensor  (0.05% FS)

●(resolution=0.02/pulse) (Linerity=0.05%FS) (Repeatability=0.01%)

●(maxspeed=2000mm/s) (cable length=4m) (IP54 standard / IP65)

●(Line Driver  Signal output) (working voltage=5VDC)(5000PPR)

●KS120D-10000 (10m)-02-L-(Line driver)-(0.02mm/pulse) csq2527)

●KS120D-9000 (9m)-02-L-(Linedriver)-(0.02mm/pulse)

●KS120D-8000 (8m)-02-L-(Linedriver)-(0.02mm/pulse)

●KS120D-7000 (7m)-02-L-(Linedriver)-(0.02mm/pulse)

●KS120D-6000 (6m)-02-L-(Linedriver)-(0.02mm/pulse)

●KS120D-5000 (5m)-02-L-(Linedriver)-(0.02mm/pulse)

●KS120D-4000 (4m)-02-L-(Linedriver)-(0.02mm/pulse)

●(KS120D, 8wire) Dignal Draw Wire Displacement Sensor  (0.05% FS)

●(resolution=0.04/pulse) (Linerity=0.05%FS) (Repeatability=0.01%)

●(maxspeed=2000mm/s) (cable length=4m) (IP54 standard / IP65)

●(Line Driver  Signal output) (working voltage=5VDC)(2500PPR)

●KS120D-10000 (10m)-04-L-(Line driver)-(0.04mm/pulse)

●KS120D-9000 (9m)-04-L-(Linedriver)-(0.04mm/pulse)

●KS120D-8000 (8m)-04-L-(Linedriver)-(0.04mm/pulse)

●KS120D-7000 (7m)-04-L-(Linedriver)-(0.04mm/pulse)

●KS120D-6000 (6m)-04-L-(Linedriver)-(0.04mm/pulse)

●KS120D-5000 (5m)-04-L-(Linedriver)-(0.04mm/pulse)

●KS120D-4000 (4m)-04-L-(Linedriver)-(0.04mm/pulse)

●(KS120D, 8wire) Dignal Draw Wire Displacement Sensor  (0.05% FS)

●(resolution=0.05/pulse) (Linerity=0.05%FS) (Repeatability=0.01%)

●(maxspeed=2000mm/s) (cable length=4m) (IP54 standard / IP65)

●(Line Driver  Signal output) (working voltage=5VDC)(2000PPR)

●KS120D-10000 (10m)-05-L-(Line driver)-(0.05mm/pulse) (csq2504)

●KS120D-9000 (9m)-05-L-(Linedriver)-(0.05mm/pulse)

●KS120D-8000 (8m)-05-L-(Linedriver)-(0.05mm/pulse)

●KS120D-7000 (7m)-05-L-(Linedriver)-(0.05mm/pulse)

●KS120D-6000 (6m)-05-L-(Linedriver)-(0.05mm/pulse)

●KS120D-5000 (5m)-05-L-(Linedriver)-(0.05mm/pulse)(csq2527)

●KS120D-4000 (4m)-05-L-(Linedriver)-(0.05mm/pulse)

● KAISI 제품의 장점

1.와이어 꼬임이 없다.
2.와이어 풀림과 감김이 부드럽다.
3.소형이라서 콤팩트하므로 공간이용이 좋다.
4.재질이 알루미늄이라서 부식 및 떨림현상과 분진에 강하다.
5.반복 정밀도가 뛰어나며 정밀도 또한 높다.
6.평균 10,000,000 CYCLE 동작으로 수명이 길다.
7.다양한 출력 방식으로 범용으로 사용가능하다.
8.최고 속도 600mm/s로 빠른속도도 측정가능하다.

 ■KAISI 사의 MS120D는 긴 측정 스트로크를 지원하는 중대형 규격의

디지털 드로우 와이어 변위 센서(Draw Wire Position Sensor / Wire Encoder)입니다.

모델명의 MS120은 120mm 규격의 중대형 프레임을, D는 디지털 엔코더(Digital/Encoder) 출력을 의미합니다.
