(MS9005D, 0~5m)●(MS901D, 0~10m)●(MS9015D, 0~15m)●(MS902D, 0~20m)●Digital Spiral Winding Rope,Draw Wire Position Sensor●Wire Encorder●와이어 포텐션 메타●와이어 엔코더●(max stroke range=0-60m)●(IP54)(KAISI)

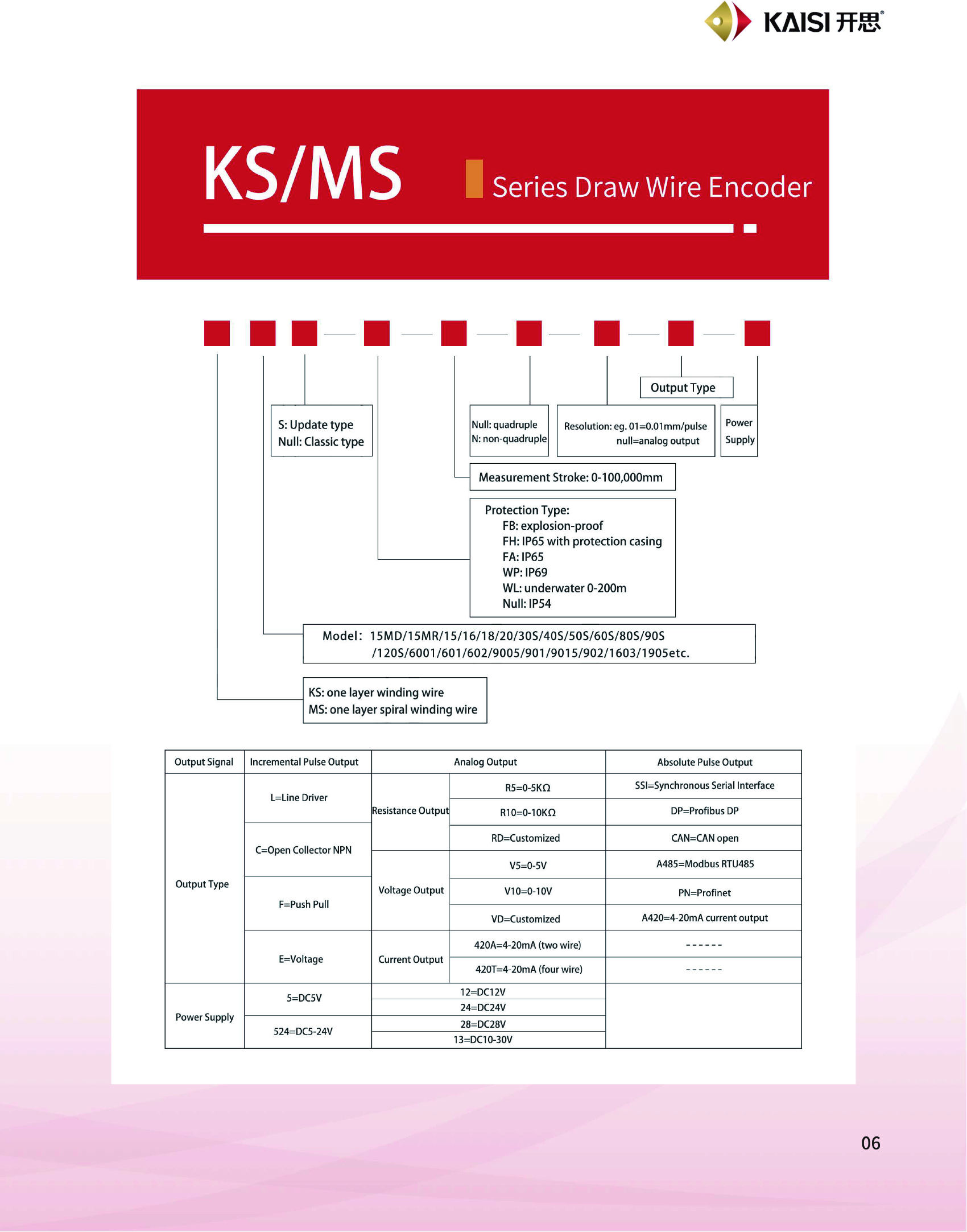

KAISI 전체 카탈로그 MS Series 영문 카탈로그 KAISI 중문 카탈로그

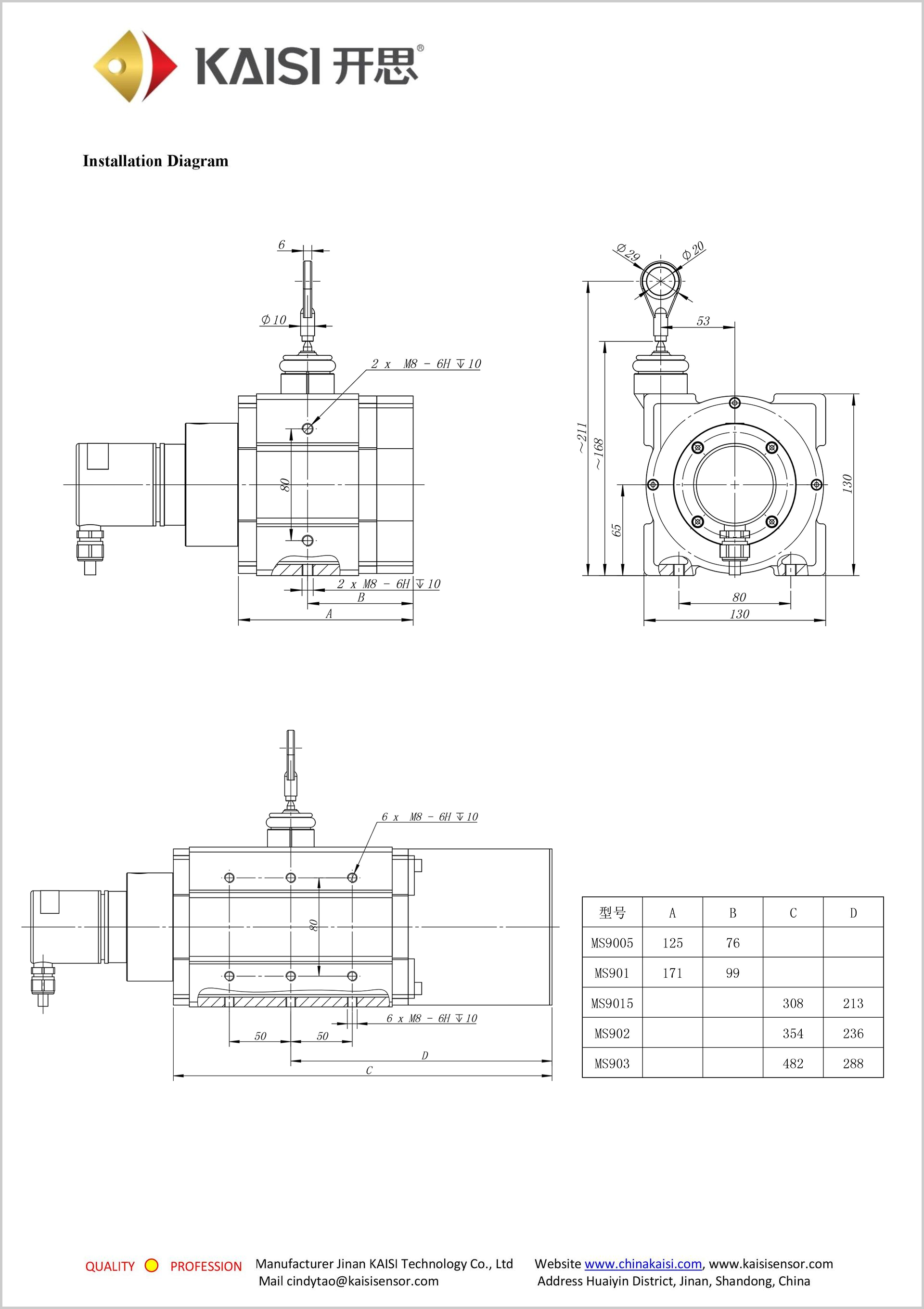

MS90시리즈 영문 카탈로그 MS90시리즈 도면

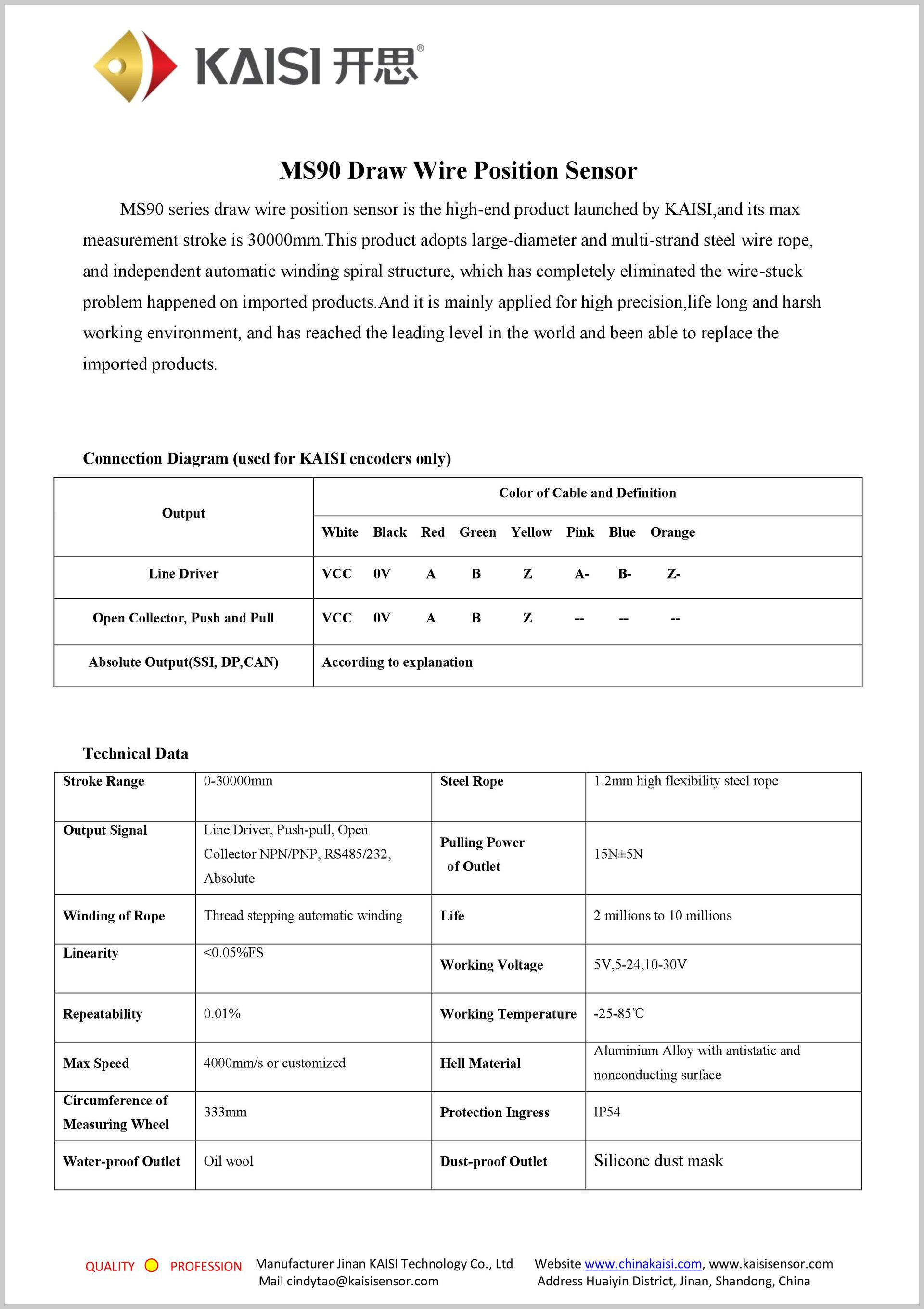

●Draw Wire Displacement Sensor (output=Line driver) (<0.05% FS)

●(linearity=<0.05 FS) (Repeatability=0.01%) (max speed=4000mm)

●(Circumference of Measuring Wheel=333mm) (IP54)

●(8 Wire) (working voltage=5VDC)

●MS9005D-5000 (5m)-033-L-(0.05% FS)-(0.033/pules)

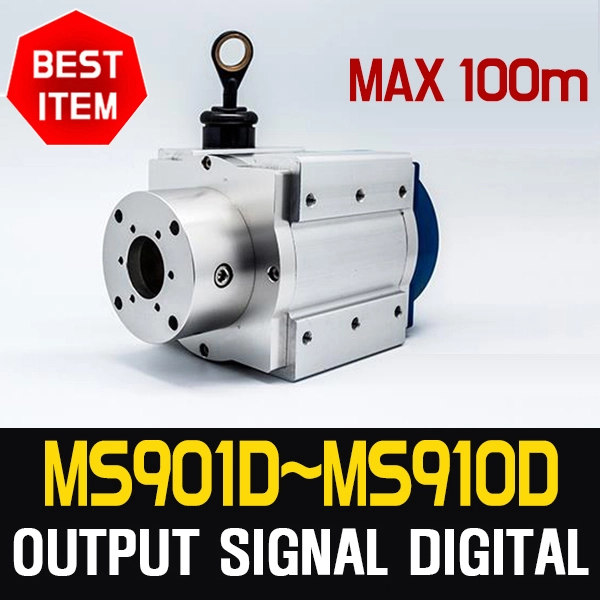

●MS901D-10000 (10m)-033-L-(0.05% FS)-(0.033/pules) (csq2524)

●MS9015D-15000 (15m)-033-L-(0.05% FS)-(0.033mm/pules)

●MS902D-20000 (20m)-033-L-(0.05% FS)-(0.033mm/pules)

●MS903D-30000 (30m)-033-L-(0.05% FS)-(0.033mm/pules)

●MS904D-40000 (40m)-033-L-(0.05% FS)-(0.033mm/pules)

●MS905D-50000 (50m)-033-L-(0.05% FS)-(0.033mm/pules)

●MS906D-60000 (60m)-033-L-(0.05% FS)-(0.033mm/pules)

●MS907D-70000 (70m)-033-L-(0.05% FS)-(0.033mm/pules)

●MS908D-80000 (80m)-033-L-(0.05% FS)-(0.033mm/pules)

●MS909D-90000 (90m)-033-L-(0.05% FS)-(0.033mm/pules)

●MS910D-100000 (100m)-033-L-(0.05% FS)-(0.033mm/pules)

●Draw Wire Displacement Sensor (output=Line driver) (<0.05% FS)

●(linearity=<0.05 FS) (Repeatability=0.01%) (max speed=4000mm)

●(Circumference of Measuring Wheel=333mm) (IP54)

●(8 Wire) (working voltage=5VDC)

●MS9005D-5000 (5m)-033-L-(0.05% FS)-(0.017mm/pules)

●MS901D-10000 (10m)-033-L-(0.05% FS)-(0.017mm/pules) (csq4342)

●MS9015D-15000 (15m)-033-L-(0.05% FS)-(0.017mm/pules)

●MS902D-20000 (20m)-033-L-(0.05% FS)-(0.017mm/pules)

●MS903D-30000 (30m)-033-L-(0.05% FS)-(0.017mm/pules)

●MS904D-40000 (40m)-033-L-(0.05% FS)-(0.017mm/pules)

●MS905D-50000 (50m)-033-L-(0.05% FS)-(0.017mm/pules)
