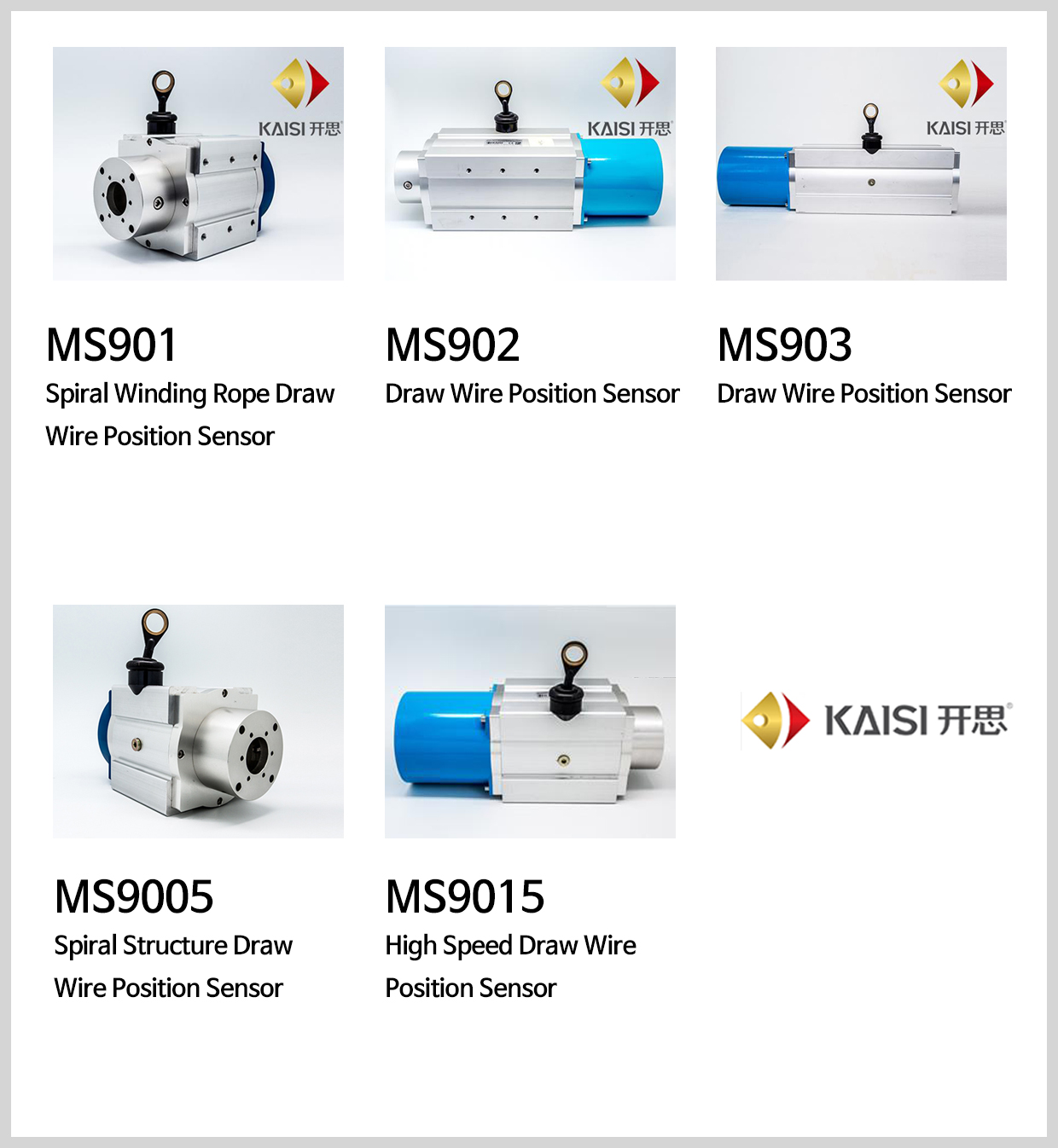

(MS9005A, 0~5m)●(MS901A, 0~10m)●(MS9015A, 0~15m)●(MS902A, 0~20m)●Analog Spiral Winding Rope,Draw Wire Position Sensor●Wire Encorder●와이어 포텐션 메타●와이어 엔코더●(max stroke range=0-100m)●(IP54)●(KAISI)

KAISI 전체 카탈로그 MS Series 영문 카탈로그

KAISI 중문 카탈로그

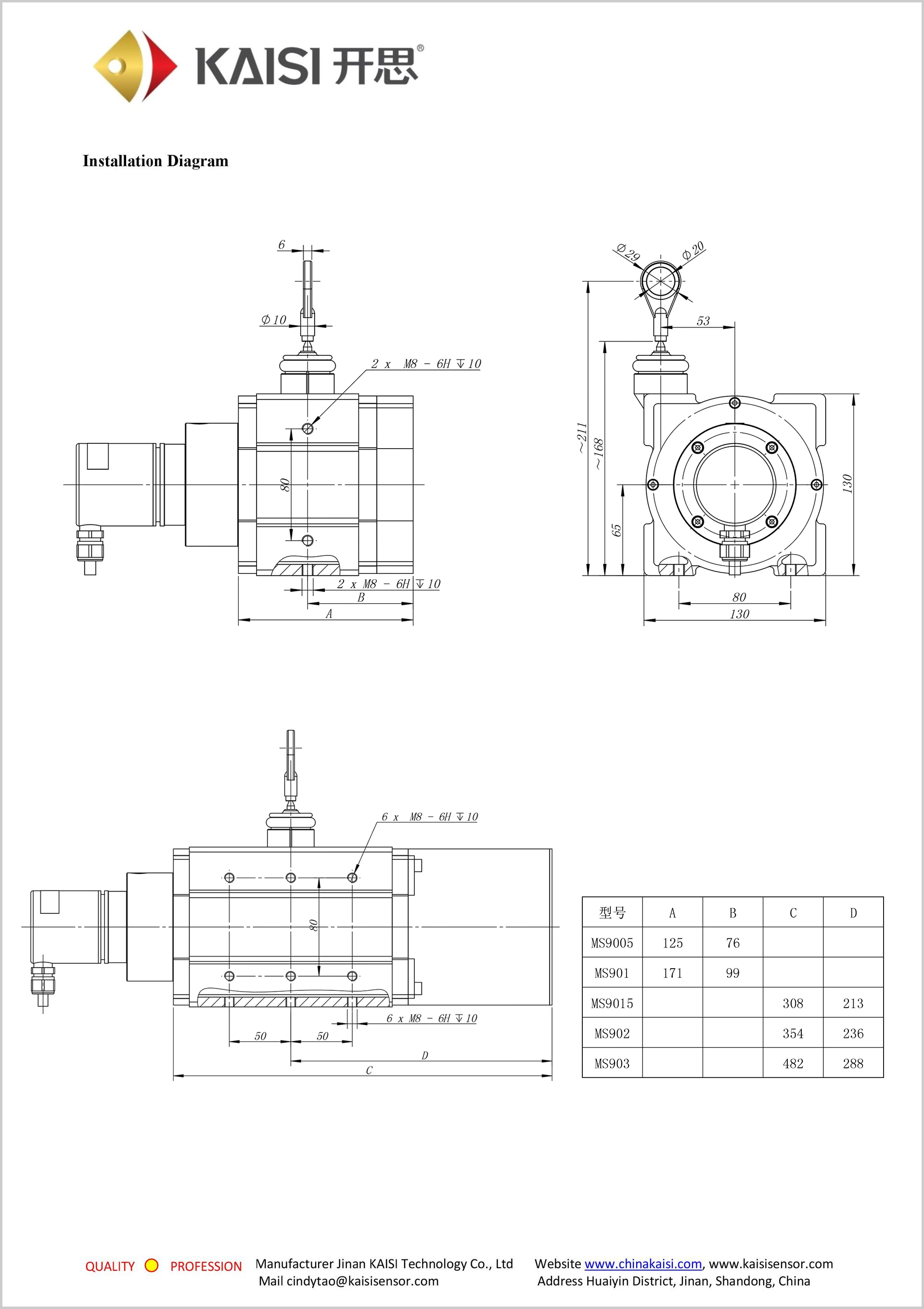

MS90시리즈 영문 카탈로그 MS90시리즈 도면

●Analog Draw Wire Displacement Sensor (IP54) (0.1%FS)

●(2 Wire, output 4~20mA) ) (working voltage=10~24VDC)

●MS9005A-5000 (5m)-420A-(0.1% FS)

●MS901A-10000 (10m)-420A-(0.1% FS) (csq2503)

●MS9015A-15000 (15m)-420A-(0.1% FS)

●MS902A-20000 (20m)-420A-(0.1% FS) (csq4349)

●MS903A-30000 (30m)-420A-(0.1% FS)

●MS904A-40000 (40m)-420A-(0.1% FS)

●MS905A-50000 (50m)-420A-(0.1% FS)

●MS906A-60000 (60m)-420A-(0.1% FS)

●MS907A-70000 (70m)-420A-(0.1% FS)

●MS908A-80000 (80m)-420A-(0.1% FS)

●MS909A-90000 (90m)-420A-(0.1% FS)

●MS910A-100000 (100m)-420A-(0.1% FS)

●Analog Draw Wire Displacement Sensor (IP54) (0.1%FS)

●(3 Wire, output 0~10V) (working voltage=10~24VDC)

●MS9005A-5000 (10m)-V10-(0.1% FS)

●MS901A-10000 (10m)-V10-(0.1% FS)

●MS9015A-15000 (15m)-V10-(0.1% FS)

●MS902A-20000 (20m)-V10-(0.1% FS)

●MS903A-30000 (30m)-V10-(0.1% FS)

●MS904A-40000 (40m)-V10-(0.1% FS)

●MS905A-50000 (50m)-V10-(0.1% FS)

●MS906A-60000 (60m)-V10-(0.1% FS)

●MS910A-100000 (100m)-V10-(0.1% FS)

●Analog Draw Wire Displacement Sensor (IP54) (0.1%FS)

●(3 Wire, output 0~5V) (working voltage=10~24VDC)

●MS901A-5000 (5m)-V5-(0.1% FS)

●MS901A-10000 (10m)-V5-(0.1% FS)

●MS9015A-15000 (15m)-V5-(0.1% FS)

●MS902A-20000 (20m)-V5-(0.1% FS)

●MS903A-30000 (30m)-V5-(0.1% FS)

●MS904A-40000 (40m)-V5-(0.1% FS)

●MS905A-50000 (50m)-V5-(0.1% FS)

●MS906A-60000 (60m)-V5-(0.1% FS)

●MS907A-60000 (70m)-V5-(0.1% FS)

●MS908A-60000 (80m)-V5-(0.1% FS)

●MS909A-90000 (90m)-V5-(0.1% FS)

●MS910A-100000 (100m)-V5-(0.1% FS)

●Analog Draw Wire Displacement Sensor (IP54) (0.1%FS)

●(3 Wire, output=0~10Kohm) (working voltage=10~24VDC)

●MS9005A-5000 (5m)-R10)-(0.1% FS)

●MS901A-10000 (10m)-R10-(0.1% FS)

●MS9015A-15000 (15m)-R10-(0.1% FS)

●MS902A-20000 (20m)-R10-(0.1% FS)

●MS903A-30000 (30m)-R10-(0.1% FS)

●MS904A-40000 (40m)-R10-(0.1% FS)

●MS905A-50000 (50m)-R10-(0.1% FS)

●모터피드백●디지털샤프터카핑●메저링드루우 와이어시스탬

●엘리베이터 의정확한위치●엘리베이터 의속도측정

●리프터 산업용기기 (크레인)●리프터 산업용기기 (지게차)

●길이측정시스템●증분형 로터리엔코더 (인크루메탈 로타리엔코더)

●증분형 엔코더 (인크루메탈 로타리엔코더)

●절대형 로터리엔코더 (엡솔루트 엔코더)

●절대치 엔코더 (엡솔루트 엔코더)
